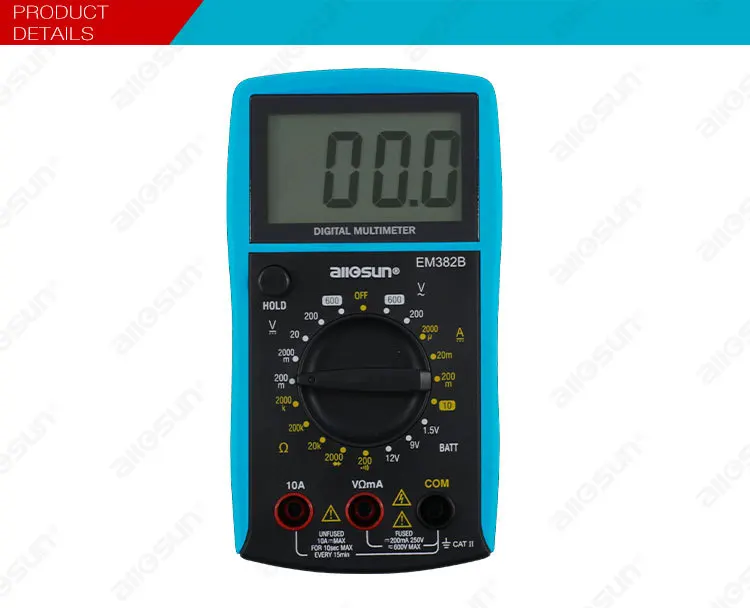

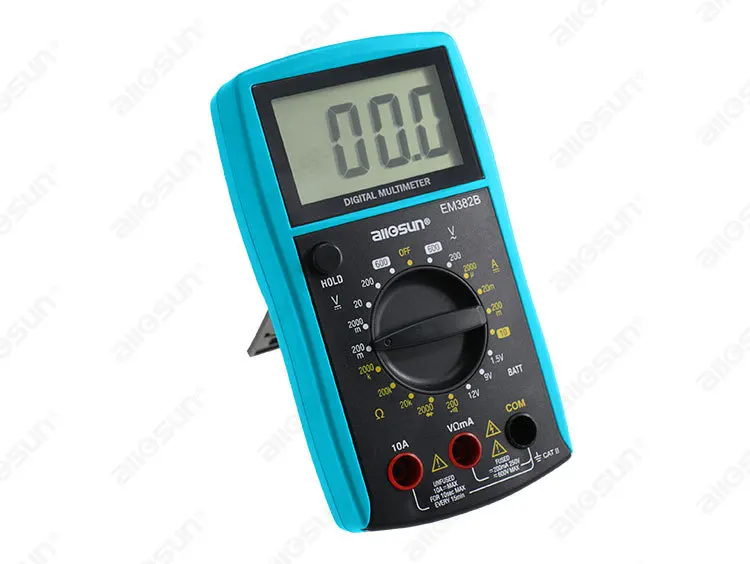

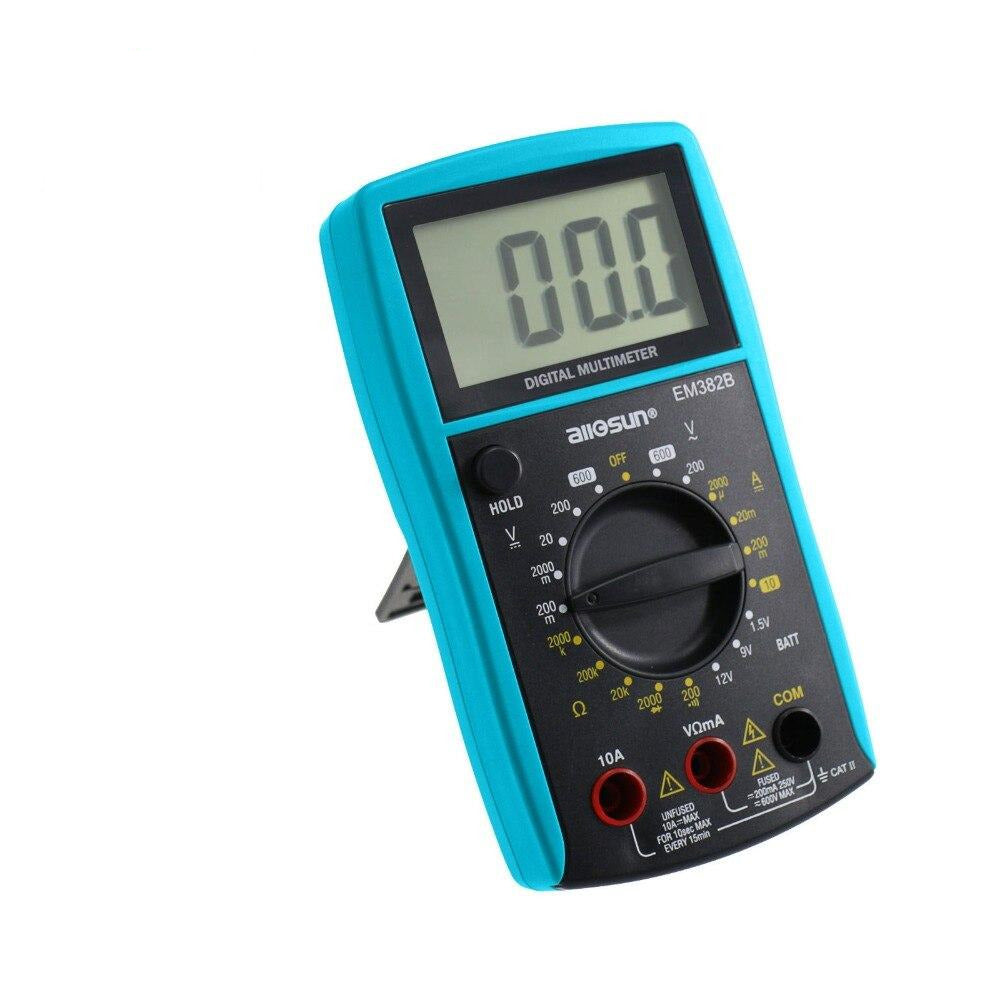

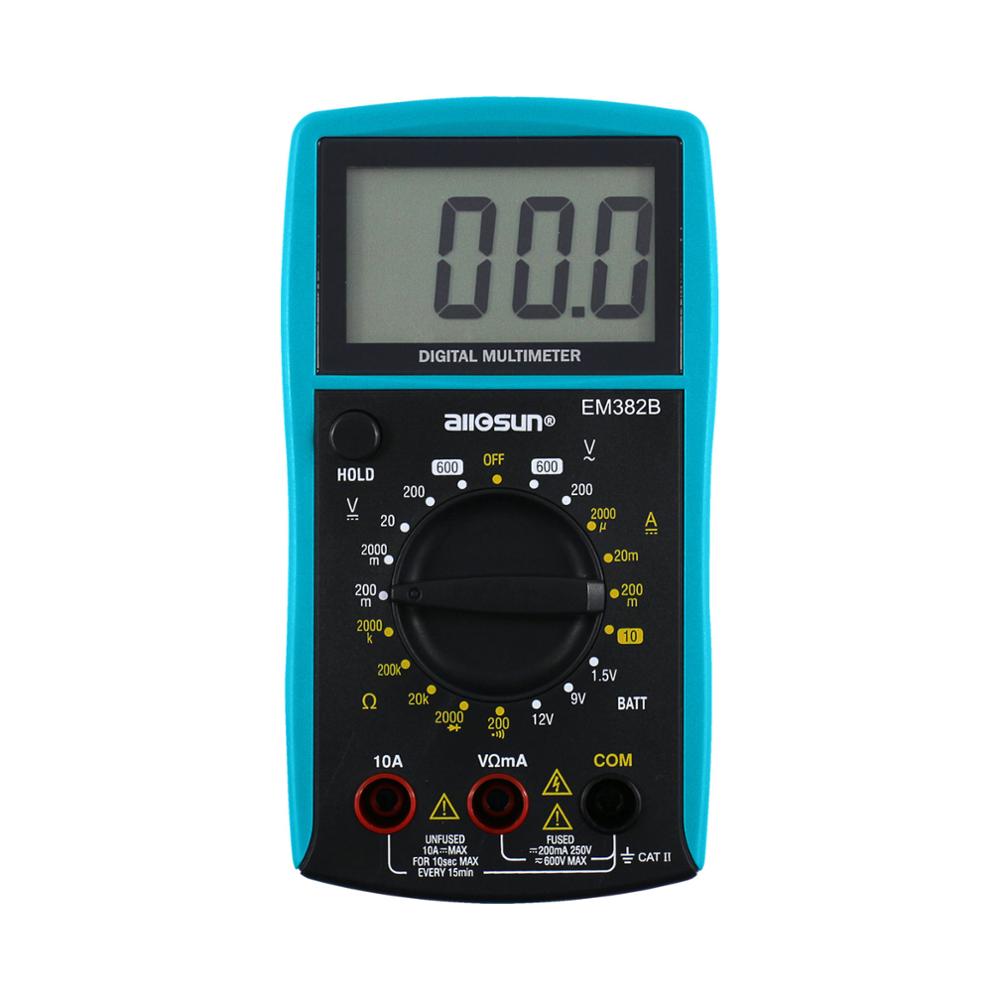

EM382B LCD Display Electric Handheld Tester Meter Digital Multimeter DC AC Voltmeter Continuity Battery Diode

EM382B LCD Display Professional Electric Handheld Tester Meter Digital Multimeter DC AC Voltmeter Continuity Battery Diode

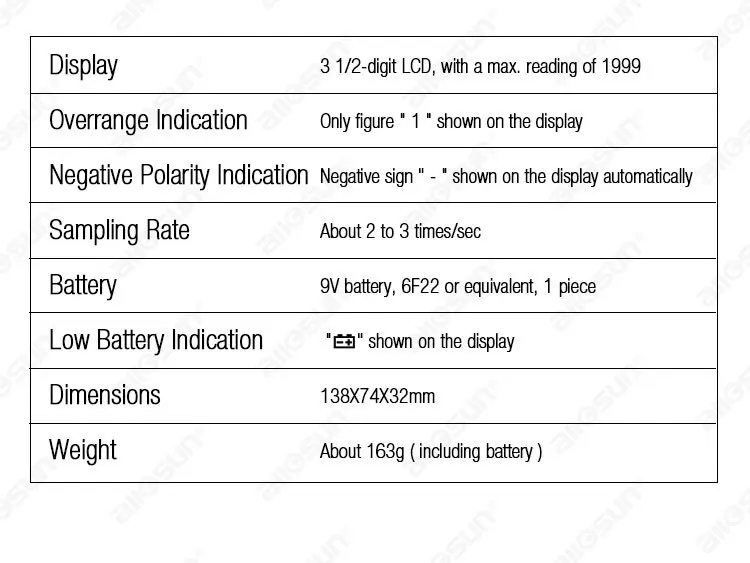

General Specification >>>

* Display: 3 1 /2-digit LCD, with a max. reading of 1999

* Overrange Indication: Only figure " 1 " shown on the display

* Negative Polarity Indication: Negative sign "- " shown on the display automatically

* Sampling Rate: About 2 to 3 times/sec

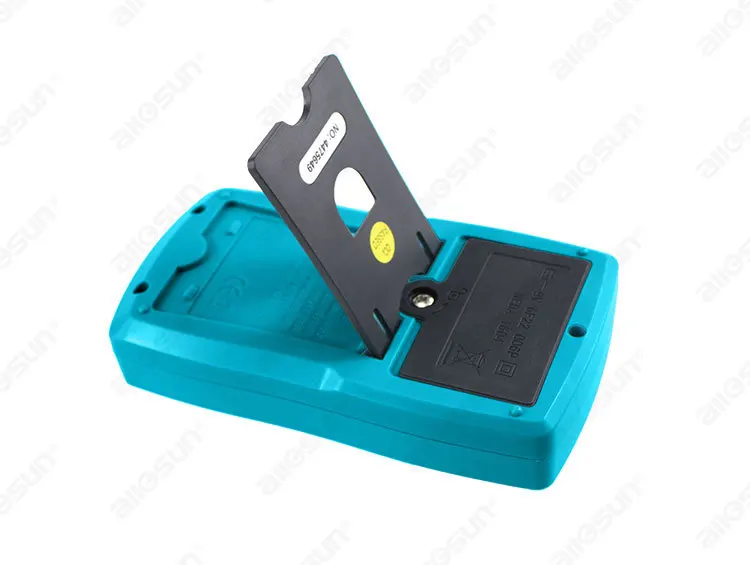

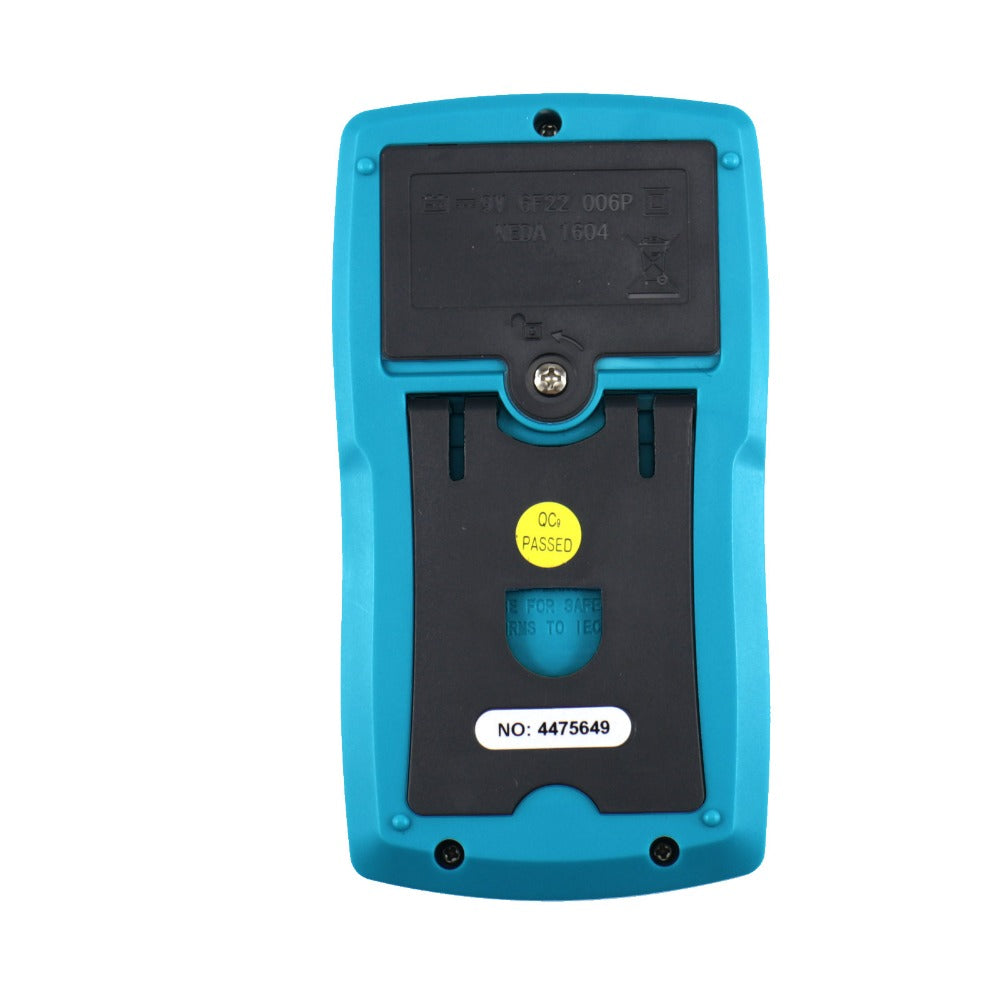

* Battery: 9V battery, 6F22 or equivalent, 1 piece( NOT INCLUDED BATTERY IN THE PACKAGE CONTENT).

* Operating Environment: Temperature: 0°C to 50°C

                   * Relative Humidity: < 75%RH

* Storage Environment: Temperature: -10°C to 60°C

                   * Relative Humidity: < 85%RH

* Dimensions: 138X74X32mm

* Weight: About 163g

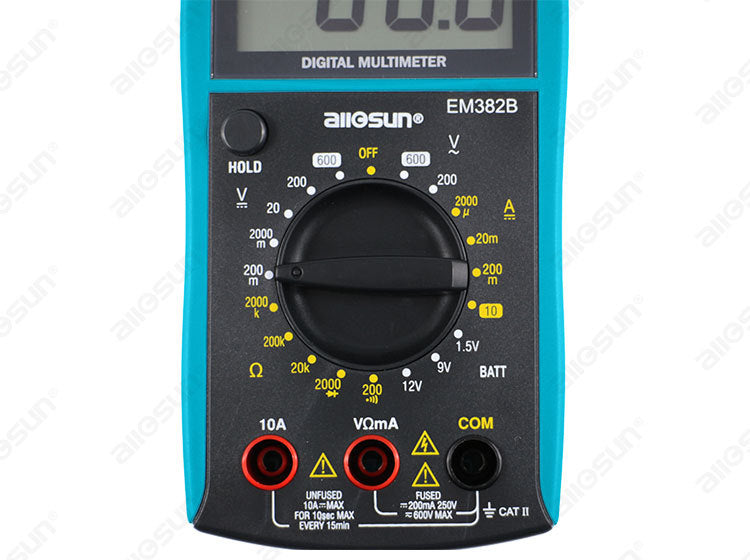

Specification >>>

Voltage DC: 200m ~ 600V

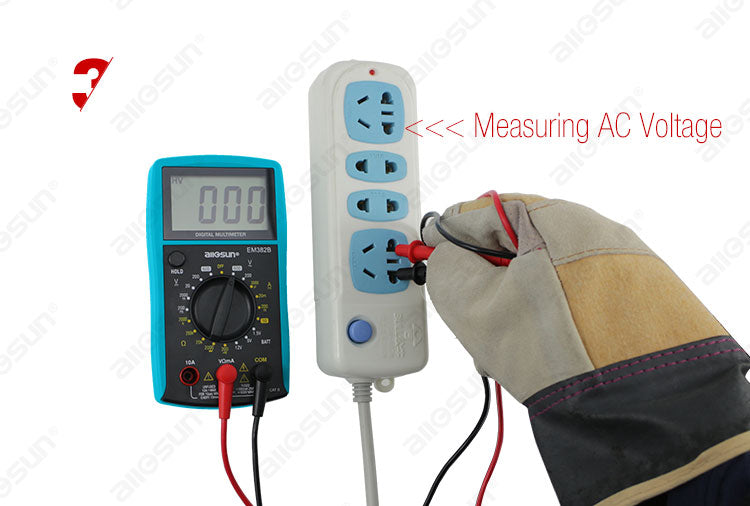

Voltage AC: 200 ~ 600V

Current DC: 2000u ~10A

Resistance: 200 ~200kΩ

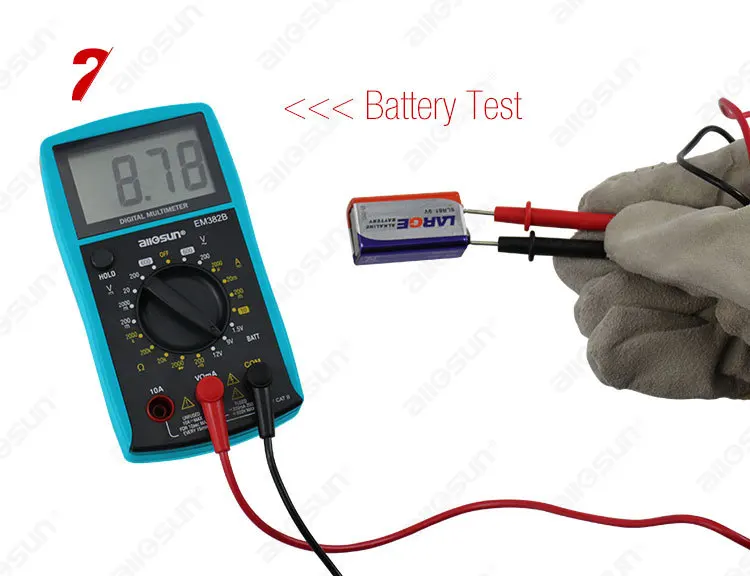

Battery Test: 1.5V,9V,12V

Diode Check: Less than 30Ω

Continuity: approx. 2.8V

Features >>>

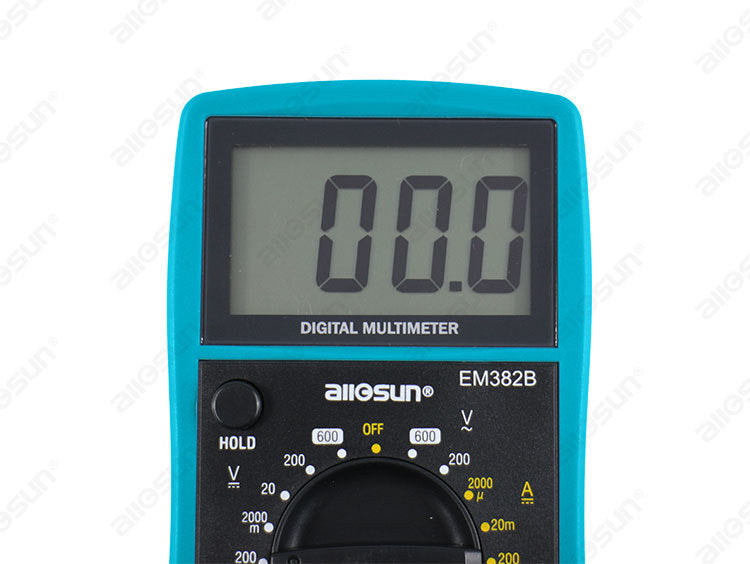

* Large LCD display 55x33mm, easy to reading

* 3 1/2-digit LCD,with a max, reading 1999

* Automatic polarity indication

* Data-hold mode

* Overload protection

* Low battery indication

* IEC-61010 CATII

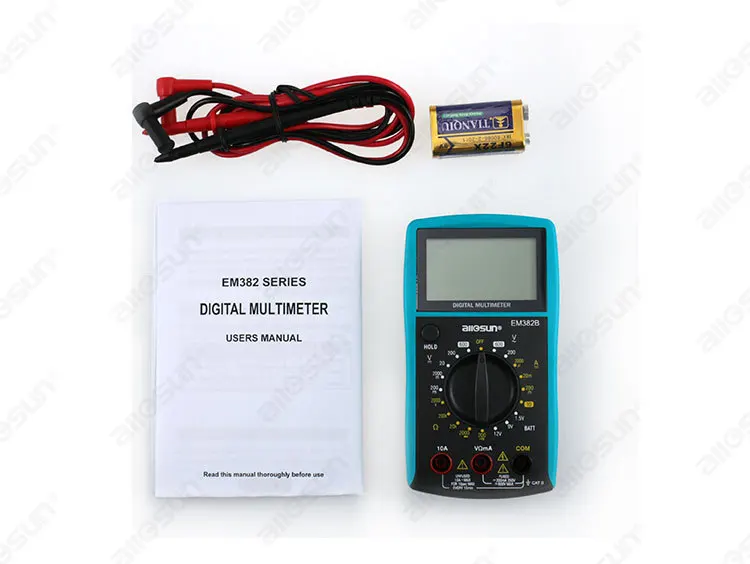

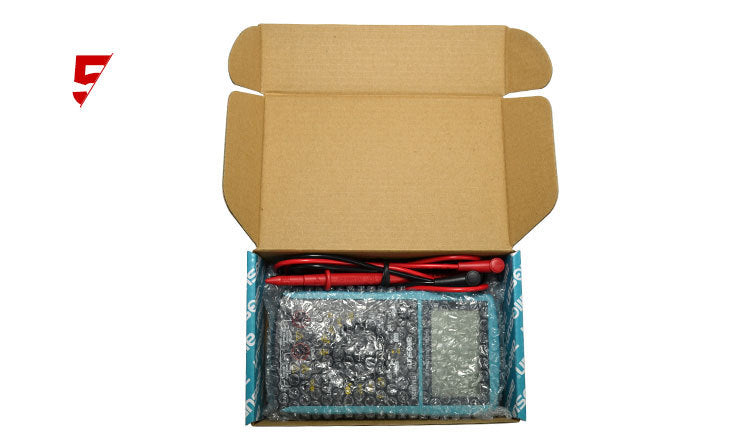

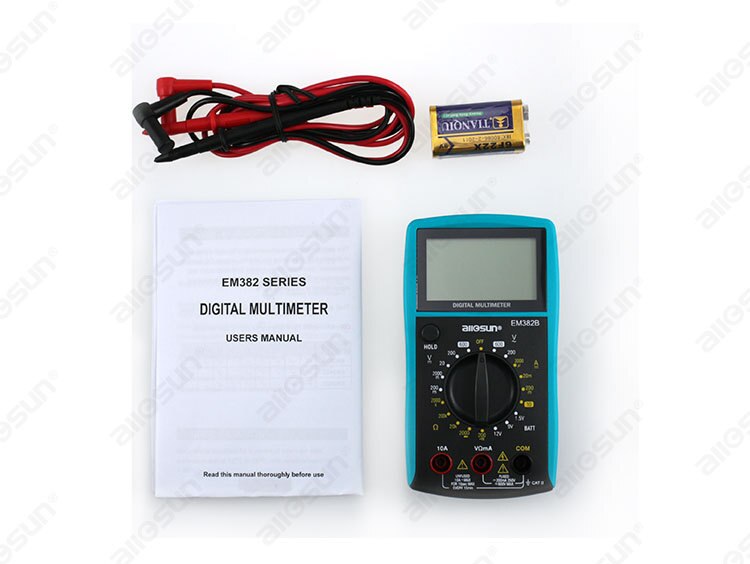

Accessories >>>

1.  EM382B digital multimeter x 1 pc

2. Users Manual x 1 pc

3. Test Lead x 1 pair
