Latest version mAT-10 HF Automatic Antenna Tuner For YEASU FT-817 FT-818 QRP Transceiver 0.1-30W
Latest version mAT-10 HF Automatic Antenna Tuner For YEASU FT-817 FT-818 QRP Transceiver 0.1-30W
Sale
Sold out
Pre-order
Regular price
$338.26 USD
Regular price
$520.40 USD
Sale price
$338.26 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Manual download link:
http://www.mat-tuner.com/en/mAT-10.php

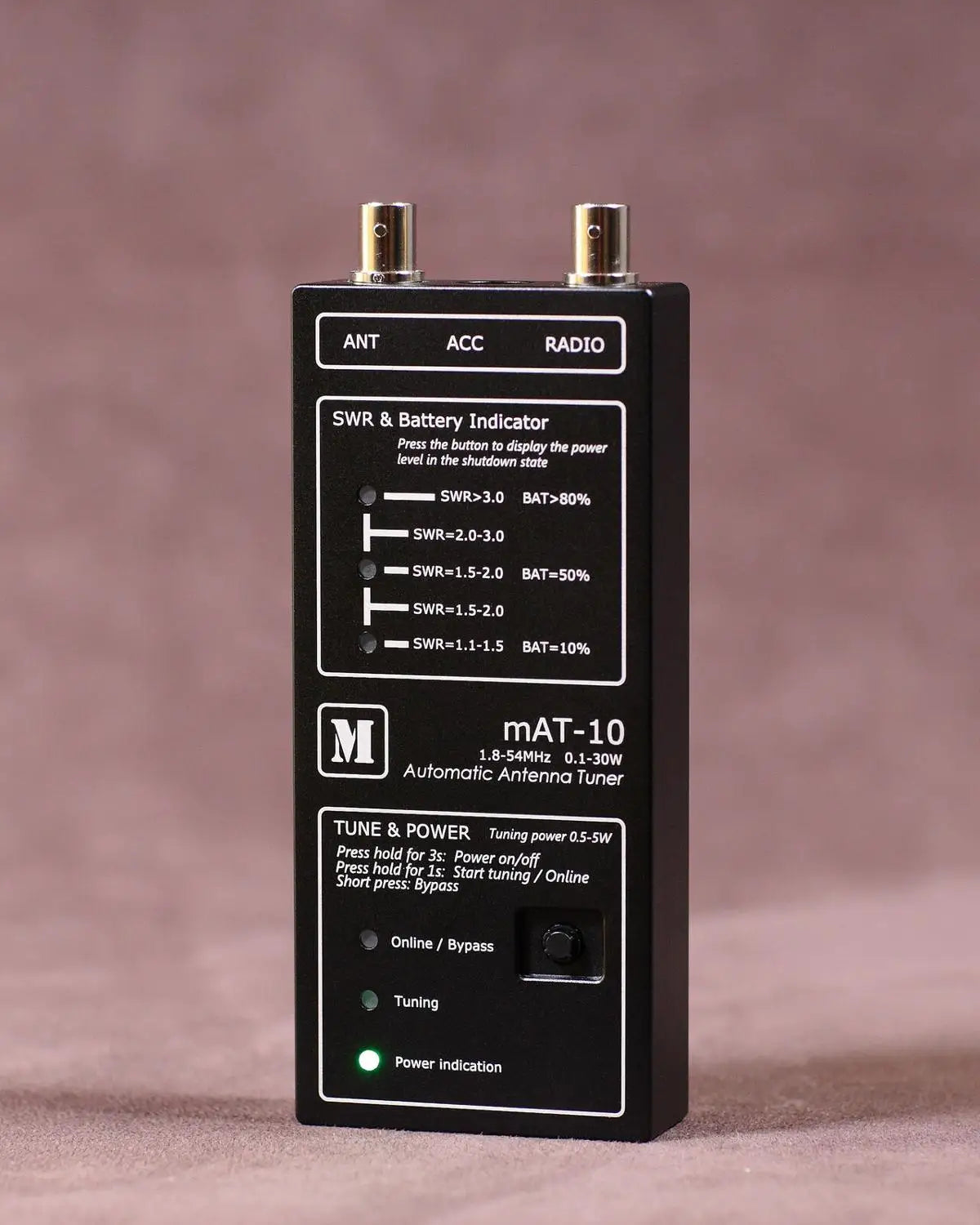

The mAT-10 is a compact and exquisite tuner designed for YAESU FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated data cable mAT-CY, it is a dedicated tuner, which can achieve convenient "one-key tuning". If no data cable is used, it is a universal QRP tuner for all low-power transceivers.

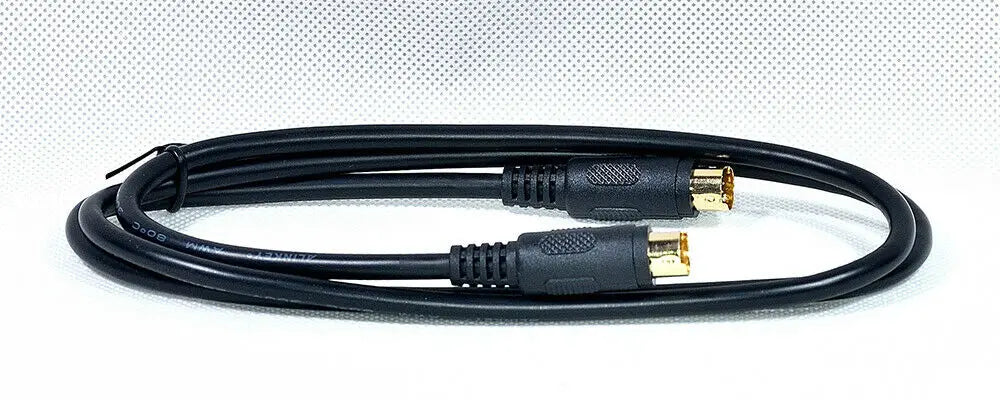

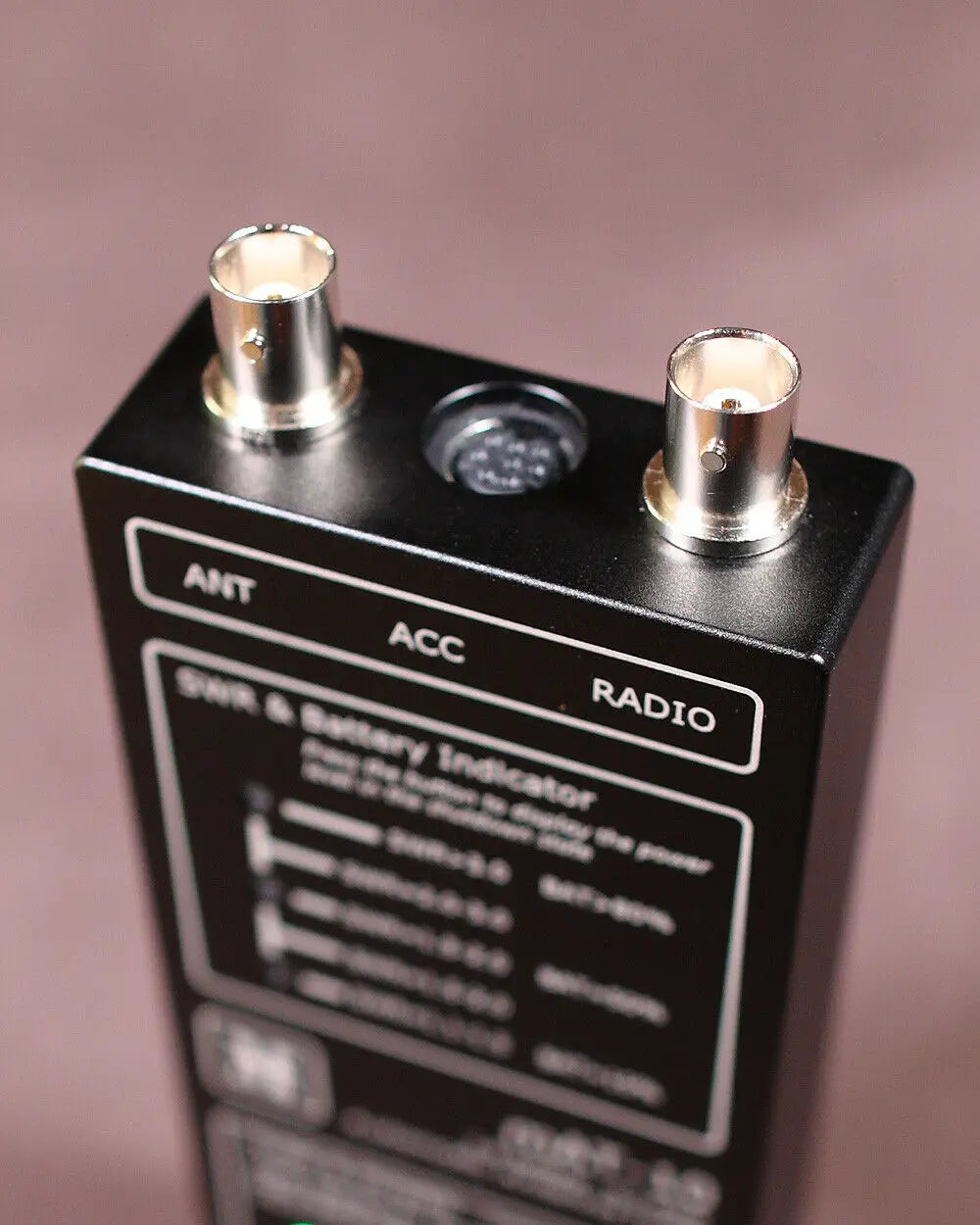

The mAT-10 is connected to the ACC port of the FT-817/818 transceiver through data cable. The ACC interface allows an external device such as a PC or the mAT-10 to control the FT-817/818 by sending it serial commands. The mAT-10 has the function of "one key tuning". When the multi-function key on tuner is pressed, the mAT-10 will automatically control the start-up tuning of transceiver.

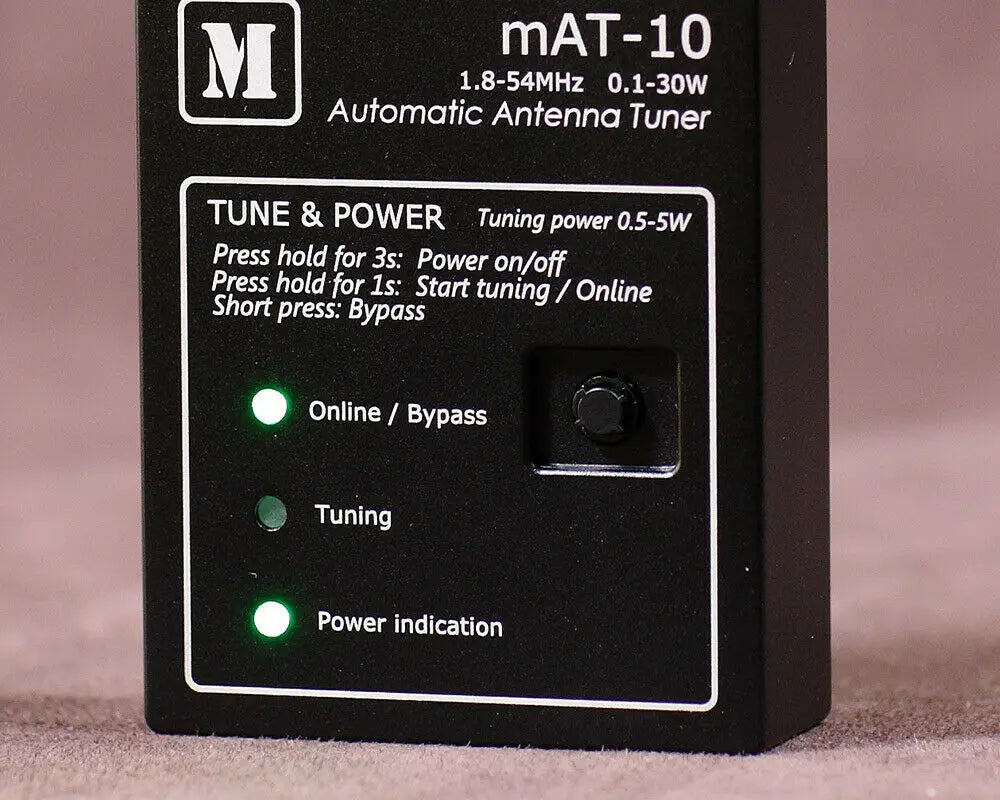

When mAT-10 is used in other QRP transceivers, it does not need data cables and can work only by connecting RF cables. The tuning process can be completed by pressing the Multi-function on the panel, its operation is very simple.
The tuner can work within the range of 1.8MHz to 54MHz, at power levels up to 30 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
The mAT-10 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-10 uses “Memory Tune” to recall the previous tuning parameters in a fraction of a second.If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-10 “learns” as it is used, adapting to the bands and frequencies as it goes. You can also start a tuning cycle manually whenever necessary.
Two 10440 lithium batteries are installed in the interior of the mAT-10, which provides power for the tuner. Because of the use of advanced magnetic retaining relays, the power consumption of mAT-10 is very small, the lithium battery can work for a long time after it is fully charged. It is very suitable for outdoor use. Special chargers are provided with tuners. You must use its own charger to charge the tuner. It is dangerous to charge with an incorrect charger.
Description
Description
Manual download link:
http://www.mat-tuner.com/en/mAT-10.php
The mAT-10 is a compact and exquisite tuner designed for YAESU FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated data cable mAT-CY, it is a dedicated tuner, which can achieve convenient "one-key tuning". If no data cable is used, it is a universal QRP tuner for all low-power transceivers.
The mAT-10 is connected to the ACC port of the FT-817/818 transceiver through data cable. The ACC interface allows an external device such as a PC or the mAT-10 to control the FT-817/818 by sending it serial commands. The mAT-10 has the function of "one key tuning". When the multi-function key on tuner is pressed, the mAT-10 will automatically control the start-up tuning of transceiver.
When mAT-10 is used in other QRP transceivers, it does not need data cables and can work only by connecting RF cables. The tuning process can be completed by pressing the Multi-function on the panel, its operation is very simple.
The tuner can work within the range of 1.8MHz to 54MHz, at power levels up to 30 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
The mAT-10 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-10 uses “Memory Tune” to recall the previous tuning parameters in a fraction of a second.If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-10 “learns” as it is used, adapting to the bands and frequencies as it goes. You can also start a tuning cycle manually whenever necessary.
Two 10440 lithium batteries are installed in the interior of the mAT-10, which provides power for the tuner. Because of the use of advanced magnetic retaining relays, the power consumption of mAT-10 is very small, the lithium battery can work for a long time after it is fully charged. It is very suitable for outdoor use. Special chargers are provided with tuners. You must use its own charger to charge the tuner. It is dangerous to charge with an incorrect charger.
