ATU-130 200W HF Automatic Antenna Tuner 3.5-54MHz Shortwave Antenna Tuner With Black Panel
Description:
ATU-130 is a 200w automatic antenna tuner. Improved on the basis of ATU-100, it is a miniature antenna tuner, your ideal HAM supplies.
Compared with ATU-100, it has these advantages:
- Fast MCU
- Better relay
- Better capacitor
- Bigger magnetic
- Thicker wire diameter
- Great power tolerance
Features:
- Adopt PIC18F2520, MCU (faster)
- Miniature HF automatic antenna tuner
- 8-20W tuning
- The third version adopts 4pcs large magnetic ring inductors, producing less heat that the previous version
- Adopt HF32, 10A, HF33, 5A relay
- Using high-voltage ceramic capacitors
- Maximum measurable SSB 225w max. It is recommended to use SSB not more than 200w for a long time. As for other continuous modes, not more than 130W (FT8, CW, FM)
- Size: 38 x 88 x 155mm/1.5 x 3.5 x 6.1" (without the size of protrusions)
- 0.5kg net weight: Portable to carry. Suitable for vehicle, indoor and outdoor fixed, etc.
- 1.9-54MHz (specifically affected by the length of the antenna and the degree of deviation of the standing wave)
- Tuning impedance range of 5Ω-1.2KΩ
- Can be used for various antennas, including long-line antennas (recommended), GP (recommended), inverted V, dipole, etc., to adjust standing waves and match the impedance of shortwave receivers. For antenna systems and feeder systems with baluns, the tuning range will be limited

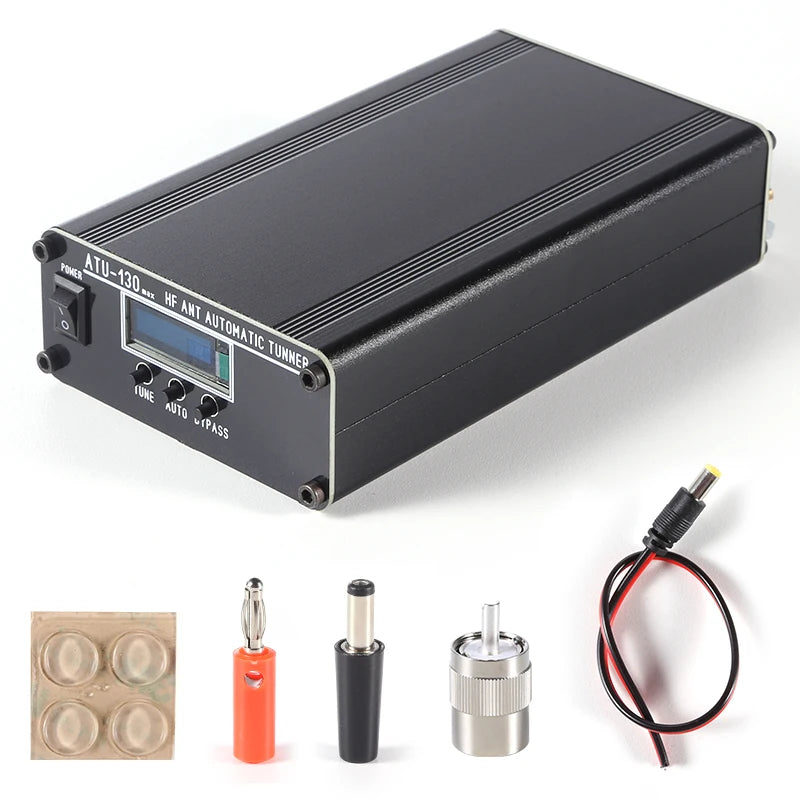

Package Included:
- 1 x Set of Antenna Tuner
Instructions:
Connect the power cord to 11-14vDC power supply. Connect a shortwave radio to the IN RF line of the automatic tuner. Connect a ground wire. The antenna is connected to the ANT of the tuner (M seat or quick socket). With Am, fm, cw 10-20w well tuned (within swr1.5), you can use high power.
Attention:
If manual operation is required, you can press auto once, the small dot in the middle of the screen LC will disappear, and the instrument is in manual mode. Press it again to switch to automatic mode. In special cases, after pressing tune to reset, the LC combination is set to zero.
