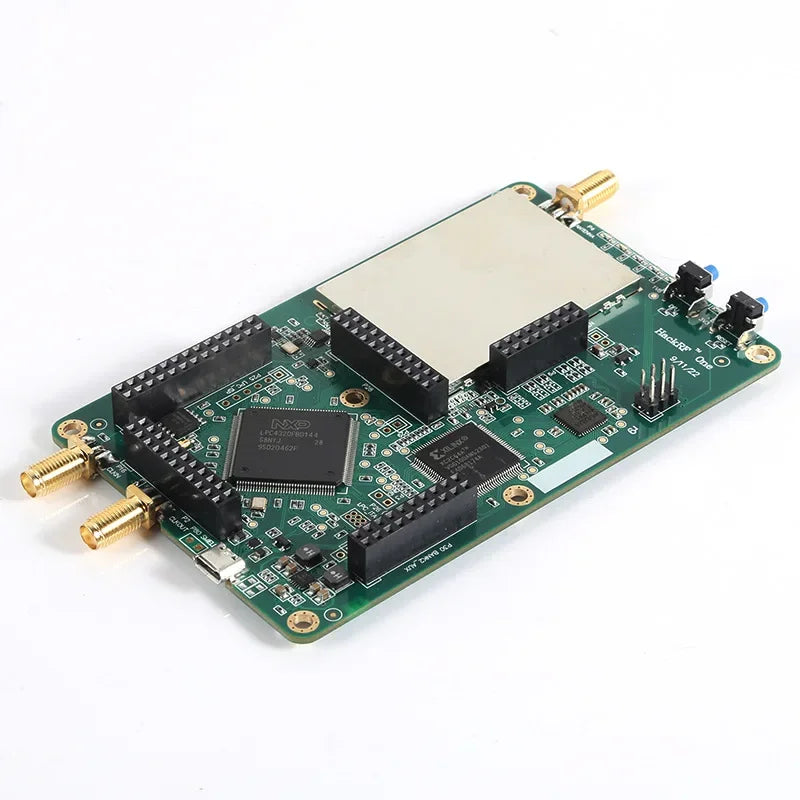

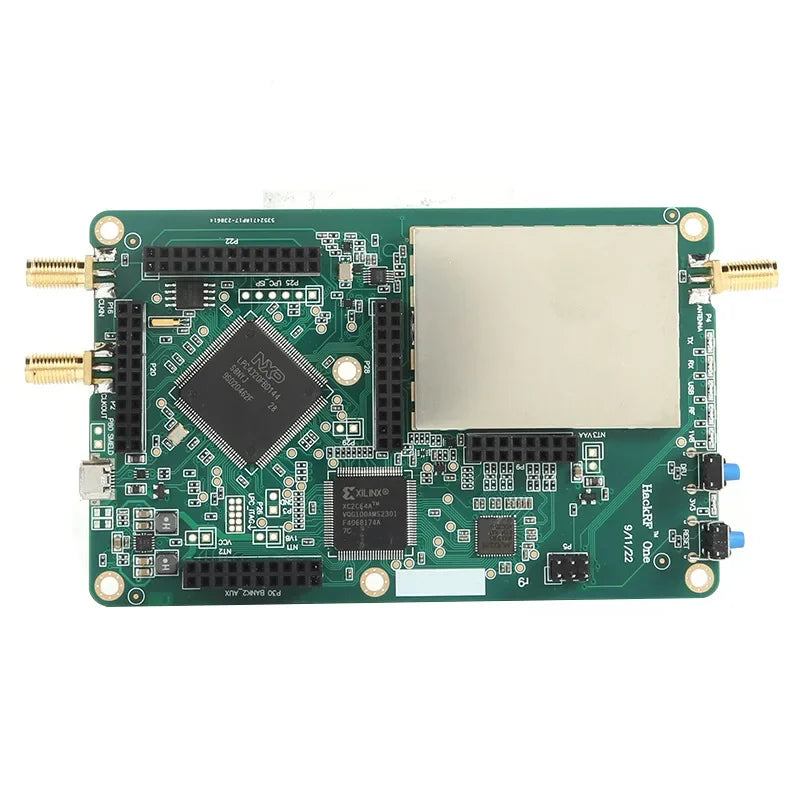

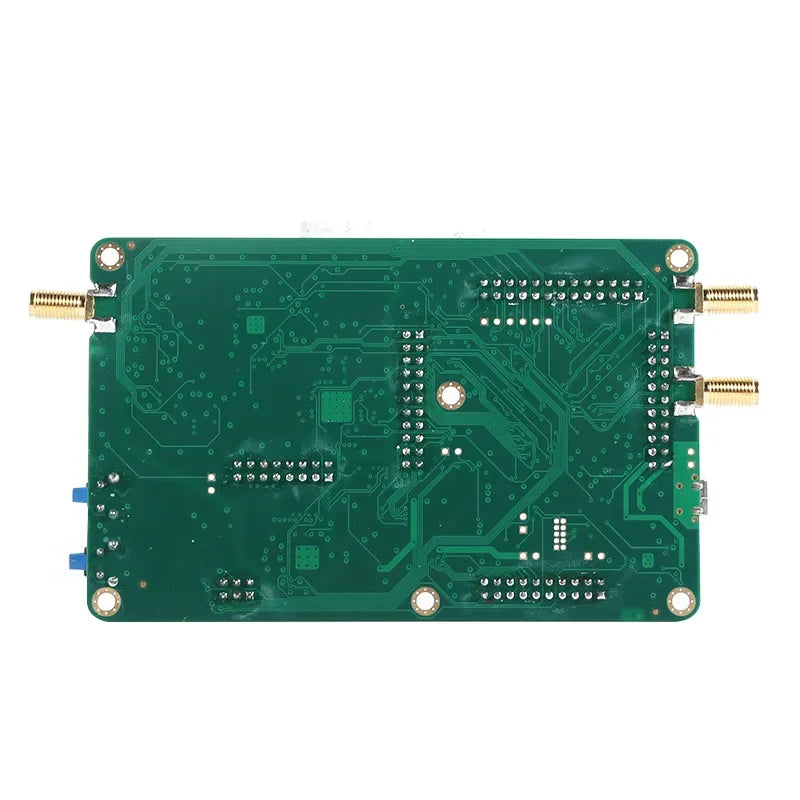

Latest 1MHZ-6GHZ Hackrf one R9 Open Source Hardware SDR Development Board with USB Antenna

1MHz-6GHz HackRF One R9 Software Defined Radio Development Board

Upgrades of HackRF One R9:
MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.

Attention:
1. The latest firmware is supported, support mayhem firmware, but not flashed .
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.

HackRF One Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)

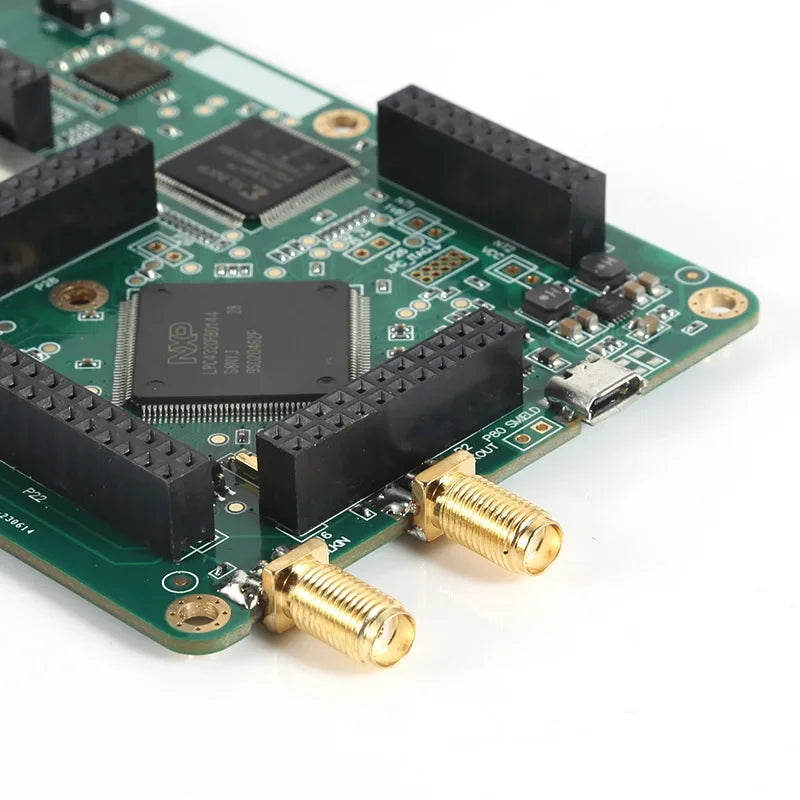

- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

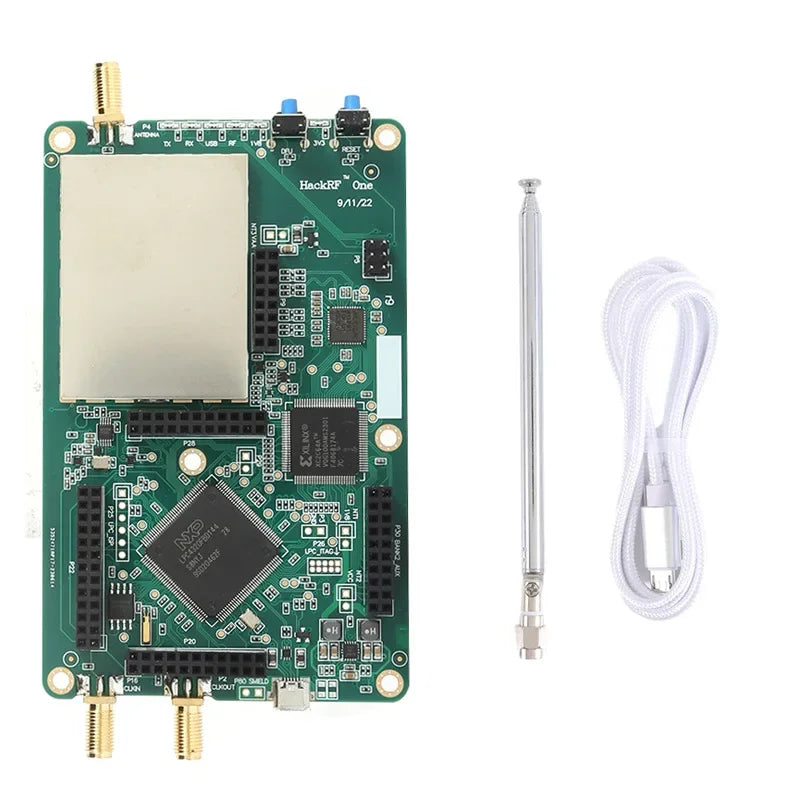

Package Included:
- 1 x HackRF One Board
- 1 x Extendable Antenna
- 1 x Data Cable
