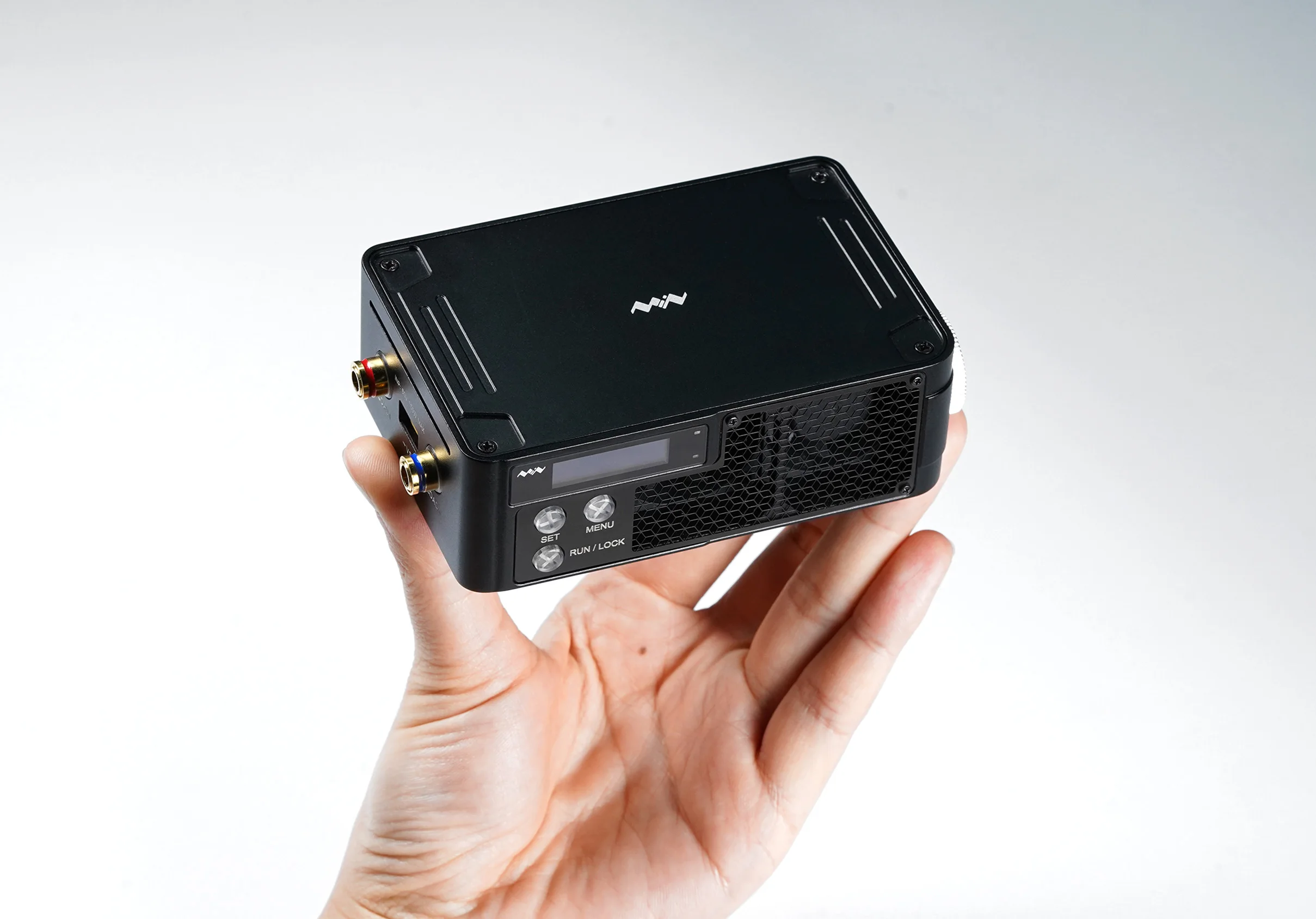

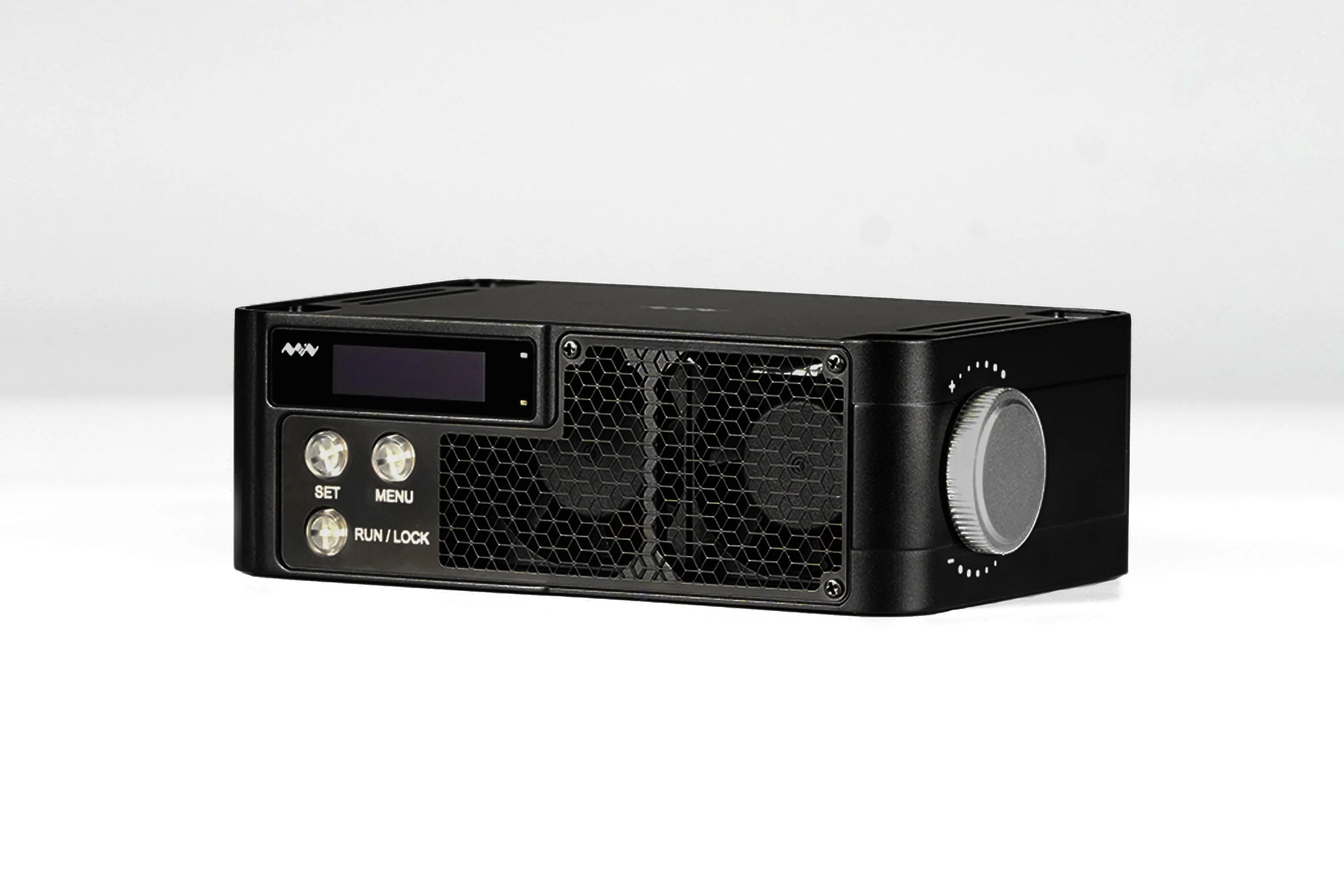

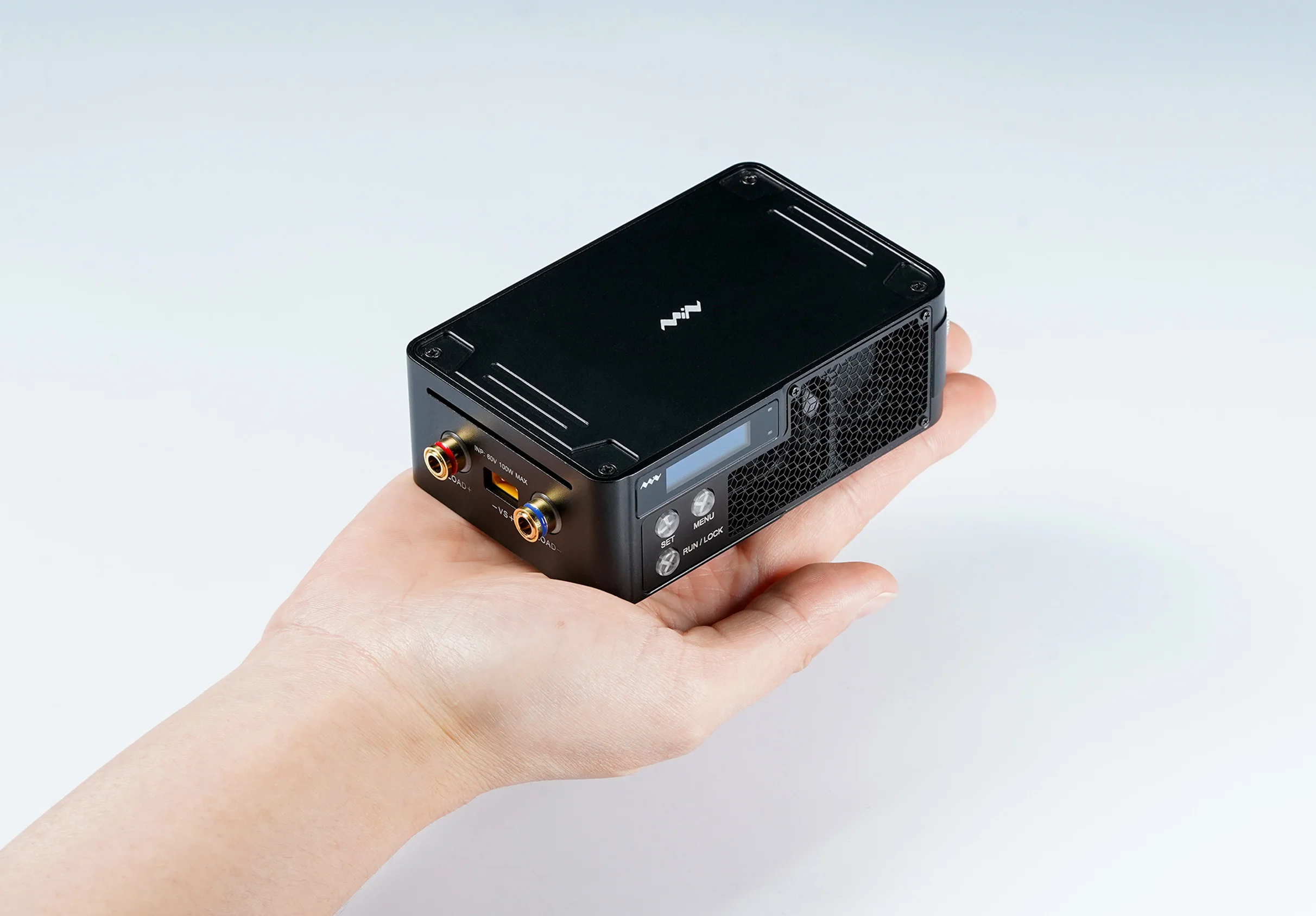

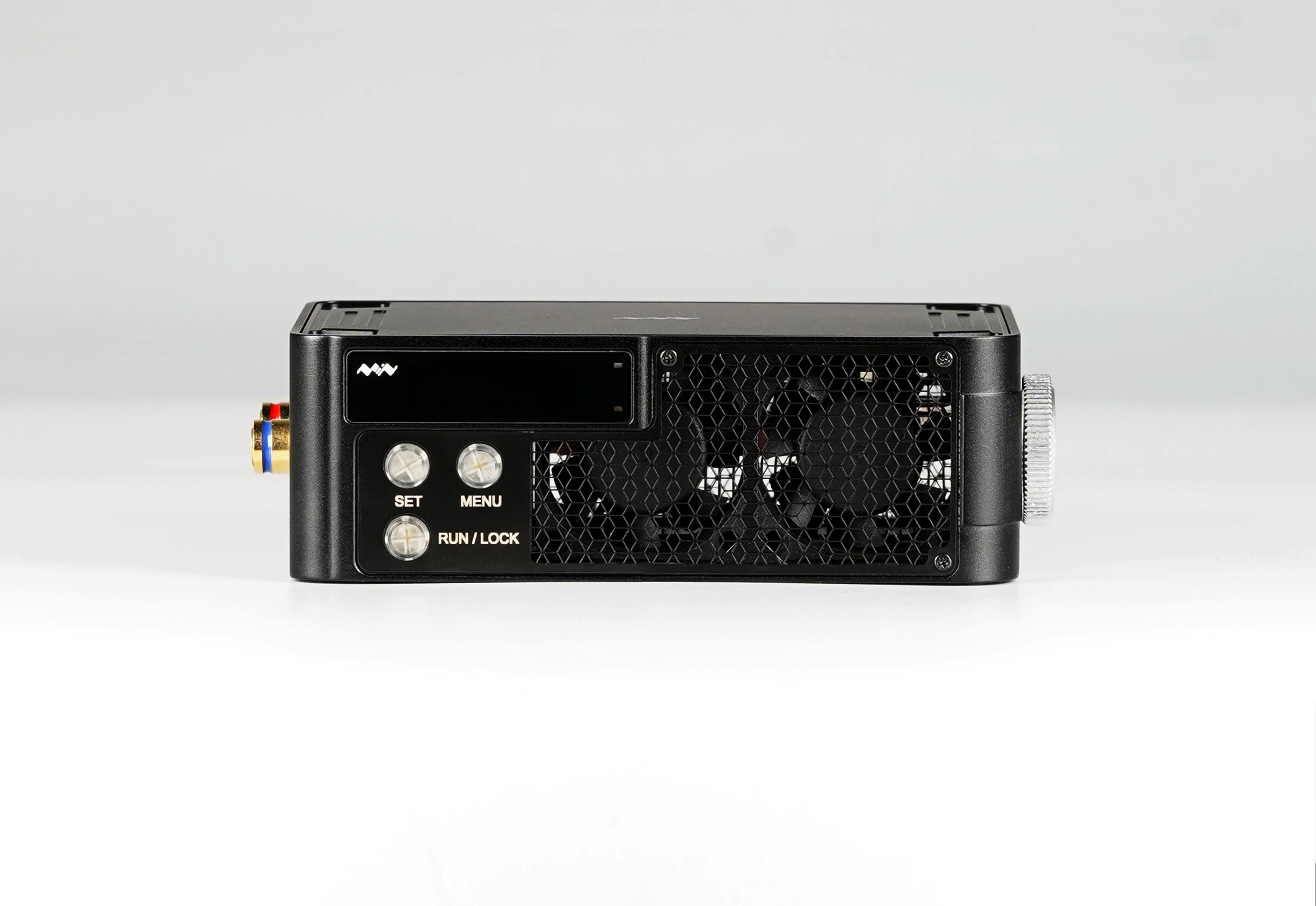

L1060 DC Electronic Load Programmable Battery Capacity Tester Digital Discharger Resistor Voltage Power Meter
Model: L1060
Power Input: DC 5V 2A
Input Power Jack: USB Type C
Battery Capacity: 650mAh
Max. Load Input Voltage: 60V
Max. Load Input Current: 10A
Max. Load Power: 100W
Working Mode: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP)
Protection support:
Overvoltage protection (OVP), undervoltage protection (UVP),
Over Current Protection (OCP), Over Power Protection (OPP),
Over Temperature Protection (OTP), Reverse Polarity Protection
Dimensions: 112X66.5X32mm
Net weight: 330g
1) Programmable intelligent DC electronic load module of MDP series with compact size, stackable design
2) Support four working modes as constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP) with 60V 10A 100W max. load input
3) Support over-voltage (OVP), under-voltage (UVP),over-current (OCP), over-power (OPP), over-temperature (OTP), Anti-Reverse (polarity) and other comprehensive intelligent safety protection function
4) Solid CNC aluminum alloy frame with built-in high-efficiency brass heat sinks and high-speed cooling fans for heat dissipation efficiently ensure long working time
5) Built-in 650mAh battery to meet short-term emergency load test cordless

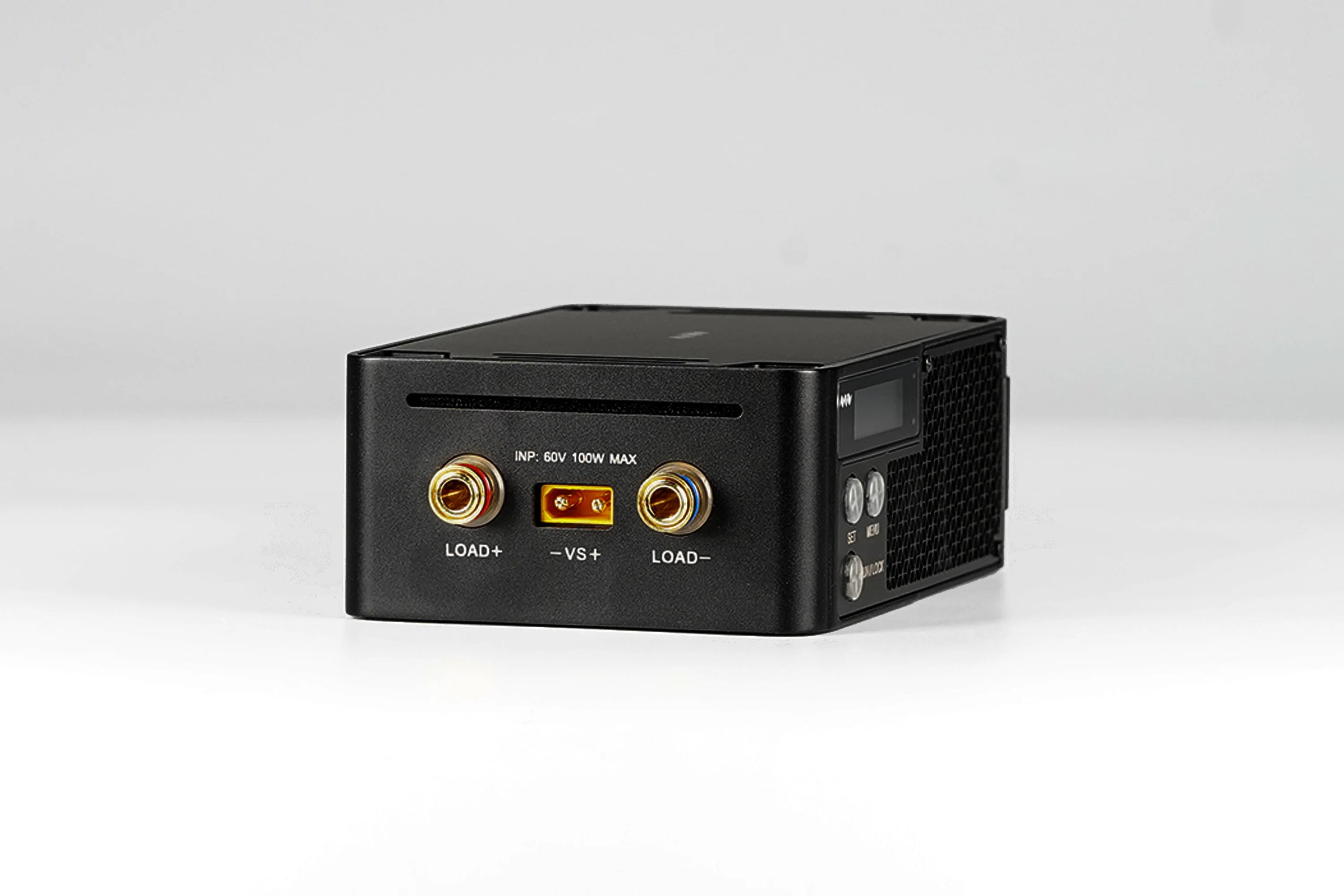

6) USB type C input jack and 4mm three-purpose gold-plated standard output port also spare XT30 port included ideal for various test scenarios of AC/DC power supplies, DC/DC converters, chargers, batteries, adapters and power electronic components.
Package Included:
1X L1060 DC Elctronics Load
