Manual Download:
https://www.kechuang.org/m/100005/a/568

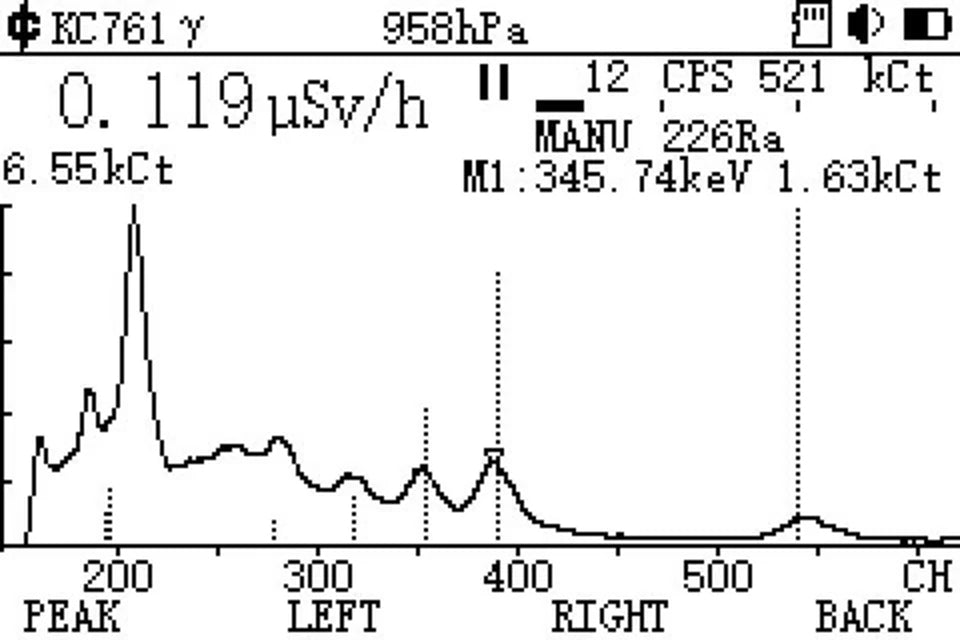

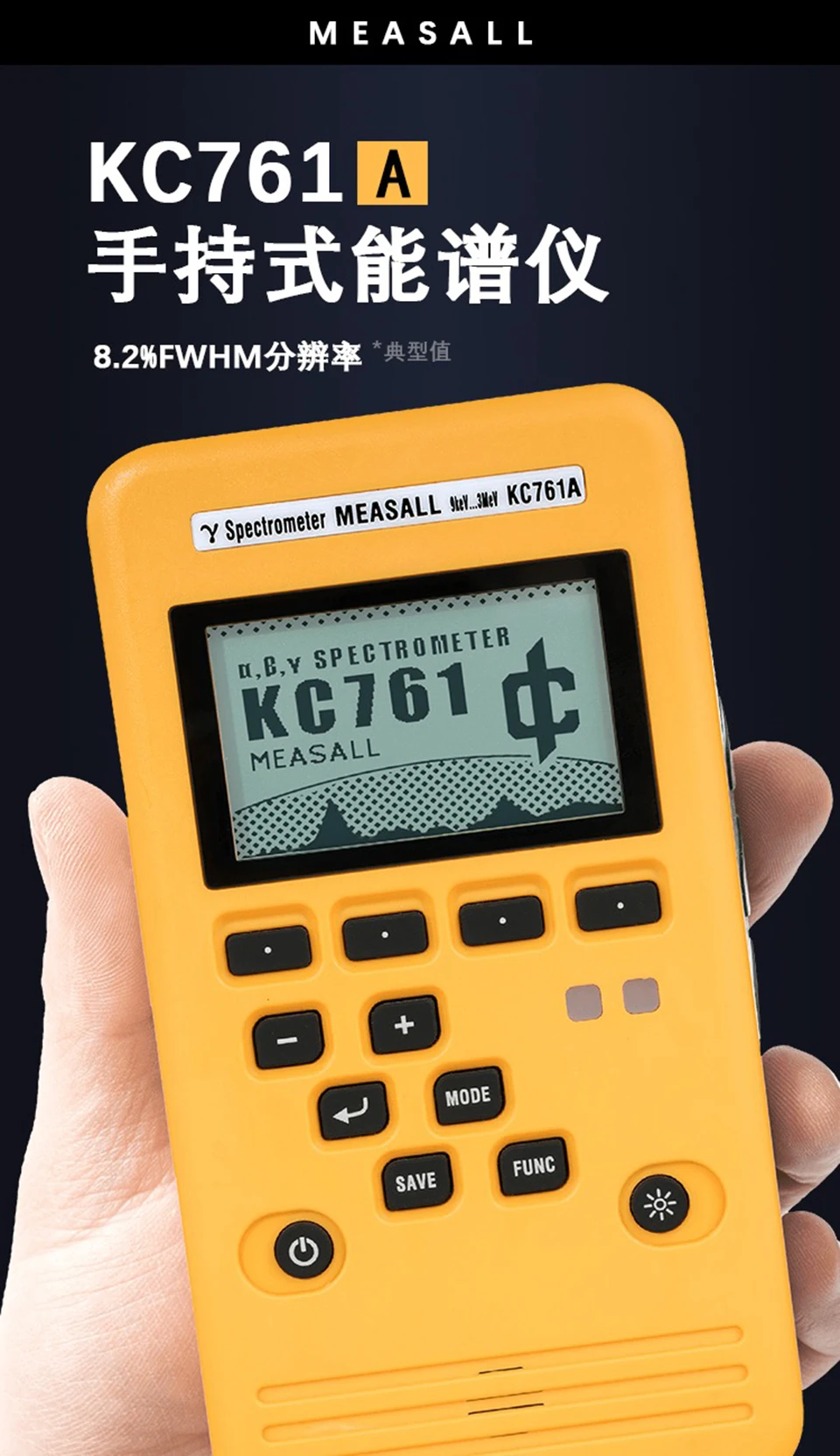

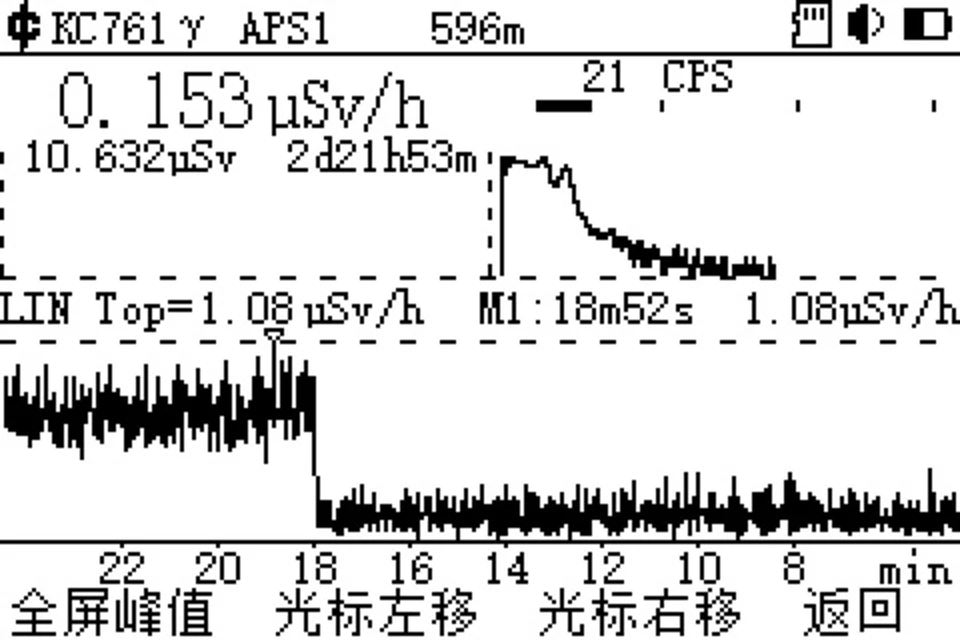

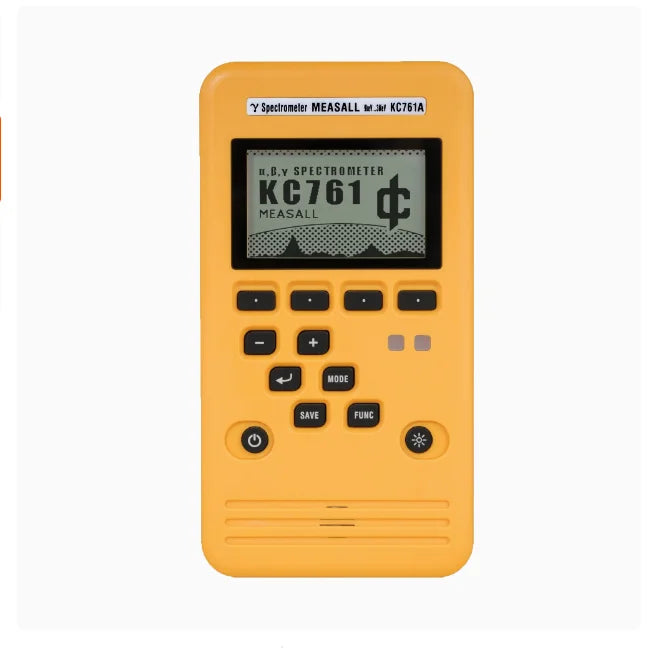

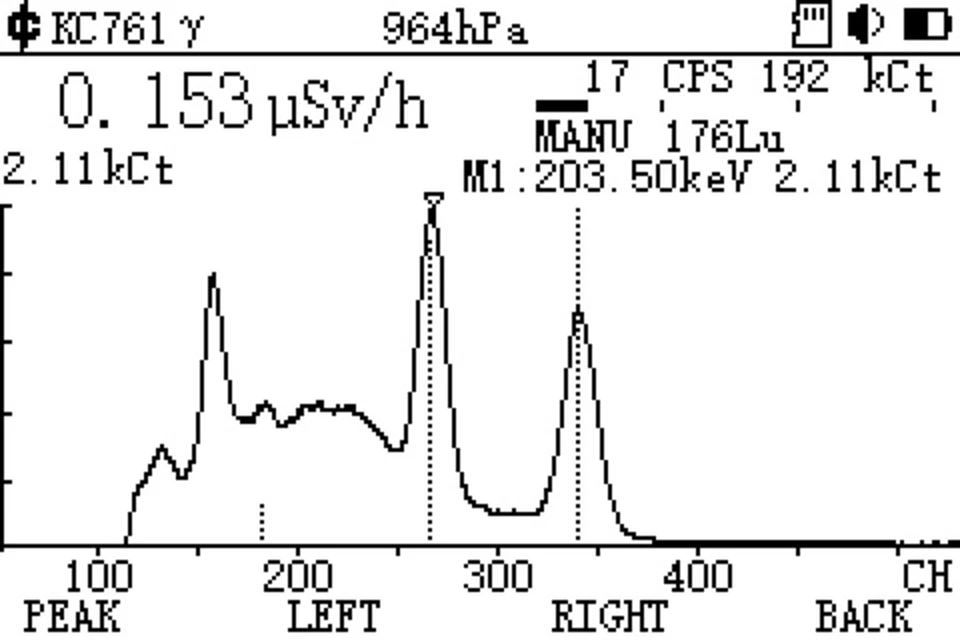

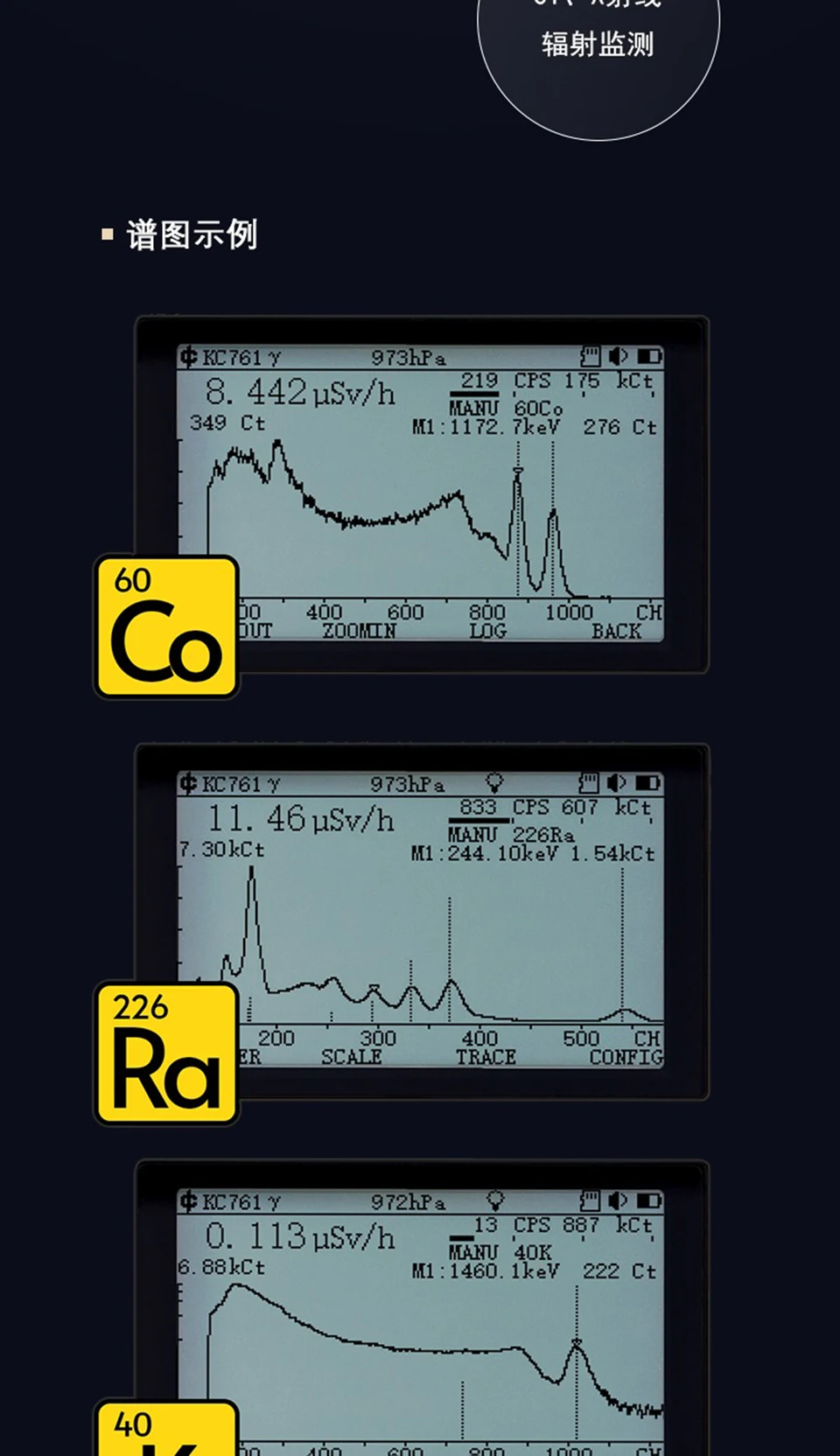

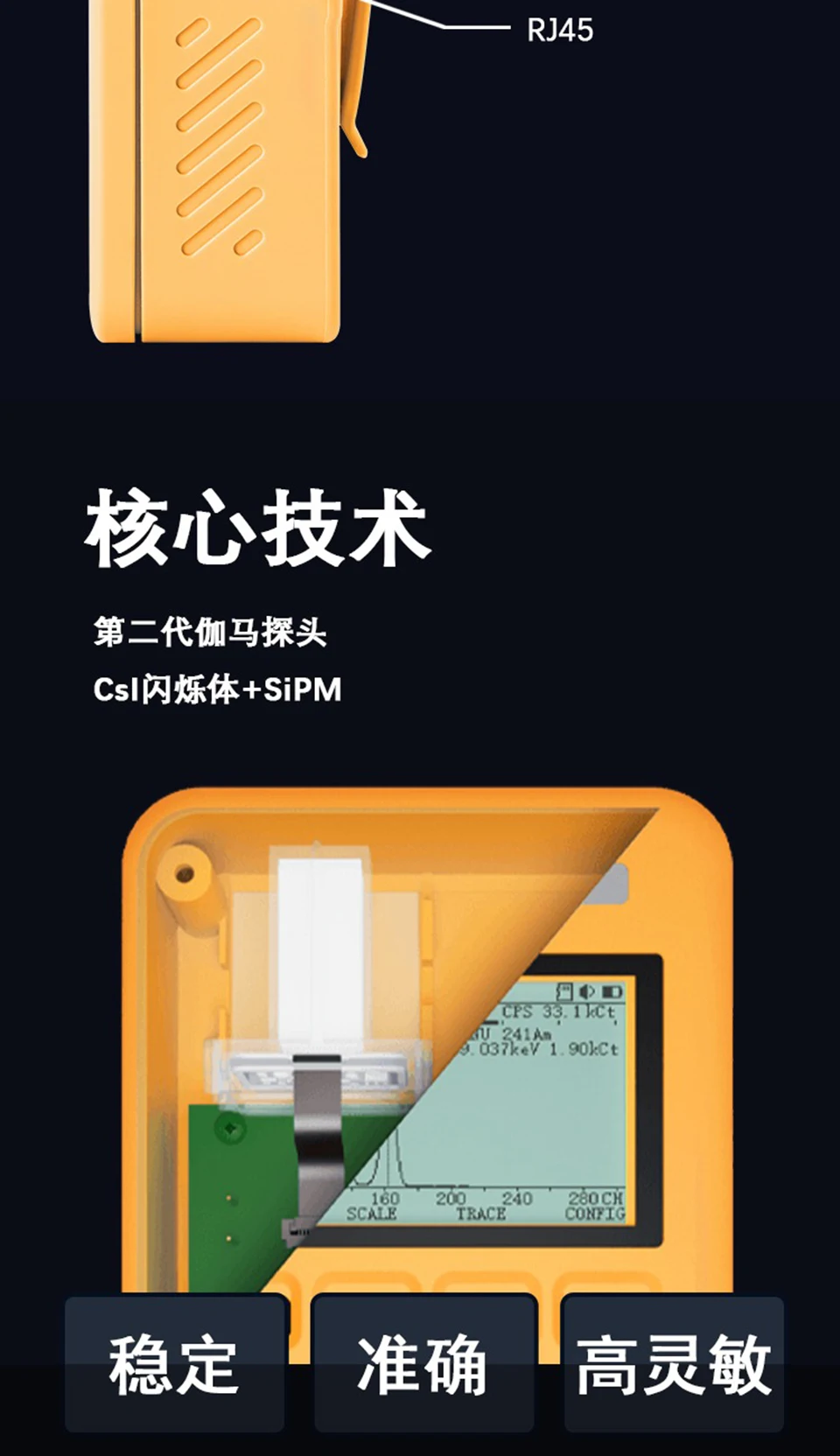

The KC761A radiation multimeter uses a 25.4×10×10mmCsI scintillation detector and a 4×4mmPIN sensor. It has a built-in multi-channel analyzer, which can display energy spectra and dose rate curves, and can store and export data.

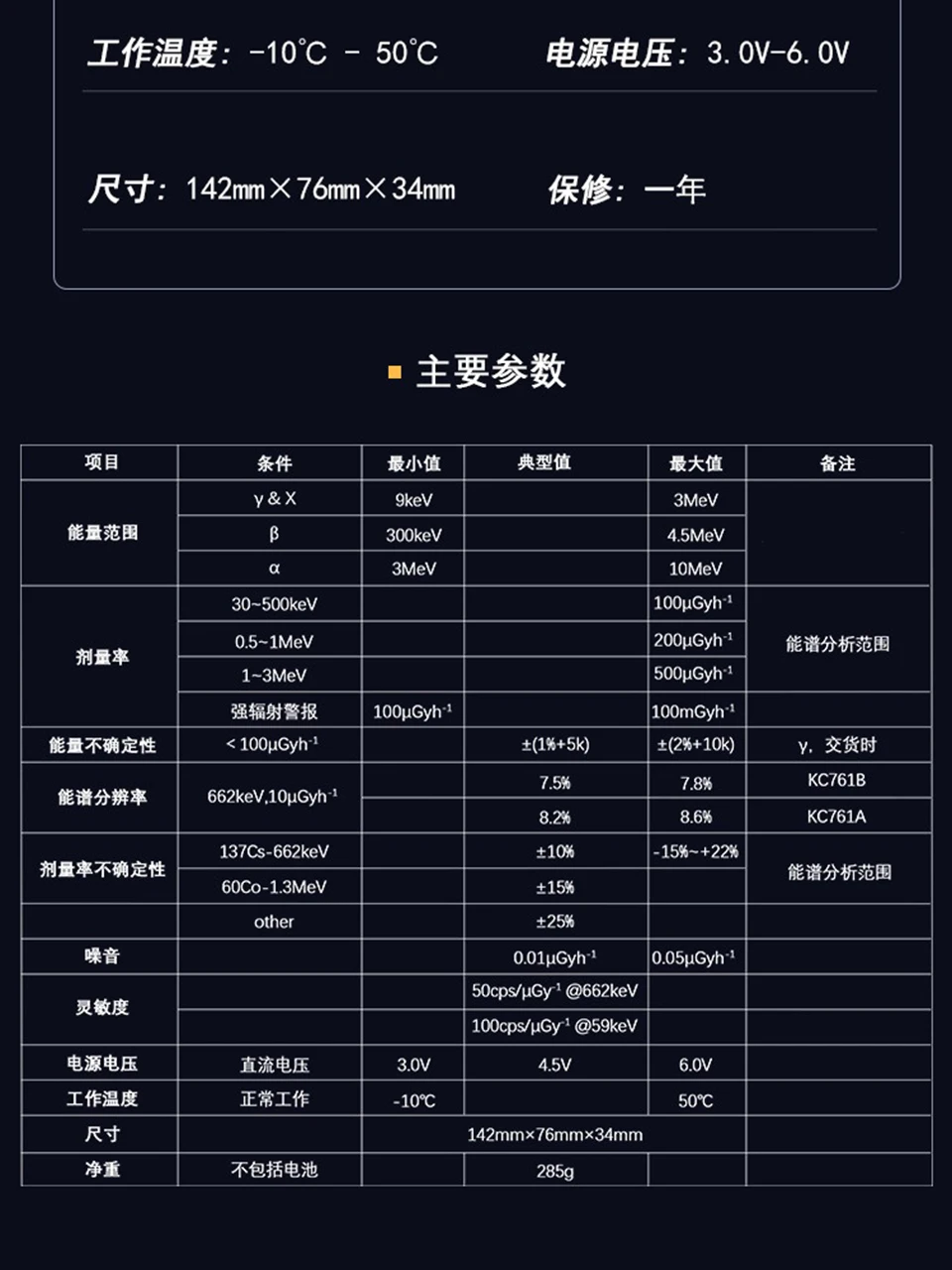

When used in accordance with the manual, for 662keV gamma rays, the energy resolution is guaranteed to be no worse than 8.6%, the typical resolution is 8.2%, the energy uncertainty is the factory rated value ±(2%+10keV), the typical value is ±(1%+ 5keV).
The CsI sensor has extremely high sensitivity, and its high-energy gamma efficiency is much better than that of a Geiger counter, and it can clearly display environmental background radiation and various weak radiations. It can be accumulated over a long period of time and find subtle differences in the radiation size of different natural materials.
For dose rate display, energy compensation is used from background to 100 μGy/h, with good accuracy, and the dose equivalent rate (H10) in μSv/h is provided; there is no energy compensation above 100 μGy/h and is used for event reporting.
Built-in thermometer and barometer can display the altitude converted from air pressure.
Power-saving design, using alkaline dry batteries, it can work continuously for 300 hours (more than 10 days).
You can use nickel metal hydride rechargeable batteries, connect to external power supply to automatically charge the battery, and stop when full.

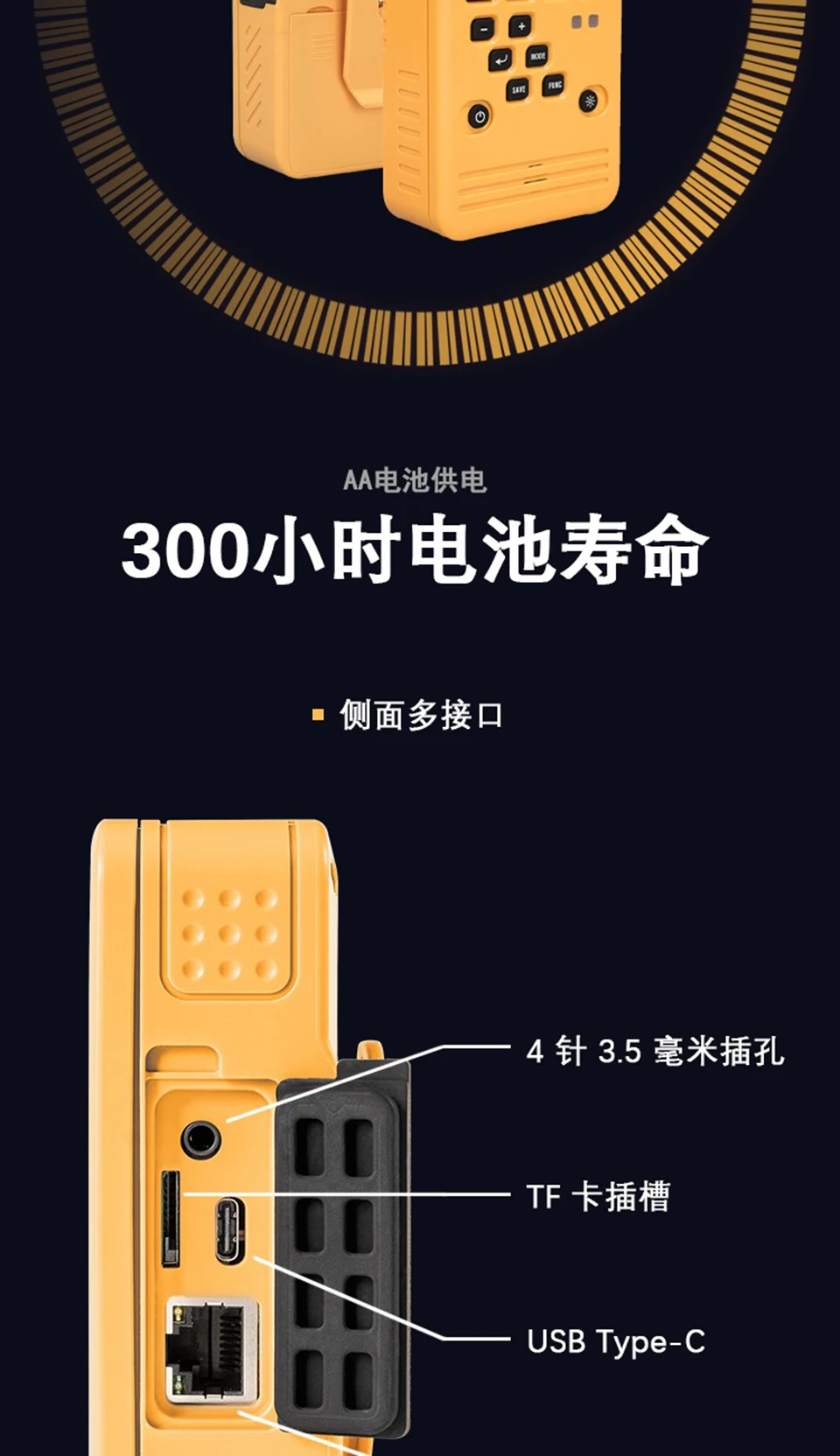

Supports USB and POE power supply, network port, Bluetooth data transmission, TF card storage, and can be used for continuous monitoring.

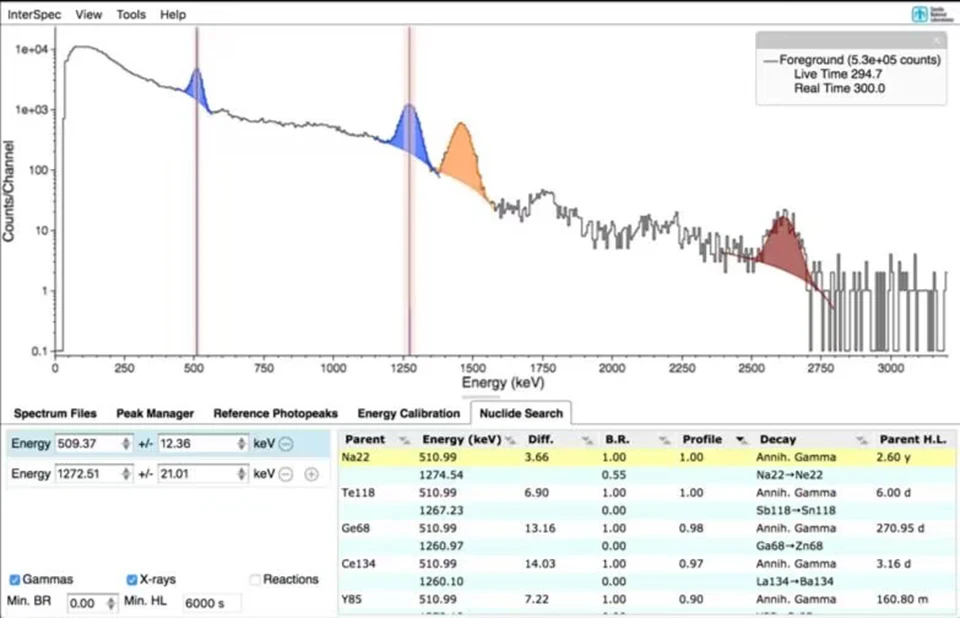

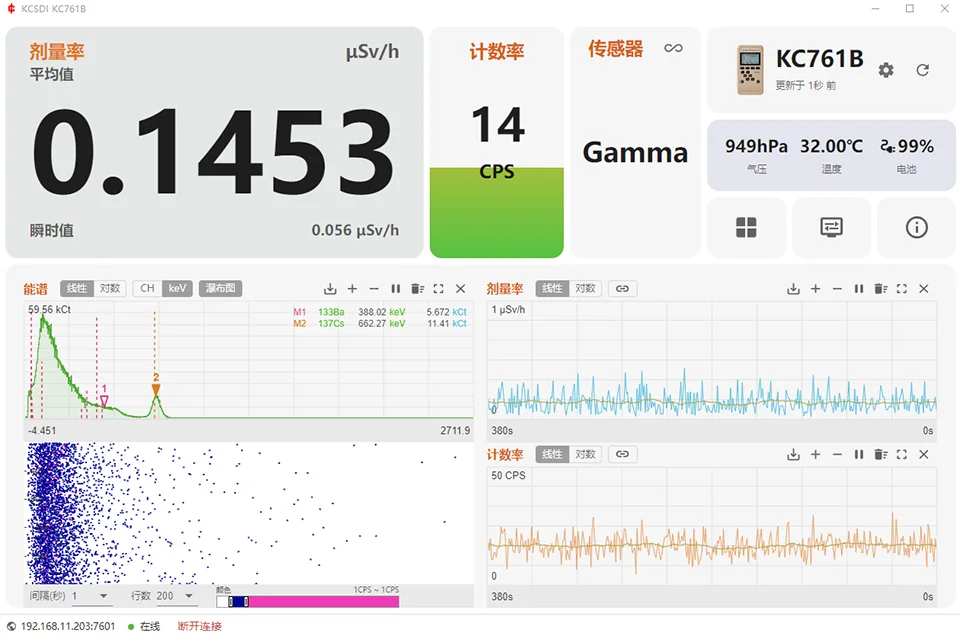

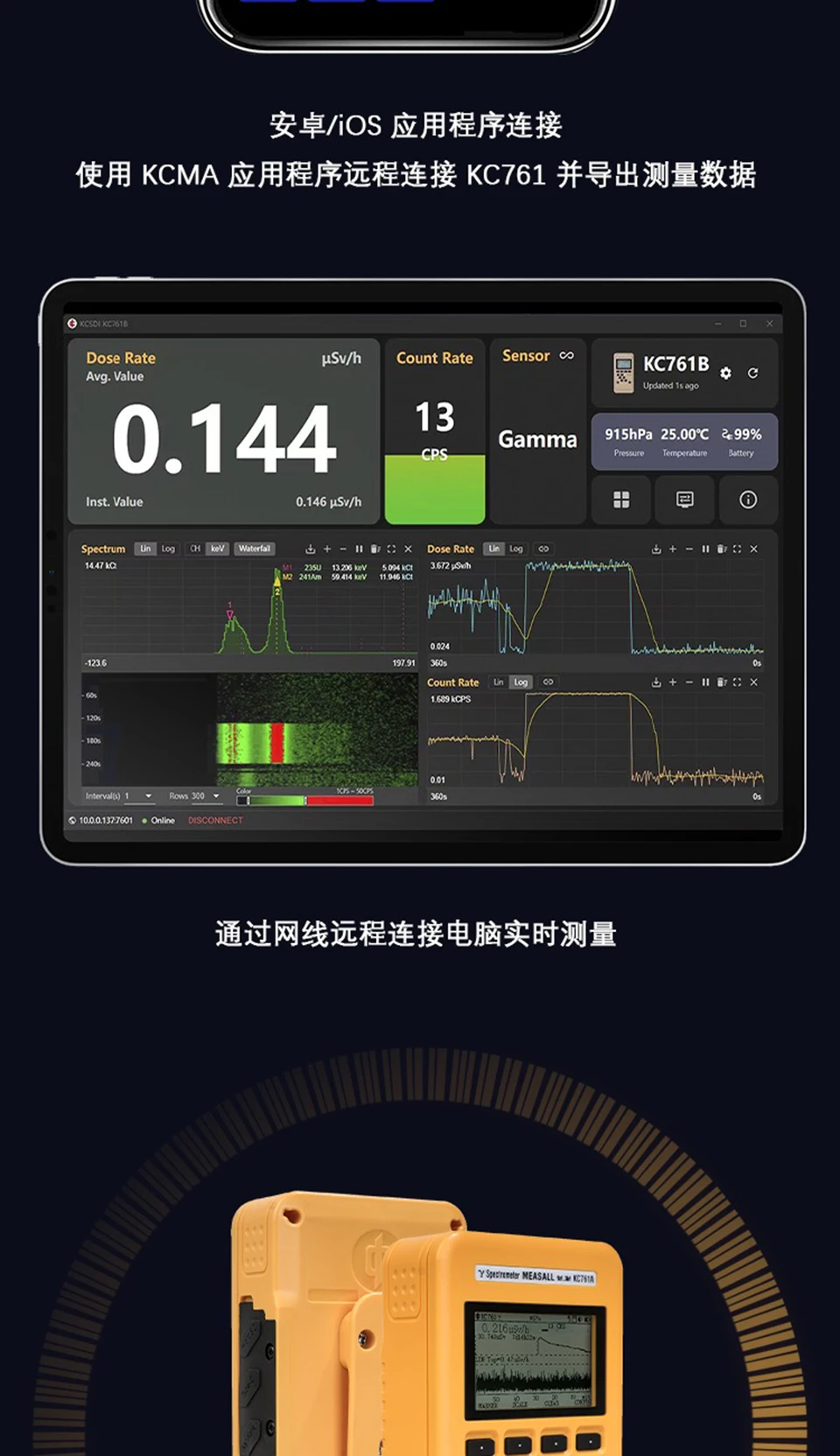

Data can be monitored on a PC, and the supporting software KCSDI can be downloaded from the Kechuang official website.
https://www.kechuang.org/m/100005/a/597

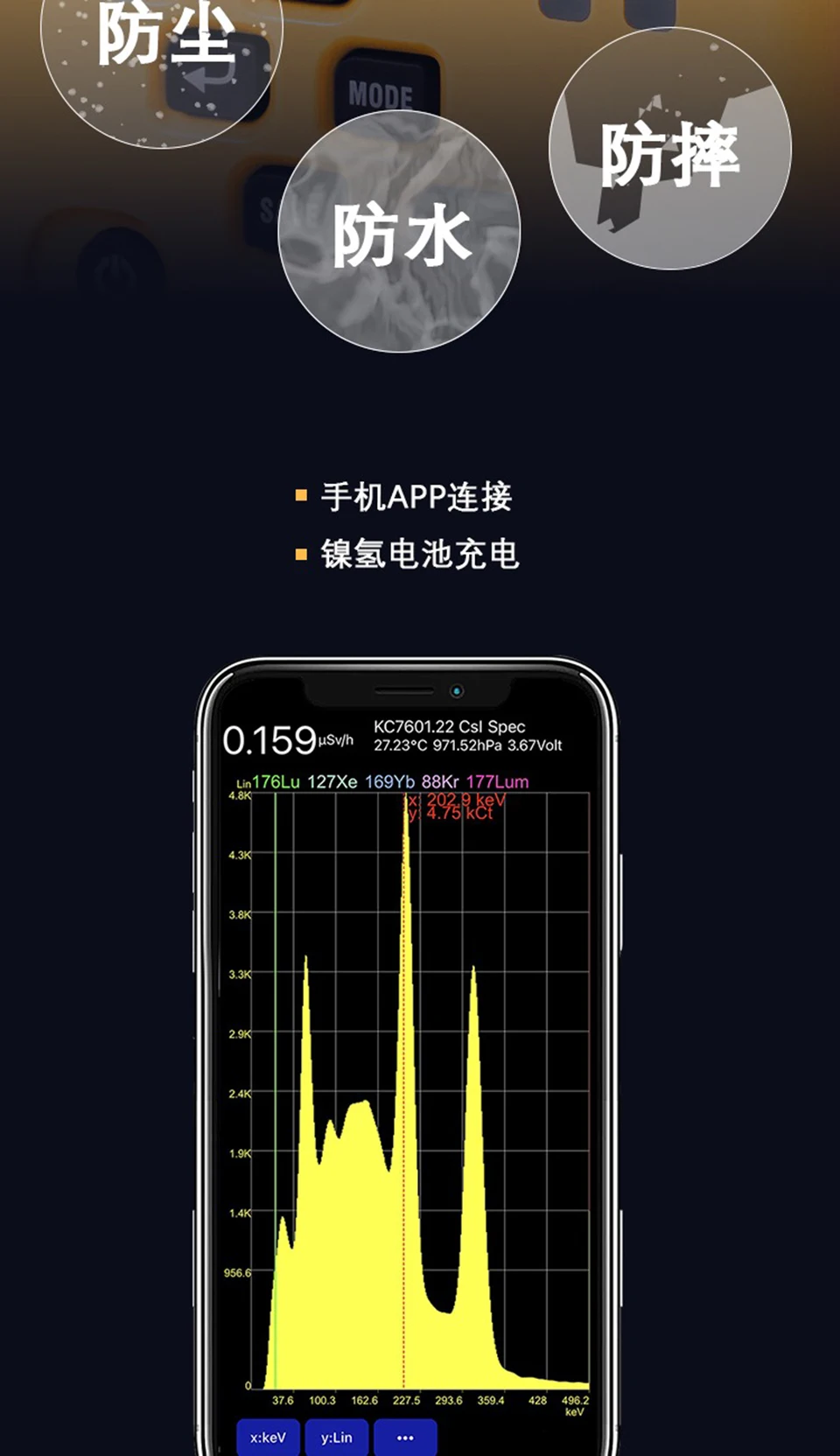

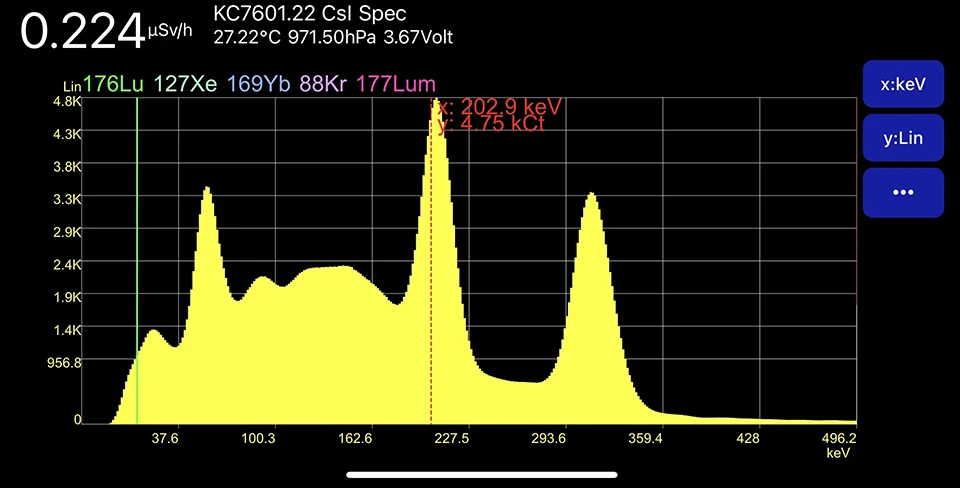

You can check the data via Bluetooth on the mobile APP, and search for KC761 in the Google official market and Apple official store to download.
*KCSDI also has a mobile version, which is used to access KC761 in the intranet. Search KCSDI in the official app stores of Google and Apple to install it.

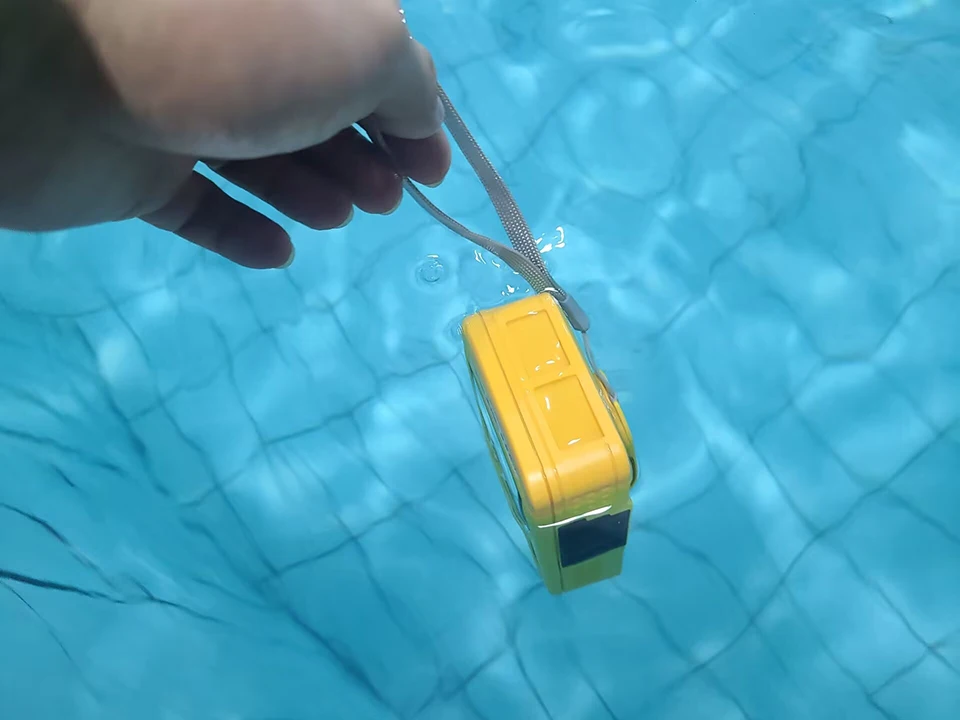

Both the whole machine and the sensor are designed to be waterproof, with a nominal waterproof rating of IP65.
Flame retardant housing.
Allowed working temperature -10~65℃ (0~50℃ guaranteed indicator, -40~-10℃ display failure, other functions are allowed and can be restored after heating).
1 year warranty. The recommended calibration period is 1 year, and the recommended storage life (without batteries) is 10 years.

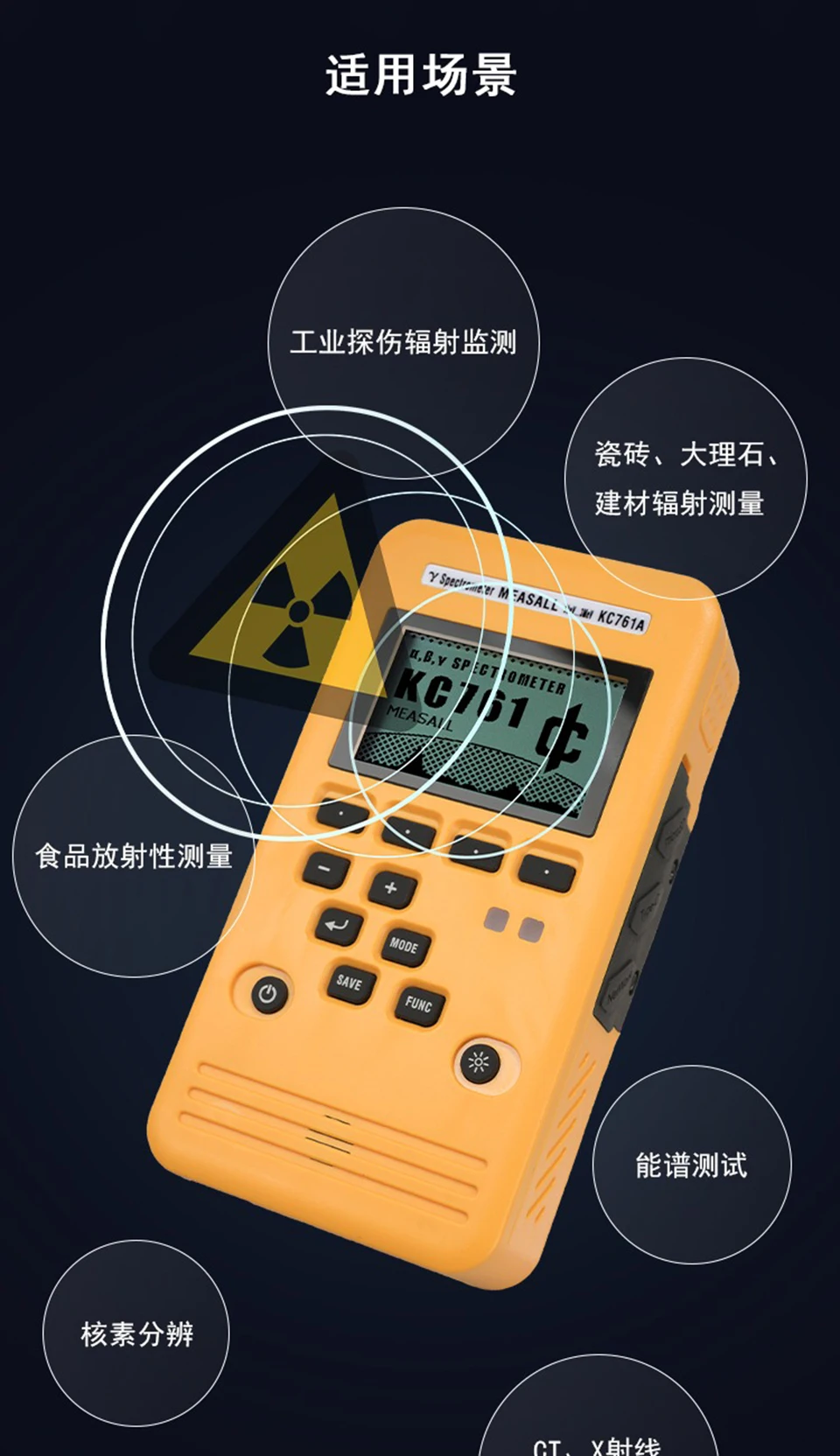

Applies to:
◇Energy spectrum analysis, nuclide identification;
◇Ambient dose monitoring and sensor network;
◇Security, radiation warning for living environment;
※ ※ ※ ※ ※ ※ ※ ※ ※ ※ ※ ※
a. KC761 is a radiation multimeter based on an energy spectrometer. The dose rate reading is for reference only and is not guaranteed. Users can calibrate (set coefficients) by themselves.
b. The rated value is the level that most products can achieve in common scenarios and is not guaranteed.
c. Battery life is a typical value in an environment with backlight turned off and background radiation, and is also related to battery quality, enabled functions and the amount of radiation.
d. Some functions are not yet open and can only be used after the new version of the software is released. Users who purchased the corresponding software before it is released need to upgrade the software themselves.
e. When using the network port, USB or POE power supply should be used, because the power consumption of these functions exceeds the economic load range of dry batteries.
f. Please read the user manual carefully before use. For use by professionals only and in accordance with the manual and manufacturer's regulations. The instrument must not be disassembled by unauthorized personnel.
