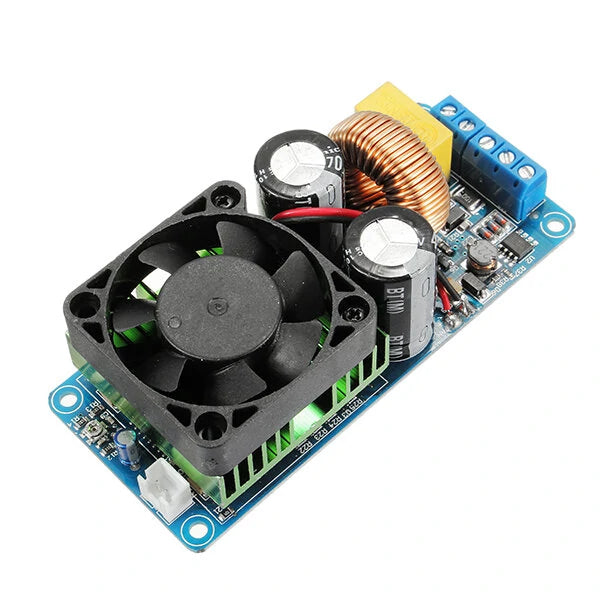

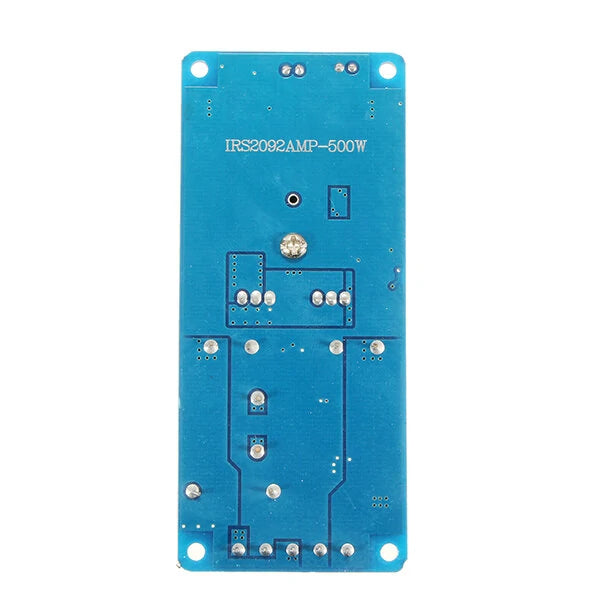

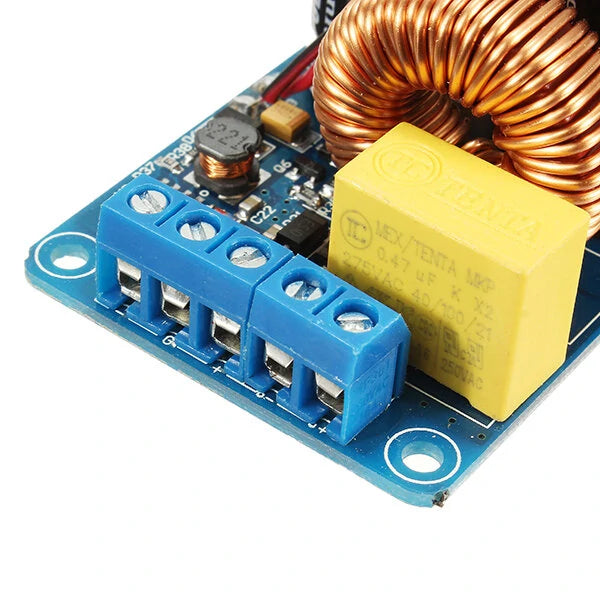

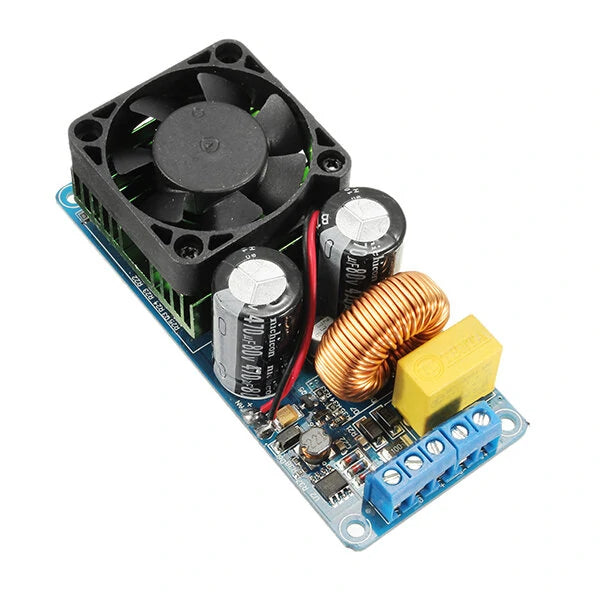

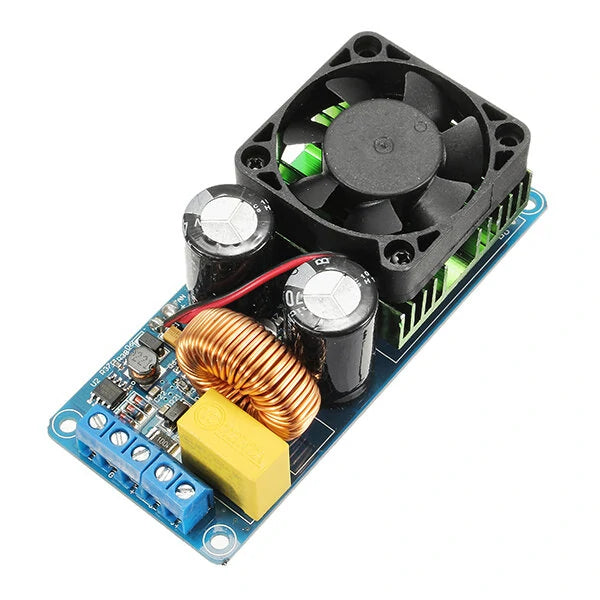

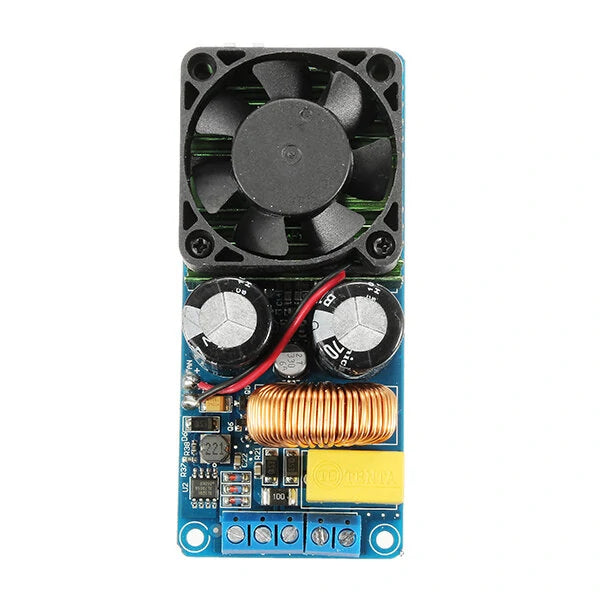

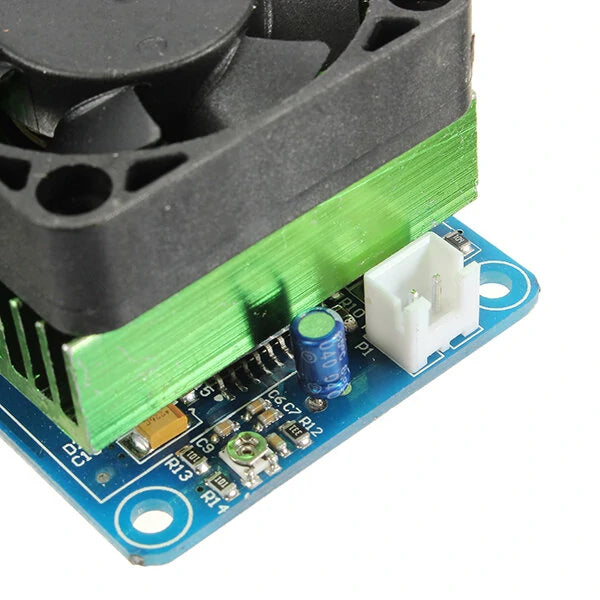

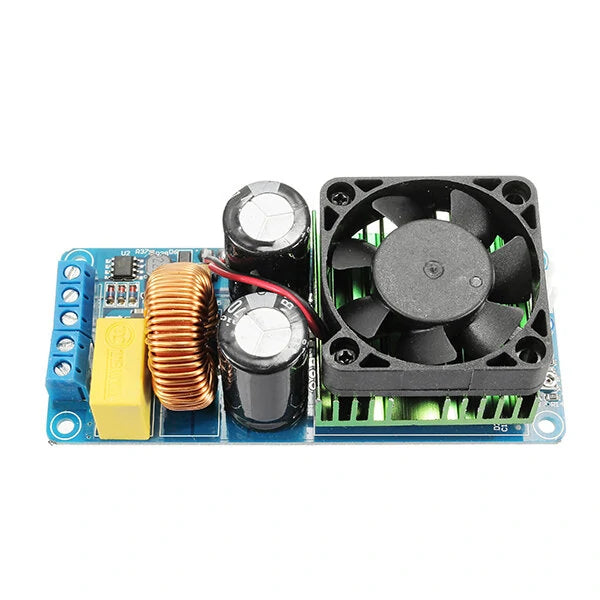

IRS2092S 500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board With FAN

Save $27
CartoolshopSKU: IRS2092S

$27.99 $54.99

Tax included Shipping calculated at checkout

In stock



This is pure power amplifier board, the sensitivity of the input signal of 1.5V rms ,
if your input signal voltage can't reach this value, recommend add
Mono channel, for 2.0 channel need bid two.
The rated output power: 500W ( DC +/- 65V power supply, 4 ohm load, distortion 10%)
Efficiency: ≥90%
SNR: 90dB
color: blue
The total harmonic distortion:
380W (+ /- 65 power 4 ohm speaker, distortion Less than 0.1%)
280W (+ /- 65 power 8 ohm speaker, distortion Less than 0.1%)
Frequency range: 20Hz-20KHz
Speaker: 4-8ohm
Voltage Magnification: 36 times
Input sensitivity 1.5V (RMS)
0. Output short circuit protection: Yes
That output DC bias protection speaker protection: Yes
Over-temperature protection: Yes, radiator FET temperature higher than 100 Celsius, turn off the output!
Amplifier board size: length x width x height = 98x43x30mm
Weight: 95 g

Use precautions:

Rated supply voltage is DC +/-65V, +/-58V ~ +/-70V range, do not over 70V! positive and negative do not pick wrong
Recommended power supply DC +/-65V
Recommended 4-8ohm / 10-18inch speaker
Carefully check before electricity, ensure the wiring is correct.
Material: CCL
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.

Package included:

1 x IRS2092S 500W Mono Channel Digital Amplifier
