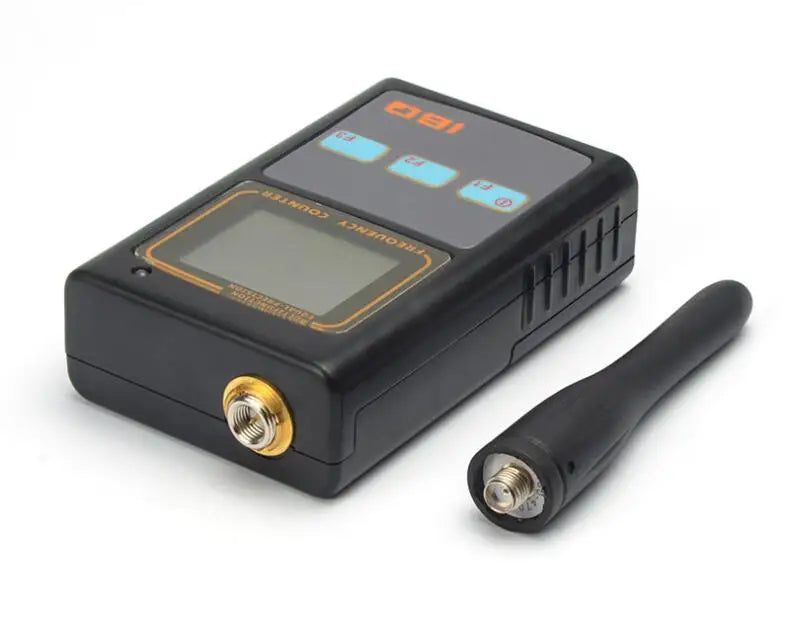

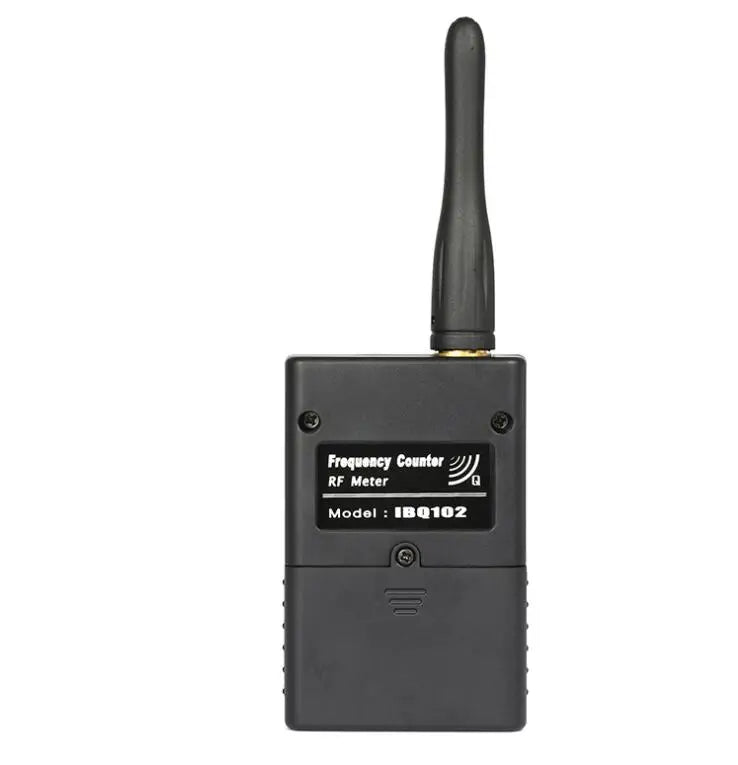

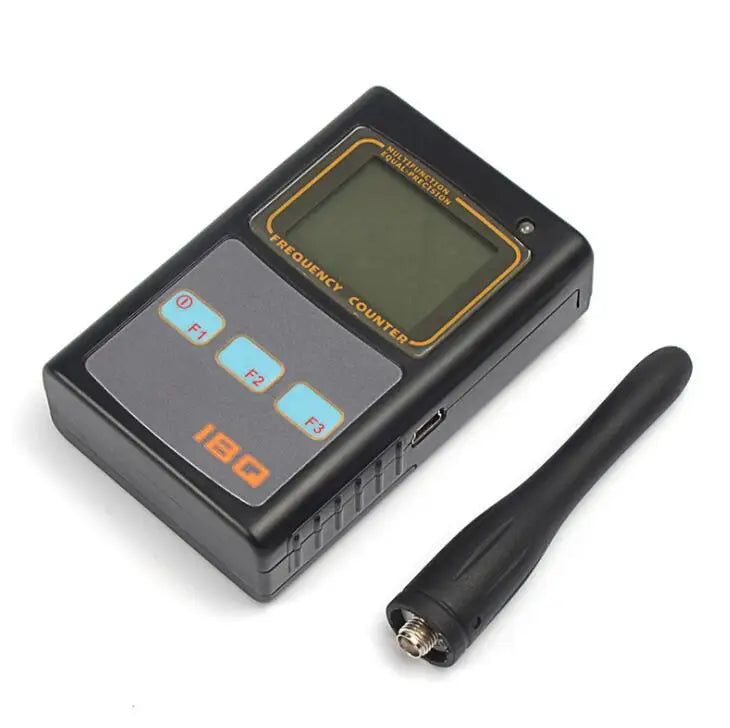

IBQ102 Handheld Digital Frequency Counter Meter Wide Range 10Hz-2.6GHz for Baofeng Yaesu Kenwood Radio Portable Frequency Meter
IBQ102 Handheld Digital Frequency Counter Meter Wide Range 10Hz-2.6GHz for Baofeng Yaesu Kenwood Radio Portable Frequency Meter
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Portable Radio Frequency Meter Counter IBQ102 Wide Test Range 10MHz-2.6GHz for Baofeng Yaesu Sensitive Frequency Analyzer Tester
*Upgraded based on IBQ101,get wider test range.
*Designed for counting continuous wave signal comes from Two-way Radio.
Its three-button control is easy to use and its small size allows you to carry it anywhere you like.
Features:
-
Multi-Function LCD Display
-
9-Dight Display
-
Analog bar and Digit Signal Strength Indicator
-
Display Holding
-
50 Display Readings Saving
-
Power Indicator
-
Interactive User Menu
-

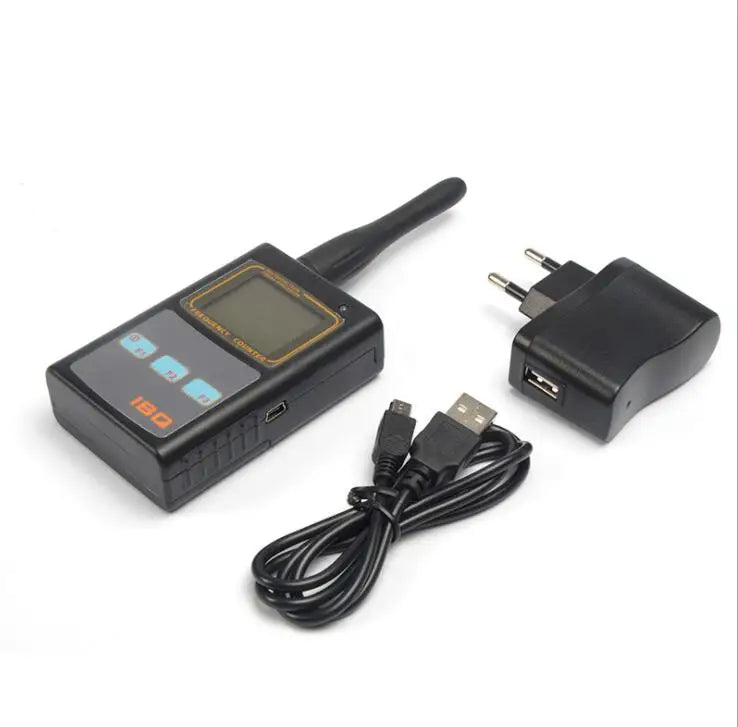

Equipped with UV antenna and USB Power adapter
Specifications:
|
Range |
10Hz-100MHz |
50MHz-2.6GHz |
|
Amplifier |
1 Meg ohm |
50ohm |
|
Impedance |
1 Meg ohm |
50ohm |
|
30pF |
VSWR<2:1 |
|
|
Features |
RF signal strength (50MHz-2.6GHz) |
|
|
Display Screen Holding |
||
|
50 Display Readings Saving |
||
|
Auto switch off, Auto backlight |
||
|
Battery Indicator |
||
|
Sensitivity |
<30mV@10Hz-50MHz |
<5mV@100MHz |
|
<5mV@400MHz |
||
|
<35mV@50MHz-100MHz |
<5mV@1GHz |
|
|
|
||
|
Gate |
0.01s |
0.01s |
|
0.1s |
0.1s |
|
|
1s |
1s |
|
|
Time Base |
<+/-5ppm |
|
|
LSD |
1Hz/1s (10Hz-100MHz) |
|
|
100Hz/1s (50MHz-2.6GHz) |
||
|
Battery |
3 x AAA Ni-MH |
|
|
Power |
DC (5V,1A) |
|
|
Cabinet |
ABS |
|
|
Size |
85mm x 55mm x 24mm |
|
|
Net Weight |
115g |
|
|
Color |
Grey |
|
|
ANT |
UHF |
|

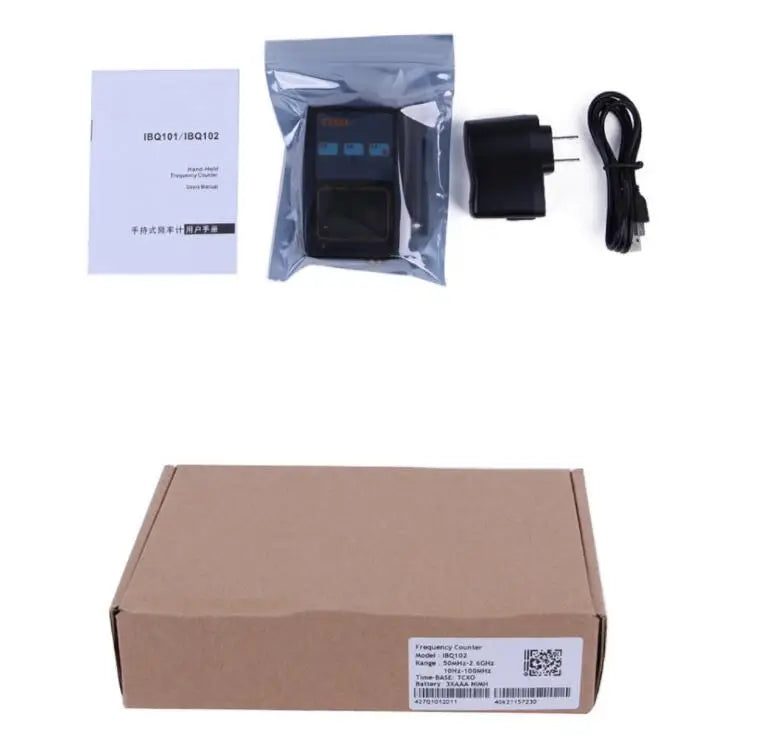

Package Including:
1 X IBQ102 Freuqncy Counter(10MHz-2.6GHz)
1 X Intelligent charger(European Plug/US Plug UK/AU/ZA adaptors all available)
1 X Antenna
1 X User Munual
Please kindly note: to avoid shipping checking, it is without of 3*AAA battery
Description
Description
Portable Radio Frequency Meter Counter IBQ102 Wide Test Range 10MHz-2.6GHz for Baofeng Yaesu Sensitive Frequency Analyzer Tester
*Upgraded based on IBQ101,get wider test range.
*Designed for counting continuous wave signal comes from Two-way Radio.
Its three-button control is easy to use and its small size allows you to carry it anywhere you like.
Features:
-
Multi-Function LCD Display
-
9-Dight Display
-
Analog bar and Digit Signal Strength Indicator
-
Display Holding
-
50 Display Readings Saving
-
Power Indicator
-
Interactive User Menu
-
Equipped with UV antenna and USB Power adapter
Specifications:
|
Range |
10Hz-100MHz |
50MHz-2.6GHz |
|
Amplifier |
1 Meg ohm |
50ohm |
|
Impedance |
1 Meg ohm |
50ohm |
|
30pF |
VSWR<2:1 |
|
|
Features |
RF signal strength (50MHz-2.6GHz) |
|
|
Display Screen Holding |
||
|
50 Display Readings Saving |
||
|
Auto switch off, Auto backlight |
||
|
Battery Indicator |
||
|
Sensitivity |
<30mV@10Hz-50MHz |
<5mV@100MHz |
|
<5mV@400MHz |
||
|
<35mV@50MHz-100MHz |
<5mV@1GHz |
|
|
|
||
|
Gate |
0.01s |
0.01s |
|
0.1s |
0.1s |
|
|
1s |
1s |
|
|
Time Base |
<+/-5ppm |
|
|
LSD |
1Hz/1s (10Hz-100MHz) |
|
|
100Hz/1s (50MHz-2.6GHz) |
||
|
Battery |
3 x AAA Ni-MH |
|
|
Power |
DC (5V,1A) |
|
|
Cabinet |
ABS |
|
|
Size |
85mm x 55mm x 24mm |
|
|
Net Weight |
115g |
|
|
Color |
Grey |
|
|
ANT |
UHF |
|
Package Including:
1 X IBQ102 Freuqncy Counter(10MHz-2.6GHz)
1 X Intelligent charger(European Plug/US Plug UK/AU/ZA adaptors all available)
1 X Antenna
1 X User Munual
Please kindly note: to avoid shipping checking, it is without of 3*AAA battery
