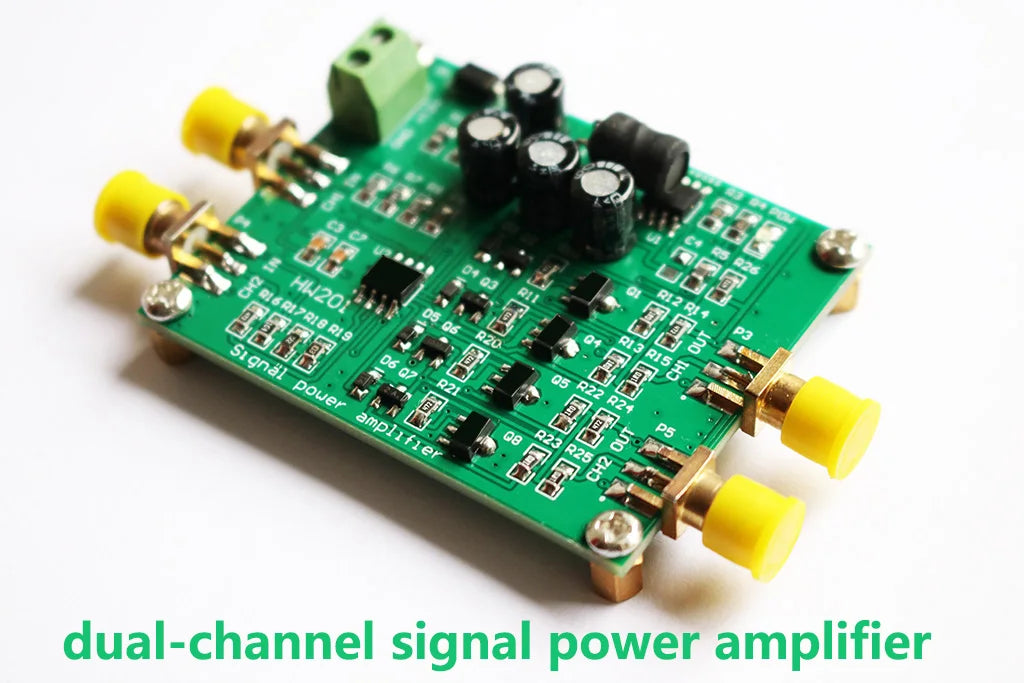

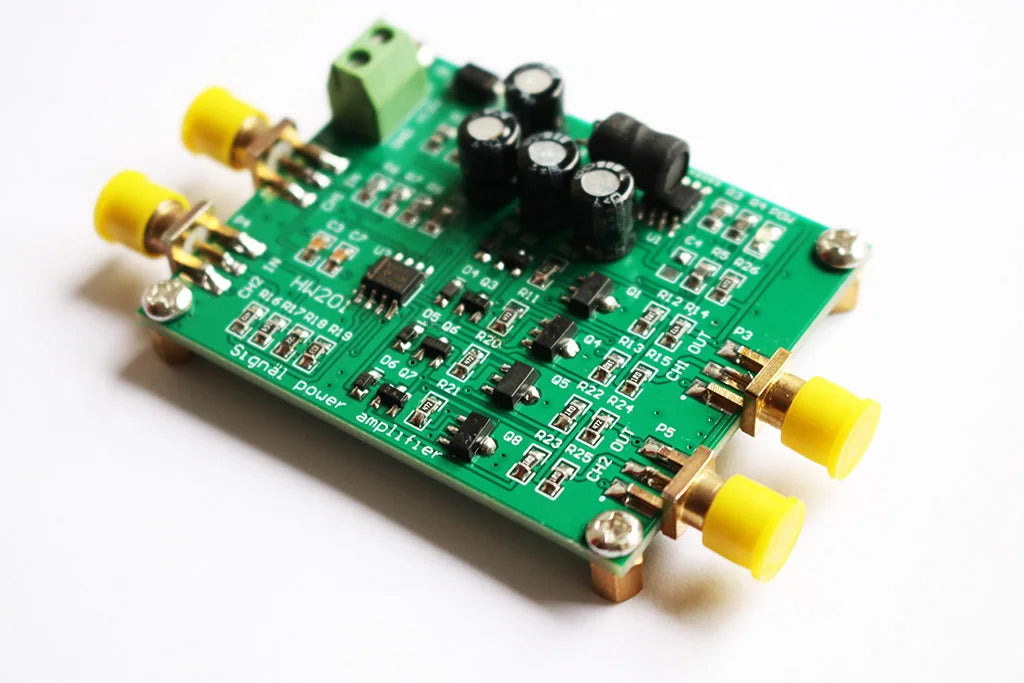

HW201 50Hz~25MHz dual-channel signal power amplifier module
1.1 Module parameters
Parameter unit
Input frequency range 50Hz~25M Hz
Maximum input voltage 8 Vpp
Maximum output voltage 8 Vpp
Operating voltage 12 V
Size 56*45 mm
2.0 P1 interface: VDD: positive power supply;
GND: negative pole of power supply;
P2 interface: CH1 channel input signal. (RP SMA KE KHD outer screw inner needle inner hole)
P4 interface: CH2 channel input signal. (RP SMA KE KHD outer screw inner needle inner hole)
P3 interface: CH1 channel output signal. (RP SMA KE KHD outer screw inner needle inner hole)
P5 interface: CH2 channel output signal. (RP SMA KE KHD outer screw inner needle inner hole)
