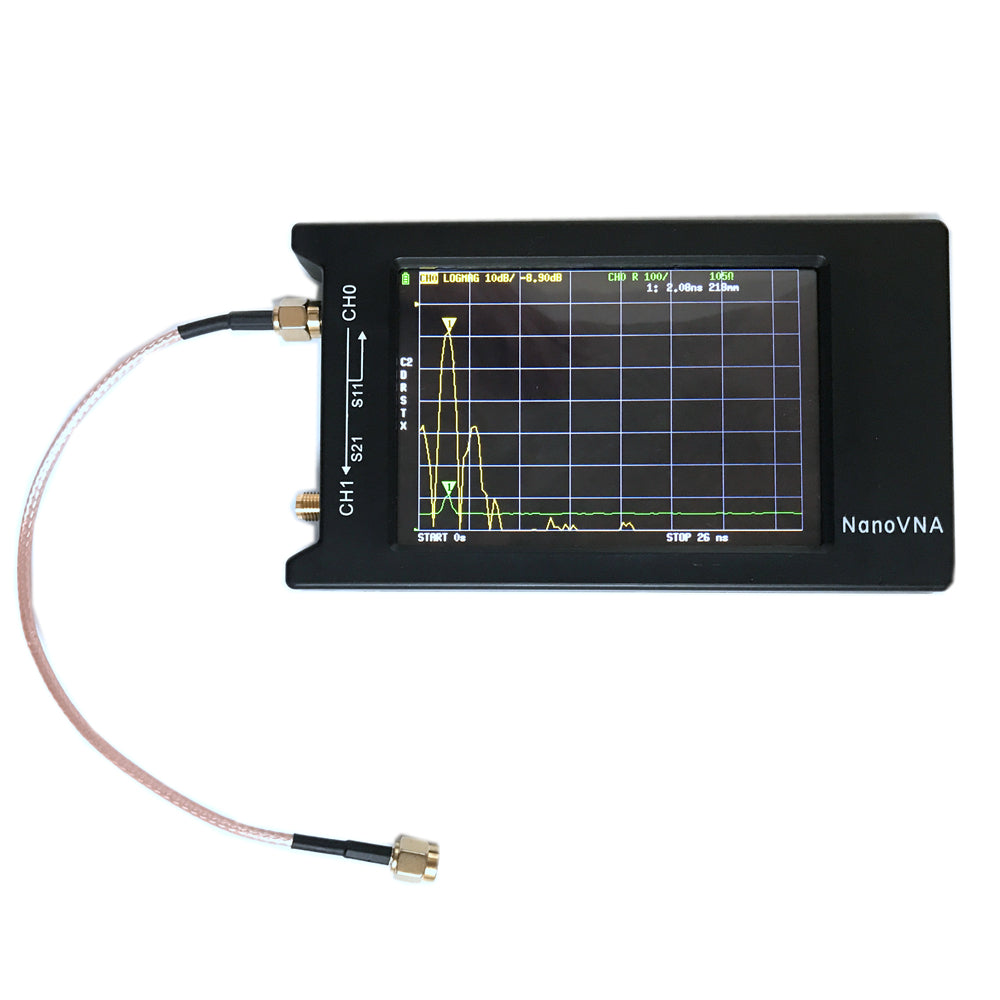

Hugen NanoVNA-H4 4.0" Display 4.2 Version 1950mAh Battery Vector Network Analyzer HF VHF UHF Antenna Analyzer
Hugen NanoVNA-H4 4.0" Display 4.2 Version 1950mAh Battery Vector Network Analyzer HF VHF UHF Antenna Analyzer
Sale
Sold out
Pre-order
Regular price
$92.99 USD
Regular price
$154.99 USD
Sale price
$92.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Product Description
Basic performance:
ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1

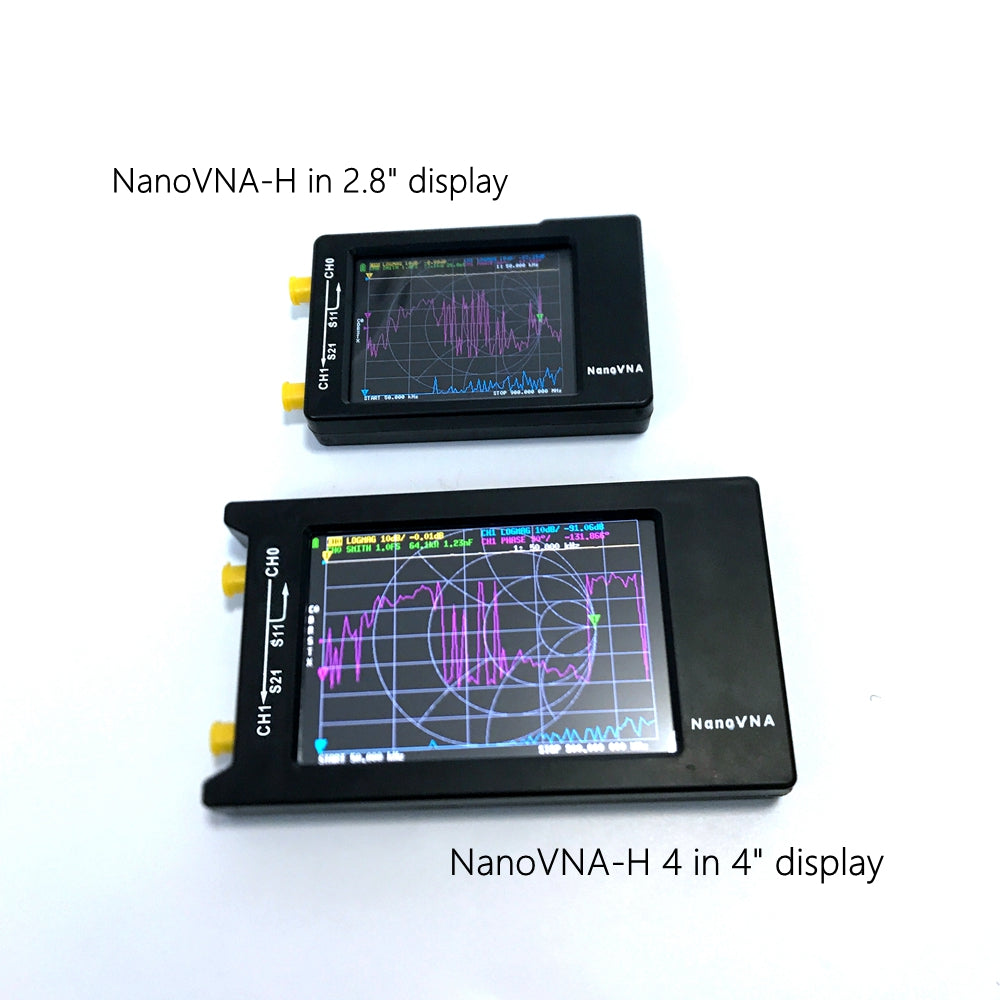

Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

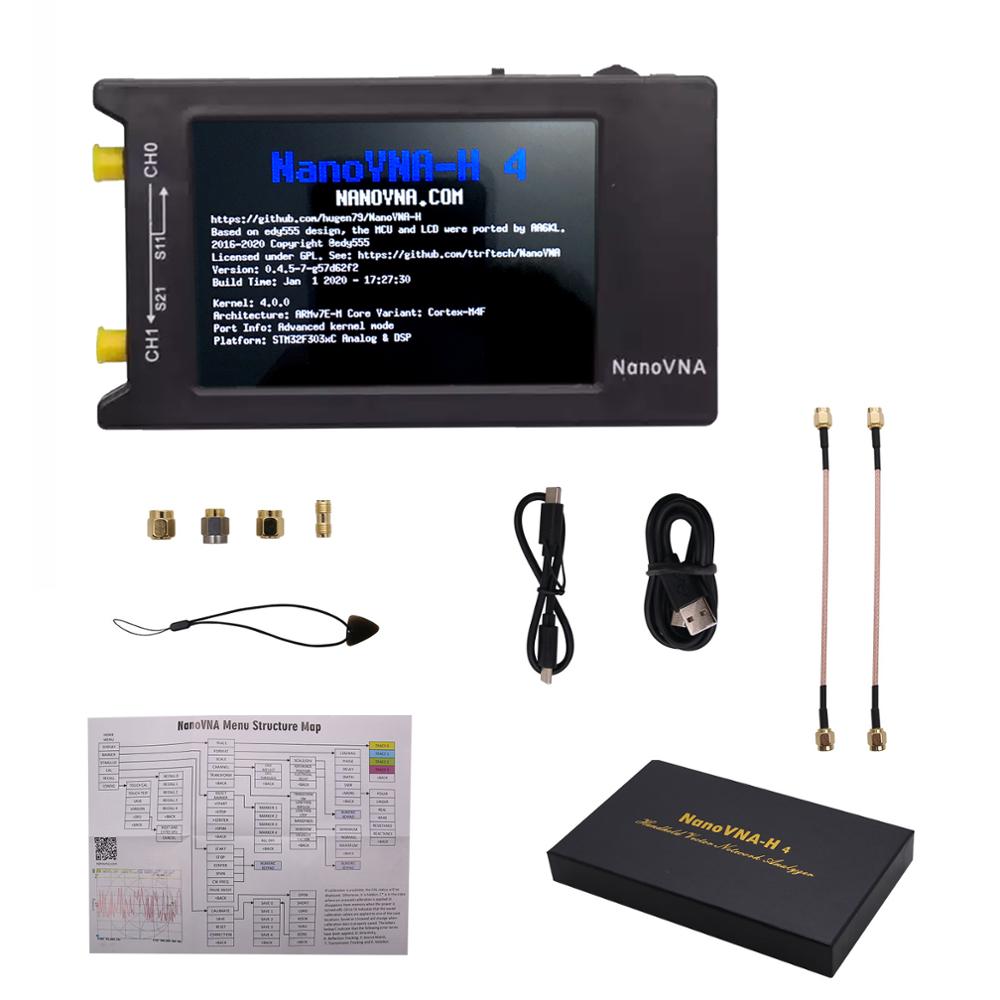

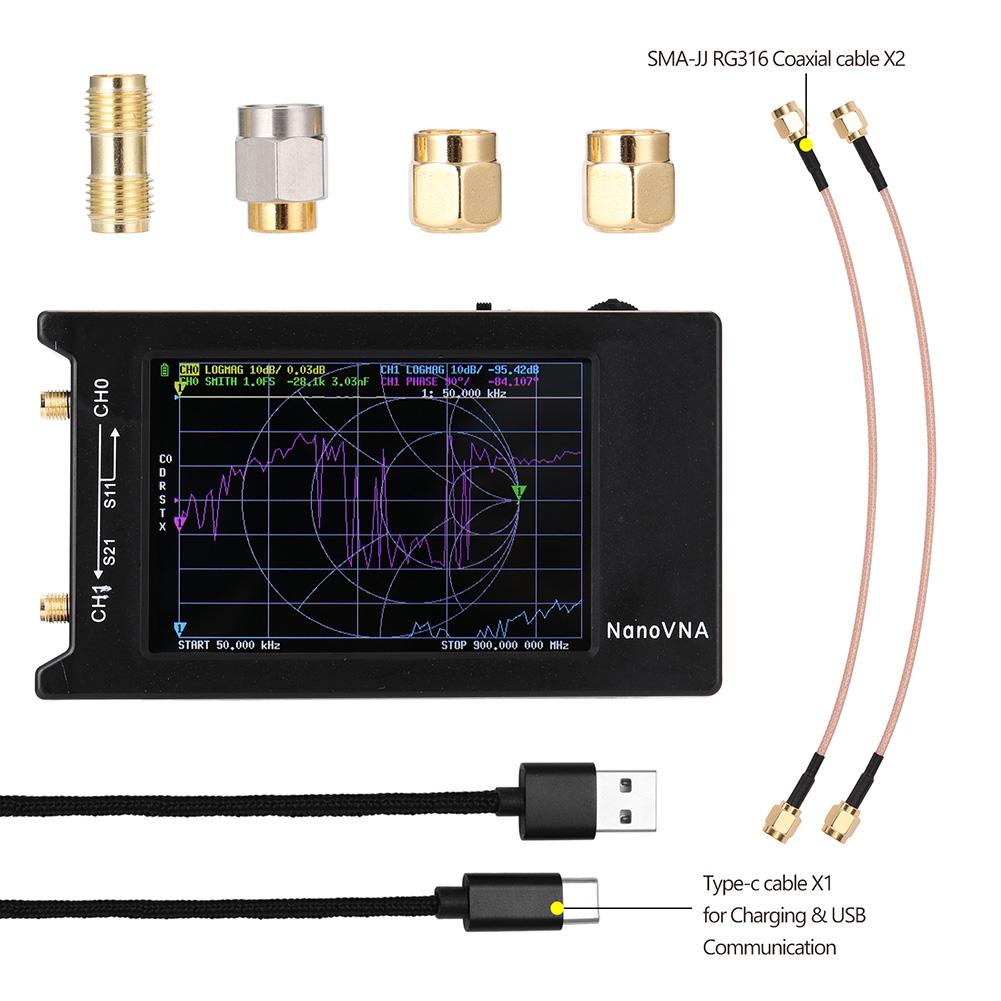

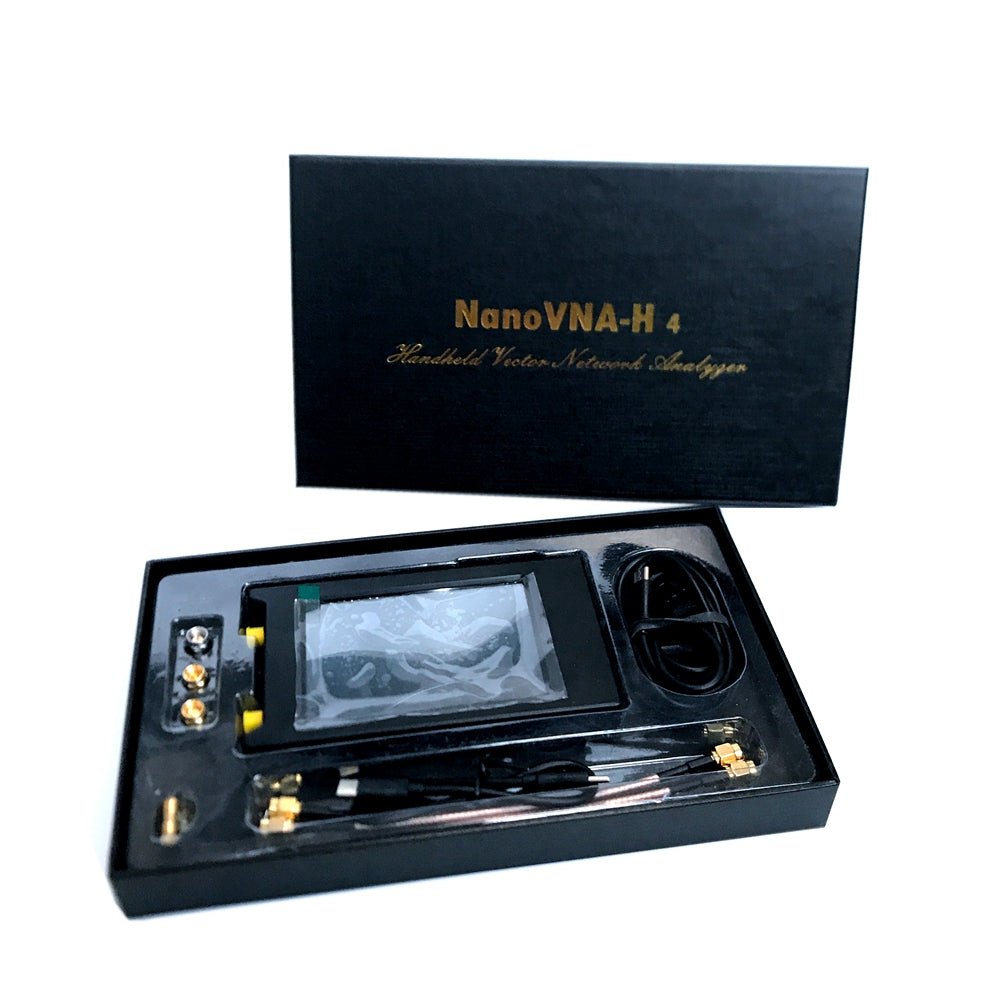

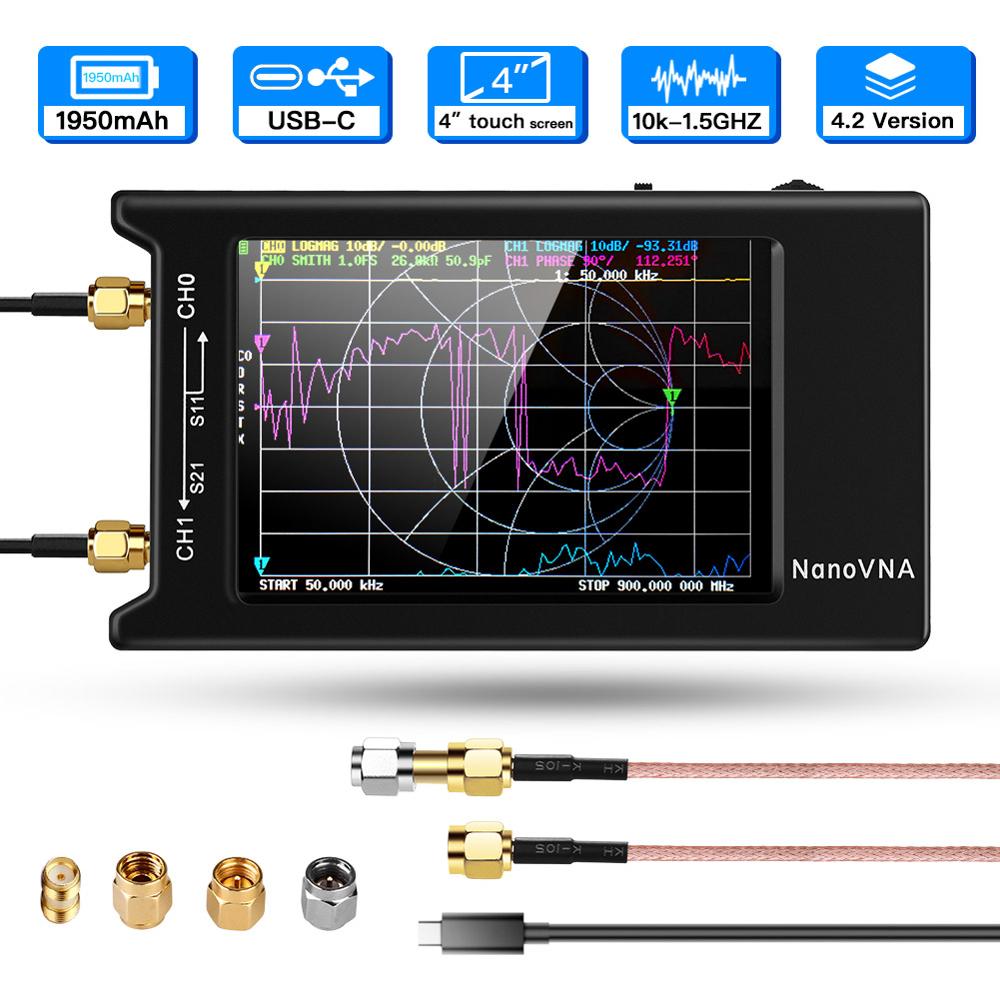

Packing List:
NanoVNA host (with 1950mAh battery) x 1
USB Type-C data cable x1
15cm SMA male to male RG316 RF cable x2
SMA male calibration kit - OPEN x1
SMA male calibration kit - SHORT x1
SMA male calibration kit - LOAD x1
SMA female to female connector x1
Type-c to Type-c cable x1
