Hugen 4 inch 3G NanoVNA V2 Antenna Analyzer Vector Network Analyzer NanoVNA SAA-2N V2 50KHz-3GHz HF VHF UHF Built-in Battery
Hugen 4 inch 3G NanoVNA V2 Antenna Analyzer Vector Network Analyzer NanoVNA SAA-2N V2 50KHz-3GHz HF VHF UHF Built-in Battery
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
SAA2 designed by OwOComm, a portable vector network analyzer up to 3GHz.
We strictly follow OwOComm's documentation and use 0.5ppm TCXO to ensure high-frequency measurement frequency accuracy. The complete metal shell can fully protect the internal precision circuit and the protection of the external interface is fully considered. The customized high-performance SS405 cable provides good stability
Product performance:
*Frequency range: 50kHz-3GHz
*Frequency error: <2ppm
*Frequency temperature: <0.5ppm
*System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
*S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
*Scan speed: 100 points/sec
*Display: SAA2 2.8 inches, 320 x 240; SAA2N 3.95 inches, 320 x 480
*RF port: SAA2 SMA; SAA2N N
(If you need to measure anti-pin SMA devices such as Wifi antenna, please use SMA to RPSMA connector)
*USB interface: microUSB
*Power supply: USB, maximum charging current 1A
*Battery: SAA2 2000mAh lithium ion; SAA2N 3000mAh lithium ion
*Battery connector: JST-XH 2.54mm
*Maximum scanning point (on the device screen): 201
*Maximum scanning point (USB): 1024
*Port 2 return loss (1.5GHz): 20dB typ
*Port 2 return loss (3GHz): 13dB MIN
*VNA-QT software compatible system: Linux, Windows (7+), Mac OS planned
============================================

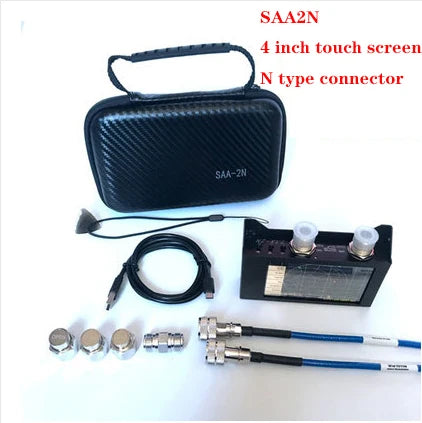

4 inch SAA2N_N connector standard matching list:
SAA-2N host (built-in 3000mAh battery) x 1
USB data cable x1
50cm N male to male RG142-PUR RF cable x2
NSimple calibration kit OPEN *1
N simple calibration kit SHORT *1
N simple calibration kit LOAD *1
N female to female connector *1
EVA carrying case *1
Lanyard touch paddle *1

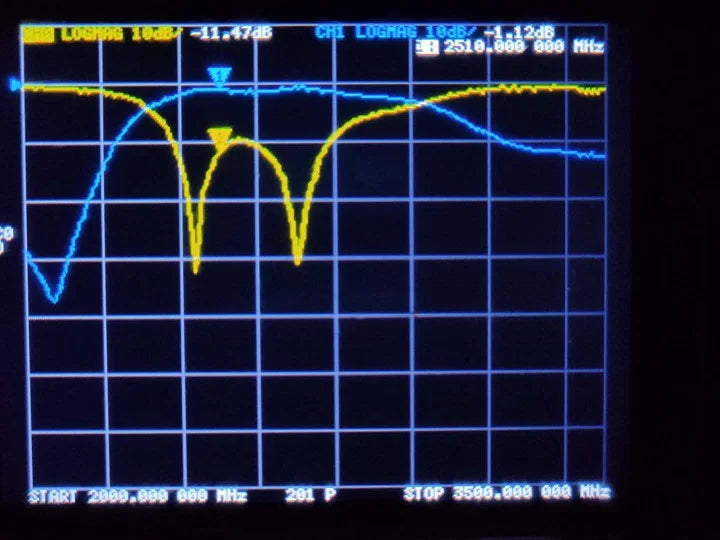

Example of measuring 2.4GHz filter
Scan the 6dB and 10dB attenuators on CH0 respectively, you can see that the return loss of the 10dB attenuator is between -20dB ~ -22dB, the accuracy of the calibration piece and the directivity of SAA2 are very good:
Scan 10dB, 30dB, 50dB, 60dB, 70dB attenuators between CH0 and CH1 respectively, S21 up to 3.3GHz can get more satisfactory results:
NanoVNA-Saver support SAA2
