HP-990B SMD Multimeter Diode Capacitance Resistance Tweezers Meter Auto Range Meter Resistor Capacitor Continuity Battery Tester

  • $18.00
    Unit price per
  • Save $1
Tax included. Shipping calculated at checkout.


HP-990B SMD Multimeter Diode Capacitance Resistance Tweezers Meter Auto Range Meter Resistor Capacitor Continuity Battery Tester

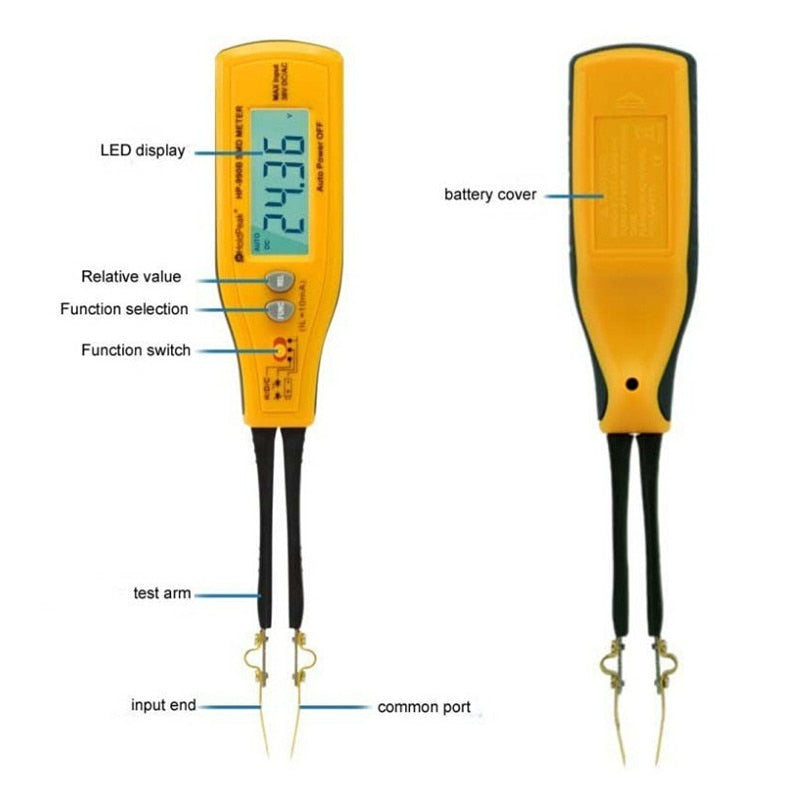

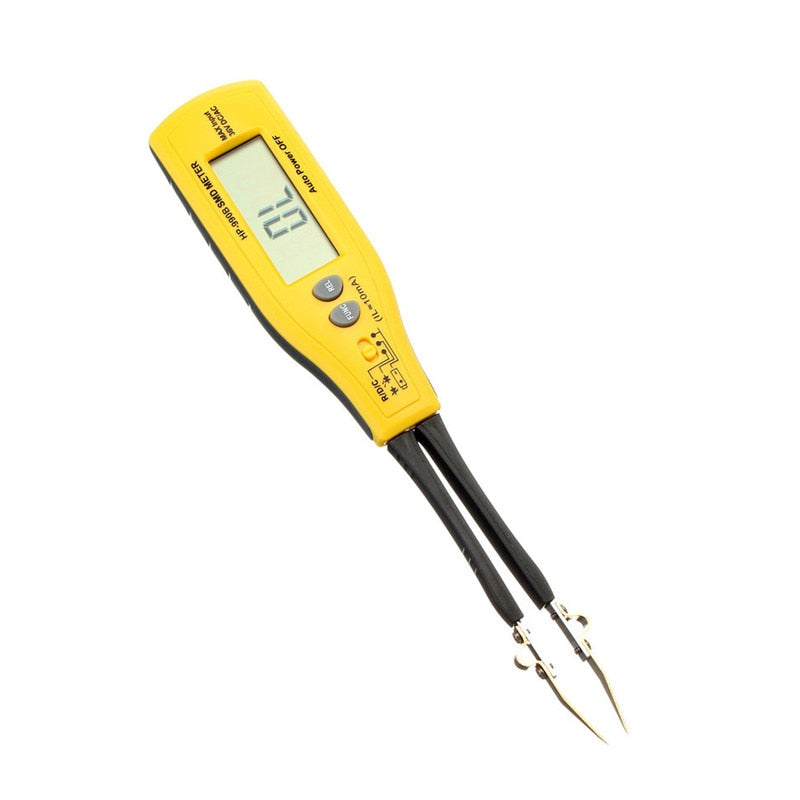

The meter is a handheld and battery-powered small tool, which is specially applied to measure SMD(Surface Mounted Device). The  meter can test resistance, capacitance, battery, diode, Zener/LED and continuity. Besides, it is displayed by large LCD and it will be off automatically after 15minutes if no button is pushed during this period.


Features:
Resistance: 400??40M?
Capacitance: 4nF?200uF
Display: 4000counts
Range Select: Auto
Battery Test
Diode Test
Continuity Buzzer
Zener/LED test: Open Voltage more than DC 20V
Relative Value
Auto Power Off

Specifications:
Resistance: 400?/4K?/40K/400K? ±2.0%rdg; 4M?/40M? ±2.5%rdg
Capacitance: 4nF/40nF/400nF/4?F ±2.5%rdg; 200?F ±3.0%rdg
Diode Test: Open Voltage: 1.5V, Testing Current: 2mA
Continuity Check: When the resistance is less than approx.30?,The Buzzer sounds.
Zener/LED: Open Voltage: MIN  20V, Testing Current: Appr. 1mA
Battery Power: Loading Current: Approx. 10mA ±1.5rd%

General Characteristics:
Power Supply: 2 * 1.5V AAA battery (not included)
Dimension: 200 * 36 * 26mm
 9

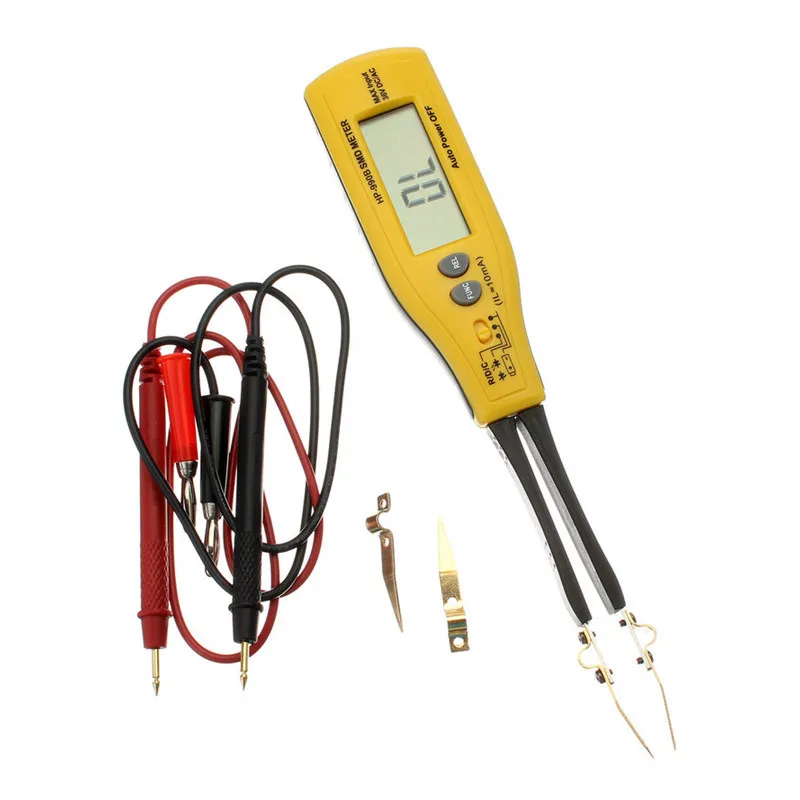

Packaging List :
1 * HoldPeak HP-990B ( Battery not included )
1 * English Manual

note:because the battery is easy to explode ,the shipping company cann't accept the battery , for safe  ,so i will not put the battery on the box ,pls ,understand ,thanks
