HFDY V3 Enhanced Version 1.10D 50KHz-2GHz V1.10D Malahiteam SDR Receiver Radio DSP SDR Receiver with Code Support Two Antenna

HFDY V3 Enhanced Version 1.10D 50KHz-2GHz V1.10D Malahiteam SDR Receiver Radio DSP SDR Receiver with Code Support Two Antenna

Sale Sold out Pre-order
$352.87 USD
$542.88 USD $352.87 USD
Tax included. Shipping calculated at checkout.

In stock

Ask a question

  • All orders are dispatched the next 3 business days!

  • We will beat any price. We back all products with a 1 year guarantee.

Add $299.99 more to get FREE SHIPPING!
$0.00

Order in the next 0 hours 0 minutes to get it by         /12/2025
Color: V3 Receiver

Guaranteed Safe Checkout

Description
Item Specifics

1.Latest version： V3

2.with two antenna ports

3. Registered 1.10D firmware , support 2G.

4.with additional Expansion board， Significantly improved medium wave and short wave








All circuit parts are shielded independently, ultra-low noise and high dynamic LNA is upgraded, front full frequency skin horn is used, and stable encoder is improved


Malachite radio, option version, version 3, with medium and short wave option, dual antenna input,

1) Based on SDR architecture, msi001 RF front-end is used for 12bit quantitative sampling, stm32h743 processor is used, and the main frequency is up to 480mhz;

2) The receiving frequency is 50 kHz to 49.999 MHz, 50.001 MHz to 249.999 MHz, 400 MHz to 2GHz;

3) Demodulation type: am, SSB, NFM, WFM, CW;

4) The sensitivity is better than 0.2-0.3 μ V；

5) Anti blocking is better than 85 dB;

6) The real-time sampling bandwidth is 160 kHz;

7) Functions: variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, equalizer, etc;

8) The display screen is IPS 3.5 inch, capacitive touch screen with backlight adjustment;

9) The battery capacity is 3000mAh with USB-type interface;

10) The working current shall not exceed 300mA;

11) Dual antenna input option version, front-end attenuation filter module, attenuation up to 30dB, high resistance input, improve short wave sensitivity, add four additional front-end filters;

12) Through USB connection to the computer, cat, IQ and audio communication can be realized;

13) The overall size is 147x77x25mm.

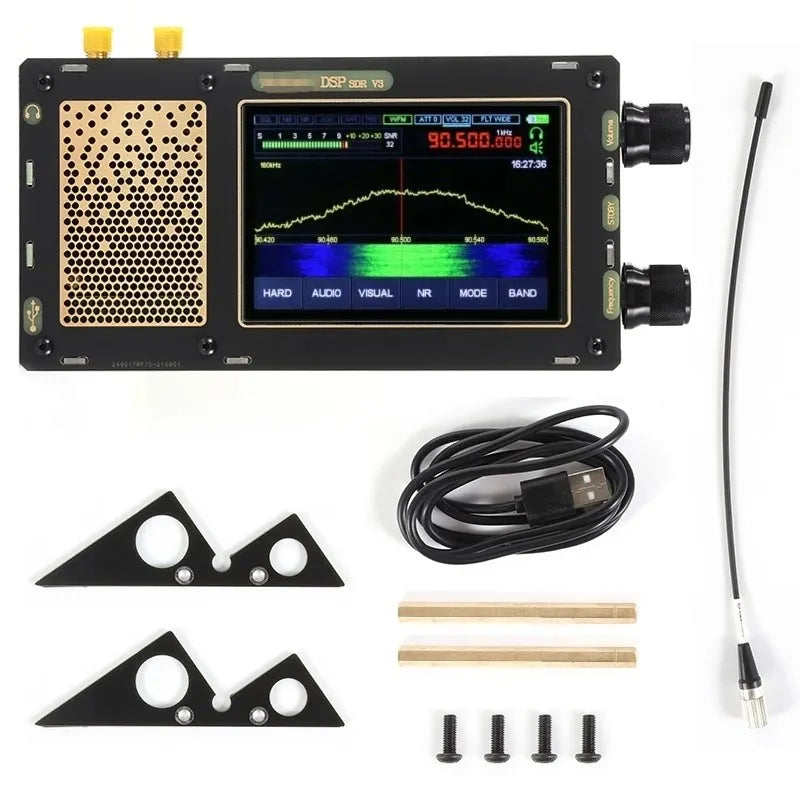

Package Included:

- 1 x Set of SDR Receiver
- 1x Antenna

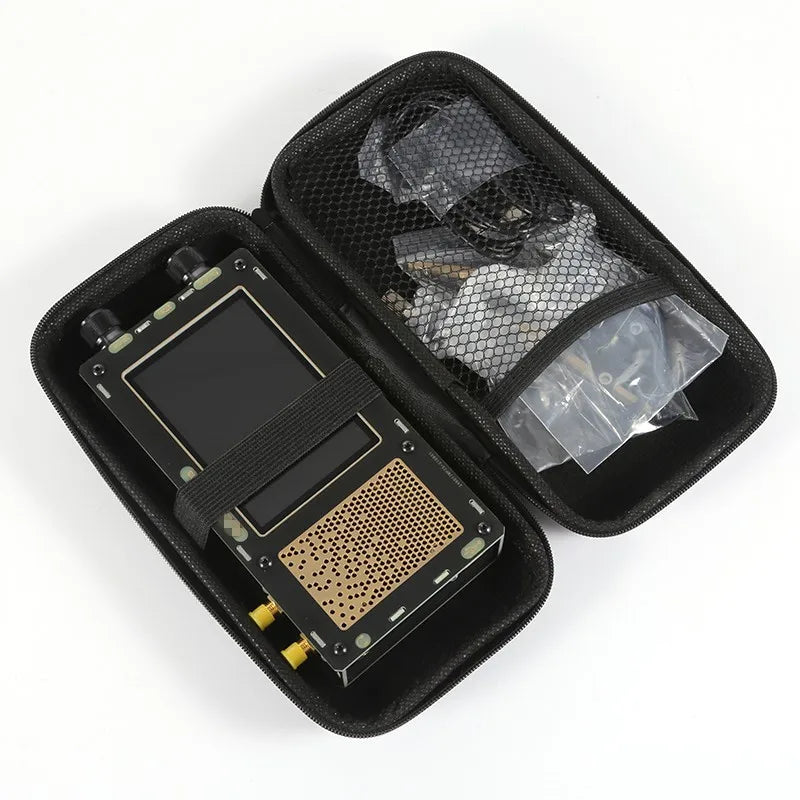

- 1x bag
-1 x stand

Note :

- Other items are not included, for demonstration purposes only.



Description

Item Specifics

Description

1.Latest version： V3

2.with two antenna ports

3. Registered 1.10D firmware , support 2G.

4.with additional Expansion board， Significantly improved medium wave and short wave








All circuit parts are shielded independently, ultra-low noise and high dynamic LNA is upgraded, front full frequency skin horn is used, and stable encoder is improved


Malachite radio, option version, version 3, with medium and short wave option, dual antenna input,

1) Based on SDR architecture, msi001 RF front-end is used for 12bit quantitative sampling, stm32h743 processor is used, and the main frequency is up to 480mhz;

2) The receiving frequency is 50 kHz to 49.999 MHz, 50.001 MHz to 249.999 MHz, 400 MHz to 2GHz;

3) Demodulation type: am, SSB, NFM, WFM, CW;

4) The sensitivity is better than 0.2-0.3 μ V；

5) Anti blocking is better than 85 dB;

6) The real-time sampling bandwidth is 160 kHz;

7) Functions: variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, equalizer, etc;

8) The display screen is IPS 3.5 inch, capacitive touch screen with backlight adjustment;

9) The battery capacity is 3000mAh with USB-type interface;

10) The working current shall not exceed 300mA;

11) Dual antenna input option version, front-end attenuation filter module, attenuation up to 30dB, high resistance input, improve short wave sensitivity, add four additional front-end filters;

12) Through USB connection to the computer, cat, IQ and audio communication can be realized;

13) The overall size is 147x77x25mm.
Package Included:

- 1 x Set of SDR Receiver
- 1x Antenna
- 1x bag
-1 x stand

Note :

- Other items are not included, for demonstration purposes only.
