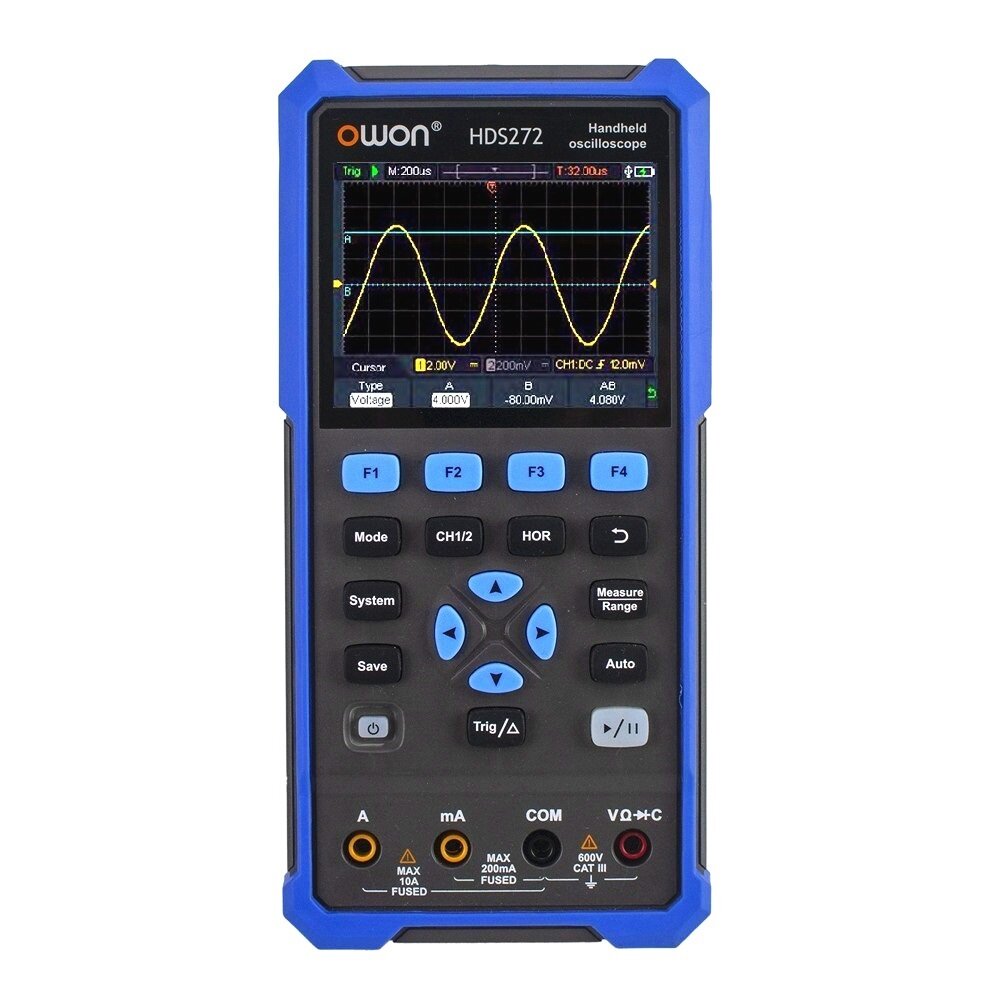

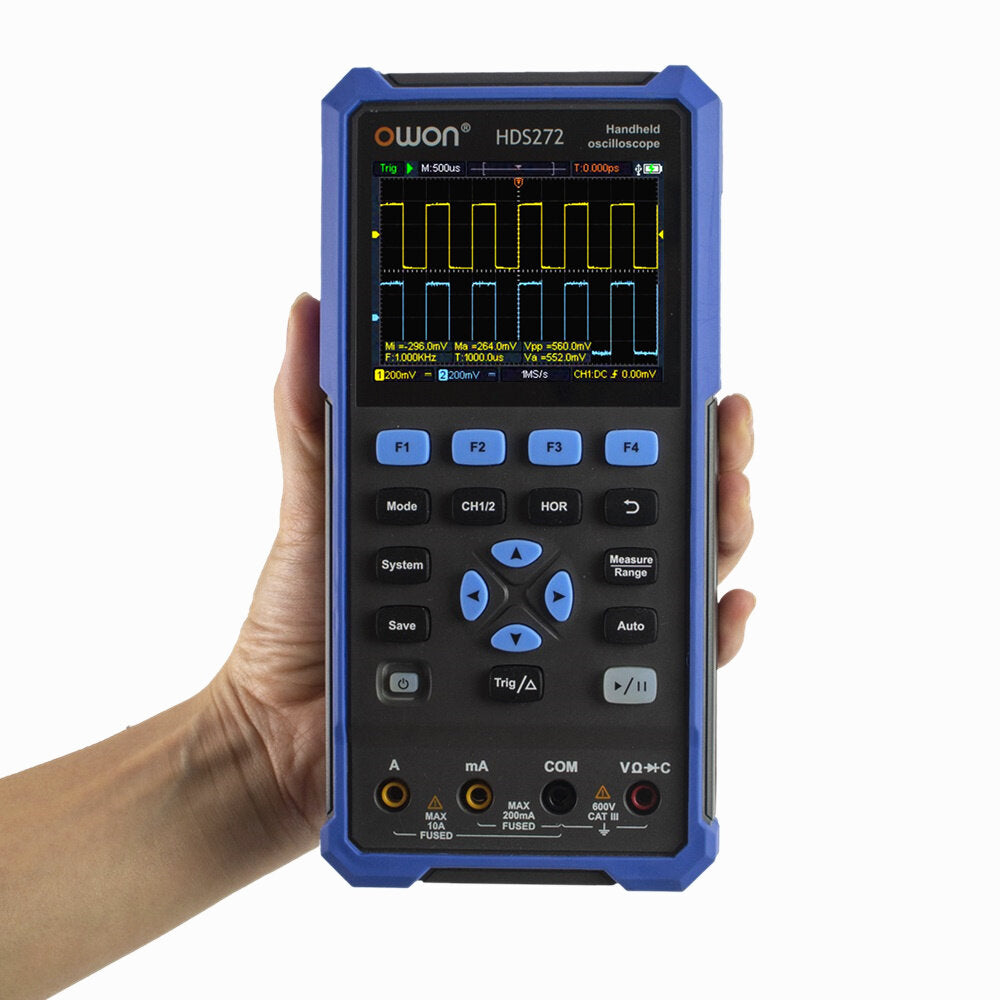

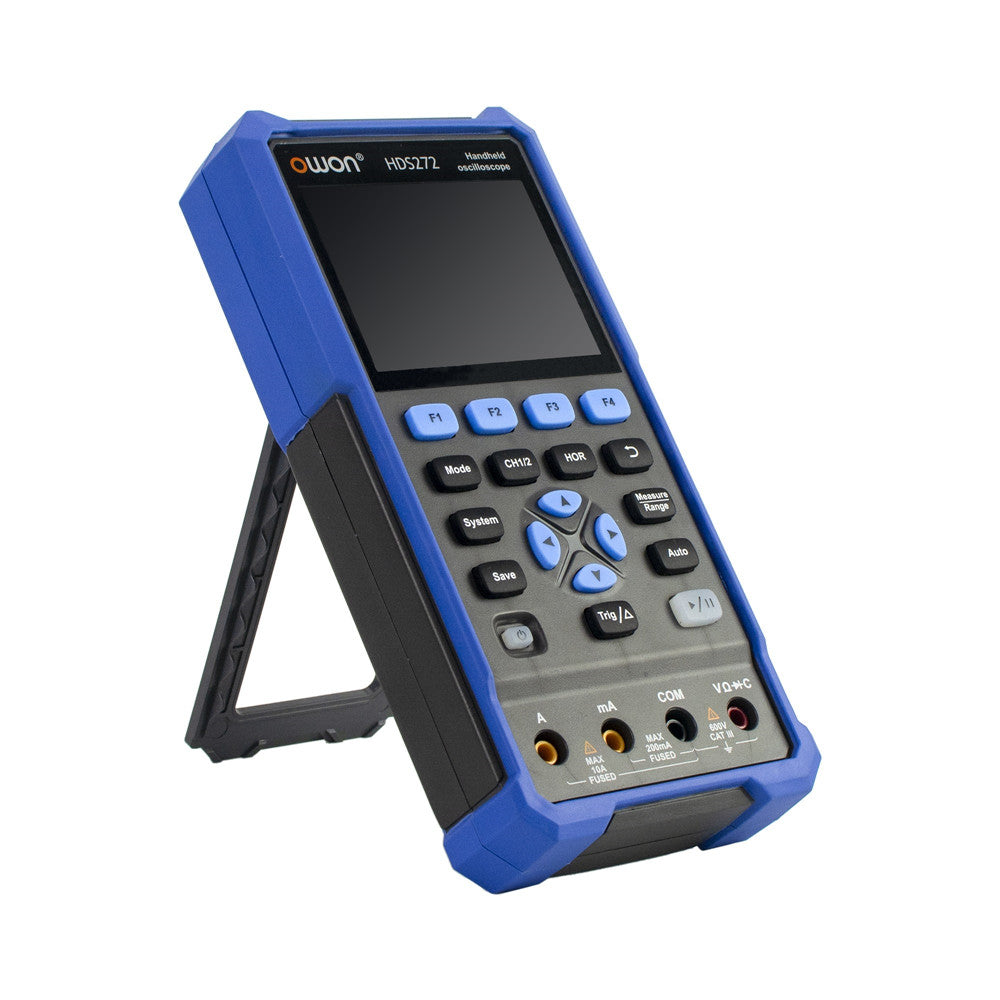

HDS200 Series 2CH Handheld Oscilloscope 40/70MHz Bandwidth 20000 Counts Multiumeter OSC + DMM + Waveform Generator 3 In 1 Suitable for Automobile Maintenance and Power Detection
HDS200 Series 2CH Handheld Oscilloscope 40/70MHz Bandwidth 20000 Counts Multiumeter OSC + DMM + Waveform Generator 3 In 1 Suitable for Automobile Maintenance and Power Detection
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features:
●Oscilloscope + multimeter + waveform generator, multifunction in one
●3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
●18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours

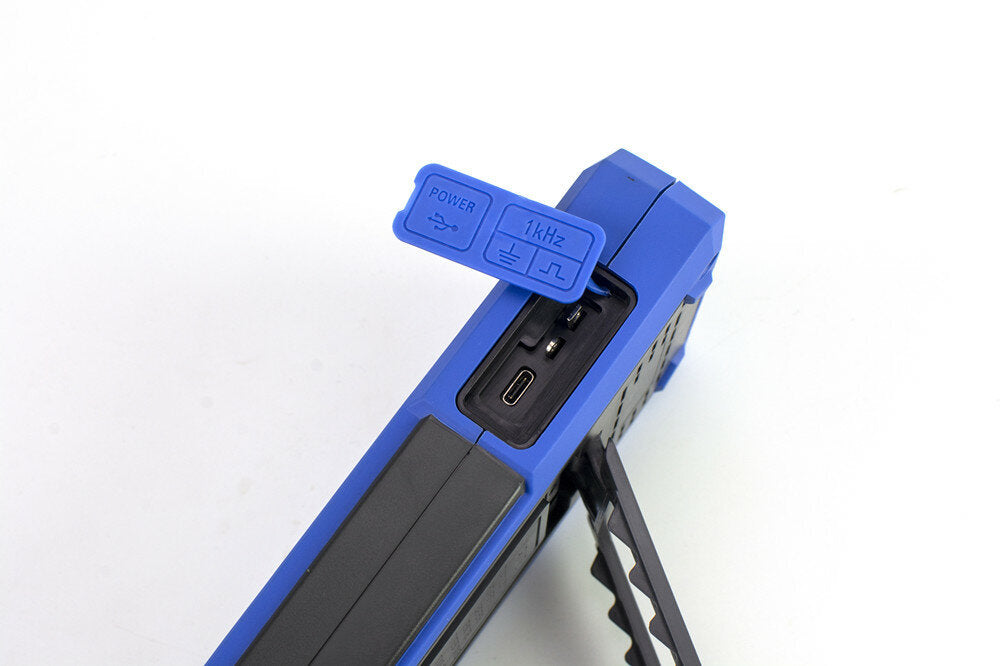

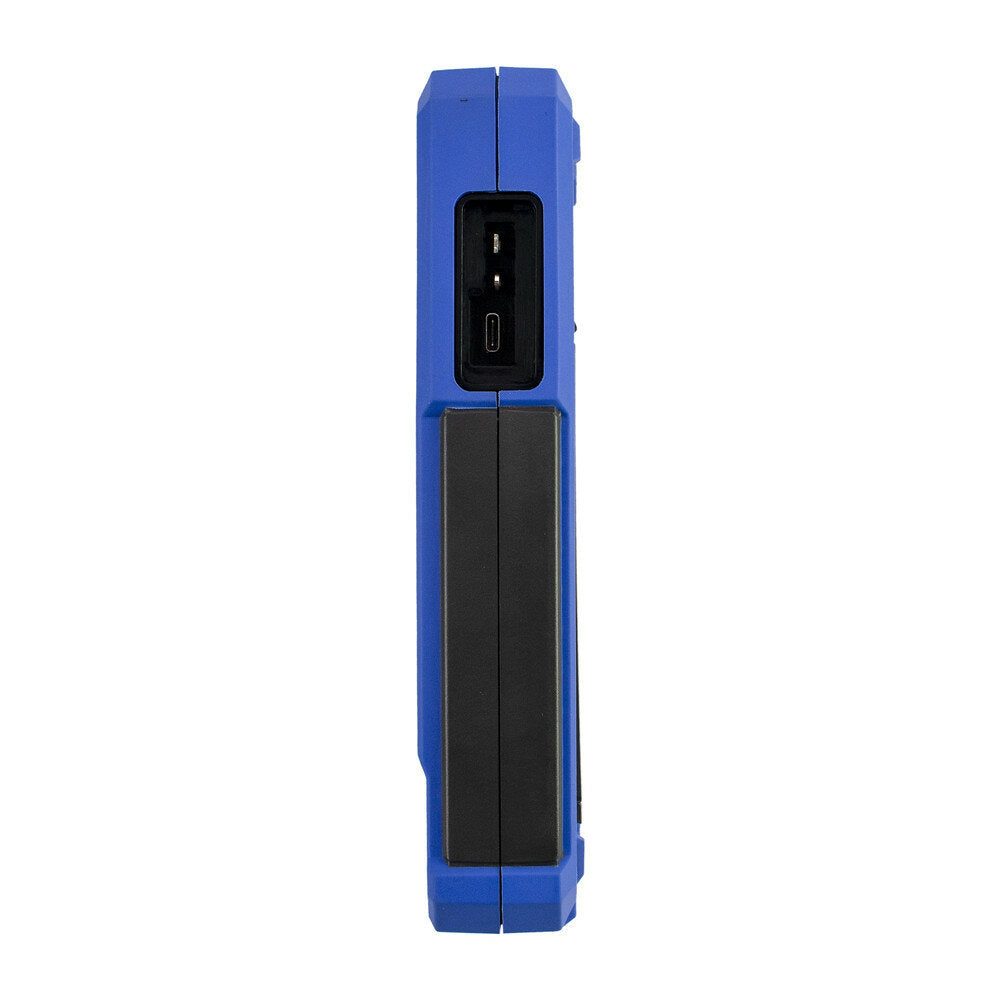

●USB Type-C interface, support power bank, support PC software connection
●Self-calibration function
●SCPI supported, facilitate secondary development
Specifications:
Oscilloscopes
|
Model |
HDS242 |
HDS272 |
HDS2425 |
HDS272S |
|
| Bandwidth | 40MHz | 70MHz | 40MHz | 70MHz | |
|
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope +1-CH Generator |
|||
|
Sample Rate |
125MSa/s |
||||
|
Acquisition Model |
Normal, Peak detect |
||||
|
Record Length |
8K |
||||
|
Display |
3.5 -inch LCD |
||||
|
Waveform Refresh Rate |
10,000 wfrms/s |
||||
|
Input Coupling |
DC, AC, and Ground |
||||
|
Input Impedance |
1 MΩ+2%, in parallel with 1 6pF+10pF |
||||
|
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
||||
|
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) |
||||
|
Bandwidth Limit (typical) |
20MHz |
||||
|
Horizontal Scale |
5ns/div - 1000s/div, step by 1-2- 5 |
||||
|
Vertical Sensitivity |
10mV/div - 10V/div |
||||
|
Vertical Resolution |
8 bits |
||||
|
Trigger Type |
Edge |
||||
|
Trigger Modes |
Auto, Normal, single |
||||
|
Automatic Measurement |
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
||||
|
Cursor Measurement |
△V, △T, △T&△V between cursors |
||||
|
Communication Interface |
USB Type-C |
||||

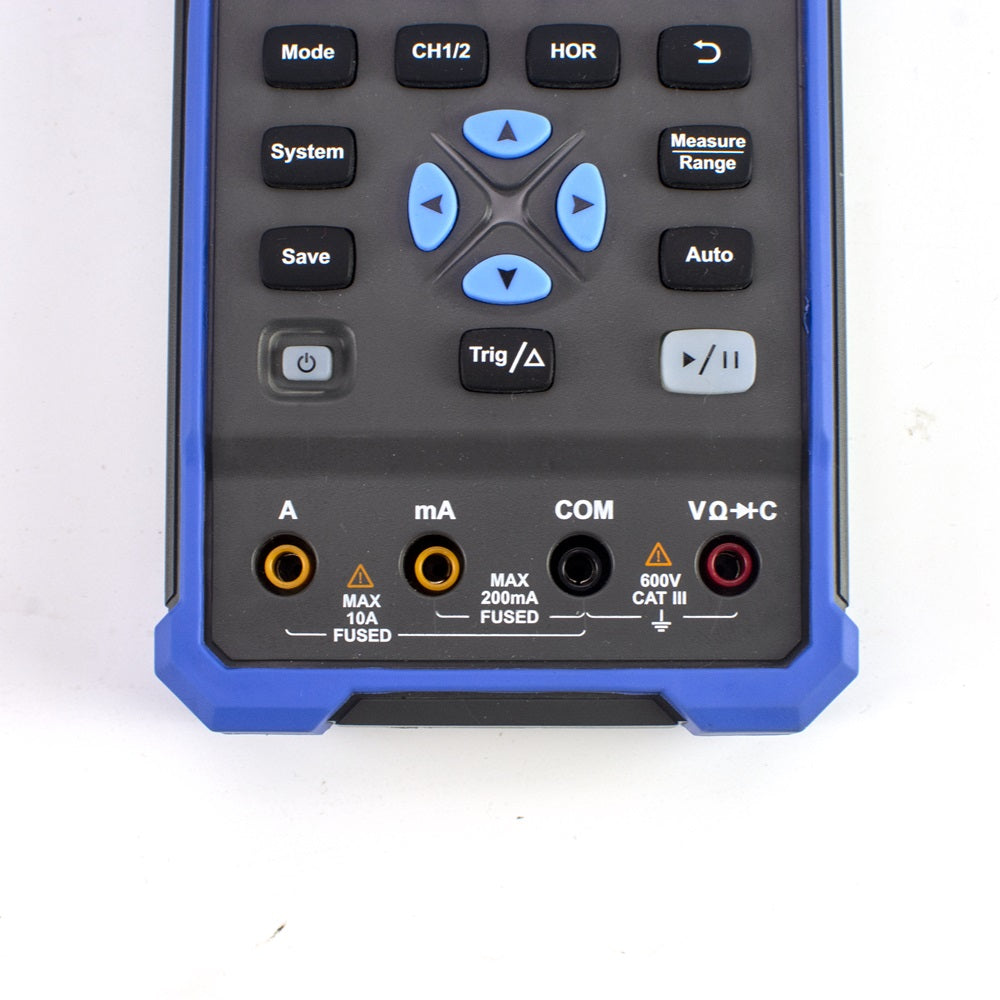

Multimeter (Standard)
|
Max. Resolution
|
|
|
Testing Mode
|
Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
|
|
Input Impedance
|
10MΩ
|
|
Max Input Voltage |
AC 750V, DC 1000V
|
|
Max Input Current
|
DC: 10A AC: 10A
|
|
Diode
|
0- 2V |
Waveform Generator (Only for HDS242S & HDS272S)
|
Frequency Output |
Sine
|
0.1Hz - 25MHz
|
|
Square |
0.1Hz - 5MHz
|
|
|
Ramp |
0.1Hz - 1MHz
|
|
|
Pulse
|
0.1Hz - 5MHz
|
|
|
Arbitrary
|
0.1Hz - 5MHz
|
|
|
Sampling Rate |
125MSa/s
|
|
|
Channel |
1-CH
|
|
|
Amplitude Range |
20mVpp-5Vpp
|
|
|
Waveform Length
|
8K
|
|
|
Vertical Resolution |
14bits
|
|
|
Output Impedance
|
50Ω
|
|

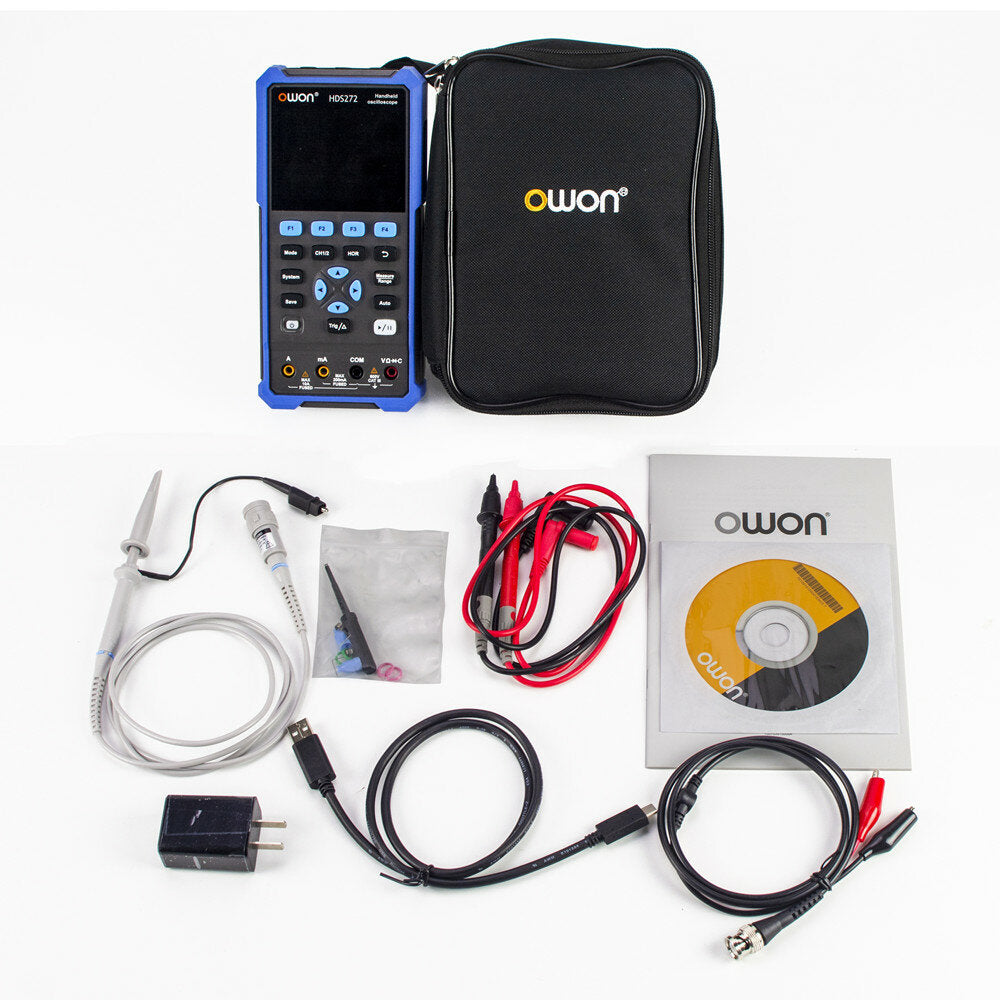

Package includes:
1 x Main device

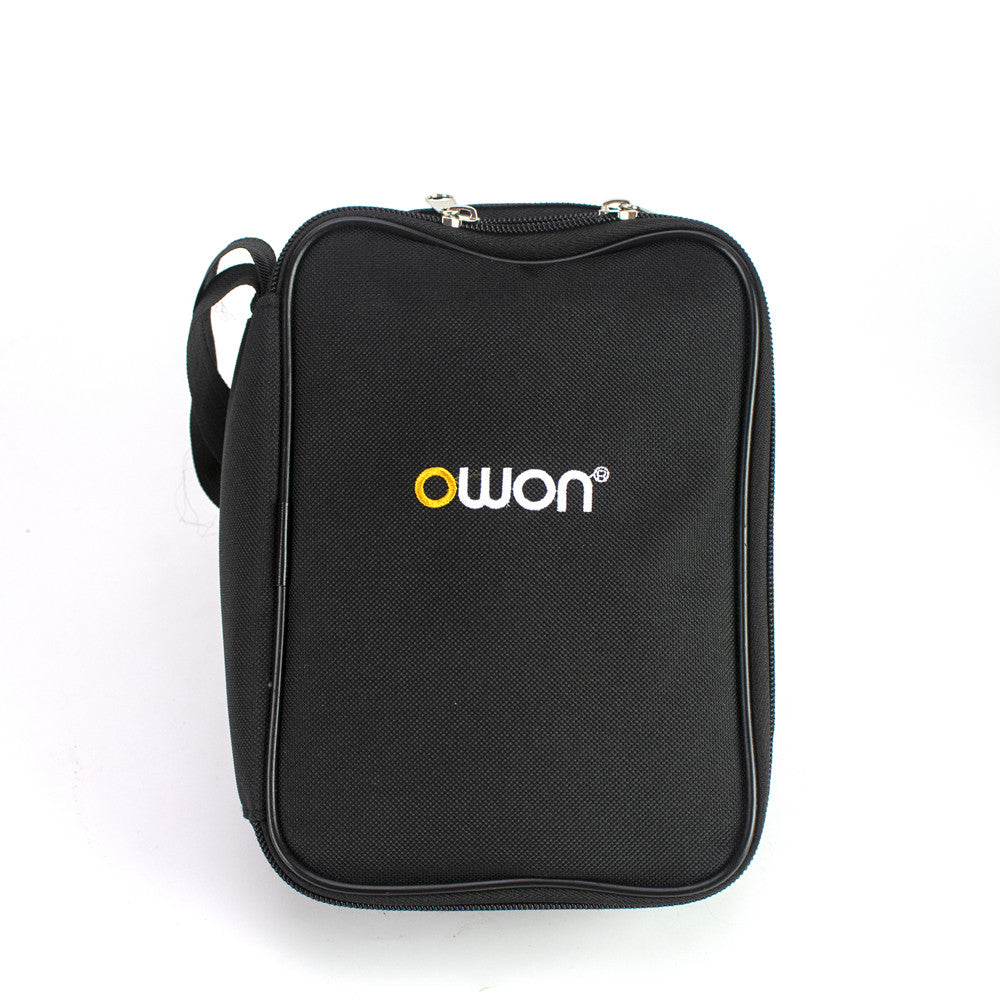

1 x Bag
1 x Probe

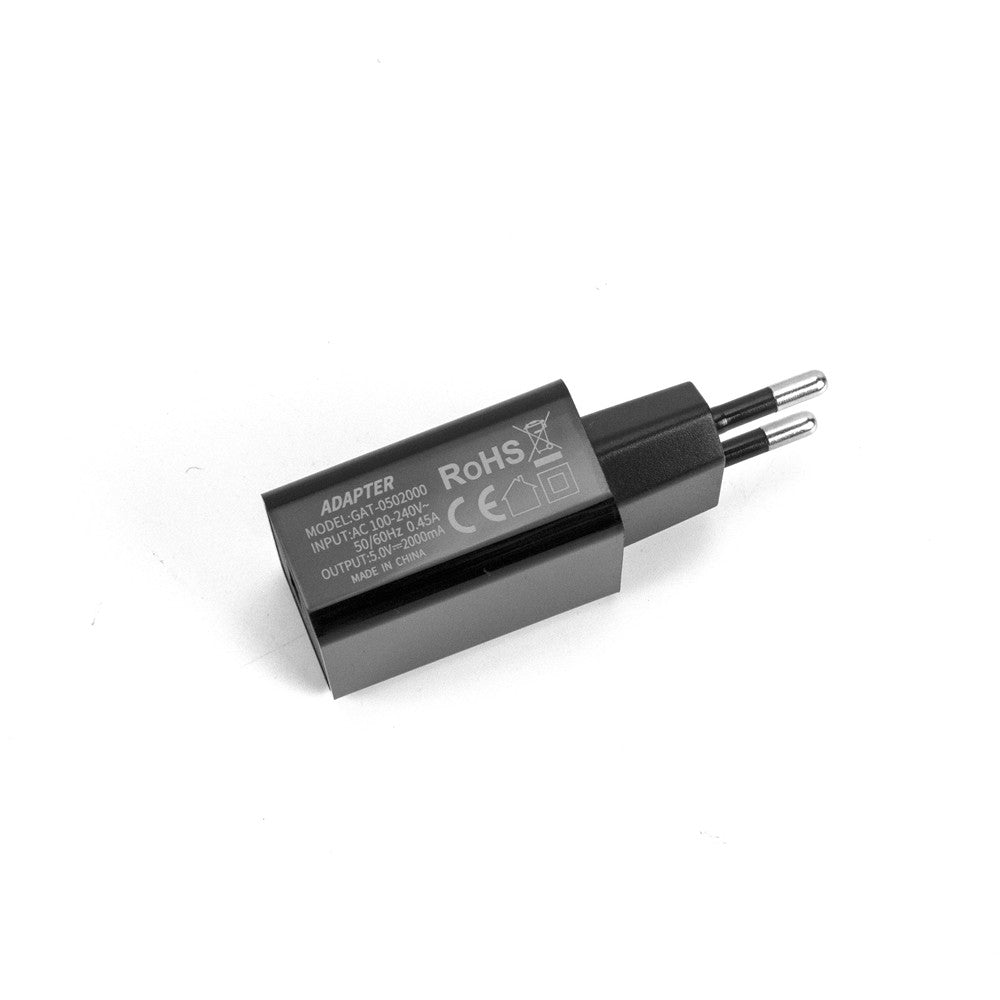

1 x Power Plug(EU type)
1 x Probe Adjust

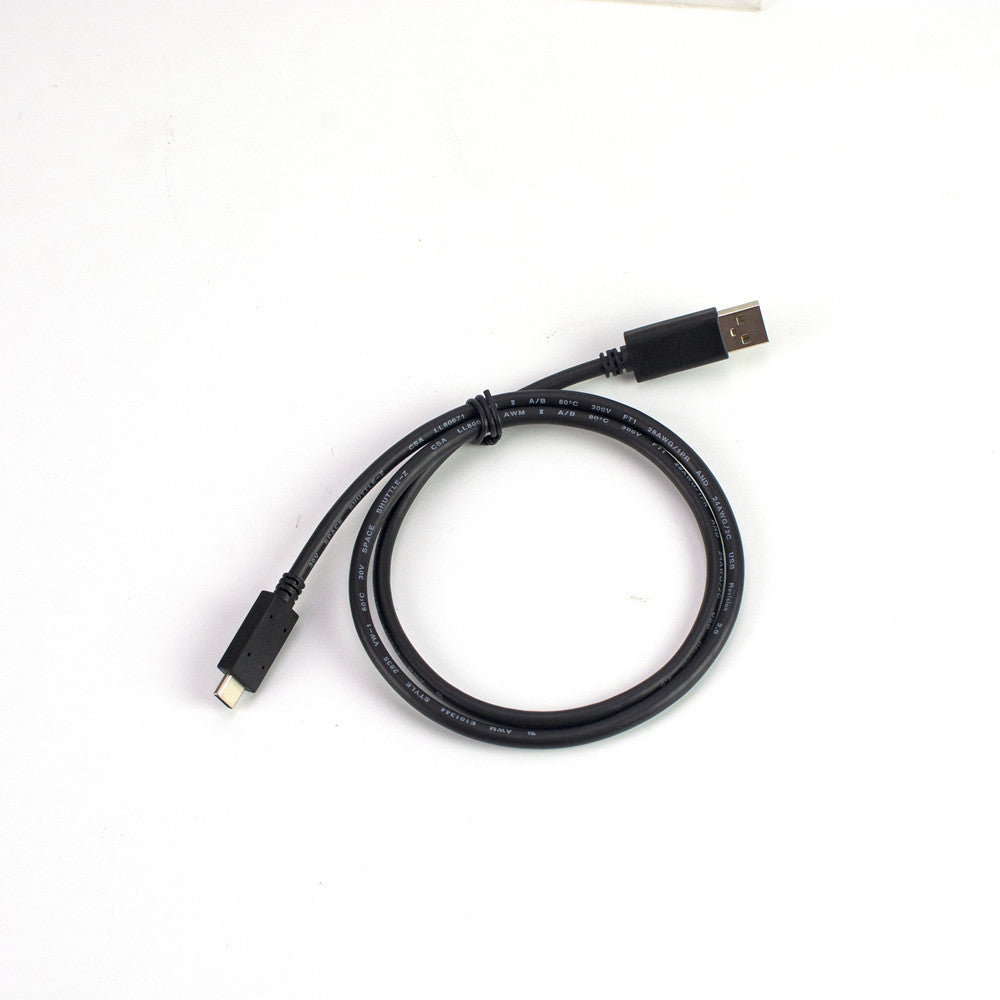

1 x USB Cable

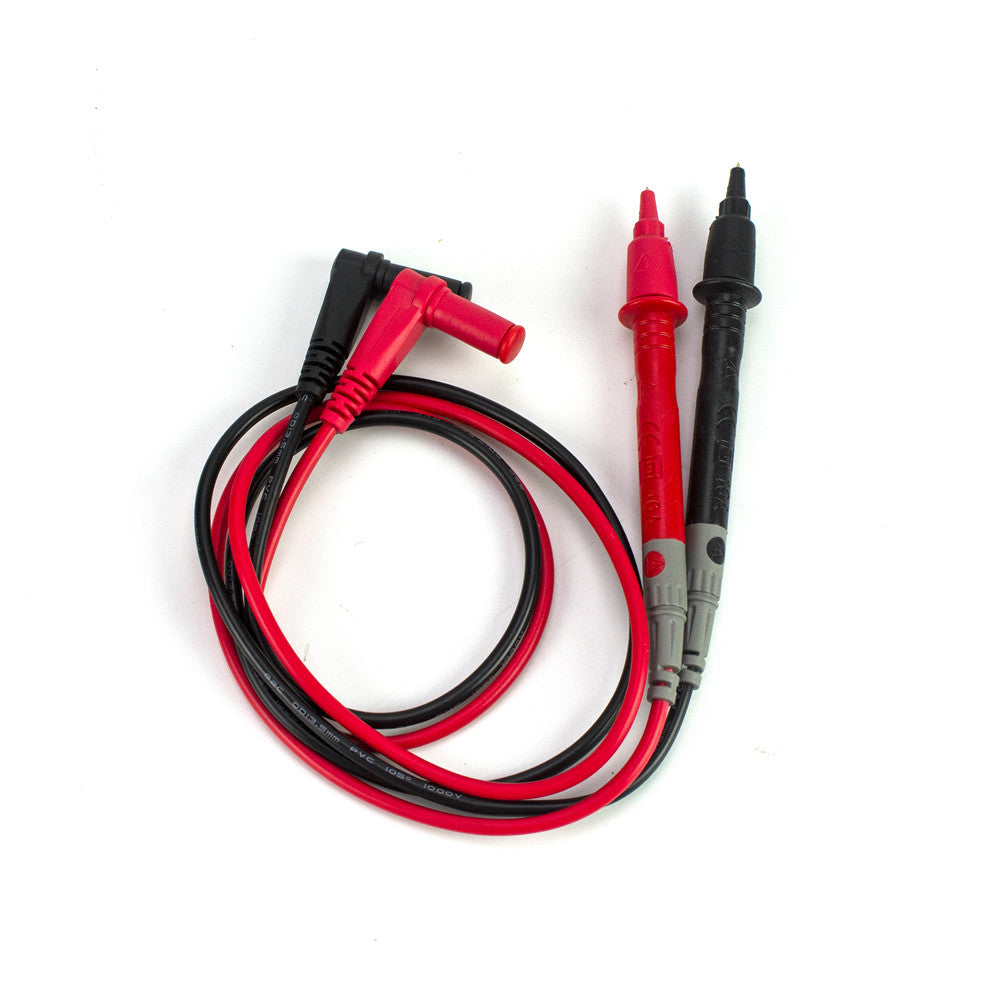

2 x Multimeter Leads
1 x Instructions
1 x CD Rom
1 x BNC to Alligator Clip

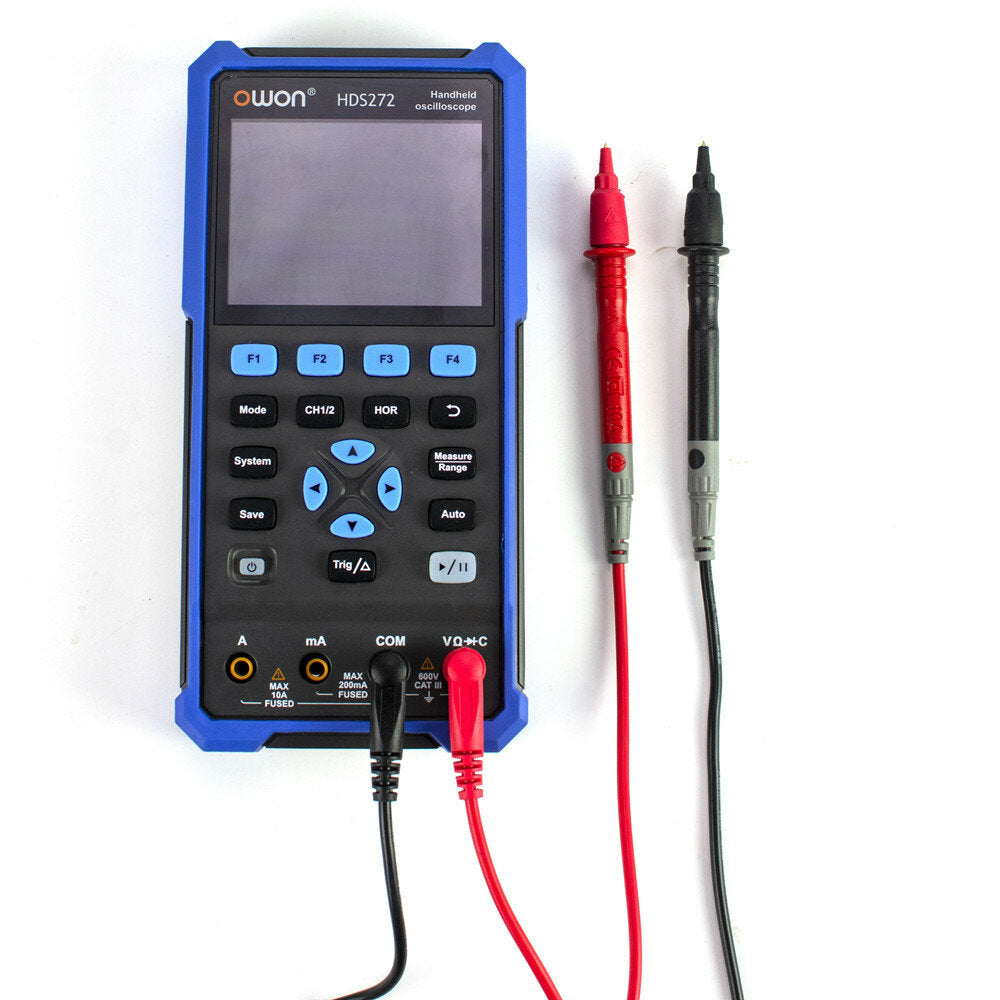

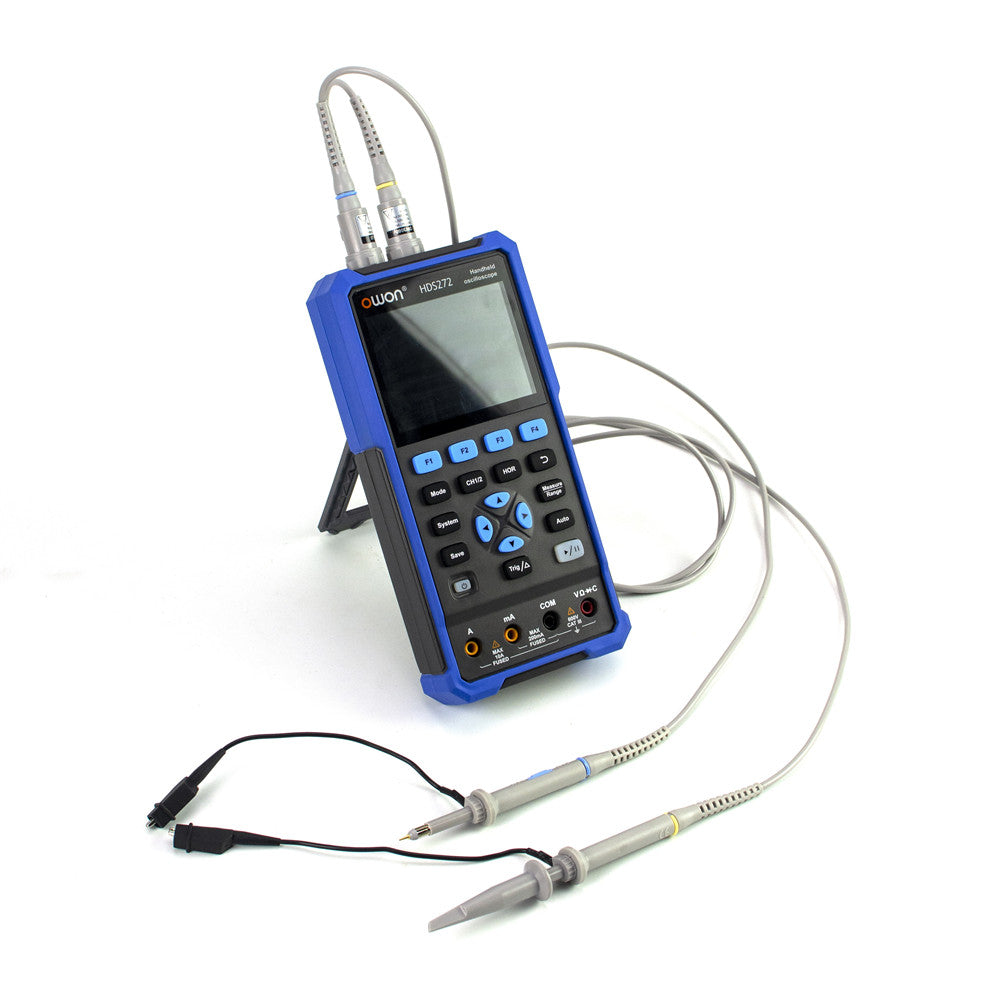

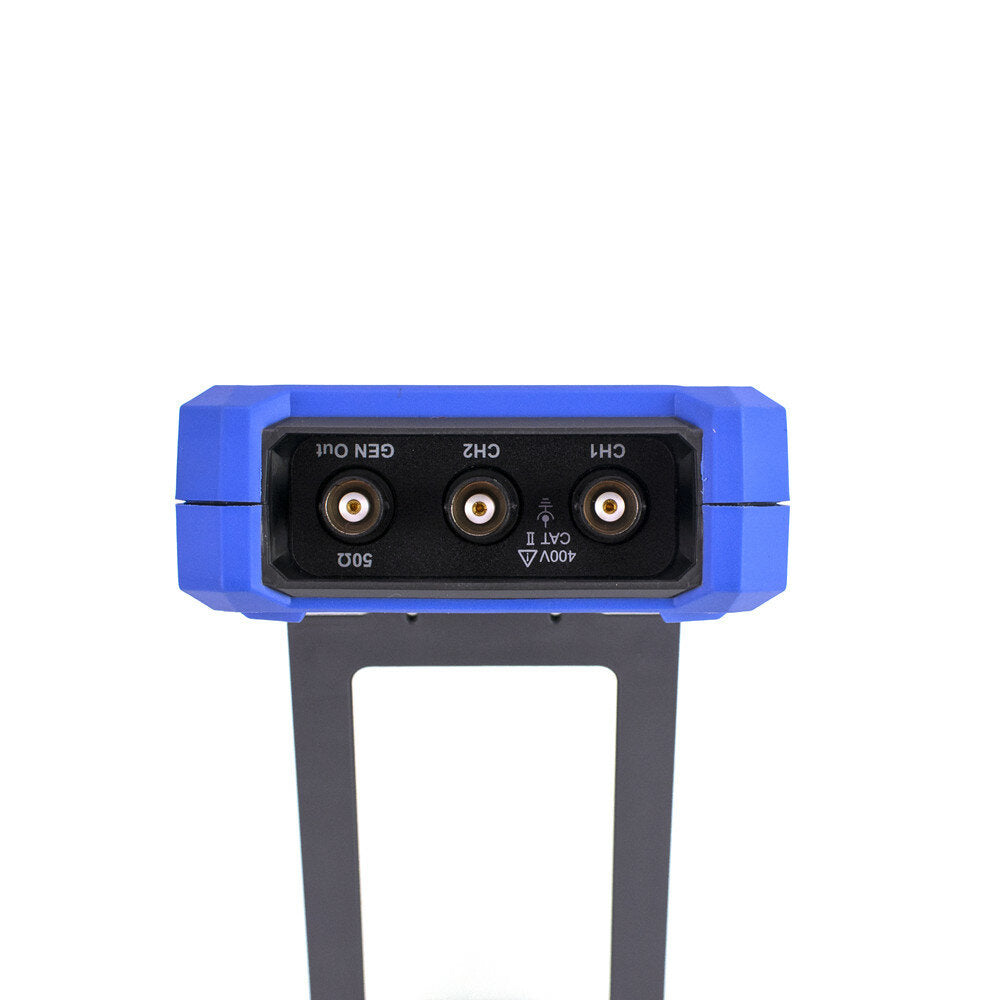

Details picture:
