The storage depth 2Gbit (DDR2), sampling frequency, 150MHz bandwidth 400MS/s to meet your various needs.
Innovative trigger mode and new analysis of measuring means, make you in the measurement of the process more efficient and simple.
Hantek4032L can be set in different edge, level, bus, data width trigger mode, easy to use.
Innovative data analysis function, makes you more relaxed in the analysis of UART, SPI, I2C and other data.
Analysis of two powerful protocol, can ex port CSV, TXT, DOC format, easy to use other tools two analysis.
USB2.0 high speed interface, plug and play.
Excellent industrial design, similar to desktop oscilloscope interface, easy to use.

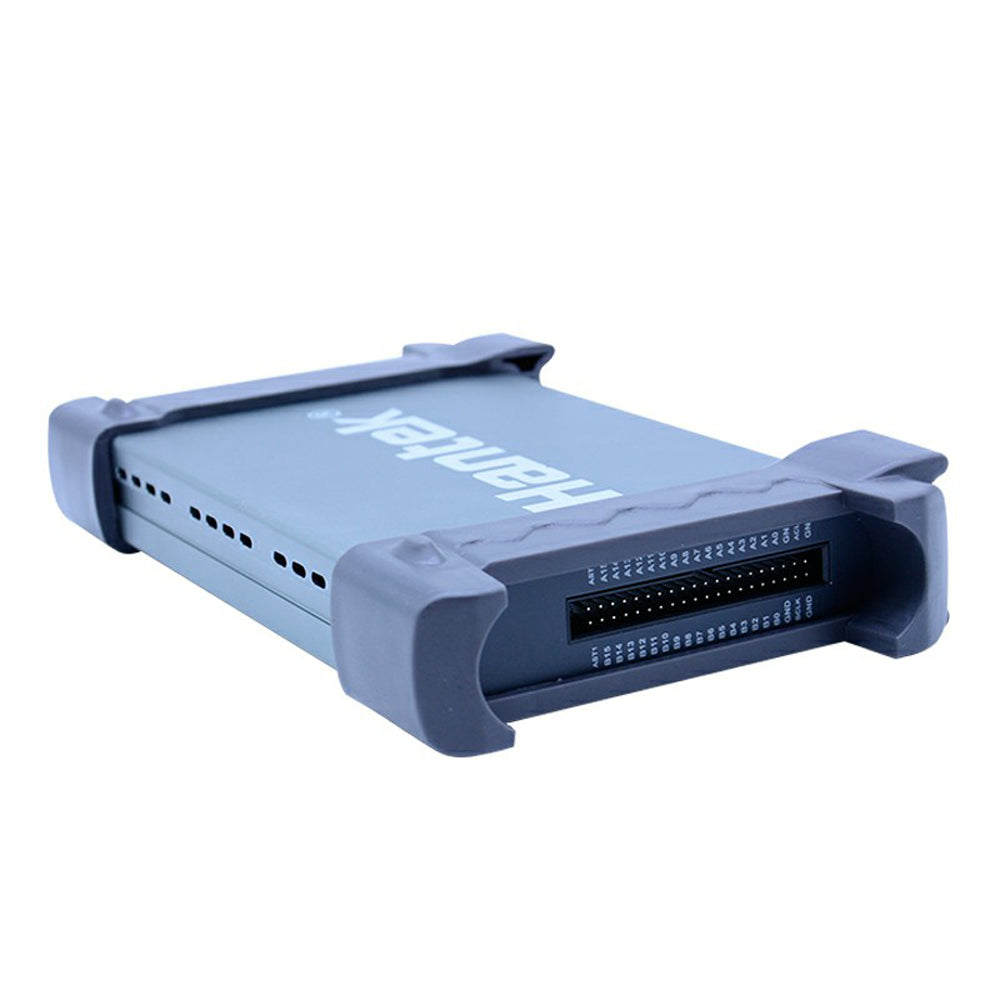

The number of channels: 32
The input impedance: 200K(C=10p)
Input voltage range: -6V~60V
Voltage threshold: -6V~6V
The maximum sampling rate: 400MHz
The maximum input signal bandwidth: 150MHz
The minimum time resolution: 2ns
Sampling depth: 64M Sample
The storage depth: 2G bits
Compatible inputs: TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic protection area: 15KV

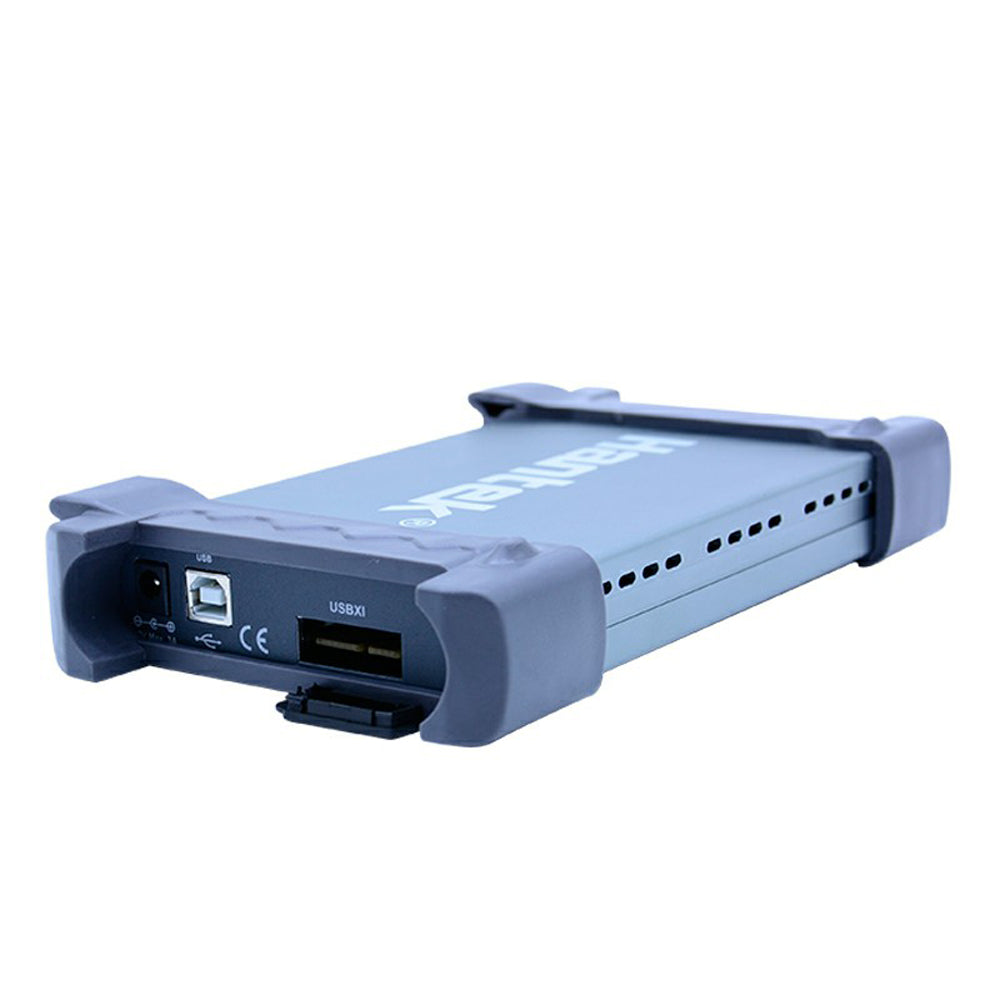

The host interface: USB Port
Working voltage: 4.5V~5.5V
Energy consumption: Max. 3.5W
Operation: -10 ~60
Storage: -40 ~60
Operating system: WinXP/2000/Win7

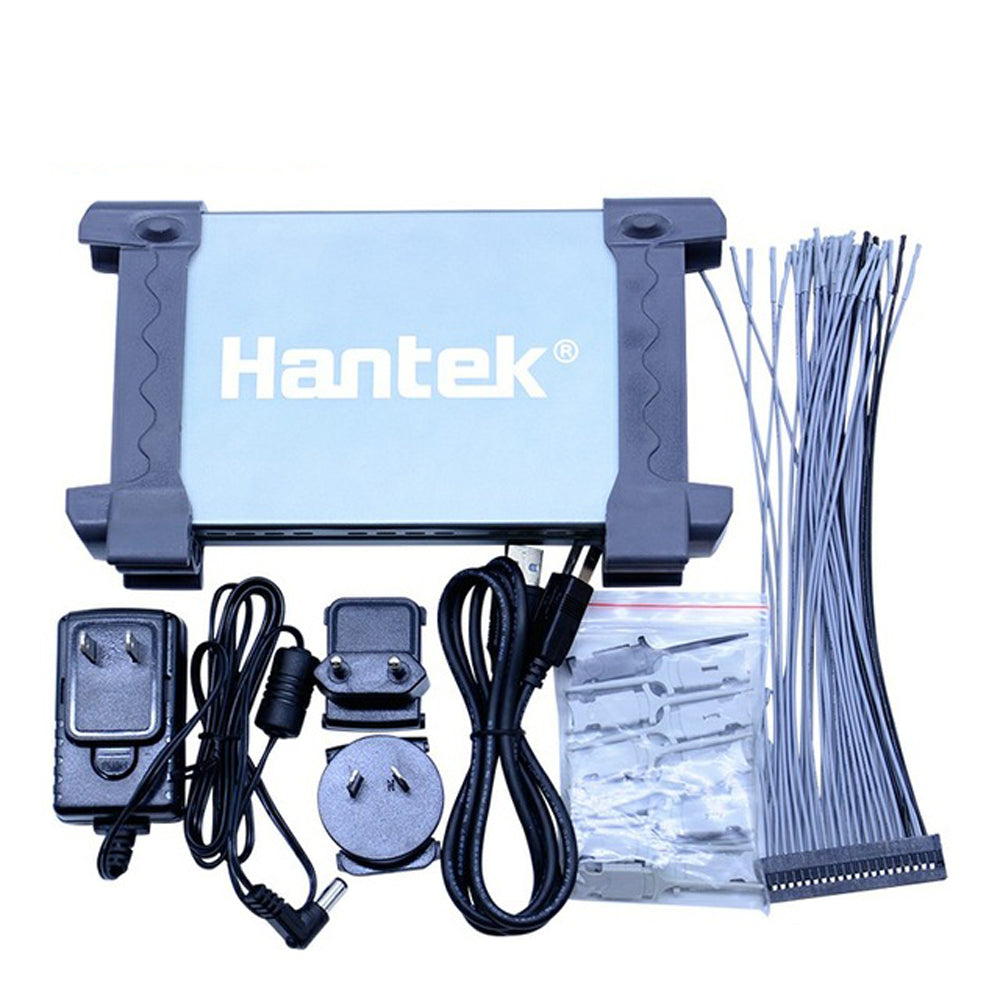

1 x 4032L USB Oscilloscope
2 x Transfer Plug
1 x Wire
18 x Measure Clip
1 x Cable Line
1 x Power Adapter
