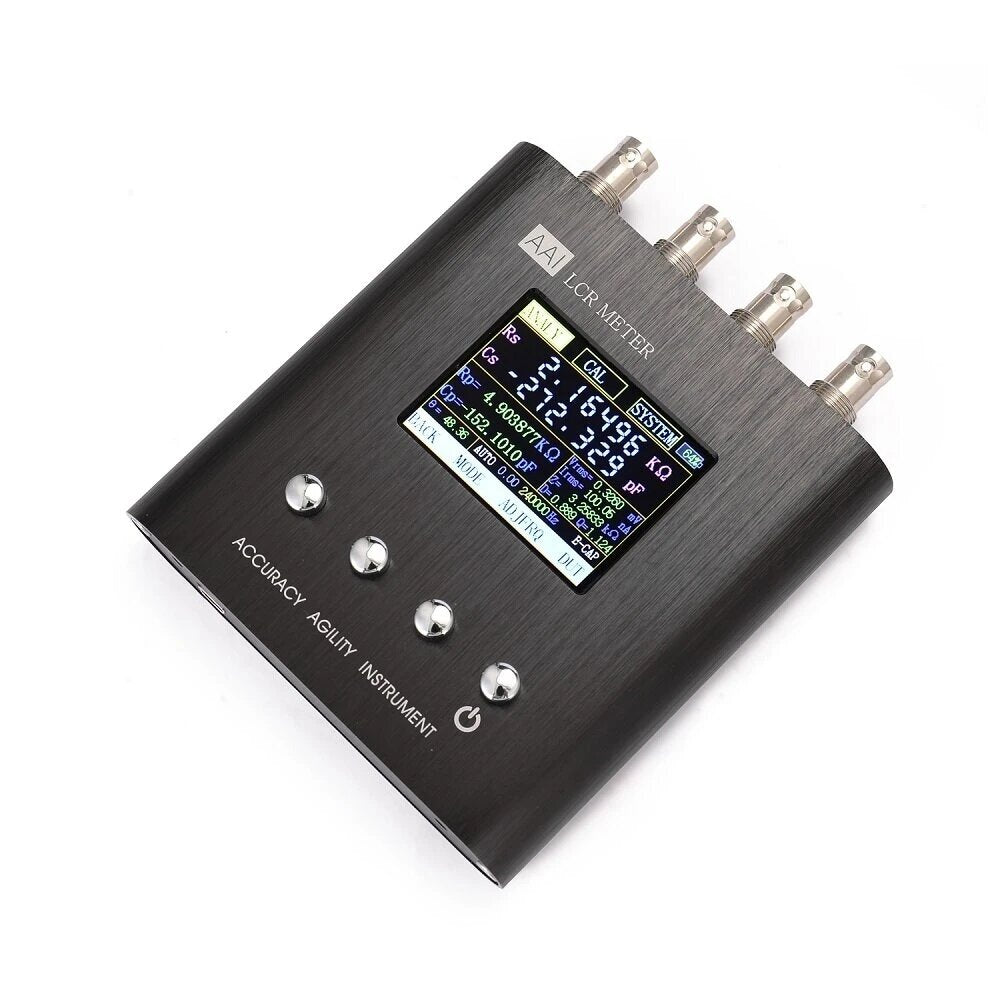

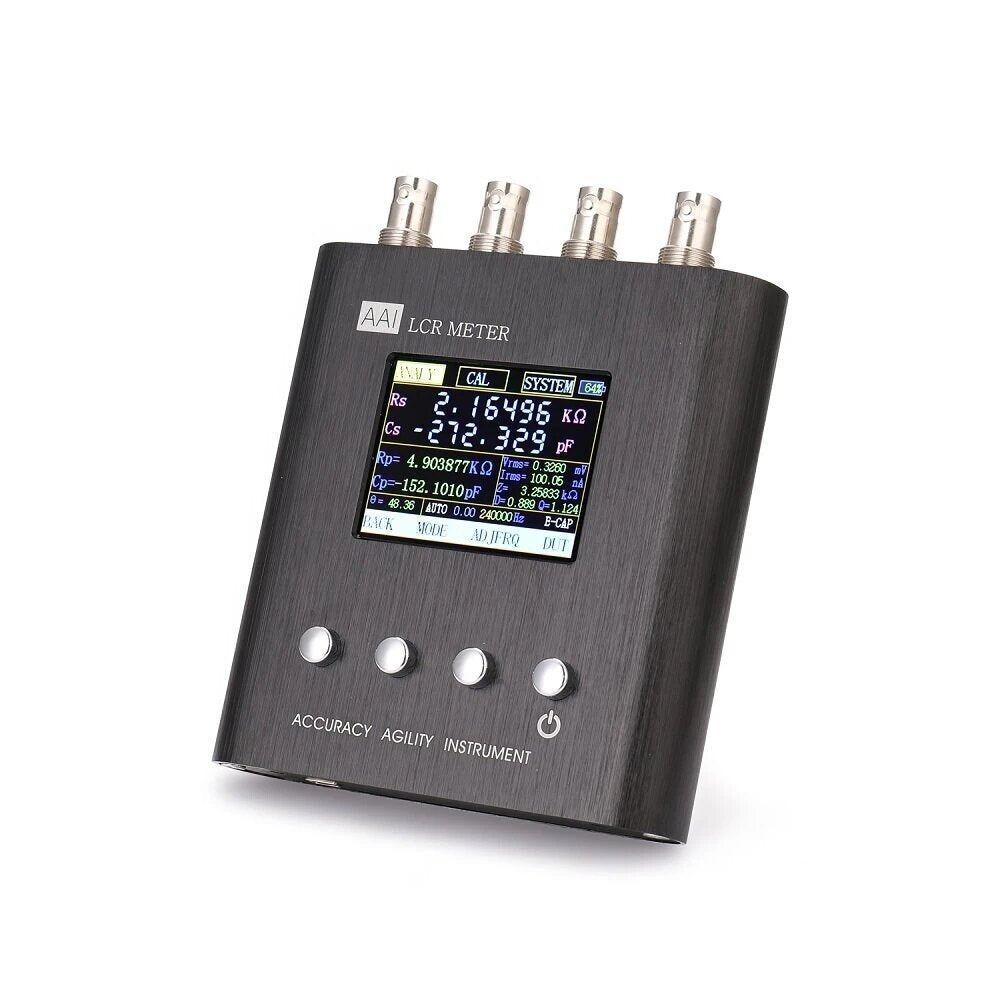

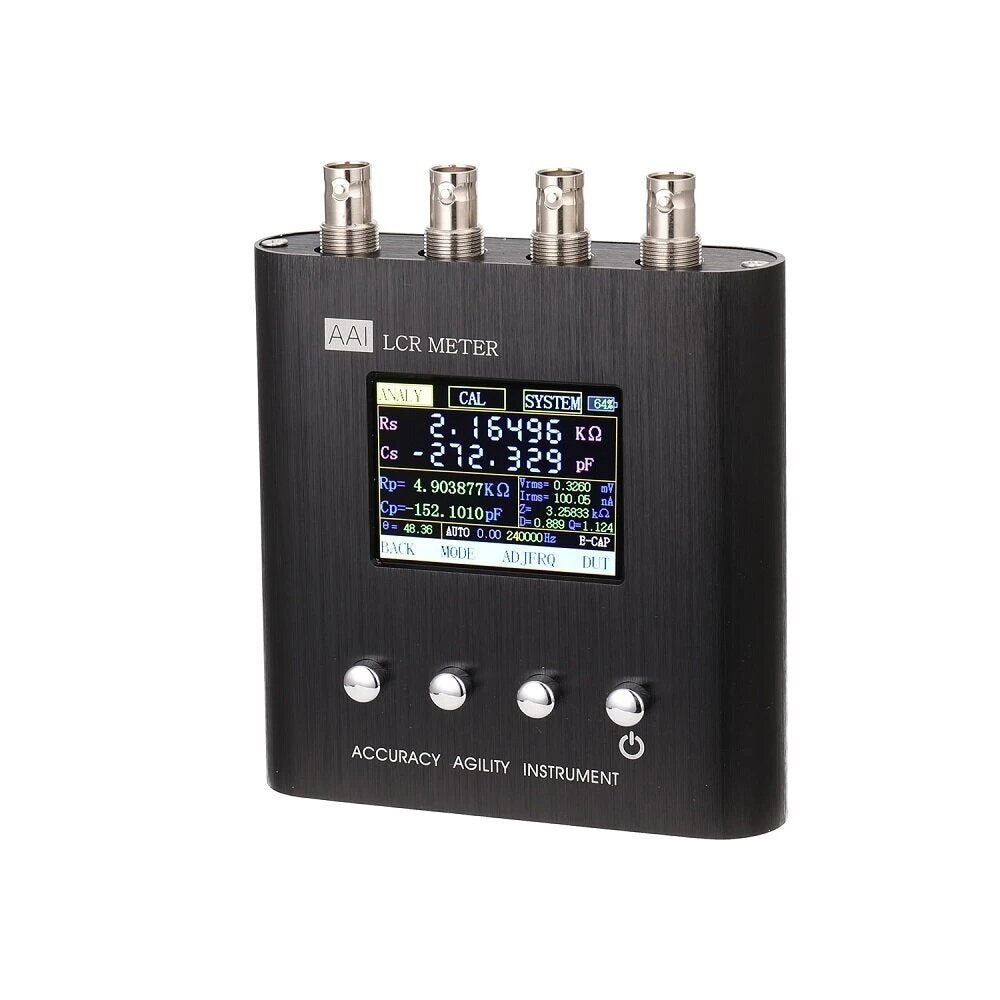

50Hz～100kHz-24 Frequency Handheld Impedance Tester Bridge LCR Digital Resistance Measurement Capacitance Adjustable Inductance
50Hz～100kHz-24 Frequency Handheld Impedance Tester Bridge LCR Digital Resistance Measurement Capacitance Adjustable Inductance
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
50Hz～100kHz-24 Frequency Handheld Impedance Tester Bridge LCR Digital Resistance Measurement Capacitance Adjustable Inductance

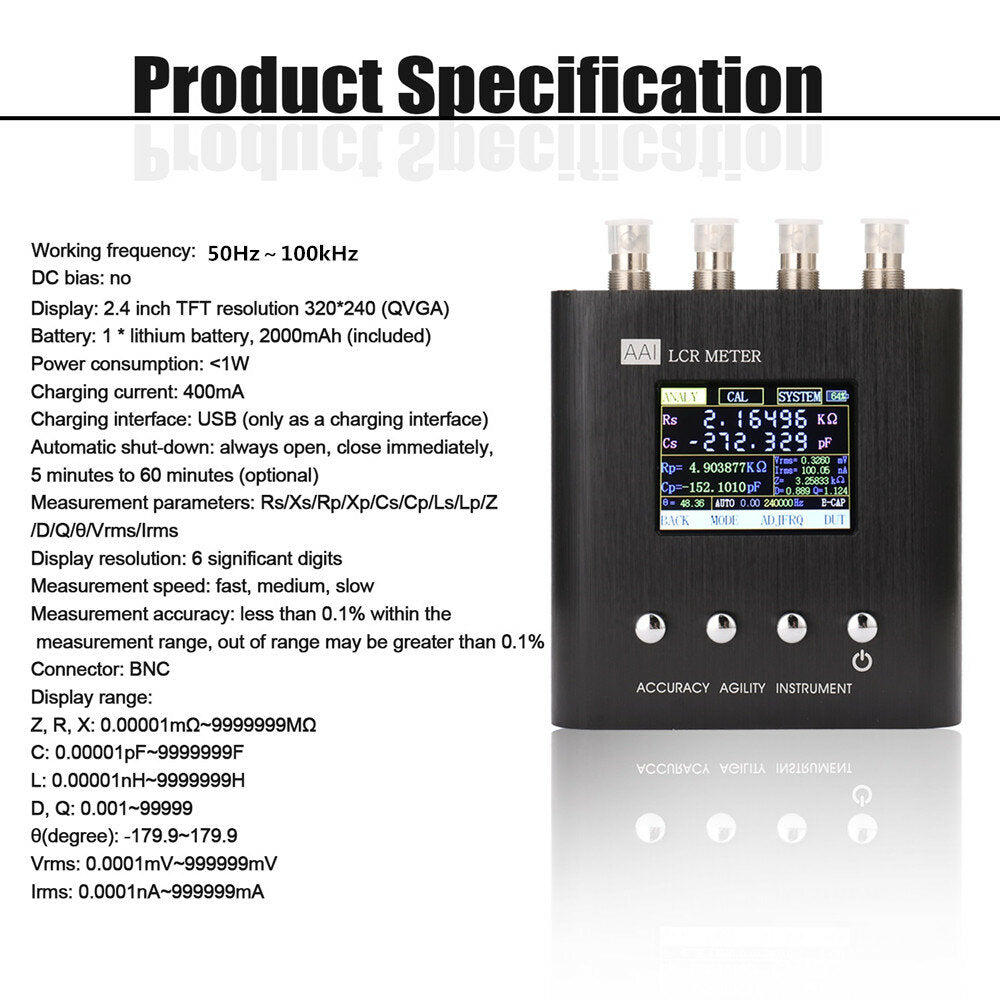

| Working frequency |
50Hz～100kHz-24 frequency |
|
| Stepping | × | |
|
Display screen |
2.4 inch TFT resolution 320×240 (QVGA) |
|
|
Battery capacity |
2000mAH（7.4Wh） |
|
|
Power consumption |
<1W |
|
|
Charging current |
400mA |
|
|
Charging port |
USB (only as a charging port) |
|
|
Automatic shutdown |
always on, immediately off, 5 minutes to 60 minutes (optional) |
|
|
Measurement parameters |
Rs/Xs/Rp/Xp/Cs/Cp/Ls/Lp |
|
|
Z /D/Q/θ/Vrms/Irms |
||
|
DC bias |
None |
|
|
Display resolution |
6 digits effective value |
|
|
Measuring speed |
fast, medium and slow |
|
|
Measurement accuracy |
less than 0.1% within the measurement range |
|
|
Out of range may be greater than 0.1% |
||
|

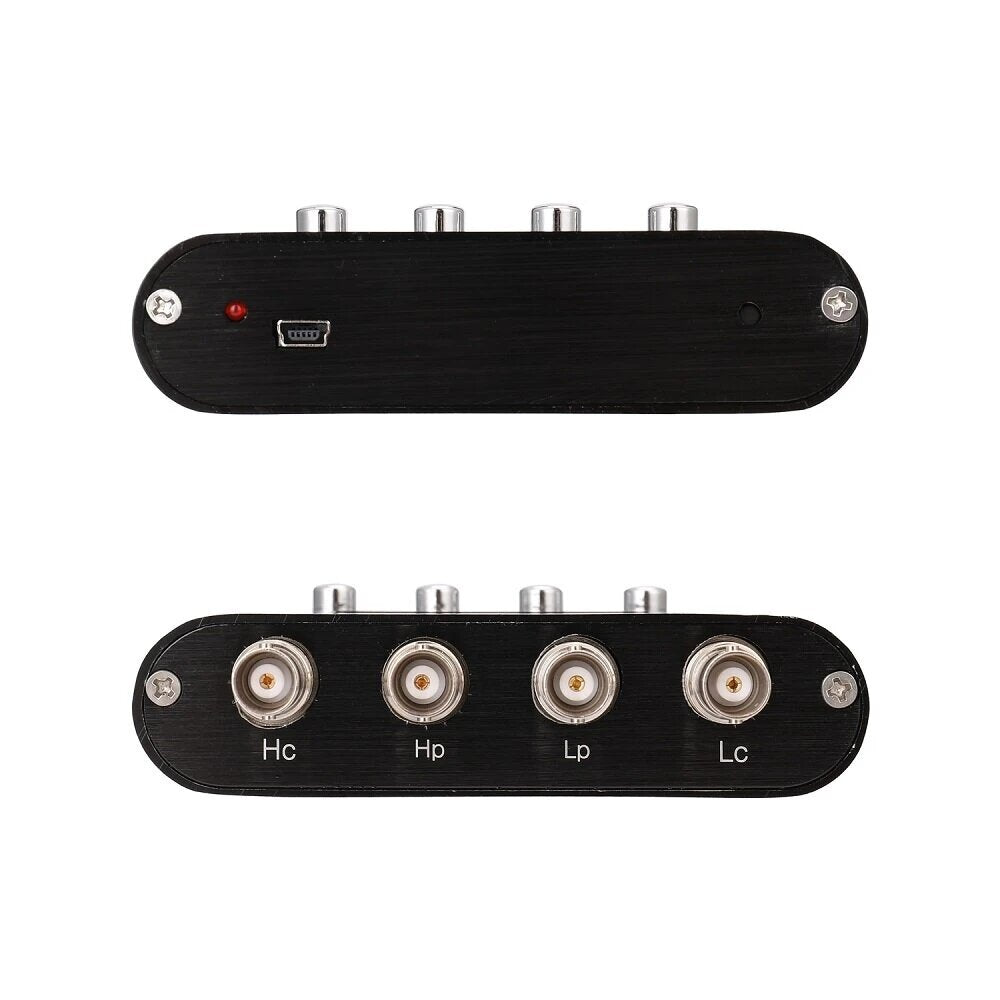

Connector |
BNC |
|
|
Display range |
Z ,R,X |
0.00001 mΩ～9999999 MΩ |
|
C |
0.00001pF～9999999F |
|
|
L |
0.00001nH～9999999H |
|
|
D, Q |
0.001～99999 |
|
|
θ(degree) |
-179.9～179.9 |
|
|
Vrms |
0.0001mV～999999mV |
|
|
Irms |
0.0001nA～999999mA |
|
|
Measuring range |
Z |
1mΩ～200MΩ |
|
C |
3fF～3F |
|
|
L |
0.5nH～600kH |
|
|
Level |
（mVrms） |
1,002,003,004,005,000,000,000,000,000,000 |
|
Output impedance |
30Ω，100Ω (optional) |
|
|
Model |
Automatic, series, parallel (optional) |
|
|
DUT |
Automatic, resistance, inductance, capacitance, electrolysis (optional) |
|
|
Calibration function |
Open circuit, short circuit (with factory value), load calibration |
|
|

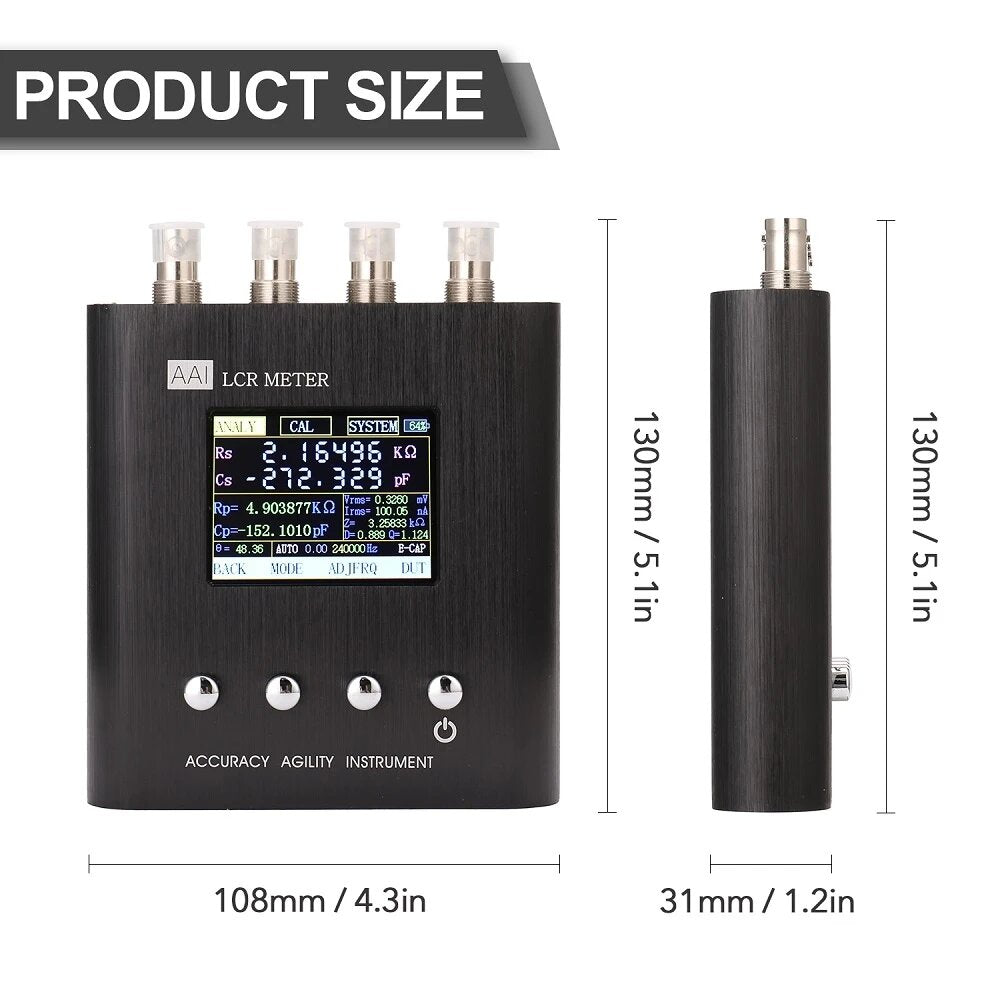

Appearance size |
130*108*31（mm） |
|
|
Net weight |
315g |
|
|
Working temperature |
5℃～40℃ |
|
|
Atmospheric pressure |
860hPa～1060hPa |
|
