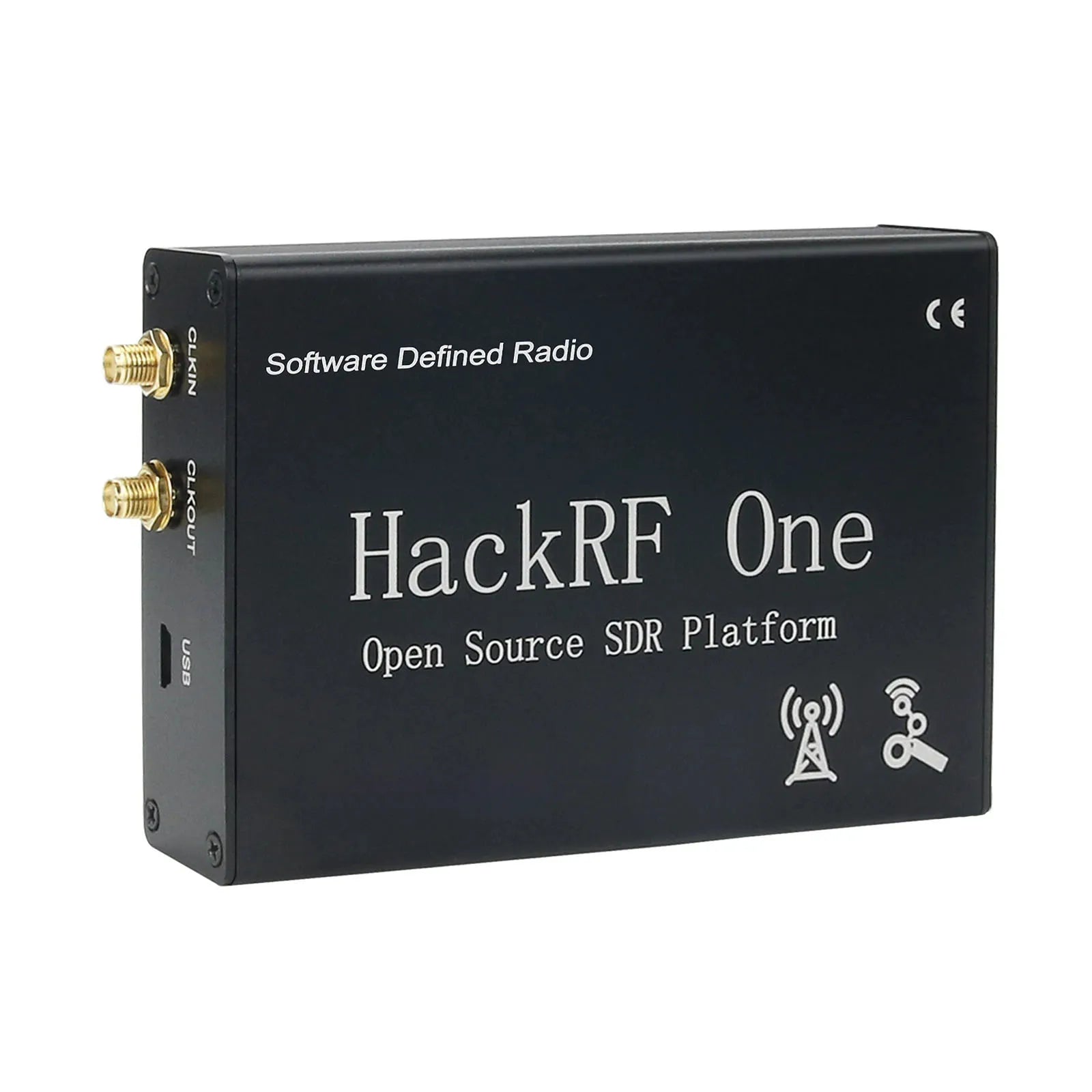

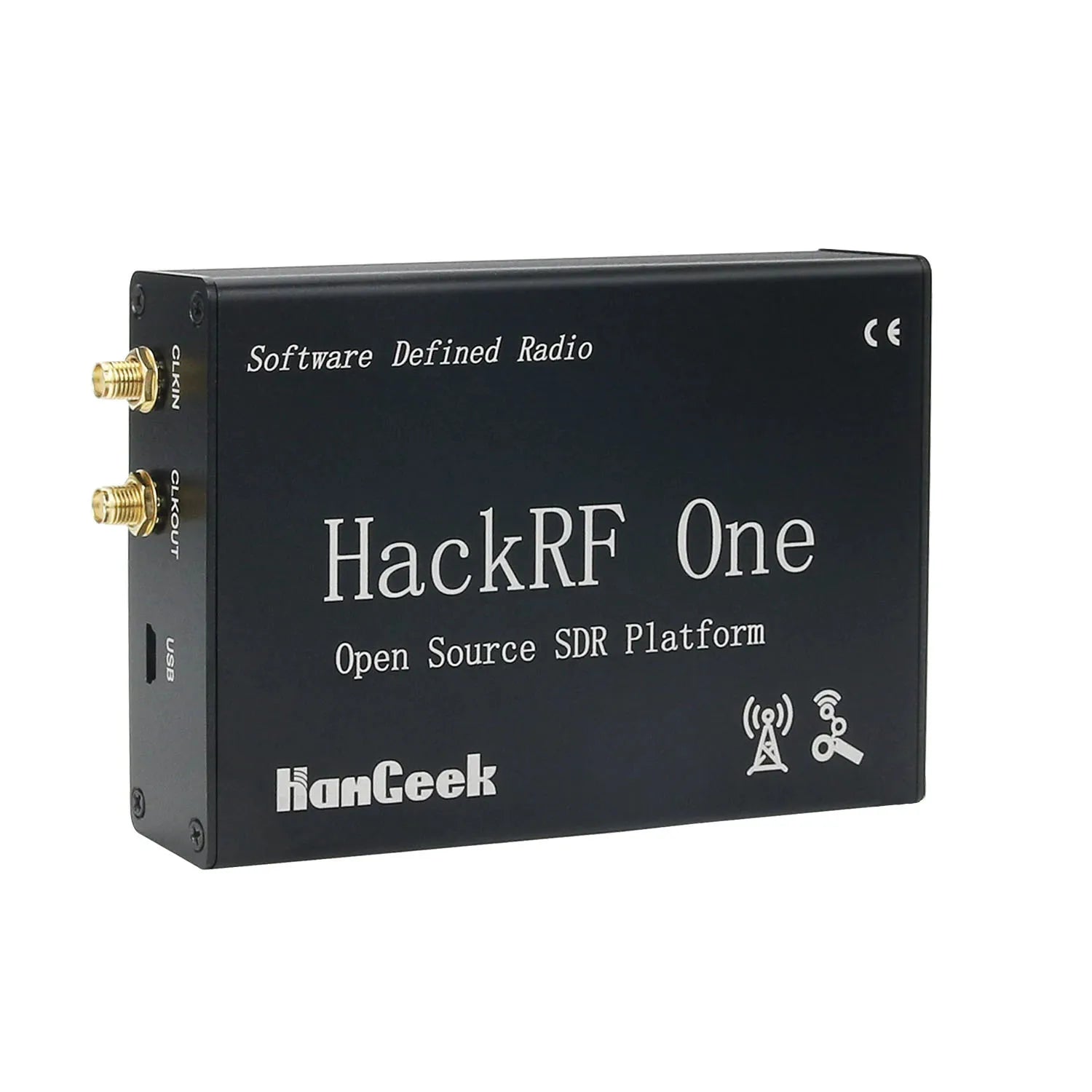

HAMGEEK R9 Open Source One SDR Development Board SDR Platform V2.0.1 Radio Receiver 2.0.1 firmware flashed
HAMGEEK R9 Open Source One SDR Development Board SDR Platform V2.0.1 Radio Receiver 2.0.1 firmware flashed
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Upgrades of R9:
MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.
Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware v2.0.1by default.
2. For certain functionality, like the world map, GPS-simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.
R9 Specifications:
- 1 MHz to 6 GH operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector

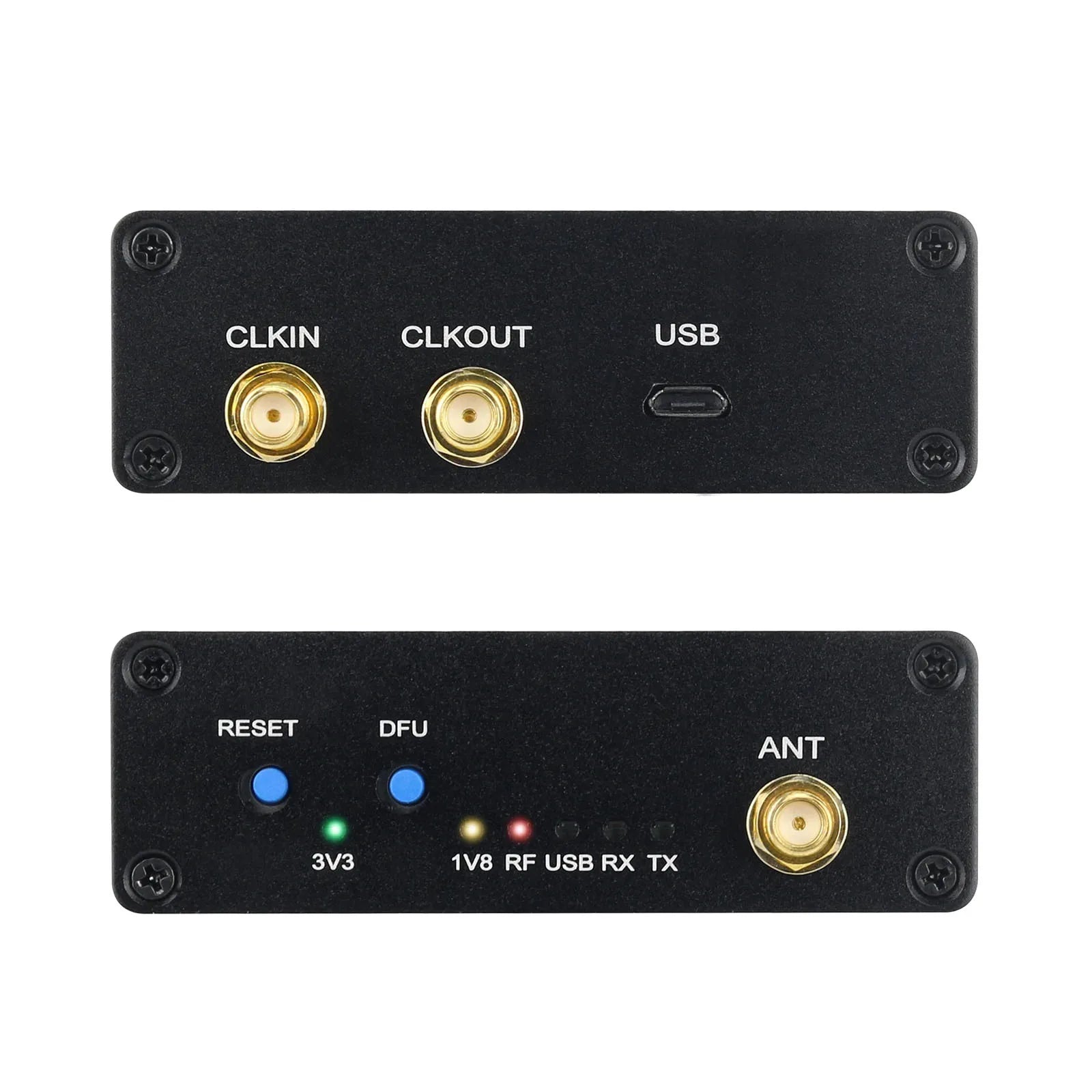

- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- R9 1 MHz to 6 GH SDR platform software defined radio development board

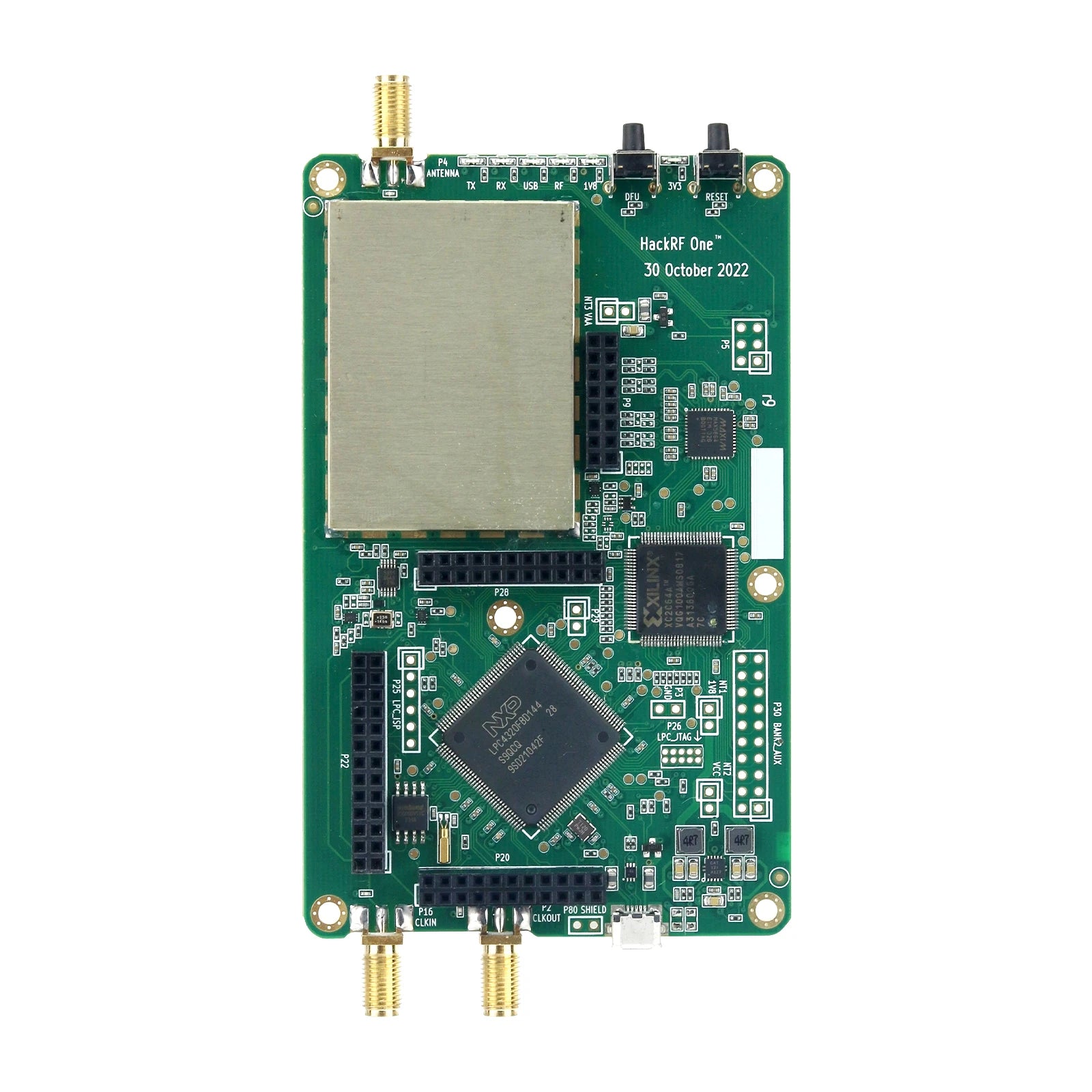

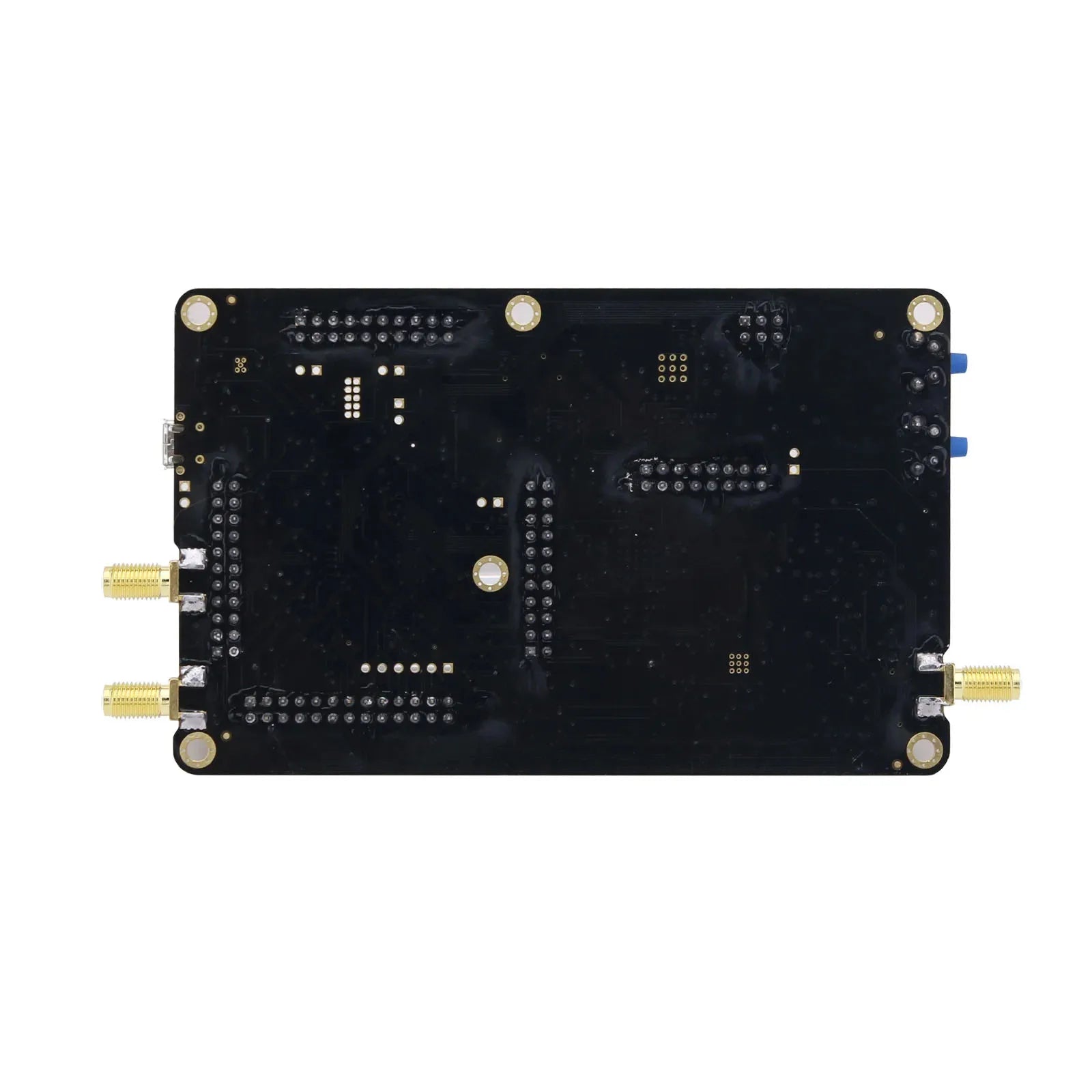

- 1 x R9 Board

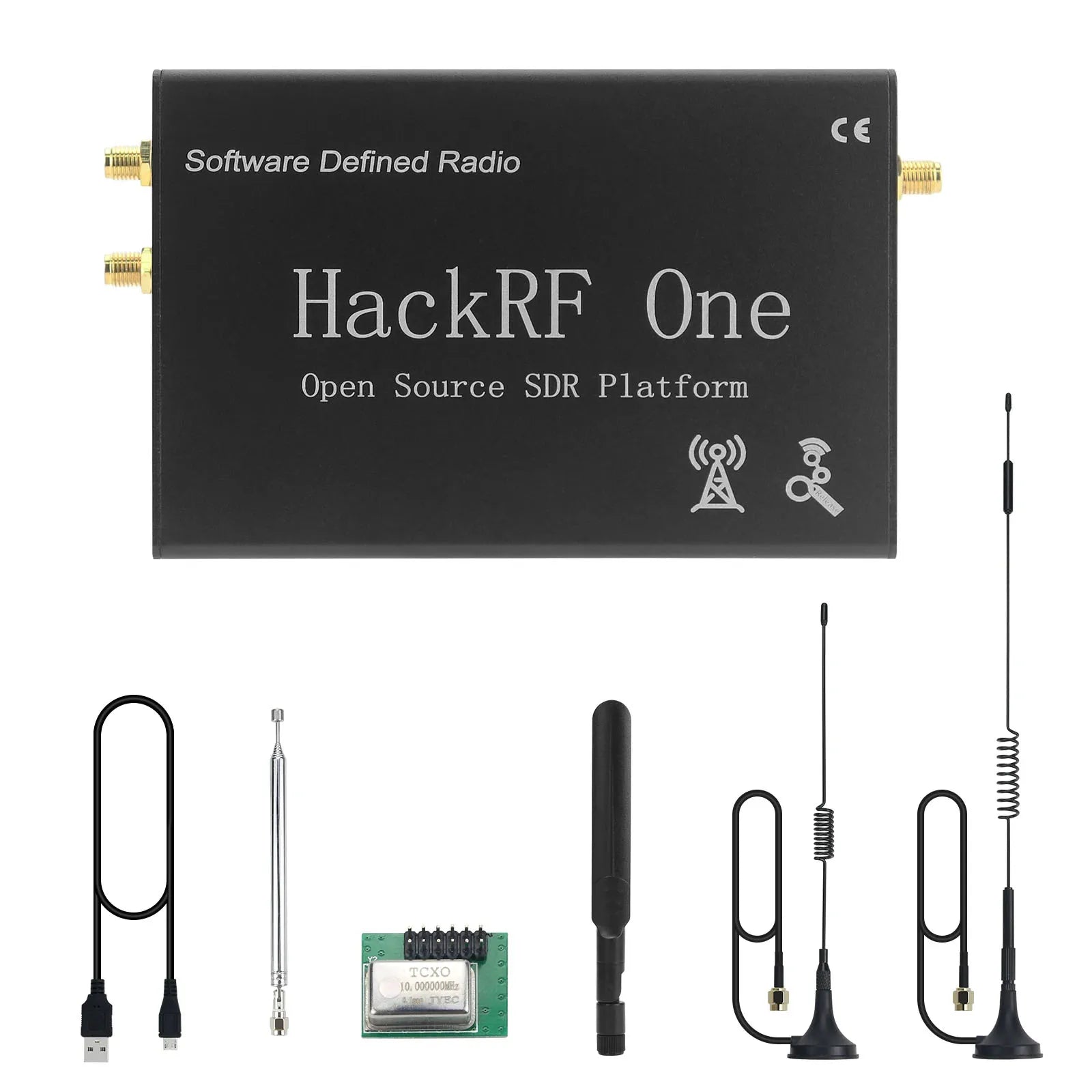

R9 Full Set Package Included:
- 1 x R9 + shield cover + aluminum alloy shell
- 4 x SMA Antennas (40MHz-6GHz antenna; 2.4G/5/5.8G antenna; 70MHz-2700MHz antenna; 40MHz-860MHz antenna)
- 1 x R9 TCXO PPM0.1 GPS clock module
- 1 x Micro USB cable for LG
- Antenna and shell are not included in the package.
Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware v2.0.1 by default.
2. For certain functionality, like the world map, GPS-simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.
