HAMGEEK Pluto 70MHz-6GHz SDR Radio Software Defined Radio AD9363 for ZYNQ7020 ADI Pluto Communications Openwifi Zynqsdr
HAMGEEK Pluto 70MHz-6GHz SDR Radio Software Defined Radio AD9363 for ZYNQ7020 ADI Pluto Communications Openwifi Zynqsdr
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
HAMGEEK Pluto 70MHz-6GHz SDR Radio Software Defined Radio AD9363 for ZYNQ7020 ADI Pluto Communications Openwifi Zynqsdr
Description:
If you are planning to use devices for zedboard + fmcomms3 for learning and project development, this board is the ideal choice for you.
Features:
1. Using XC7Z020-2CLG400I chip, 7z020-2I
2. AD9363 chip, replacing AD9361, with frequency range of 70MHz~6GHz and maximum sampling rate 61.44MHz. Current laboratory tests show that there is not significant differences between these two chips
3. PS 1GB DDR3 32bit, frequency 1066M
4. 32MB QSPI Flash, supporting TF card

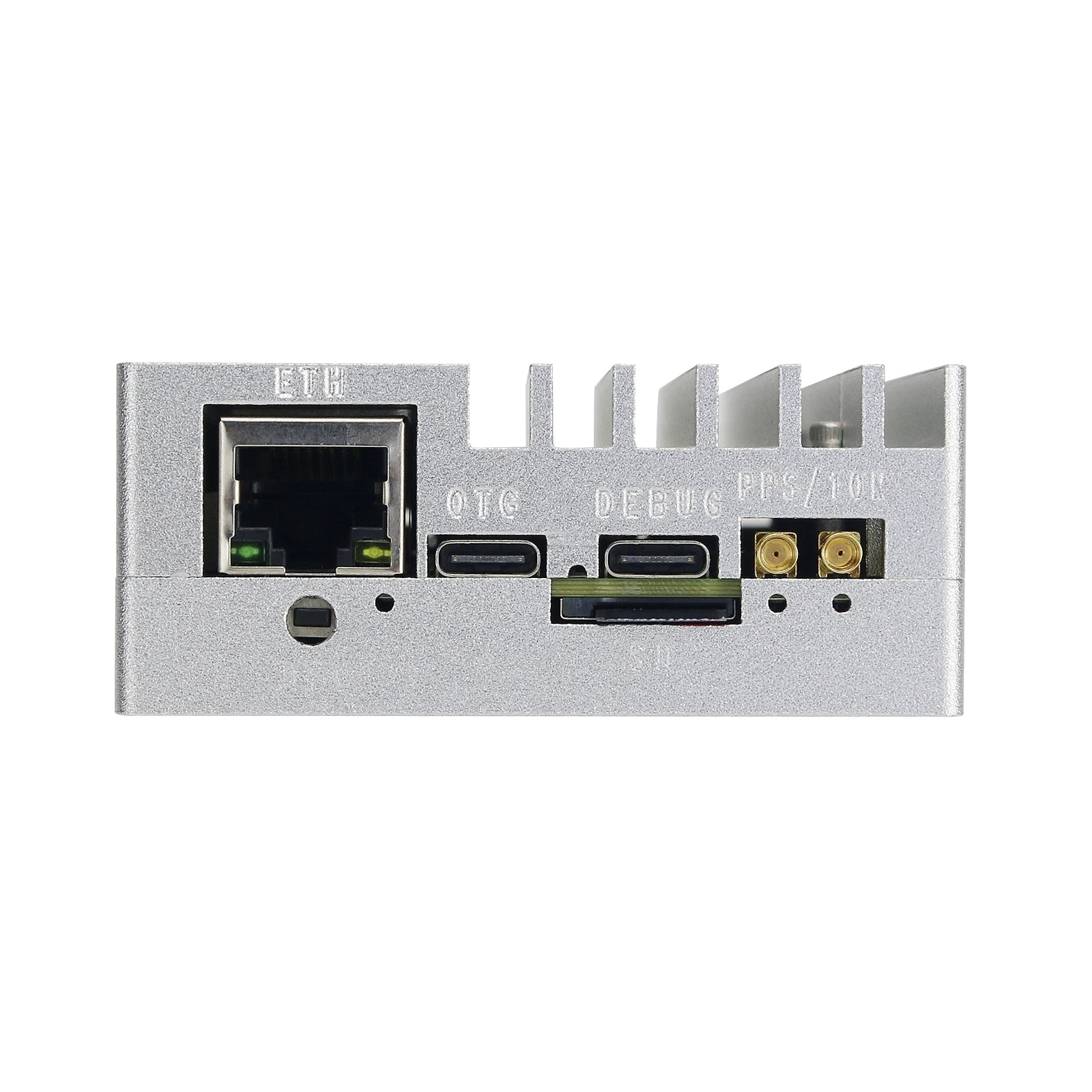

5. On-board JTAG circuit and USB to serial port, which can be powered and debugged via a single cable
6. Support USB OTG, which can be master or slave. Using USB TYPE-C interface; OTG mode supports automatic identification and opens USB port to supply power
7. Using VCTCXO, initial frequency accuracy is 0.5PPM, supporting PPS and 10MHz external taming
8. Gigabit Ethernet interface
9. All power rails in the digital section are designed for 4A with ample current, and the AD936x is powered by the ADP1755 high-performance LDO to improve RF performance
10. Using 10-layer PCB wiring, impedance matching, and signal integrity design

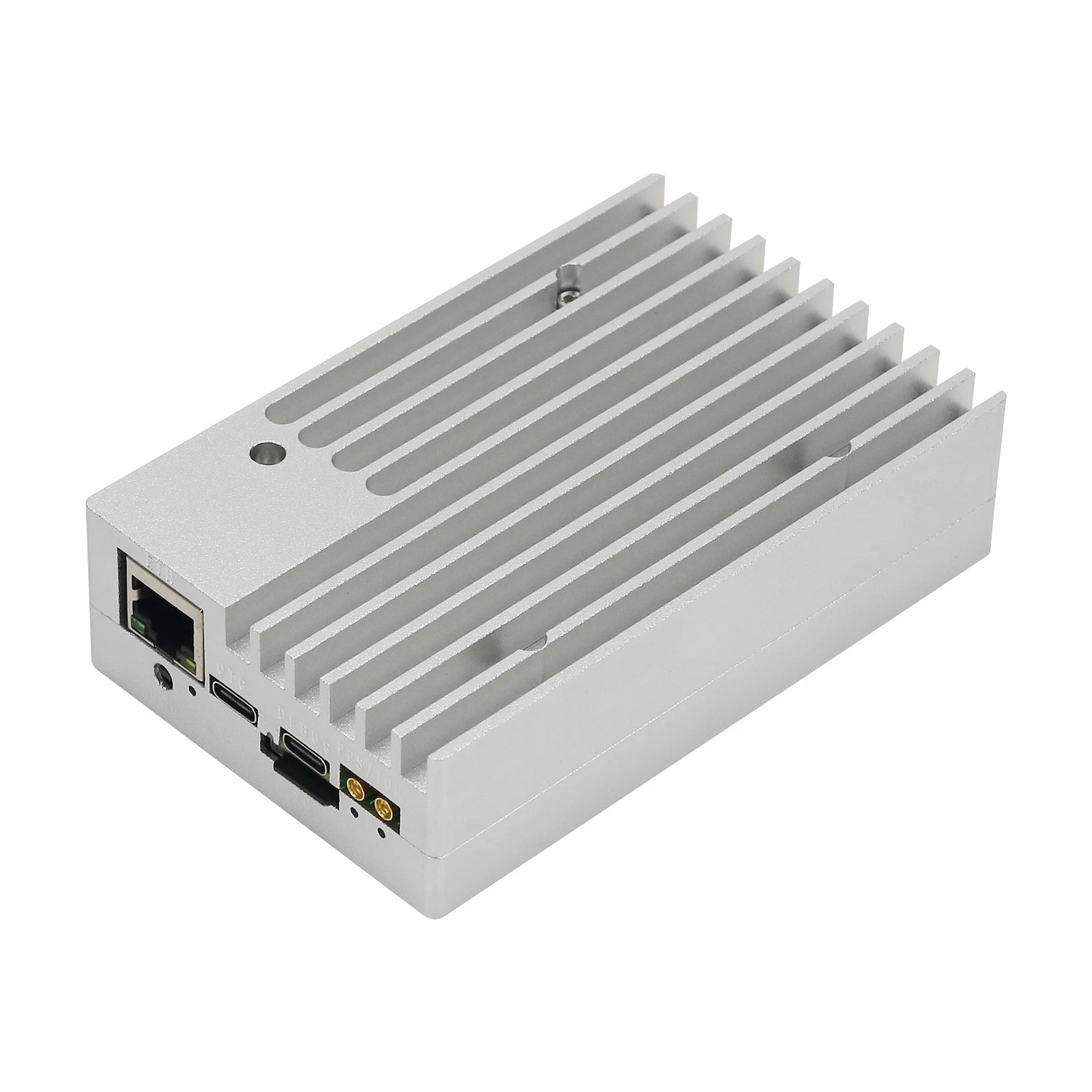

11. With CNC housing to enhance heat dissipation and ensure strength
12. Power on and ready to use. TF card with pre-burned system files, you can follow the introductory tutorial to start using Package

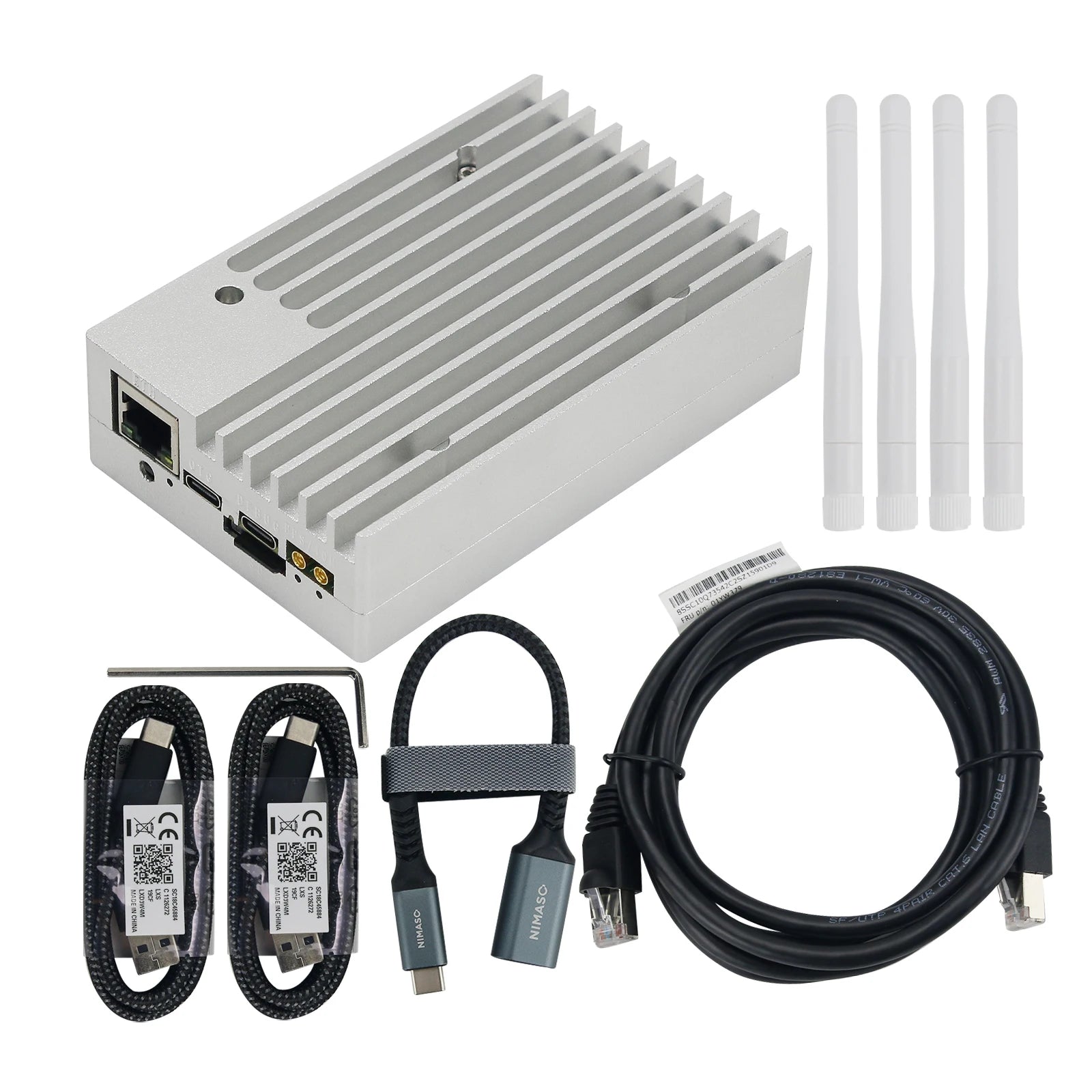

Included:
- 1 x Set of SDR
Note:
- TF card is included.
