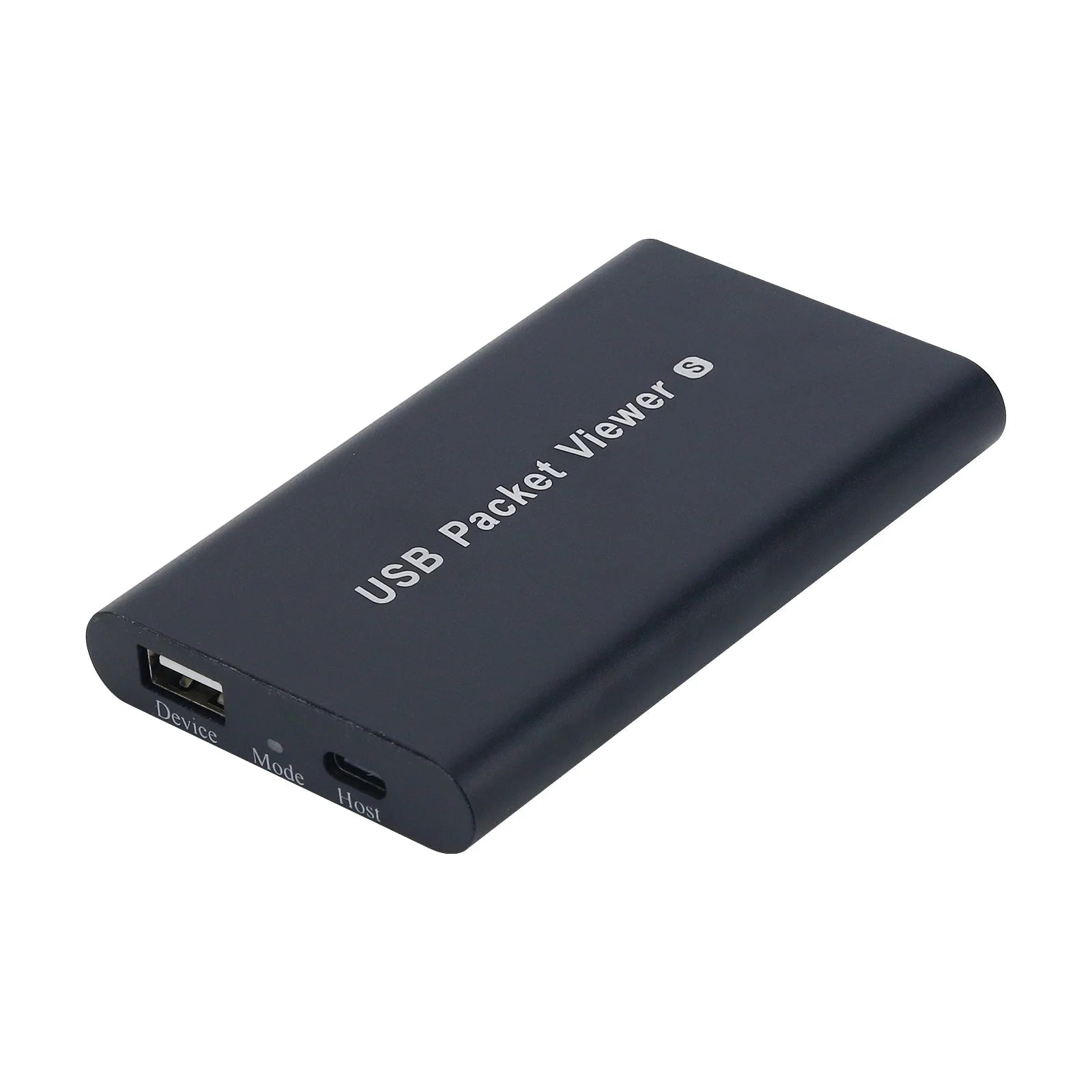

HAMGEEK NEW USB Packet Viewer 32MB USB Protocol Analyzer Tool Supports High Speed Full Speed Low Speed for USB Communication

HAMGEEK NEW USB Packet Viewer 32MB USB Protocol Analyzer Tool Supports High Speed Full Speed Low Speed for USB Communication

Description:

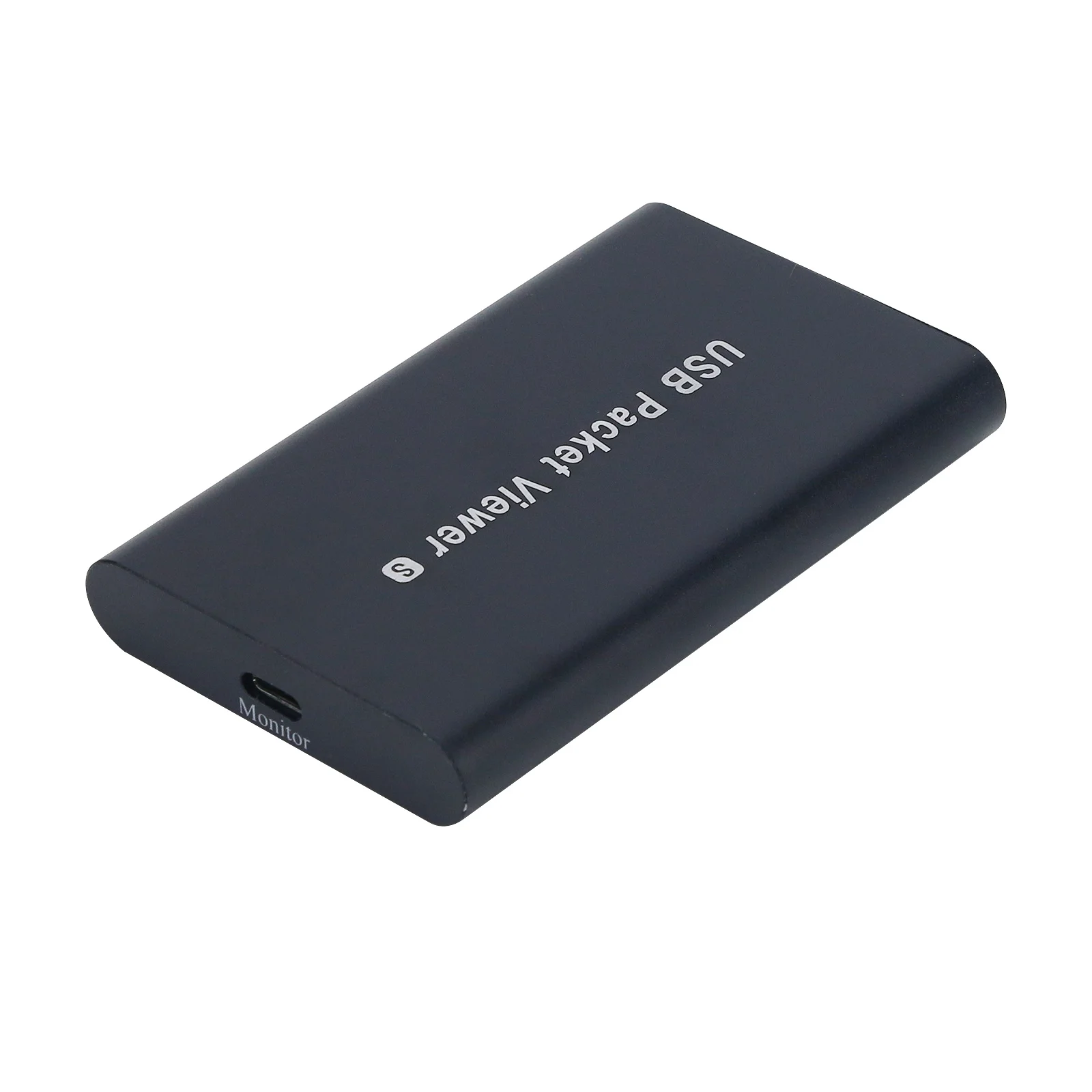

USB Packet Viewer is a portable USB protocol analyzer. It can be used to collect the underlying packets of USB communication as well as bus events.

Features:

- It supports low speed, full speed and high speed

- Automatic detection of communication rate

- 32MB hardware cache depth

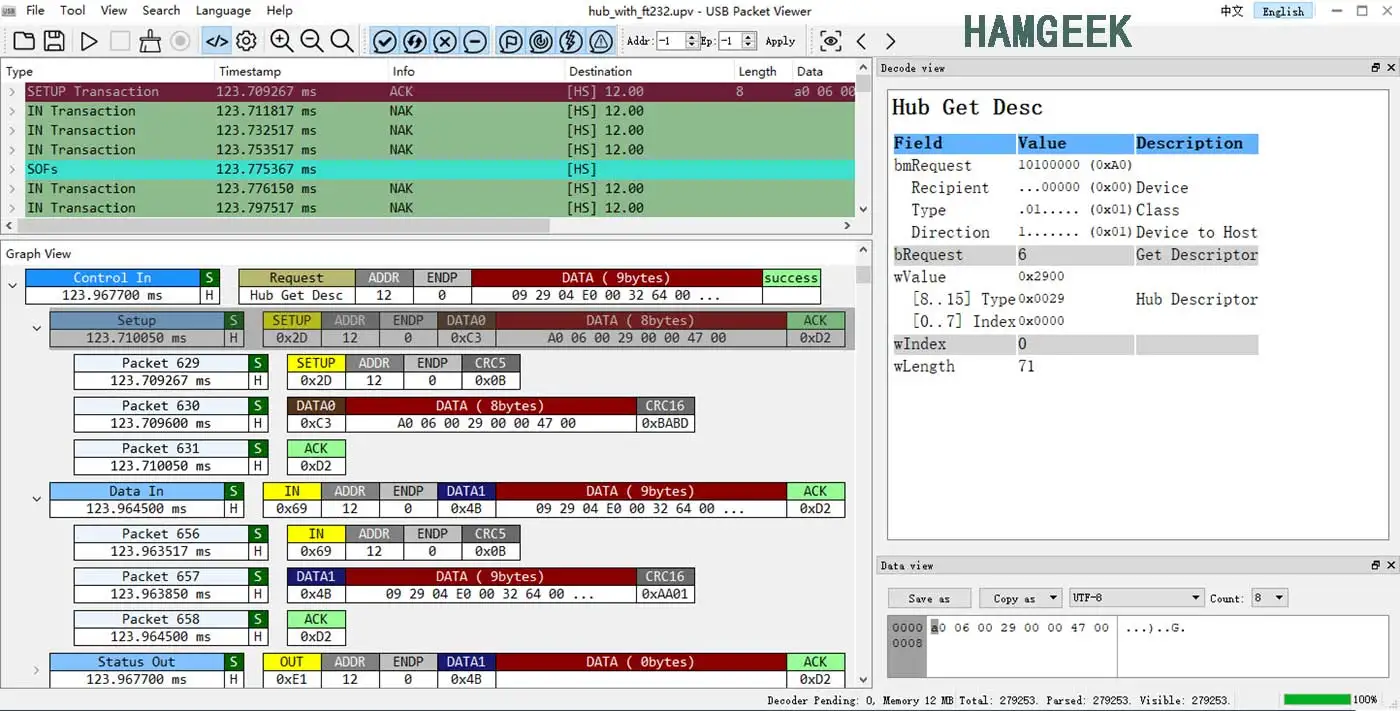

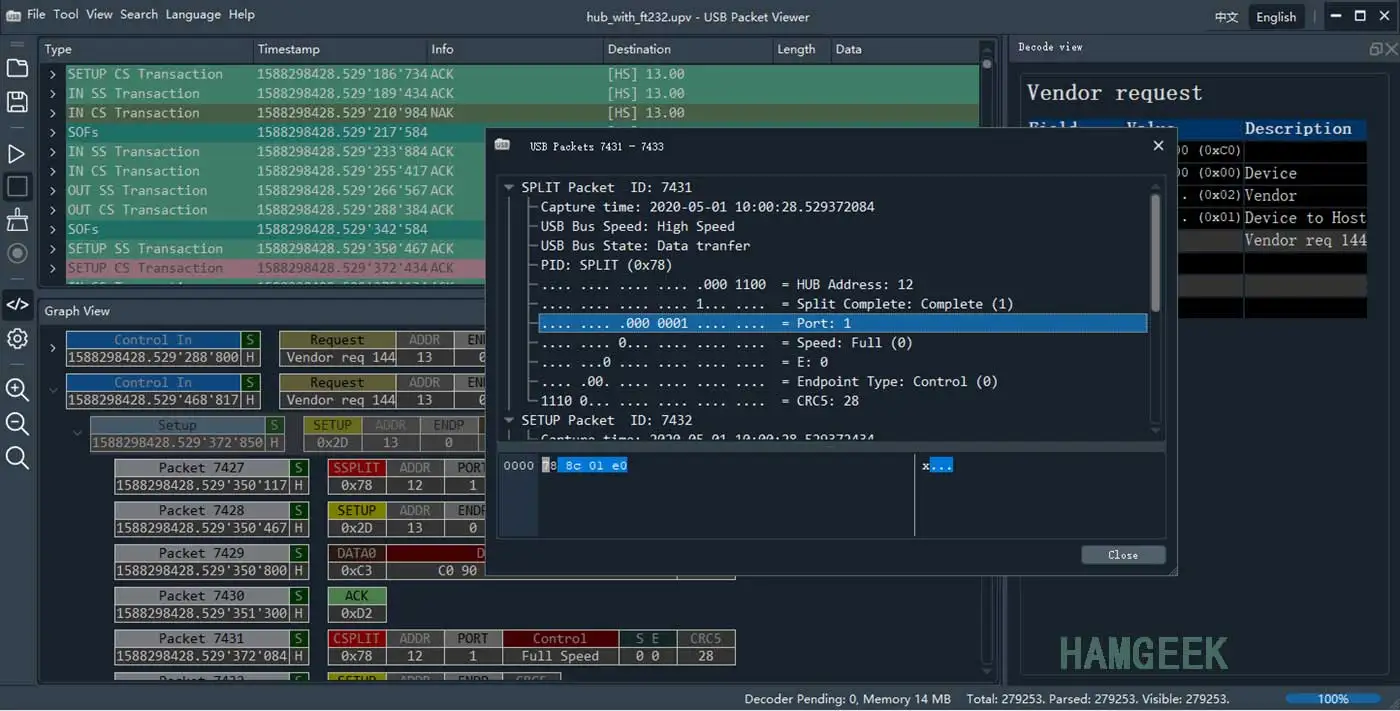

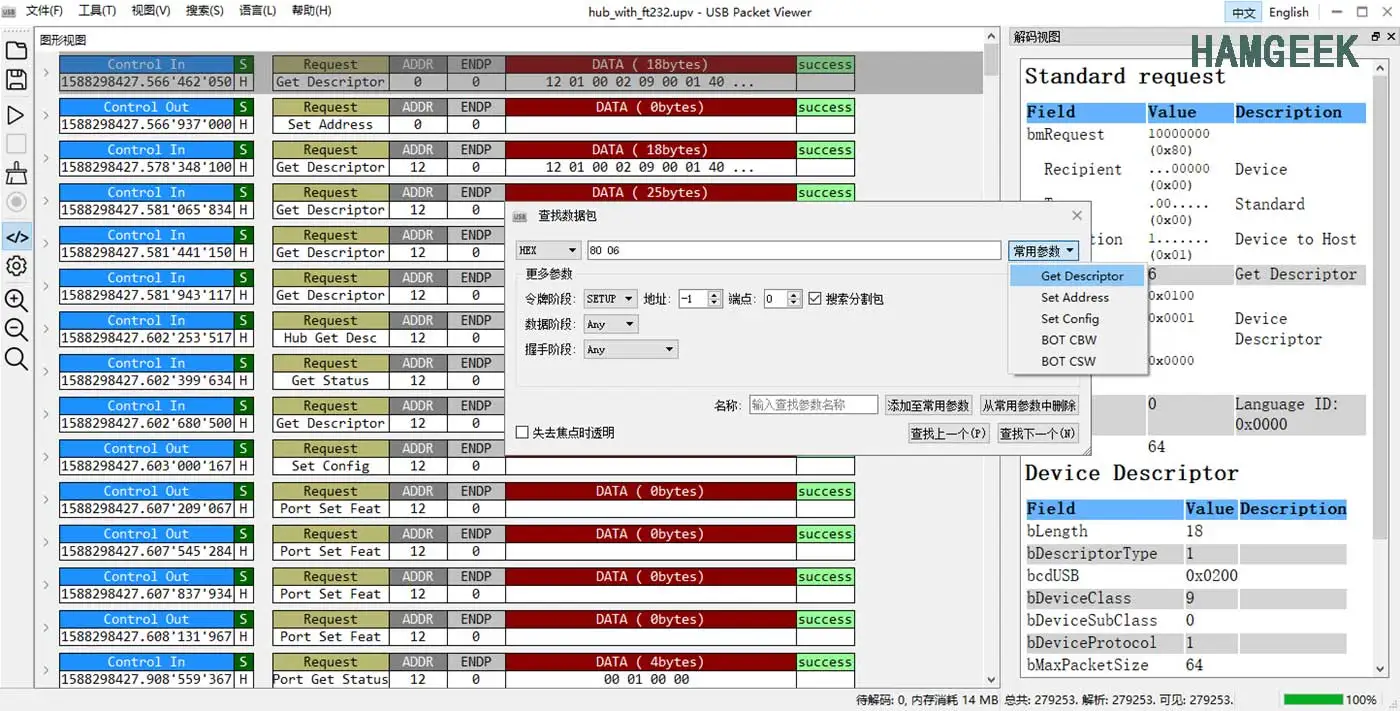

- The USB protocol analyzer supports real-time protocol analysis and hardware packet filtering

- Multiple protocols can be analyzed. Currently, it supports HID, MSC, Audio, Video, HUB, CDC and FTDI devices

- Open source protocol analysis. Decoding function supports secondary development (see code https://github.com/UsbPacketViewer/parser)

- It supports a variety of file formats and file parsing supports secondary development

Specifications:

- Dimensions: 101 x 61 x 13mm/4 x 2.4 x 0.5"

- Weight: 70g/0.2lb

- Power supply: USB 5V

- Operating current: 250mA

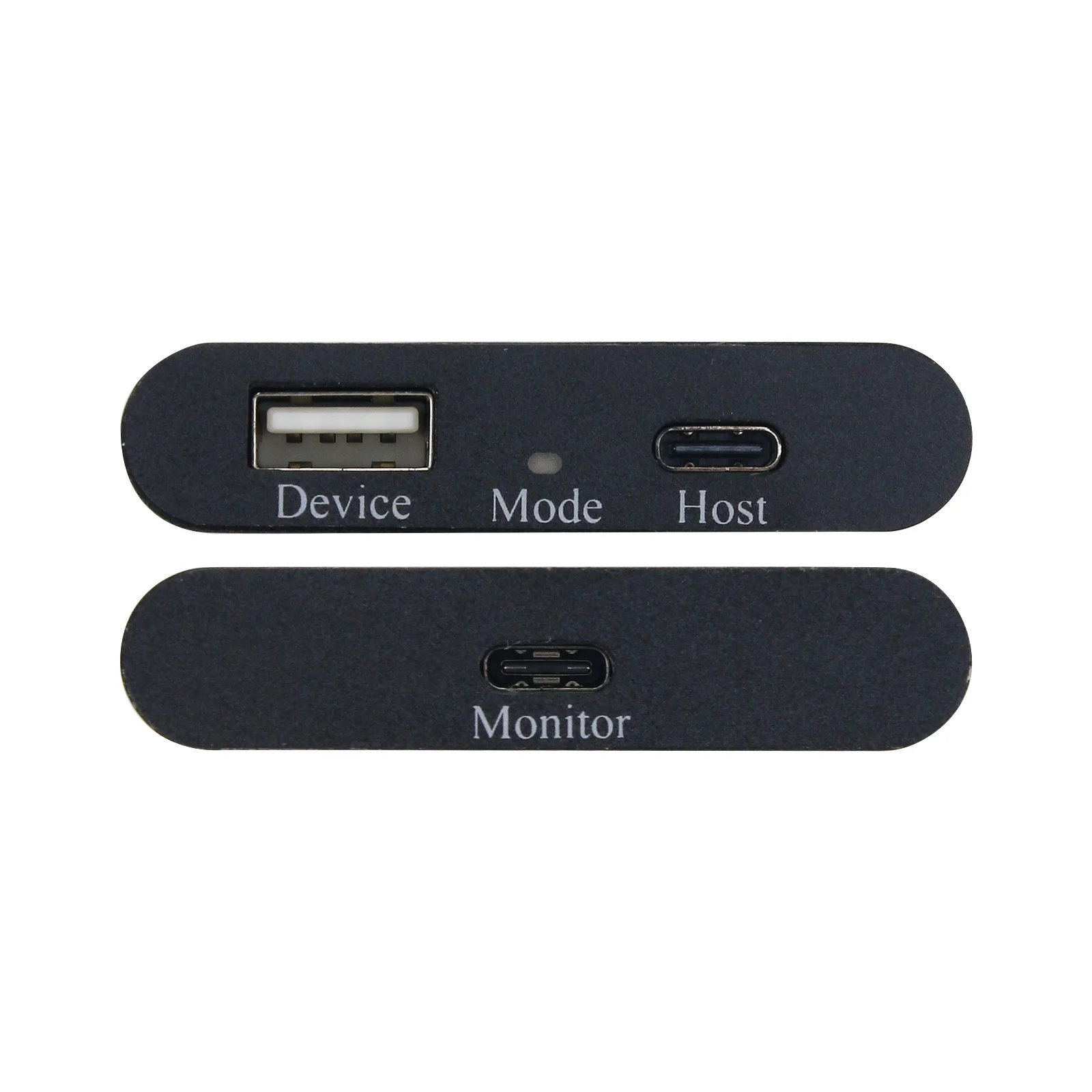

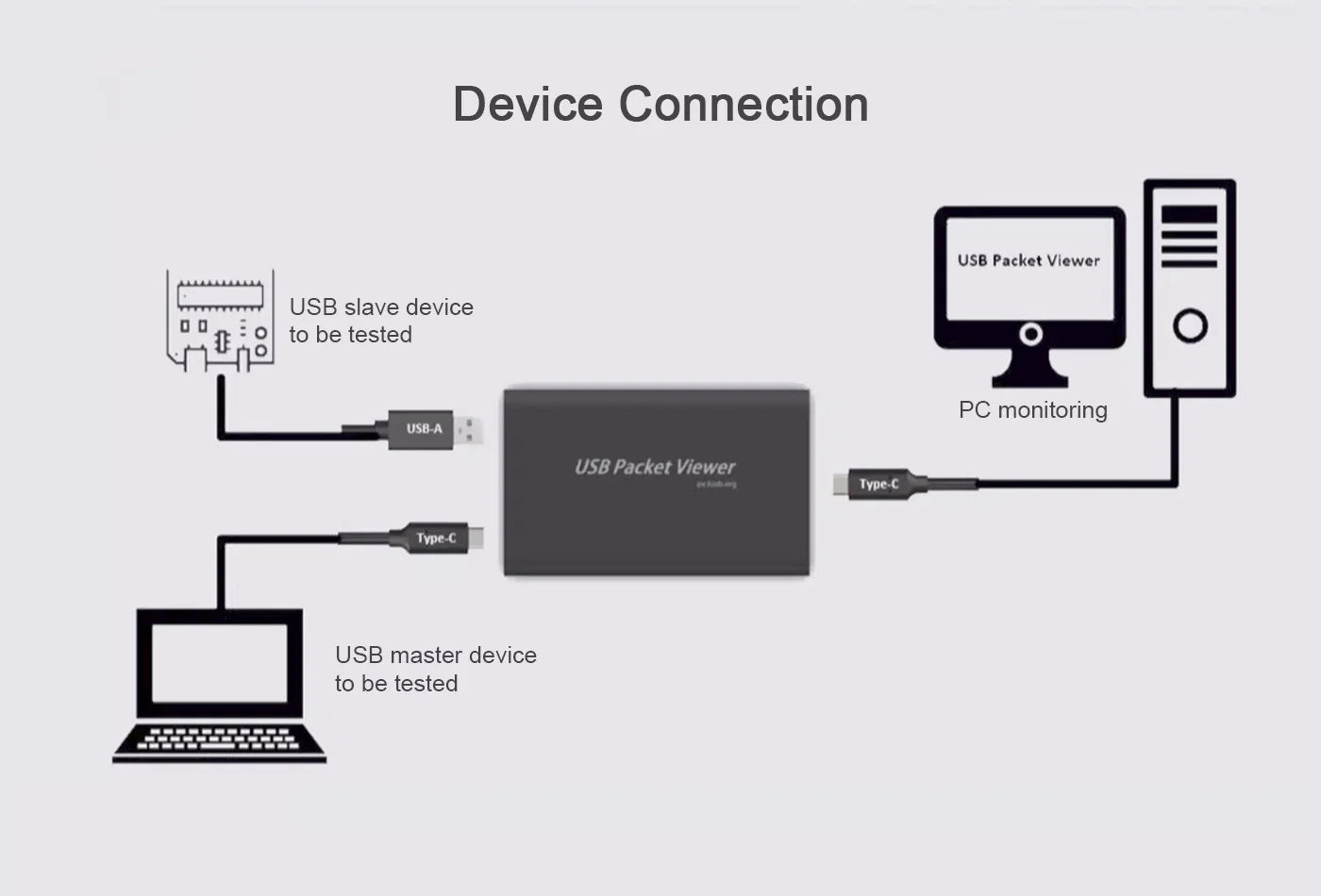

- Monitoring and socket port: Type-C female

- Host interface: Type-C female

- Device interface: USB-A female

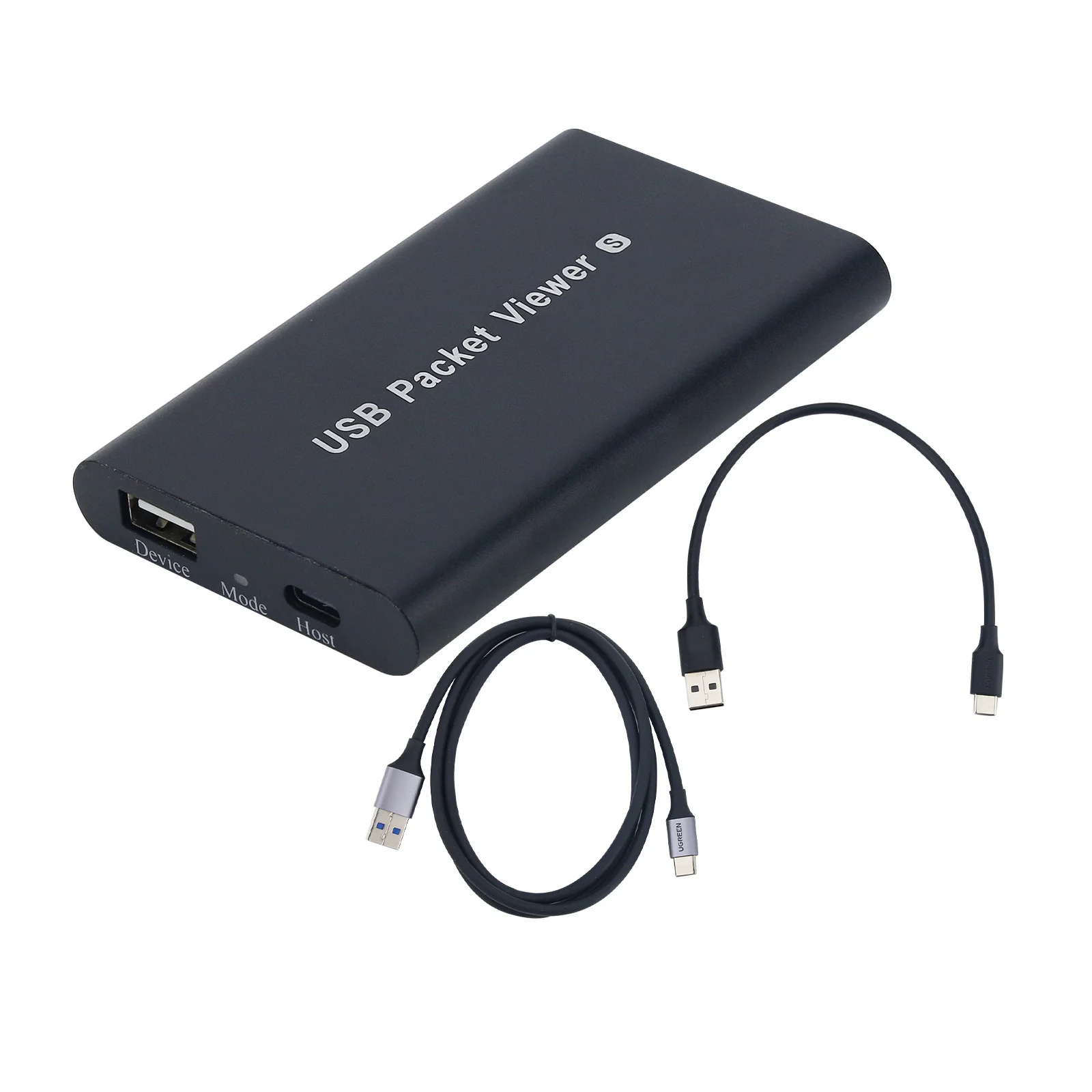

Package Included:

- 1 x USB Protocol Analyzer

- 1 x Long USB Type-C Data Cable

- 1 x Short USB Type-C Data Cable

Driver Installation:

http://www.usbpacketviewer.com/downloads/usbpv_driver.zip

Download Protocol Analysis Software:

http://www.usbpacketviewer.com/downloads/usbpv.zip
