HAMGEEK NEW ATS25X2 DSP Radio Receiver SI4732 RDS FM AM LW MW SW SSB Full-band Receiver with WIFI Antenna Color Touch Screen

HAMGEEK NEW ATS25X2 DSP Radio Receiver SI4732 RDS FM AM LW MW SW SSB Full-band Receiver with WIFI Antenna Color Touch Screen

Note:

This is the normal version, no registration code? The online upgrade is not supported

Description:

HAMGEEK ATS25X2 DSP Receiver uses SI4732, ESP32, WIFI and 2.4-inch touch screen. It is designed with a high-grade aluminum alloy shell and a built-in 3-inch speaker. The radio receiver supports FM, AM, LSB, USB receiving modes. FM has RDS function mode. Wifi function is added to ATS25X2. The receiver is currently the world's most cost-effective radio with SSB full-band touch color screen.

Download cellphone software for wifi configuration:

https://www.espressif.com.cn/en/products/software/esp-touch/resources

Functions:

1. Radio frequency spectrum scanning

2. Backlight brightness adjustment

3. Backlight off

4. Battery voltage display

5. Battery percentage display

6. High precision encoder knob with long lifespan

7.FM RDS information display

8. Mobile APP network WIFI configuration

9. With 2.4G antenna interface for strong signal

10. WIFI network time service display

11. Time zone customization

12. Supports Russian firmware upgrade (Russian firmware needs to be purchased separately. Please purchase the key authorization by yourself)

Features:

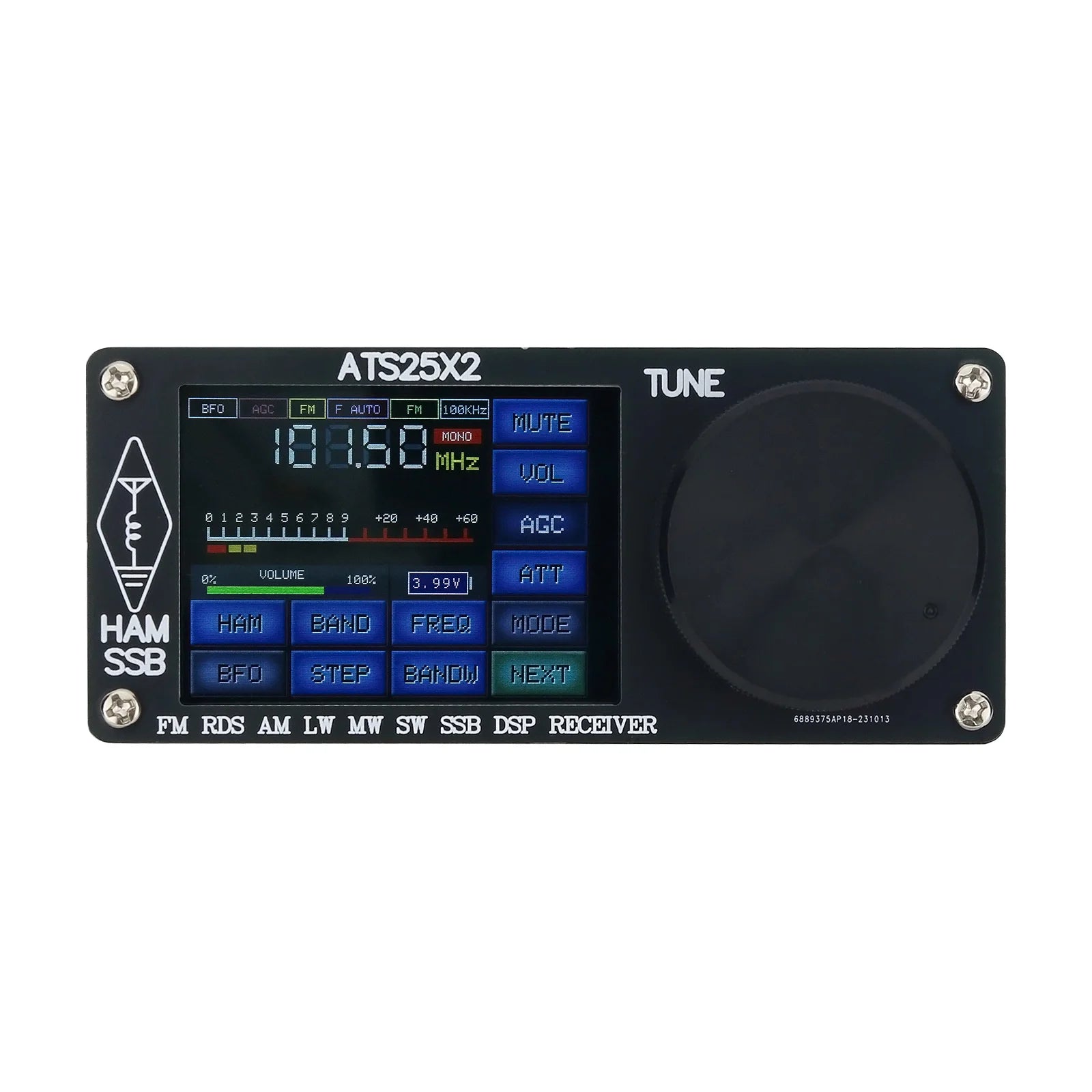

- With a 2.4-inch color touch screen, enabling smooth data reading and offering a better user experience

- Due large-capacity lithium battery, do not worry about sudden power failure affecting use

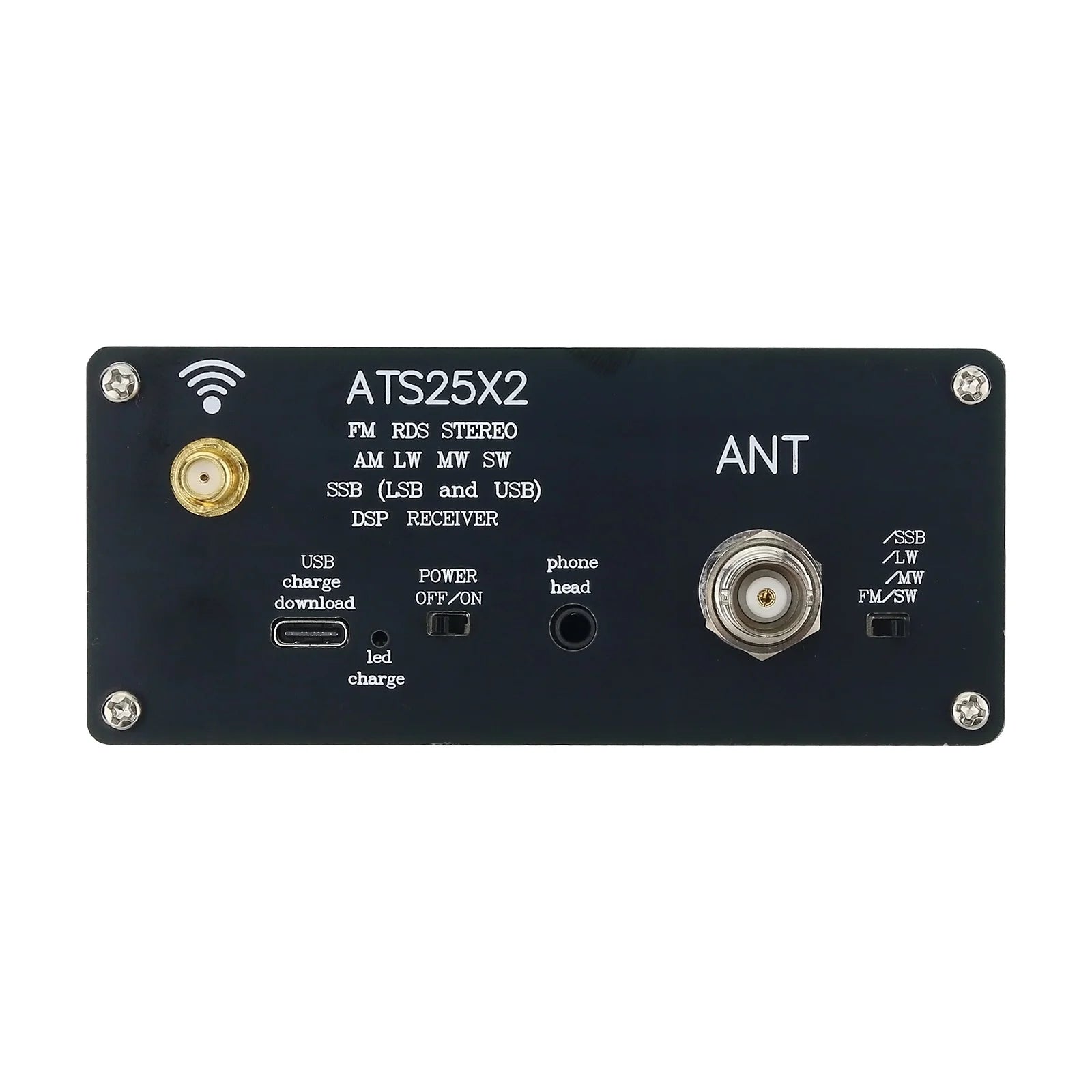

- Supports TYPE-C interface to upgrade program and 3.5mm stereo audio output. With 3.5mm audio FM antenna interface and the maximum charging current is 1.5A

- Frequencies: FM: 64 functions 108MHz/RDS; LW: 153khz-500khz; MW: 520khz-1710khz; SW: 1730khz-30000khz; SSB: 1730khz-30000khz

- With BNC antenna interface

- Type-C interface: Download program and 5V/2A charging

- 3.5MM audio output interface. A headphone cable can be used as a FM antenna for FM mode

- With telescopic antenna

- Knob can be rotated to adjust frequencies and can be pressed to enter the menu

Specifications:

- Shell material: aluminum alloy

- Built-in lithium battery: 3.7V/2000mA

- TYPE-C port: program upgrade and charging

- Shell size: 11 x 10.3 x 4.7cm/4.3 x 4.1 x 1.9"

- Product weight: 500g/1.1lb

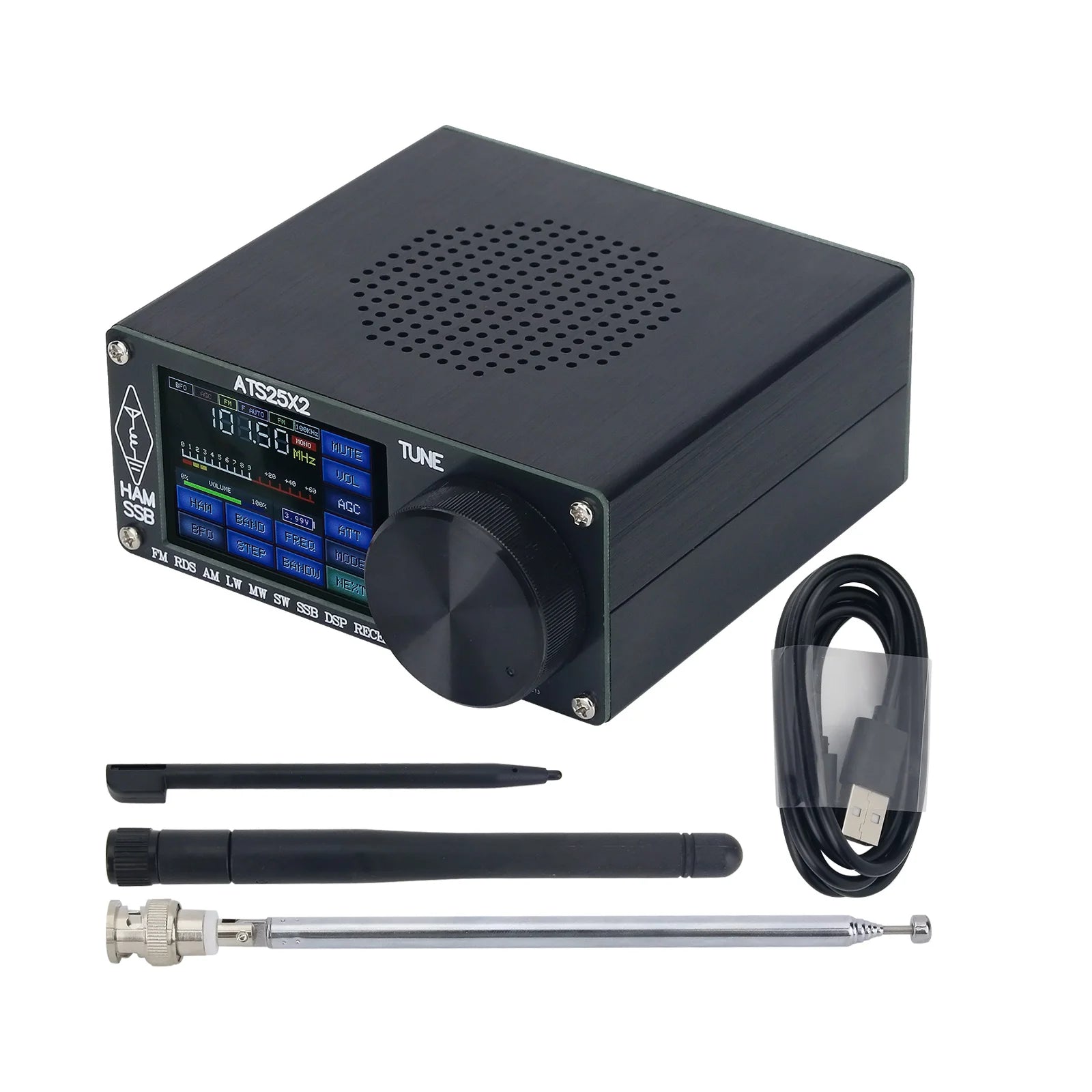

Package Included:

- 1 x DSP receiver

- 1 x Stylus

- 1 x Wifi antenna

- 1 x Telescopic antenna

- 1 x USB cable
