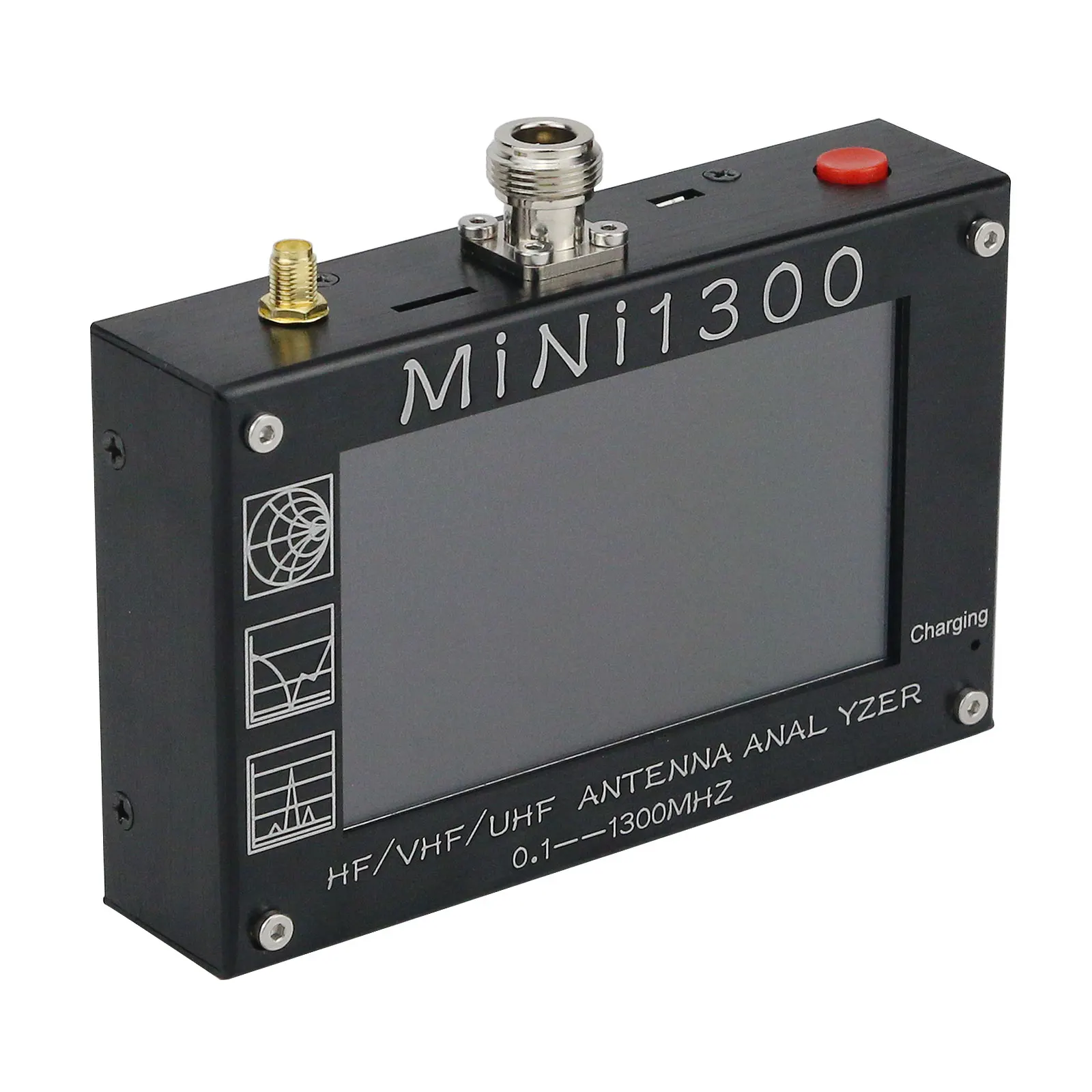

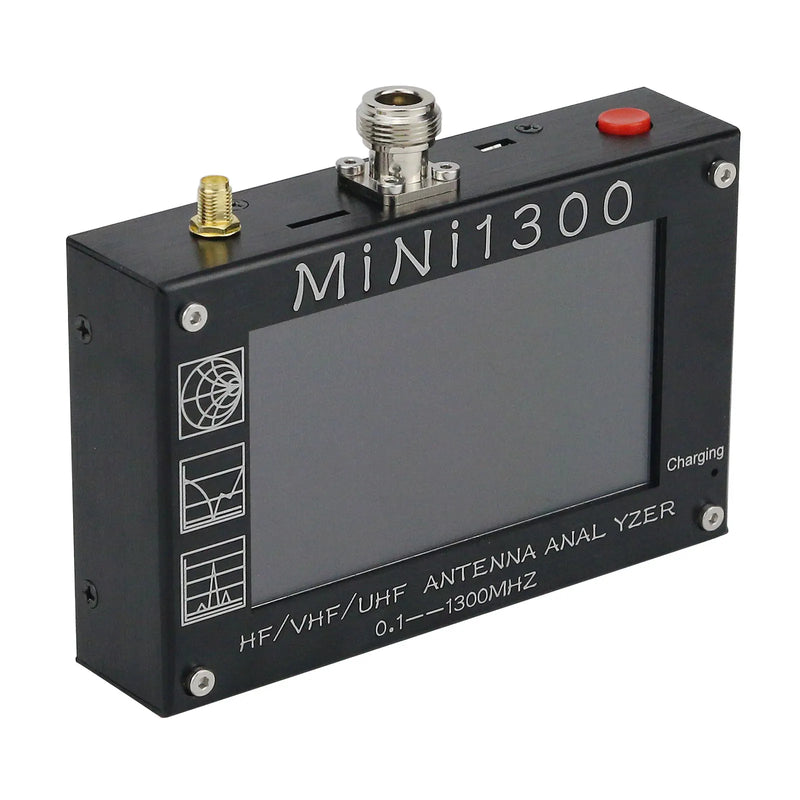

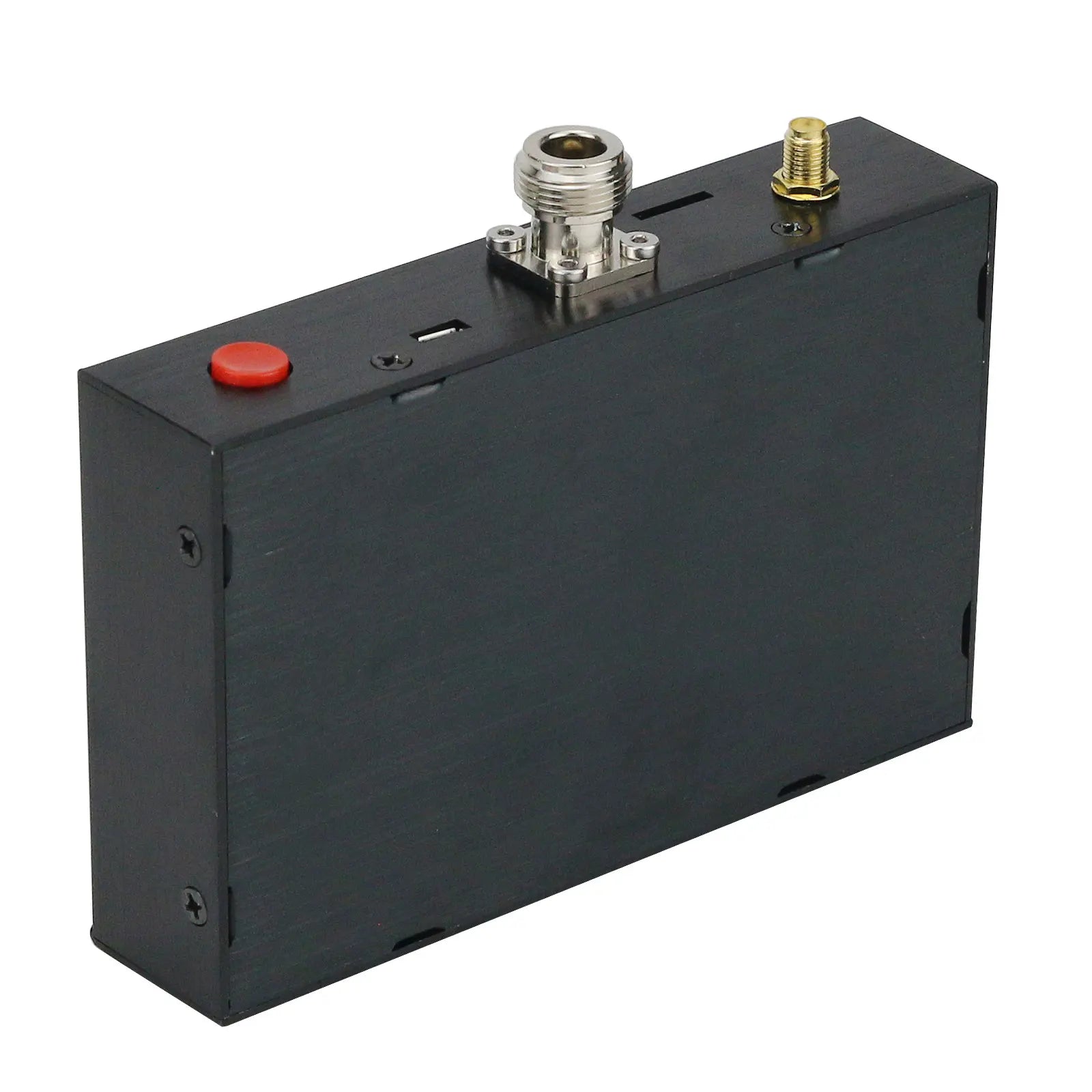

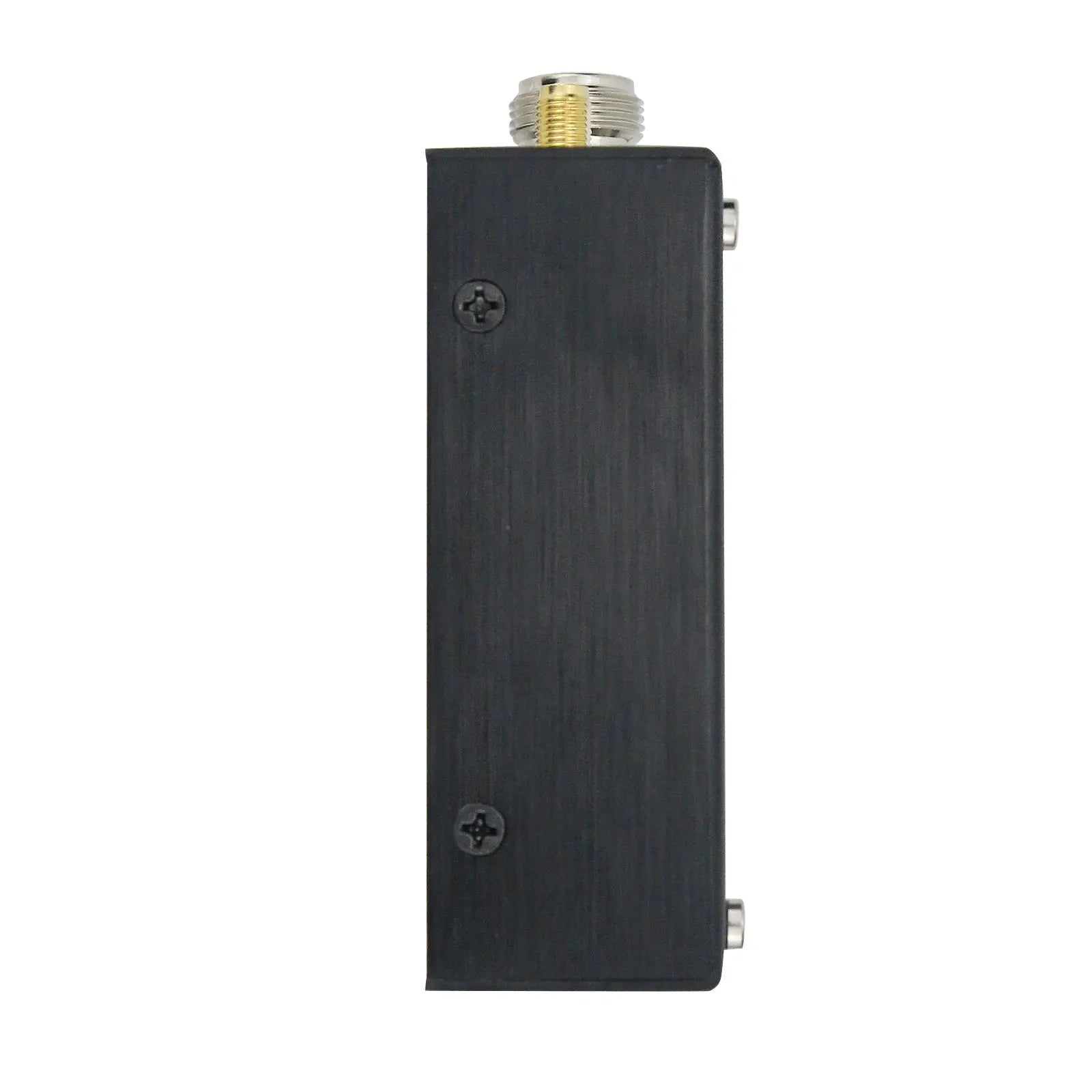

HamGeek Mini1300 0.1-1300MHz HF/VHF/UHF Antenna Analyzer with 4.3" Touch Screen Aluminum Alloy Shell
HamGeek Mini1300 0.1-1300MHz HF/VHF/UHF Antenna Analyzer with 4.3" Touch Screen Aluminum Alloy Shell
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
HamGeek Mini1300 0.1-1300MHz HF/VHF/UHF Antenna Analyzer with 4.3" Touch Screen Aluminum Alloy Shell
Specifications:
- Frequency range: 0.1-1300MHz
- HF/VHF/UHF continuous coverage
- In/Out impedance: 50 ohms
- Measurement parameters: SWR, R, +Jx, -Jx, |Z| and Return loss
- Measurement mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
- SWR measurement range: 1.0-1999 (Single Point Mode); 1.0-20.0 (Scan Mode)

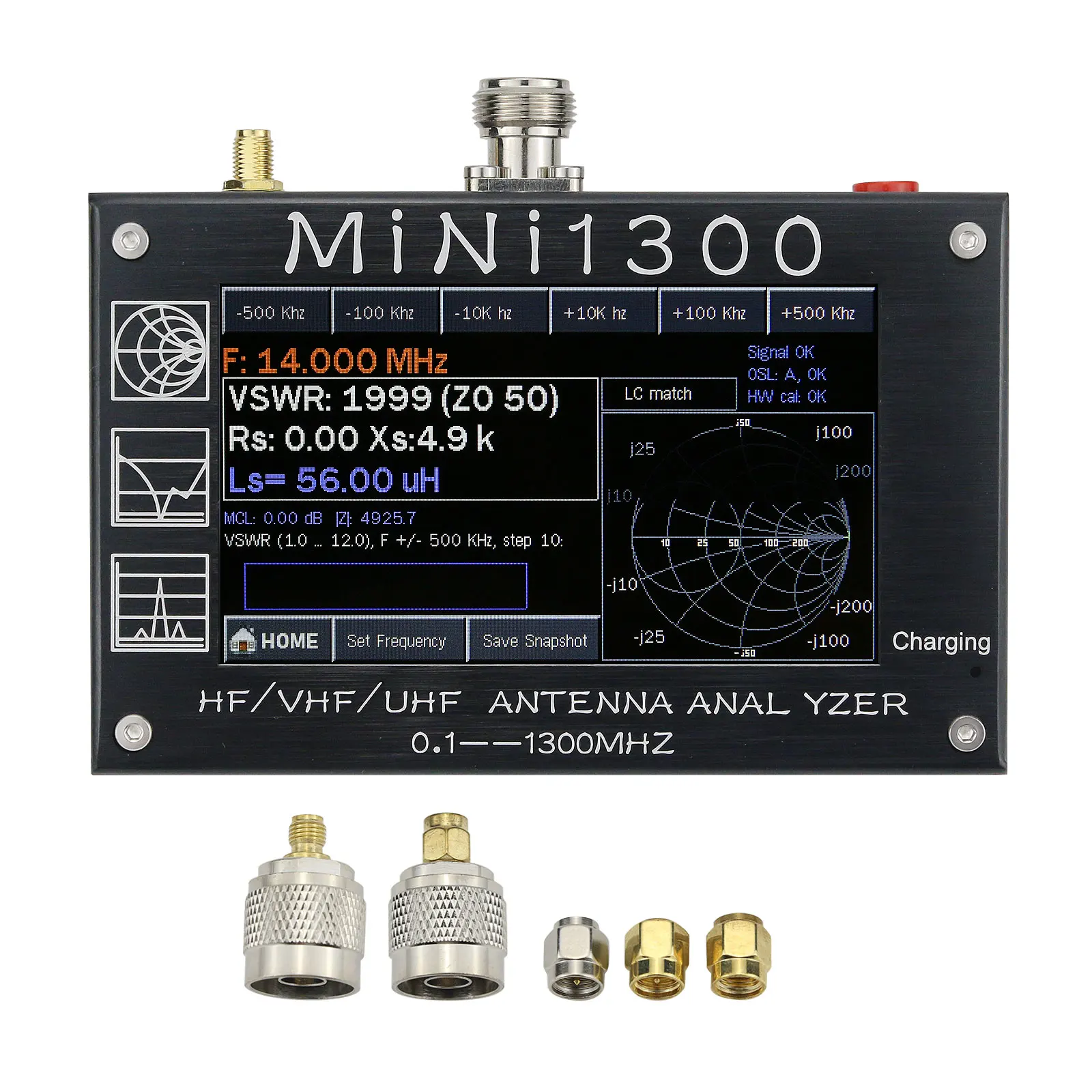

- Display modes: Numerical display, curve display and Smith chart

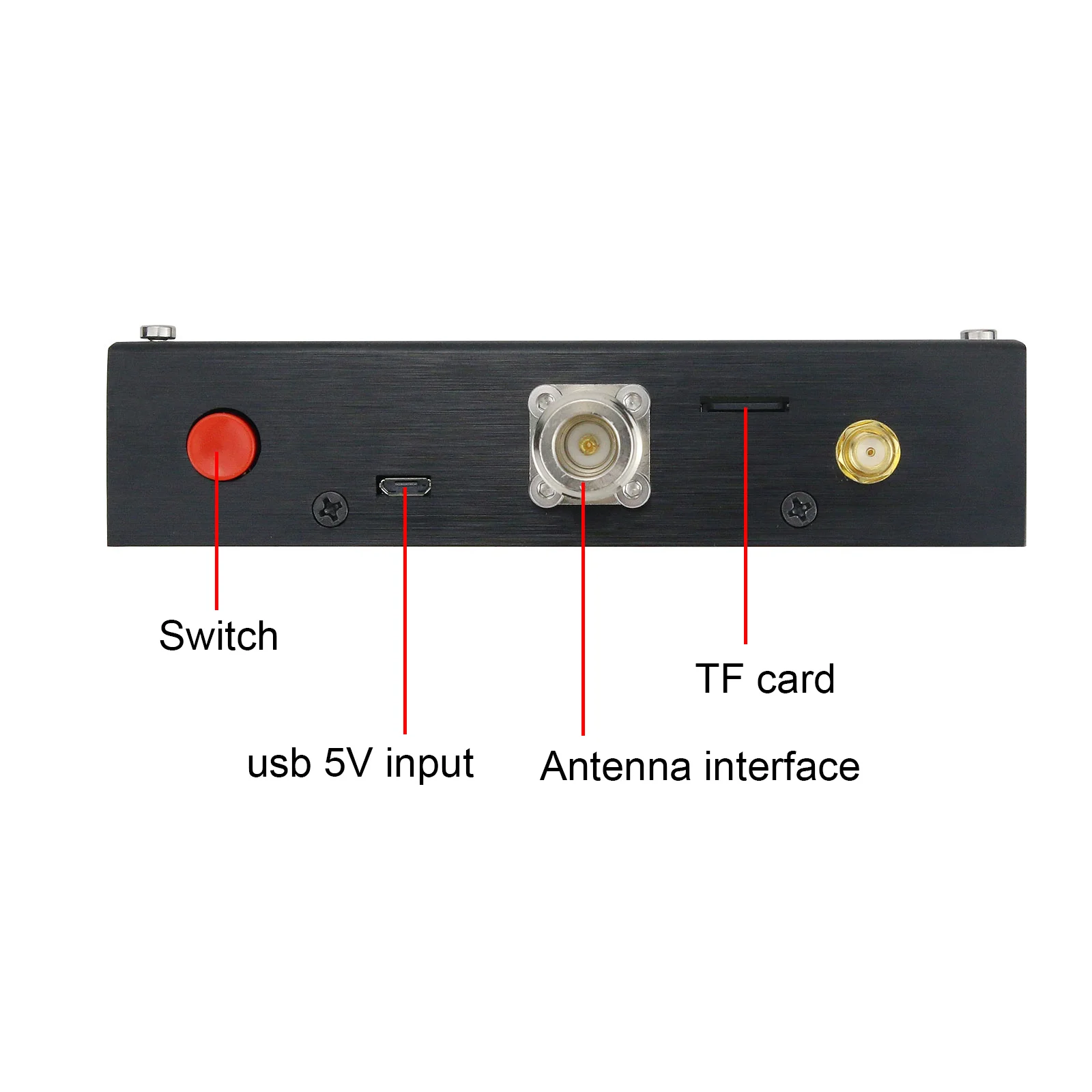

- Connector type: UHF N-type connector
- VNA: SMA
- SMA OPEN-SHORT-LOAD Calibration Kit x 1
- LCD size: 4.3" 480x272 TFT LCD display
- Touch screen type: Capacitive
- All capacitive touchscreen on the display – no buttons are needed
- Power source: USB or internal power supply
- Built-in charging circuitry and DC-DC booster
- Maximum charging current: 5V/1.5A
- External storage method: TF card

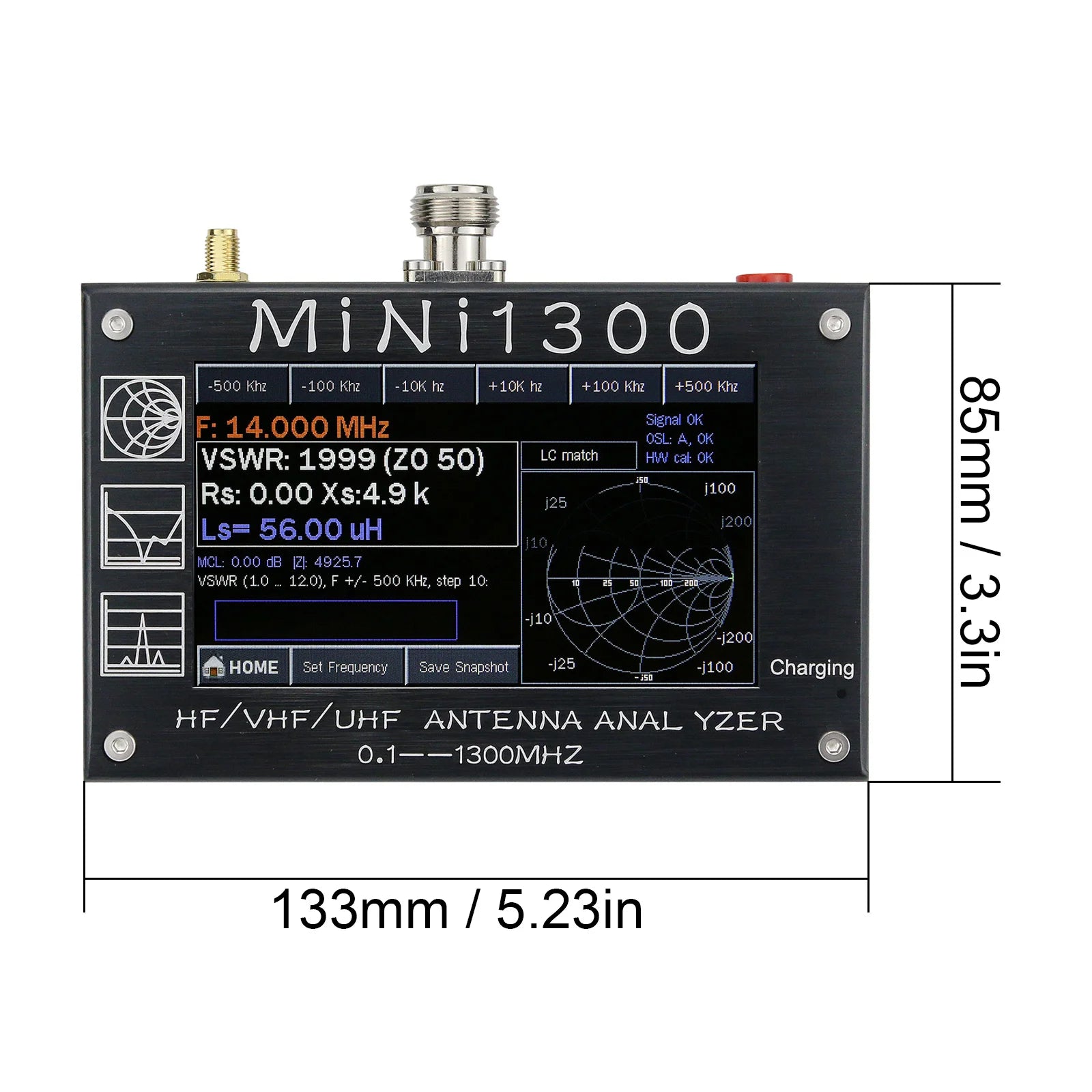

- Dimensions: 133mm x 85mm x 29mm/5.2" x 3.3" x 1.1" (excluding the size of protruding ports)
- Weight: 550g/1.2lb
Package Included:
- 1 x Set of Antenna Analyzer
Note:
- If the product has parameter changes, the actual test will prevail.
- USB cable and TF card are not included.
