- Over current protection, over temperature protection (with a temperature switch), efficiency is more than 90%, the oscillation frequency of 100KHz, the ripple is less than 1%.
- 5-10 times the instantaneous output current can reach the normal current, is very suitable for high power amplifier.
- The design of the switching frequency is 100KHz, far more than the audio signal frequency, minimizing the digital sound between the modulation distortion and the so-called, is more conducive to the sound distortion reduction.
- As an audio power amplifier ideal, without considering the gain of the power amplifier of the sine wave signal of certain frequency, the input, the output is no distortion (no deformation wave), sine wave signal without noise.
- The product key performance - with power - - the two channel stereo
2 X 125W 4 THD+N SE 1%
1 X 450W 4 THD+N BTL 1%
- Bandwidth 8Ω, -3dB point, SE mode120kHz
- Frequency response, 20Hz-20kHz, 2Ω-8Ω load range+/- 0.5dB damping factor 8Ω, 100Hz>500
- Total harmonic distortion THD+N 1kHz, 1W0.003%
- Dynamic range signal to noise ratio, SE mode117dB dynamic range signal to noise ratio
- BTL mode121dB

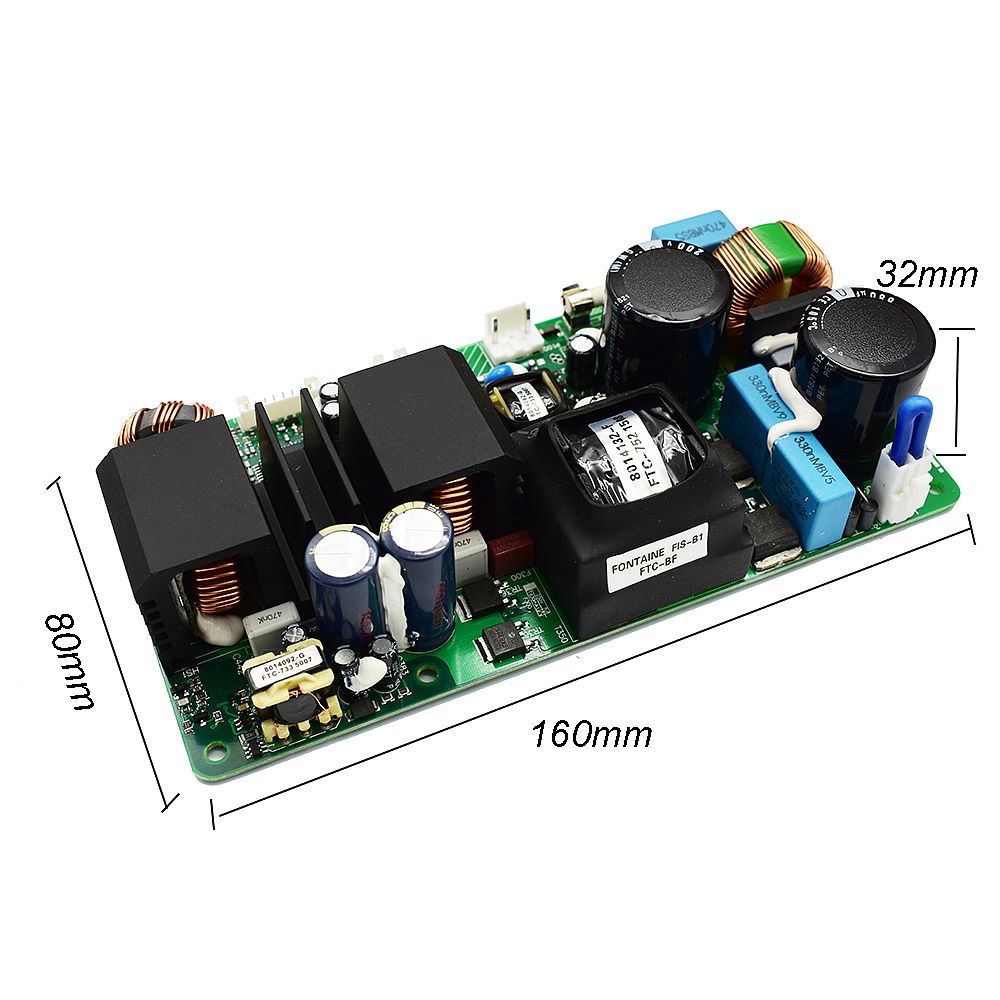

- Size: 16 x 8 x 3.5 cm
1% THD+N, SE mode, 4Ω, 1kHz2 x 125W
1%, THD+N, BTL mode, 4Ω, 1kHz450W
10%, THD+N, BTL mode, 4Ω, 1kHz550W
1%, THD+N, SE mode, 8Ω, 1kHz2 x 65W
1%, THD+N, BTL mode, 8Ω, 1kHz250W
10%, THD+N, BTL mode, 8Ω, 1kHz300W

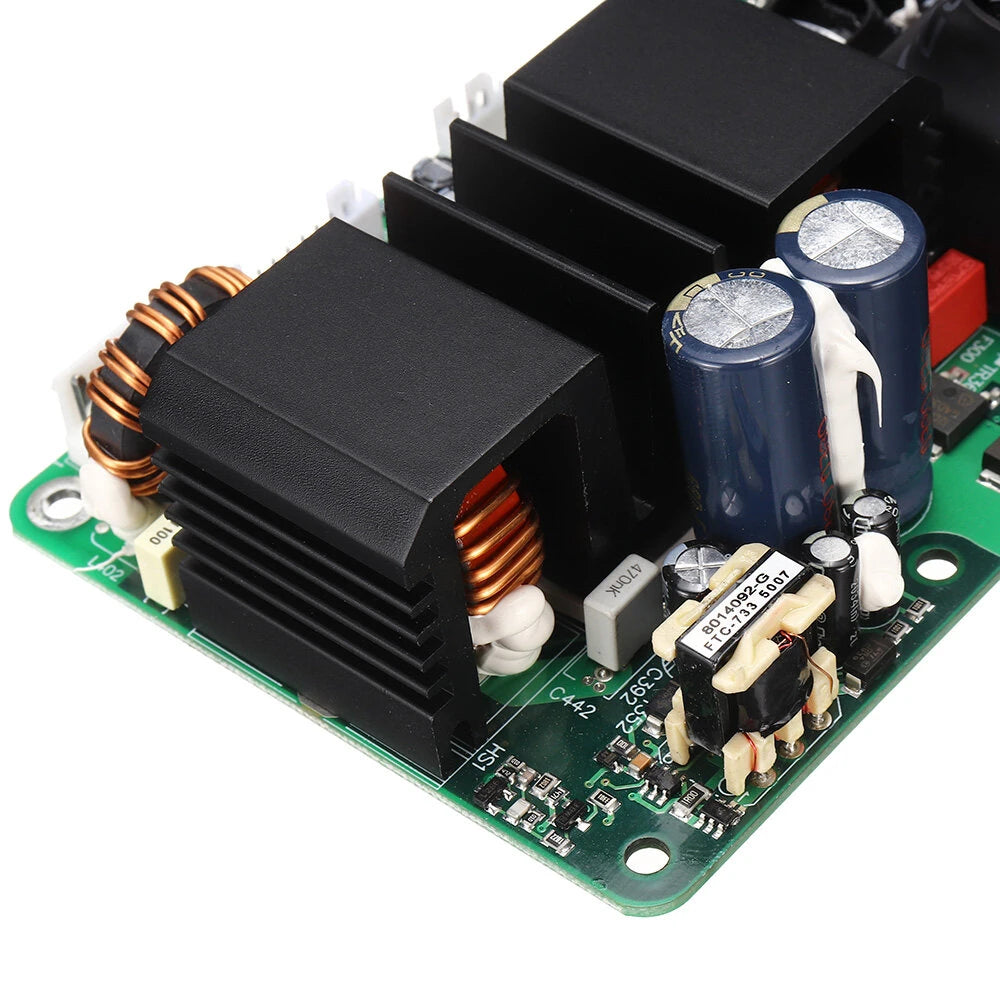

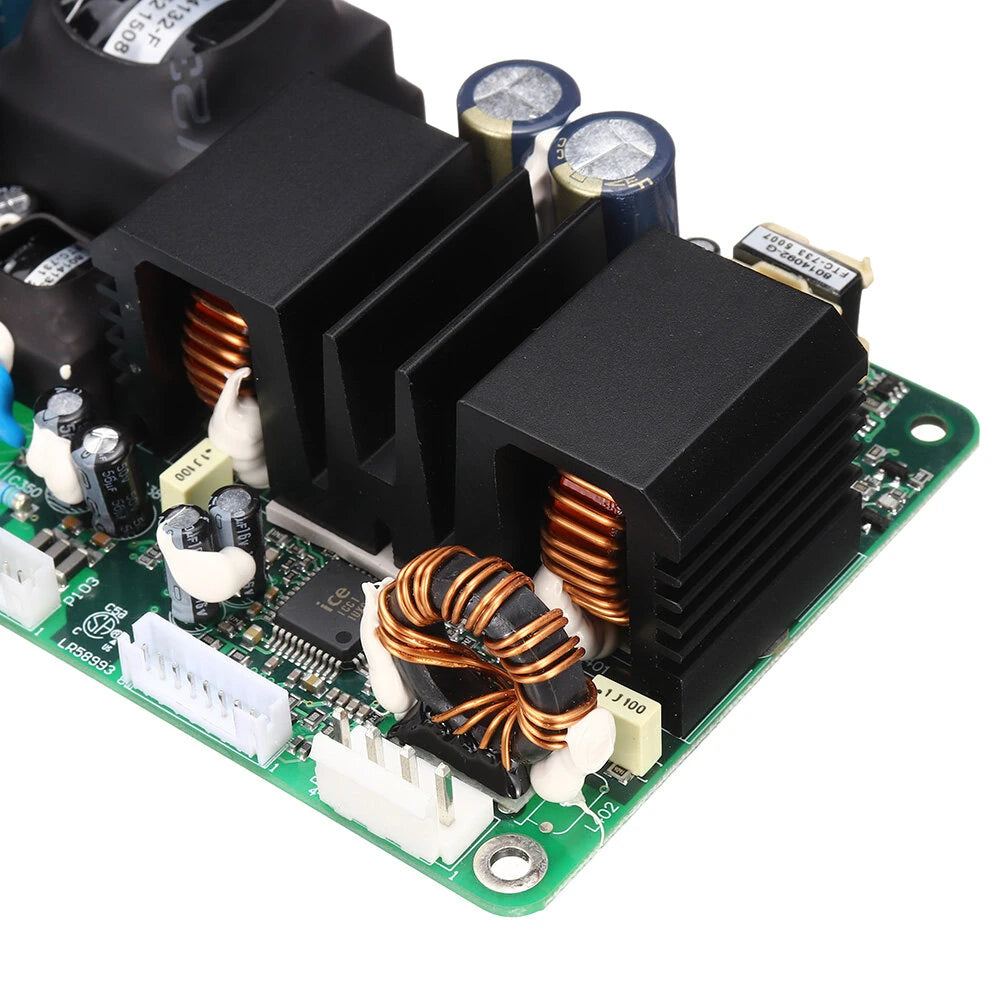

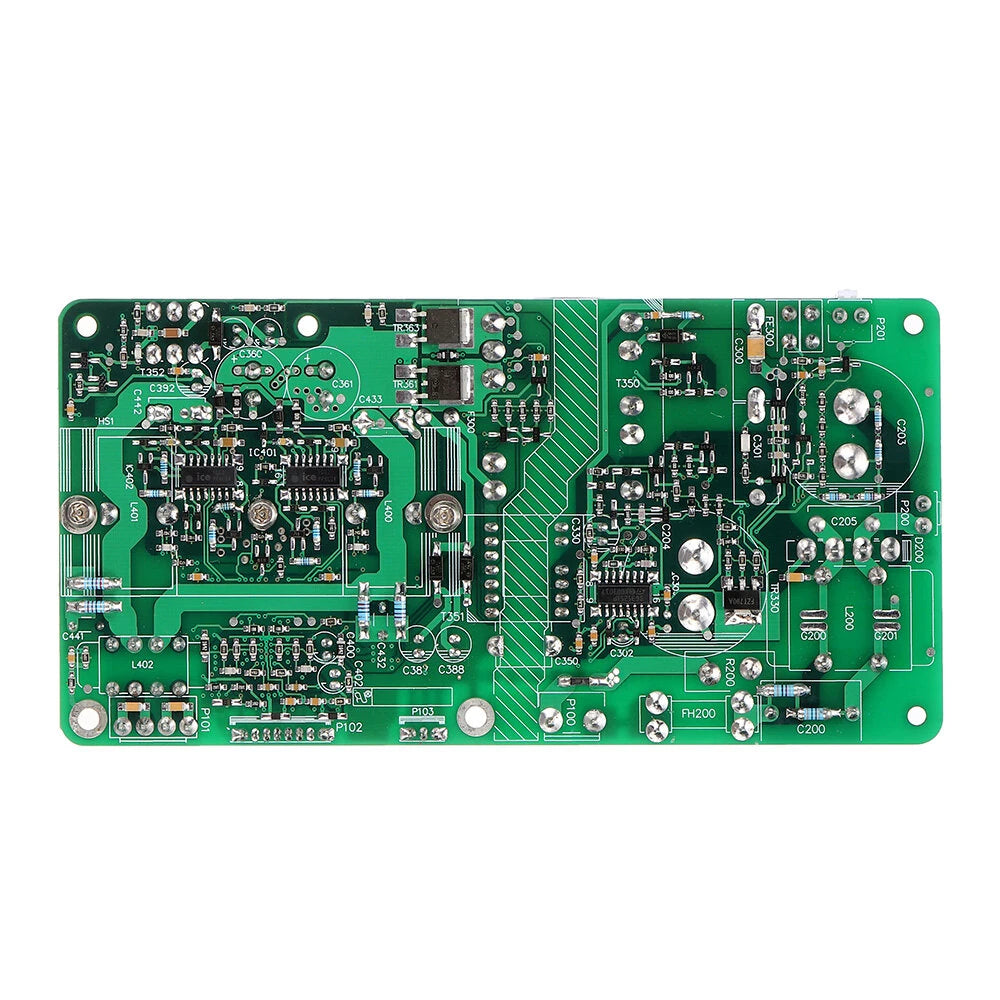

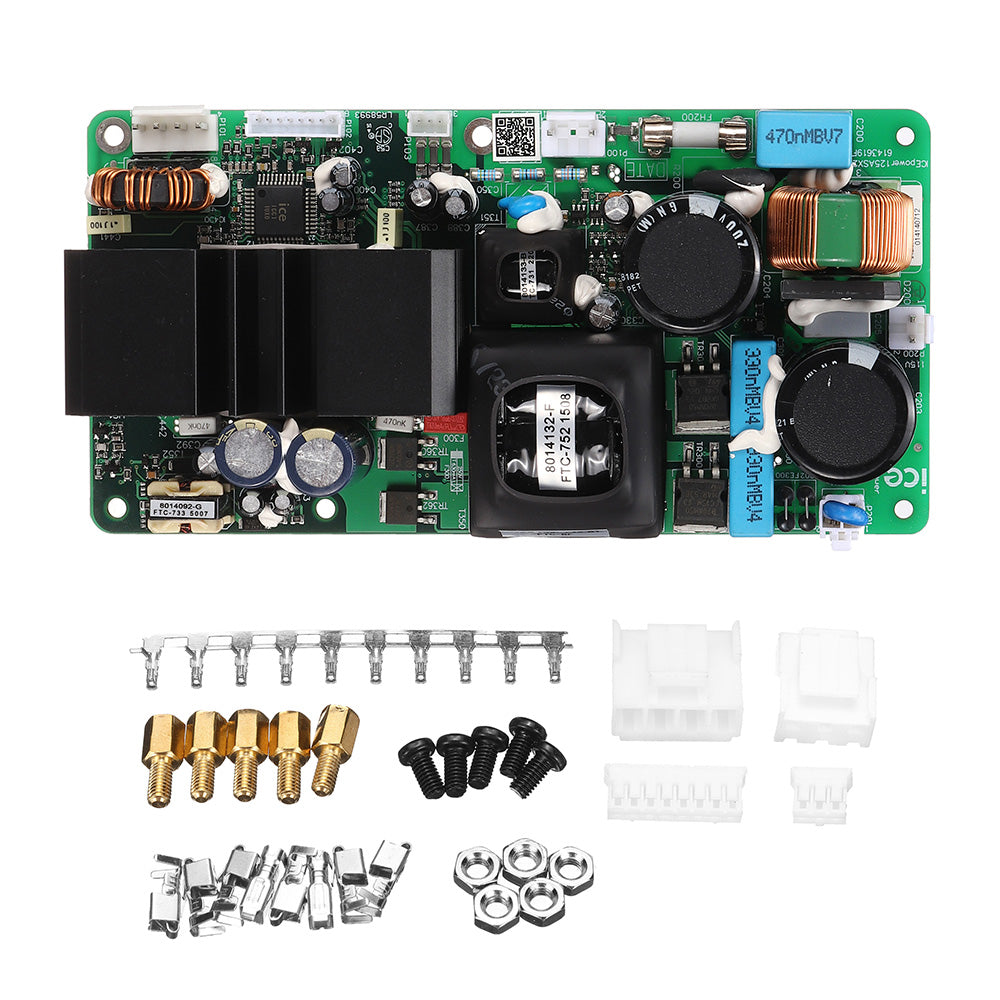

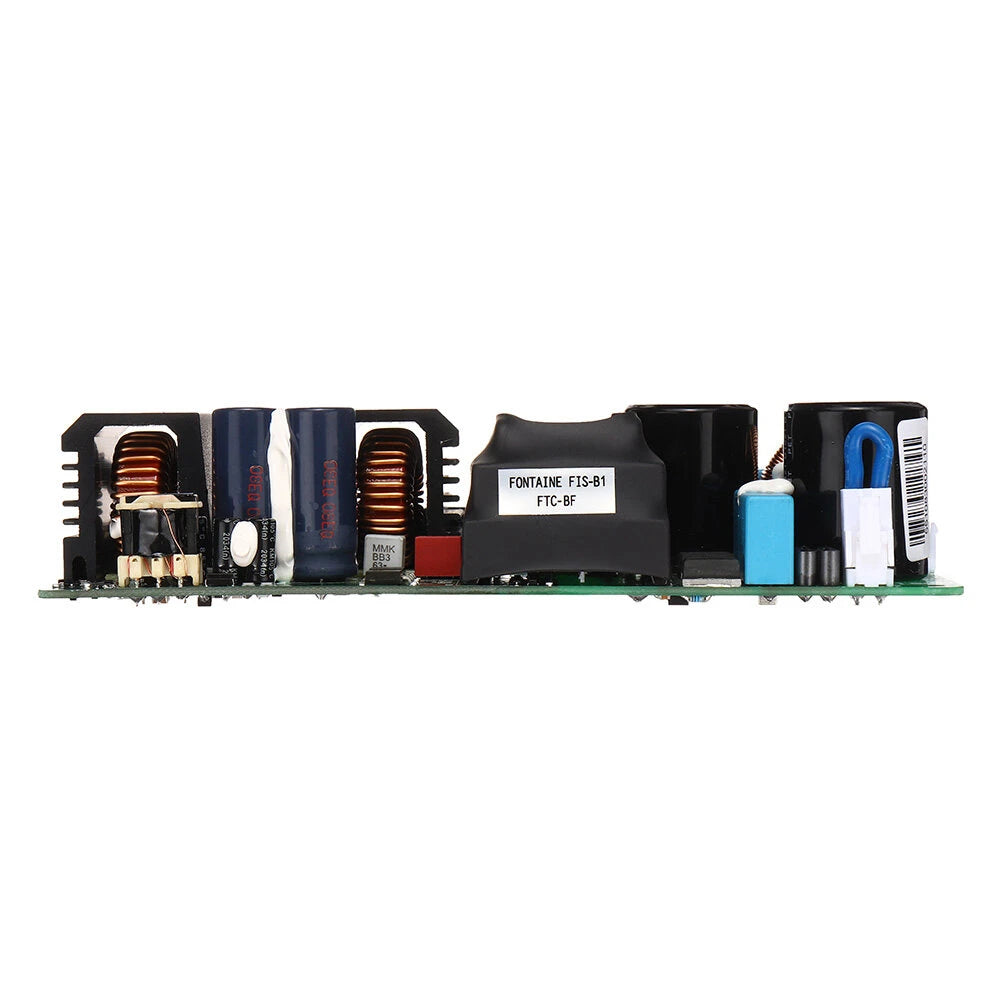

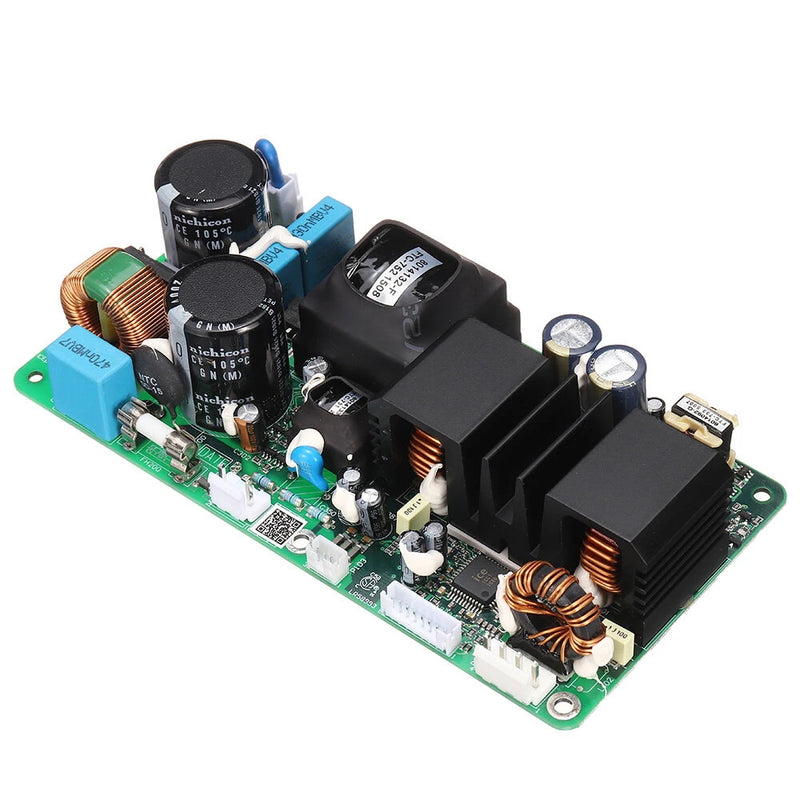

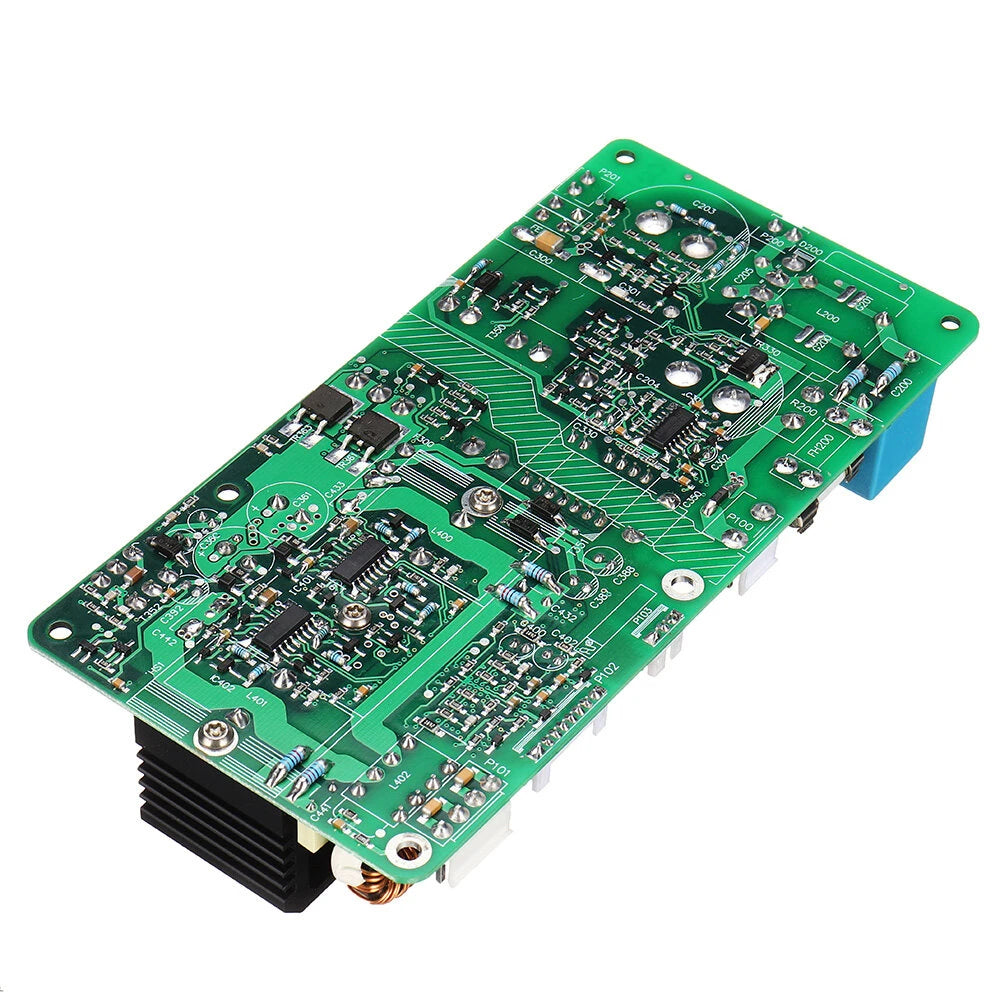

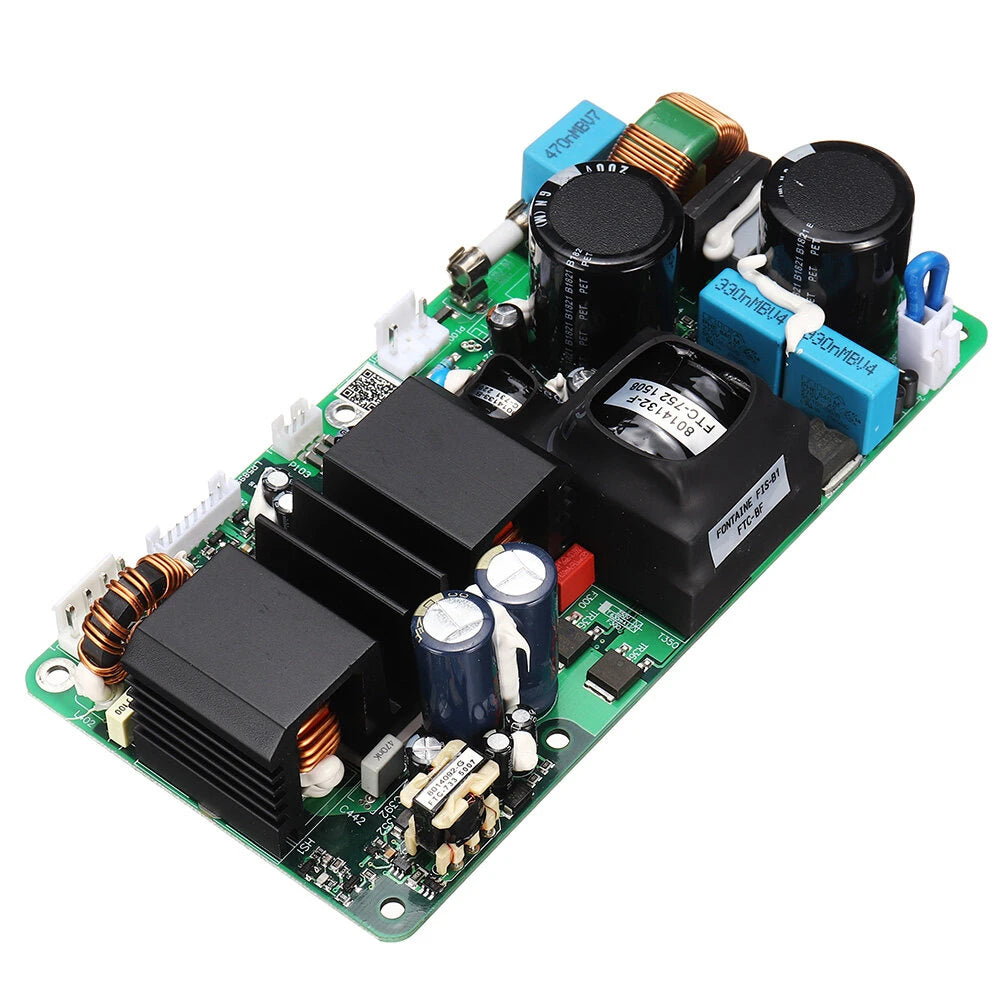

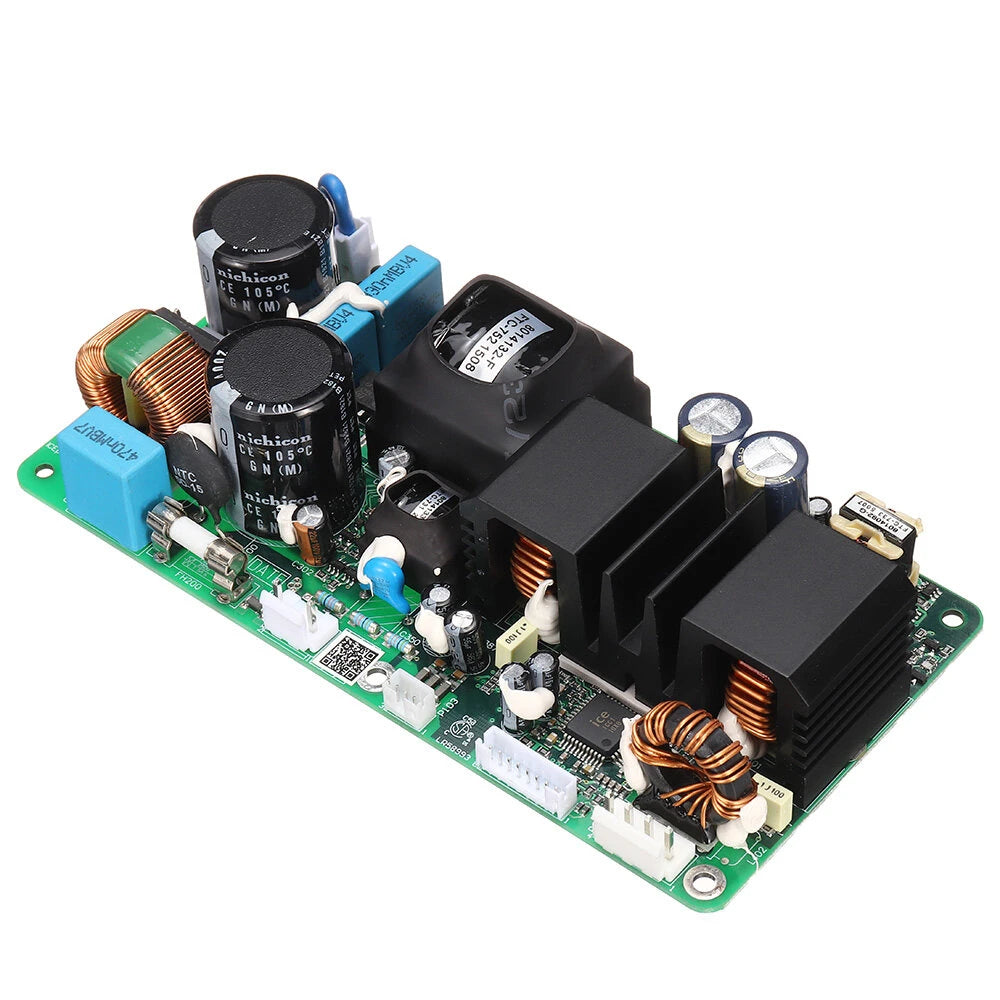

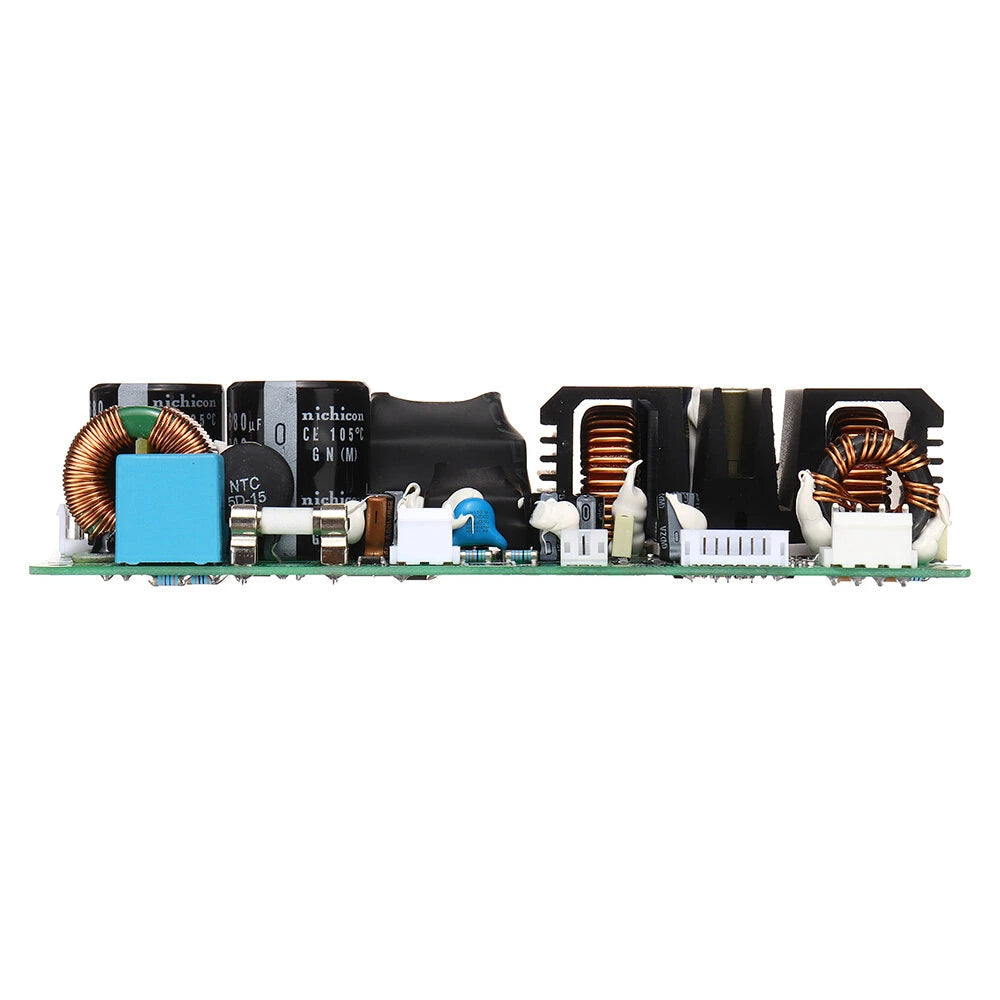

1 x H3-001 ICEPOWER ICE125AS x 2 Power Amplifier Board
