GPSDO GPS Taming Clock Square wave Sine Wave 10MHz/1PPS Frequency Reference Source For Audio Device
GPSDO GPS Taming Clock Square wave Sine Wave 10MHz/1PPS Frequency Reference Source For Audio Device
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /03/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Parameters:
Power supply voltage: DC8-13V
Power consumption: preheating ＜ 12W, working ＜ 5W
Frequency accuracy: 1e-10
Frequency stability: 5e-12
Output level: 12dBm ± 1dB
Output waveform: square wave or sine wave

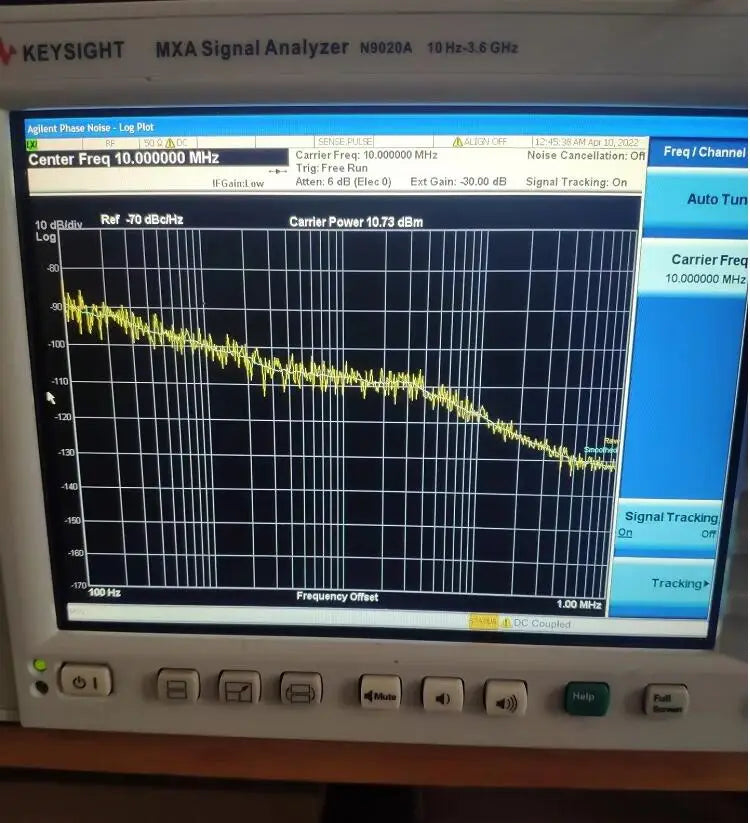

Phase noise: see the last picture
The standard configuration includes a host, a power supply and a GPS antenna (the line is 3m long)
Little knowledge: How to choose sine wave and square wave? Square wave type is required for external reference of instrument equipment or internal reference source of replacement audio equipment. It is used for external reference of high-end audio devices (high-end audio devices generally have shaping), and square wave or normal cyclotron wave can be used.
Description
Description
Parameters:
Power supply voltage: DC8-13V
Power consumption: preheating ＜ 12W, working ＜ 5W
Frequency accuracy: 1e-10
Frequency stability: 5e-12
Output level: 12dBm ± 1dB
Output waveform: square wave or sine wave
Phase noise: see the last picture
The standard configuration includes a host, a power supply and a GPS antenna (the line is 3m long)
Little knowledge: How to choose sine wave and square wave? Square wave type is required for external reference of instrument equipment or internal reference source of replacement audio equipment. It is used for external reference of high-end audio devices (high-end audio devices generally have shaping), and square wave or normal cyclotron wave can be used.
