GPS tame clock, GPS tame type dual channel adjustable frequency reference source, 10KHz-220MHz adjustable frequency reference source
Suitable for: audiophile equipment, high-precision instruments.
V3 hardware upgrade with lower noise LDO.
Comprehensive firmware upgrade, direct selection of 20 common frequencies, a powerful tool for audio enthusiasts!
Channel A defaults to storing 10 sets of frequencies:
1. 10.000MHz
2, 8.4672MHz
3, 11.2896MHz
4, 12.288MHz
5, 16.9344MHz
6, 22.5792MHz
7, 24.576MHz
8, 27.000MHz
9, 33.8688MHz
10, 38.880MHz
Channel B defaults to storing 10 sets of frequencies:
1, 22.5792MHz
2, 24.576MHz
3, 44.100KHz
4, 48.000KHz
5, 88.100KHz
6, 96.000KHz
7176.400KHz
8192.000KHz
9352.800KHz
10384.000KHz
Hardware update v2.1:
1. Upgrade and optimize circuit design, optimize wiring, and reduce phase noise.
2. Upgrade to a supercapacitor as a backup battery for GPS ephemeris data.
3. Upgraded to dual solid-state capacitor filtering, with a 1.5A three terminal voltage stabilization for a longer battery life, making the power supply more pure.
4. Upgrade to gold-plated SMA RF terminals.
Supports Beidou satellite and GPS satellite, dual output, each channel independently adjusts frequency, and each channel supports saving 10 sets of frequencies for arbitrary switching.
Parameters:
Power supply voltage: DC8-13V
Power consumption: ＜ 150mA
Frequency adjustment range: 10KHz-220MHz
Frequency accuracy: ± 0.1Hz
Output level: 12dBm ± 2dB (customizable from -10dBm to 10dBm with adjustable amplitude)
Frequency synthesizer crystal oscillator type: Temperature compensated crystal oscillator (tcxo)

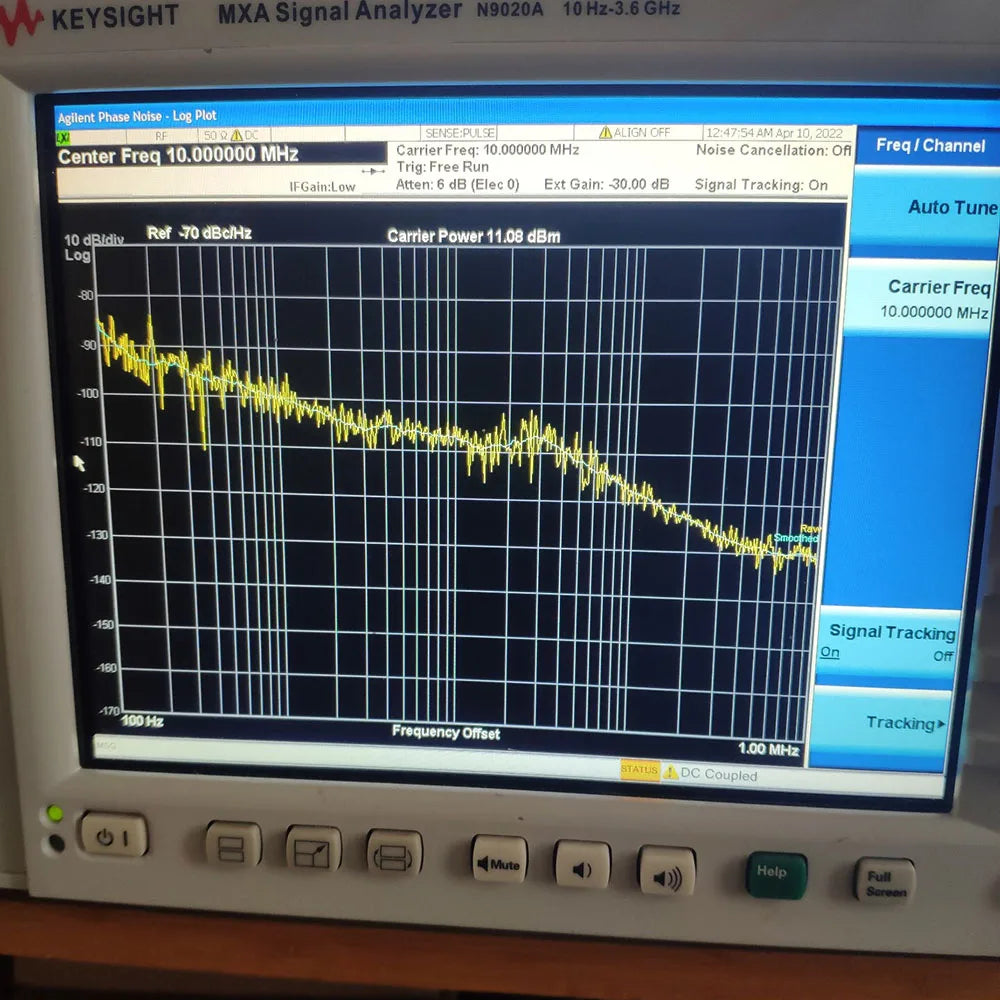

Phase noise: -138dbc@10khz
Output type: Square wave
Harmonic suppression: Even harmonics are better than -50dBc, odd harmonics are better than -10dBc
Standard configuration: One host, one power supply, and one GPS antenna (with a feeder length of 3 meters)
Little knowledge: GPS tames frequency accuracy without considering the type of crystal oscillator used in the frequency synthesizer. After testing, even using a regular crystal oscillator can still correct the frequency error to 0.01Hz.
