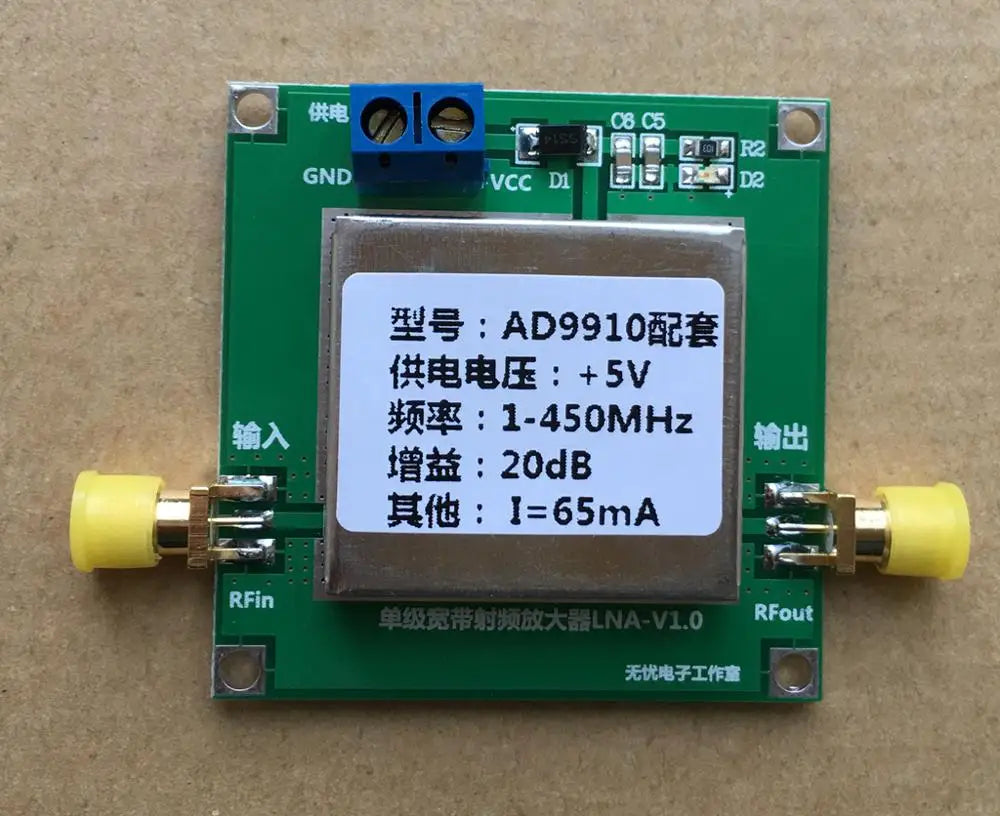

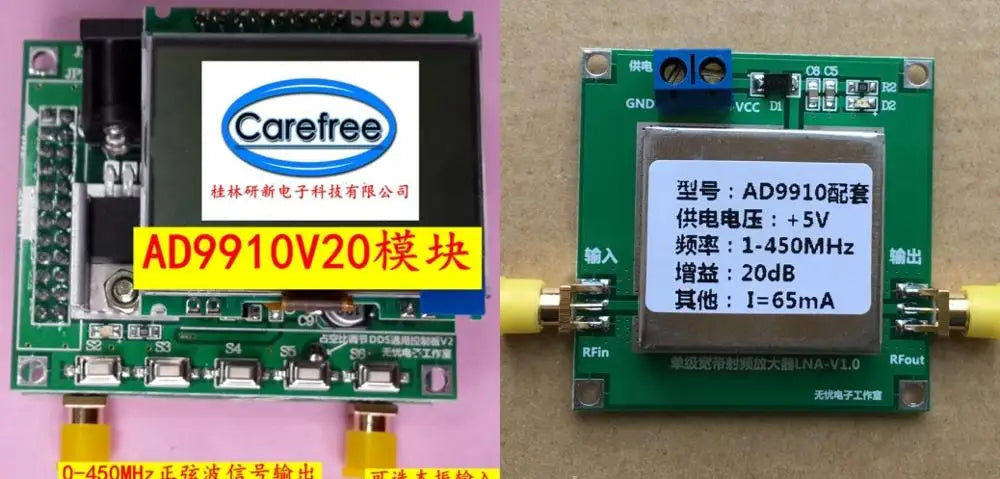

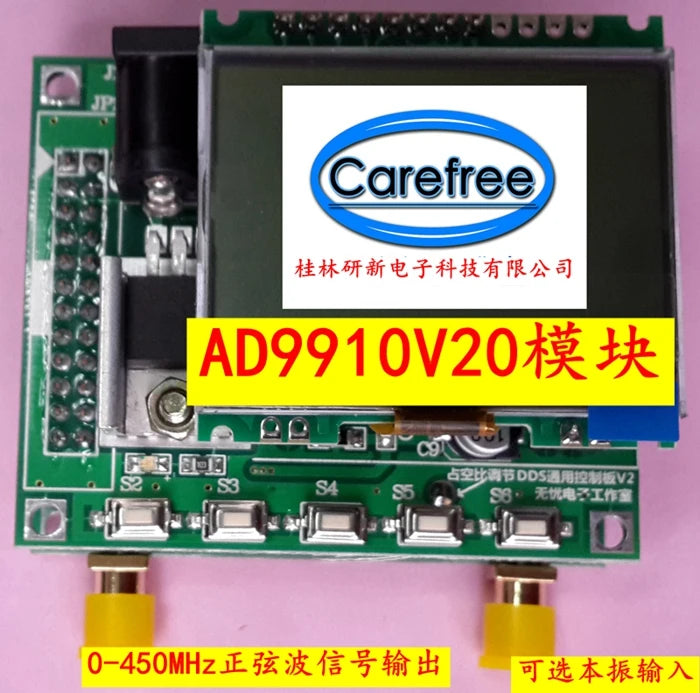

DDS Signal Generator Kit (AD9910 Board + MCU Controller Board + LCD Display + RF Amplifier)
Description:
AD9910 Chip: When its main frequency is 1000MHz, the maximum output frequency is 450MHz. Sweep frequency, FM source can be realized.
Output Vpp is about 500mV. The amplitude of different frequency points is different. Please refer to the specific measured waveform
Test procedures and PDF circuit diagram are provided.
SMA interface is the output port with the range of 0-450MHz.
One input channel for reference clock source input.
Features:
- 1 GSPS internal clock speed (up to 400MHz analog output)
- Built-in 1GSPS, 14-bit DAC
- Frequency Resolution: 0.23Hz or above
- Phase Noise: ≤-125dBc/Hz (1KHz offset, 400MHz carrier)
- Excellent Dynamic Performance: >80dB Narrow-Band SFDR
- Serial Input/Output (I/O) Control
- Automatic linear or arbitrary frequency/phase/amplitude scanning
- 8 Kinds of frequency and phase offset forms
- Sin (X)/(X) Calibration (Arcsine Filter)
- Powered by 1.8V and 3.3V power supplies
- Software/Hardware control enables saving power
- 100-Pin TQFP_EP package
- Integrated RAM 1024 byte x 32-bit
- PLL REFCLK multiplier

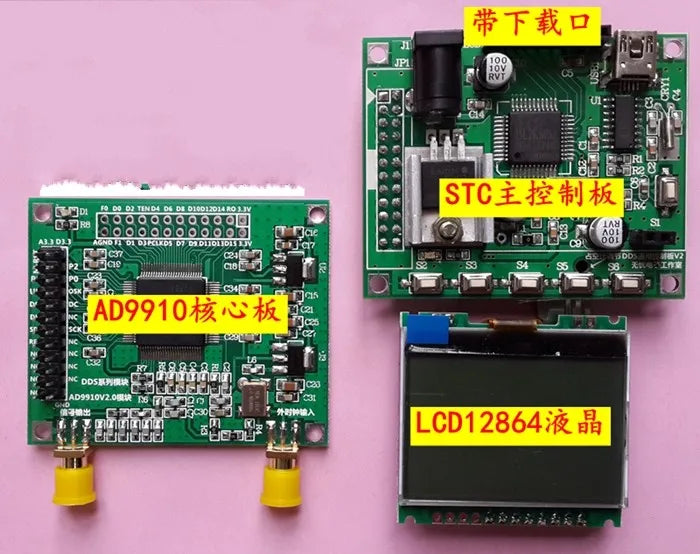

Package Included:
- 1 x MCU Controller Board
- 1 x LCD Display

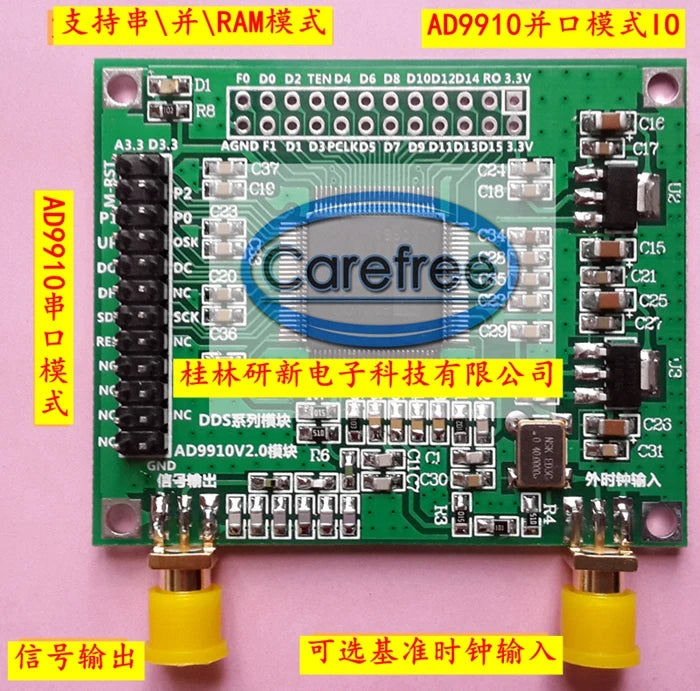

- 1 x AD9910 Core Board
- 1 x RF Amplifier
Note: AD9910 core board + PDF schematic diagram for MCU main controller board + related source code are provided after purchasing. Please contact us. Thank you!
