DDS FM signal generator 78~108MHz Fm transmitter wireless
Ⅰ. Overview:

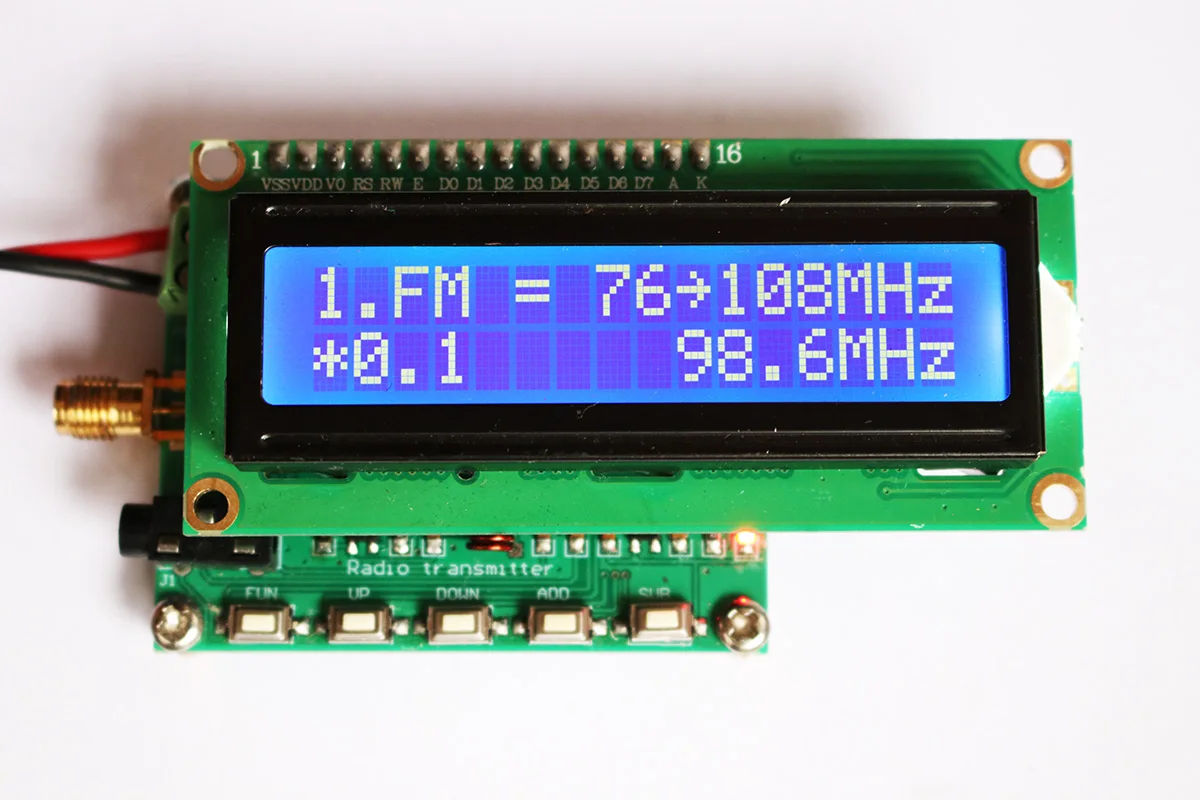

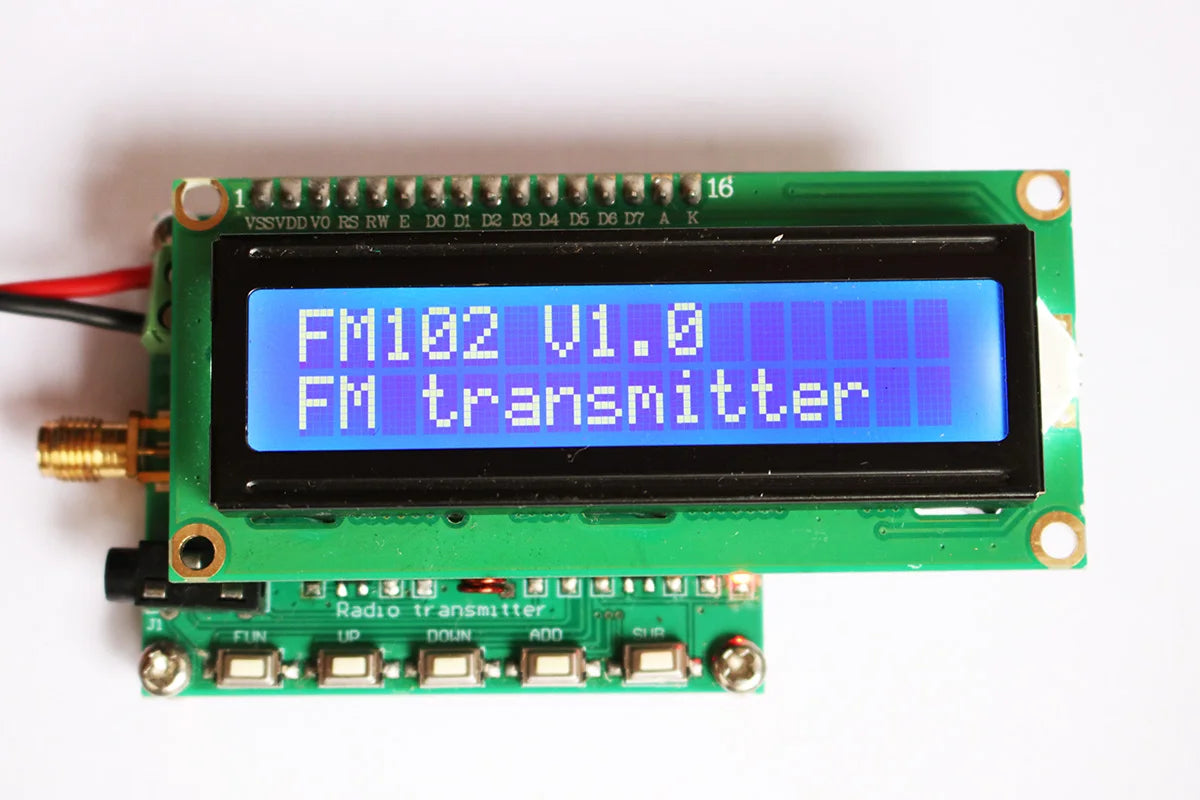

FM102 is a small signal generator, which generates 78~108MHz signals.
The module is simple to use, input frequency data through key operation, and immediately update the output frequency.
Ⅱ. Product application:
• Signal generator;
• Meter calibration;
Ⅲ. Technical parameter table:
No. Item Parameters Unit Remarks
1 FM signal frequency 78~108 MHz
2 FM signal amplitude 500 MV
3 Working voltage 7～12 VDC
4 Working current <50 mA
5 Working temperature -40℃～65℃ Celsius
6 Storage temperature -40℃～65℃ Celsius
7 Size 57*45*20 mm length X width X height
Ⅳ. interface description and related operations
P1 interface (power supply)
VDD: Positive power supply (7～12V)
GND: negative pole of power supply
P2 interface (antenna output)
J1 interface (stereo input)

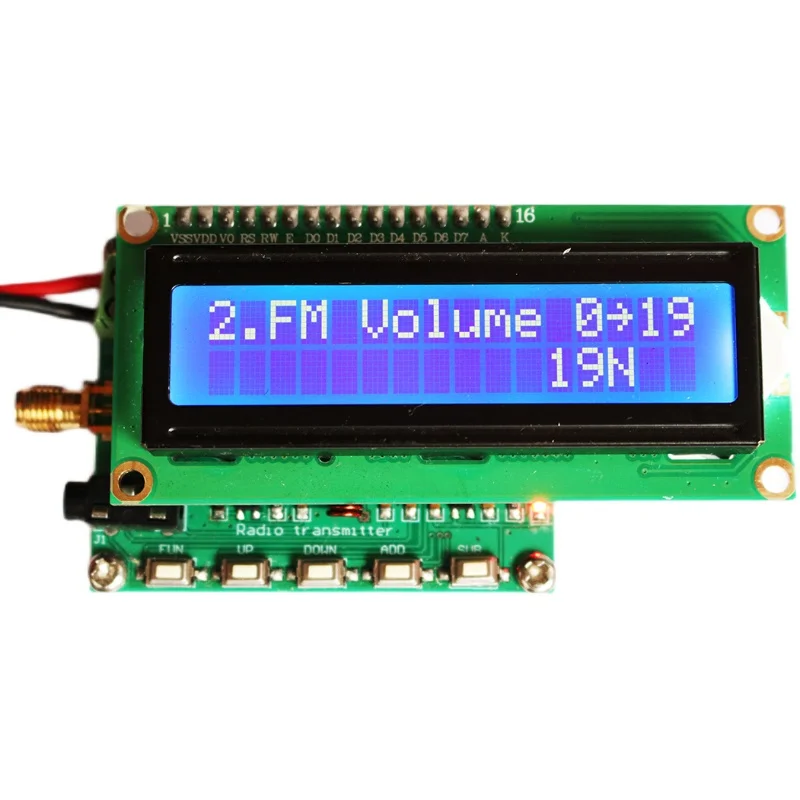

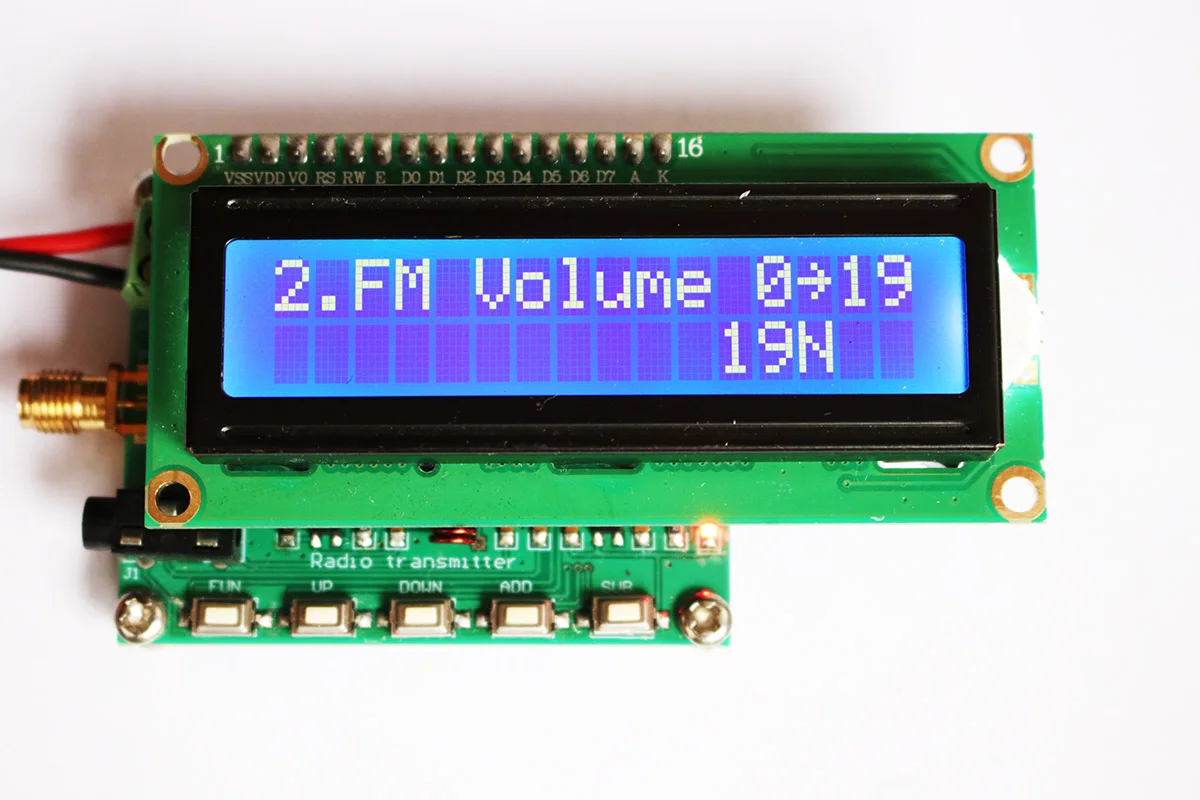

Ⅴ. Button description
FUN: Select the operation bit to set the data. (Long press FUN to save parameters)
UP: Previous page.
DOWN: Next page.
ADD: Self-add key.
SUB: Self-decrement key.
