Square Wave Distributor Amplifier 16 Channel Output Trig Signal By BG7TBL 1PPS
Main features:
1 input, up to 16 outputs
With input signal indication, automatic switching of internal and external signals,
BNC or SMA interface optional
Built-in OCXO to output multiple signals
Wide frequency range, low noise and small phase difference of output signal
Low power consumption, high reliability, long-term continuous and stable work
Technical Specifications:
Name: Clock distributor, frequency distribution amplifier, frequency standard distributor
Model: FDIS-16
Power supply: DC11.7-12.9V, maximum 18W, 5.5/2.1 socket
Input: AC coupling or DC coupling, input impedance 25k
AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp
DC coupling, DC-200MHz, with DC component, 2.5-5Vpp
Output: 16 channels, square wave, TTL level, 3.3Vpp or 5Vpp,
Input and output interface: BNC or SMA
Indicator light: PWR. Power indicator, it will be on when power on, if it is off, it means that there is no power supply
EXT IN: External input signal indication, the input signal is greater than 0.5Hz, it is always on, otherwise it flashes or does not light up
ALM: Alarm light, the output signal frequency is less than 0.5Hz, the light is always on, otherwise it flashes or is always off
Working temperature: -20℃～＋50℃
Relative humidity: ≤85% (45℃)
Storage temperature: -30℃～＋70℃
Accessories: AC110-220V-DC12V/1.0A power adapter
Size: W*H*L=178*62*120 (including BNC (SMA) part)
Weight: net weight 800g (excluding packaging), 1000g (including transformer, including packaging)

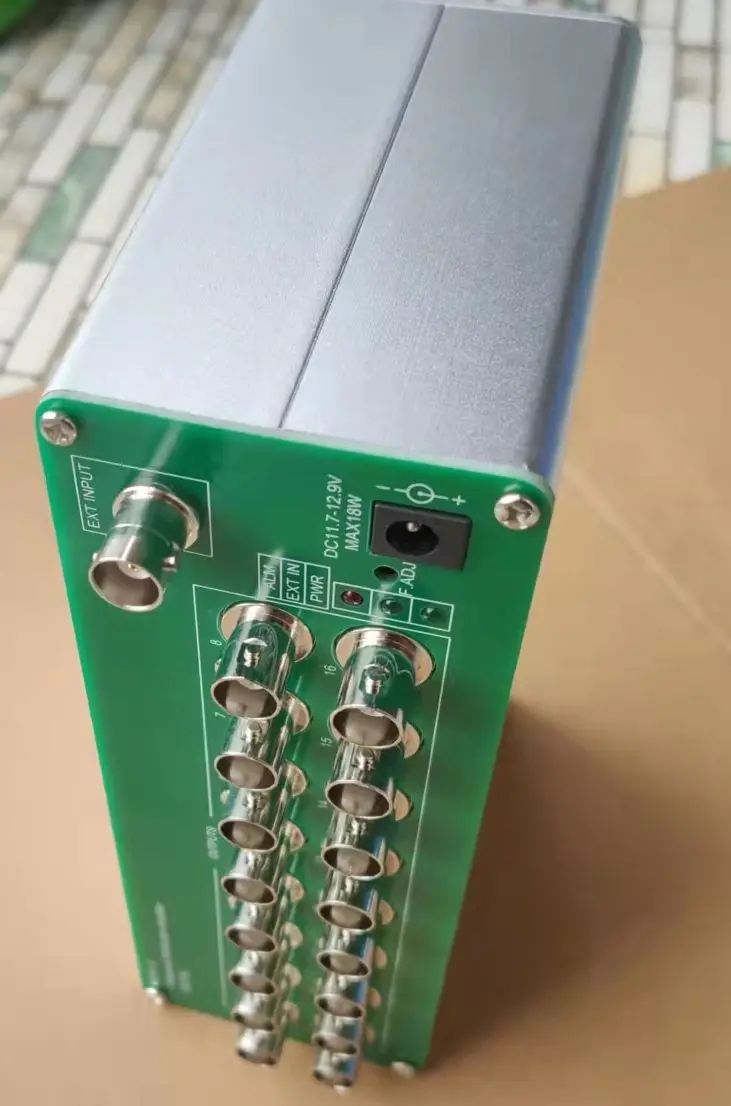

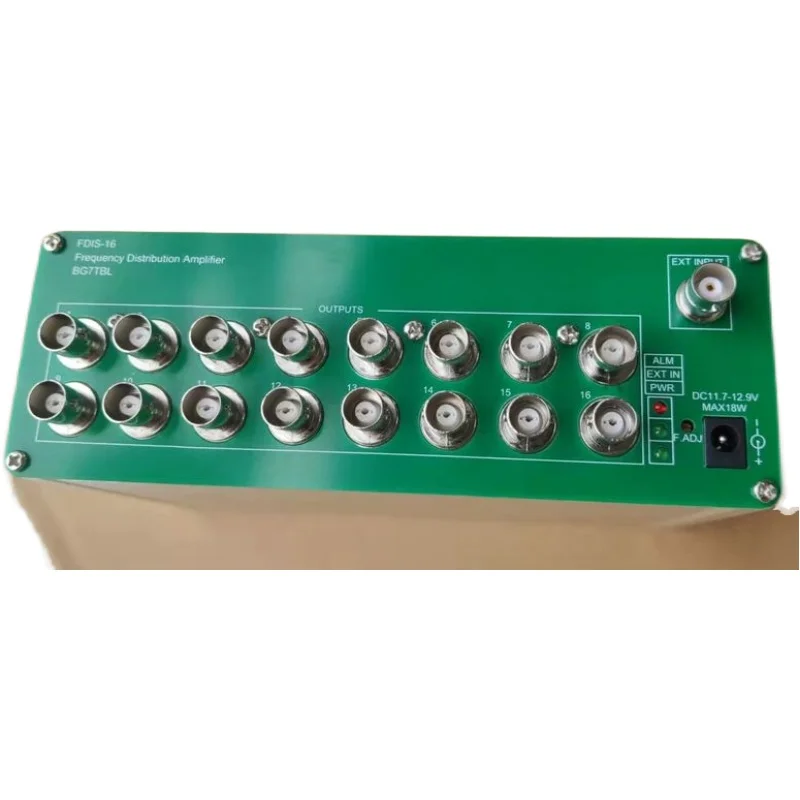

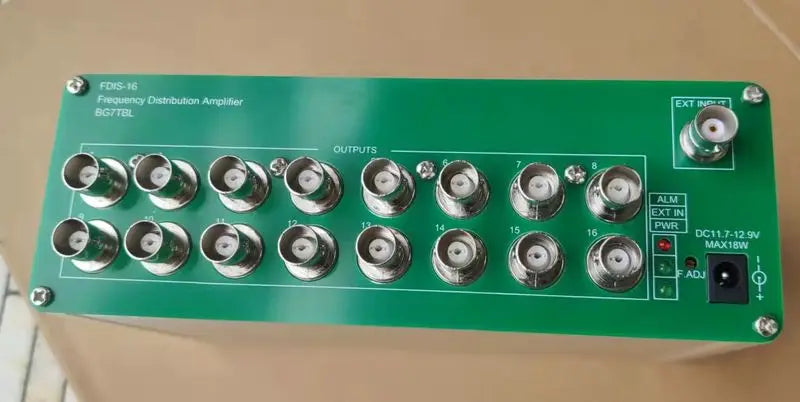

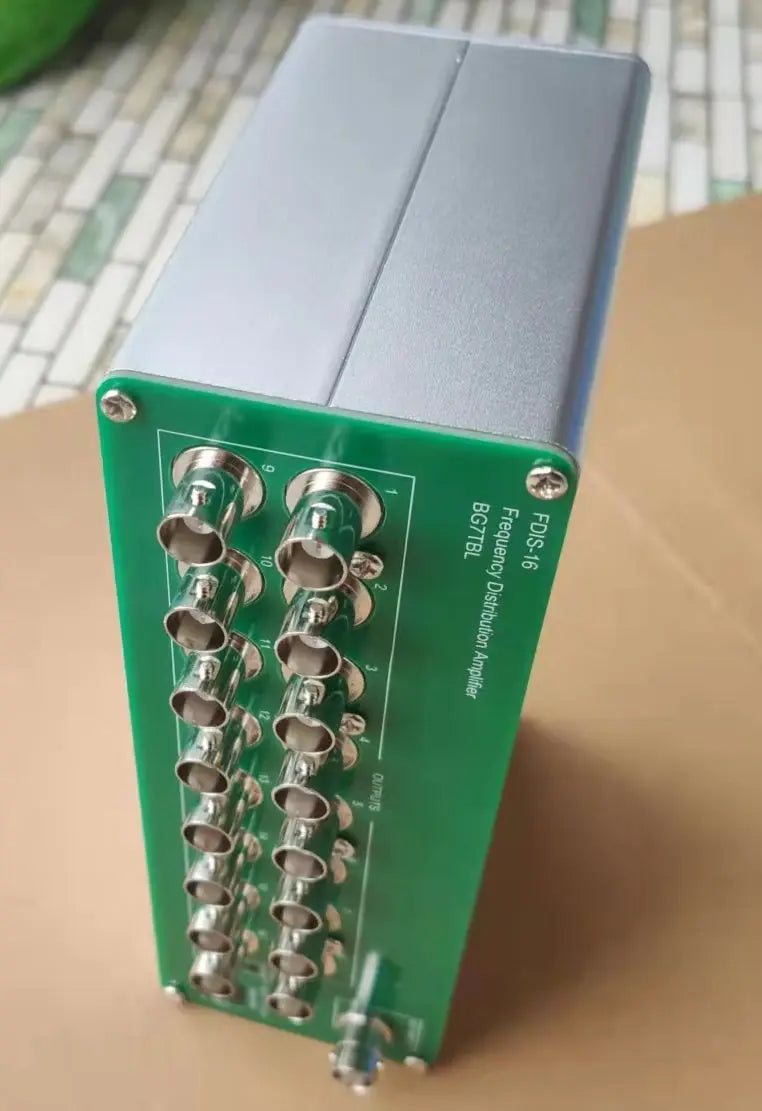

1, 16 channels of signal output;
2. External signal input port;
3. Indicator light;
4. Option OCXO frequency fine-tuning
5. External power supply input
Application scenarios:
100M, 10M, 1PPS, equal frequency clock distribution
Multi-port frequency signal synchronization
Multi-channel, multi-device signal synchronization
Measurement, time unification, radio and television, communication and other test systems
