FCU-5. Signal source frequency conversion, 100M, 50M, 20M, 200M, 10M, sine wave clock source
FCU-5. Signal source frequency conversion, 100M, 50M, 20M, 200M, 10M, sine wave clock source
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Product introduction
1. Multi-channel output to meet diverse needs

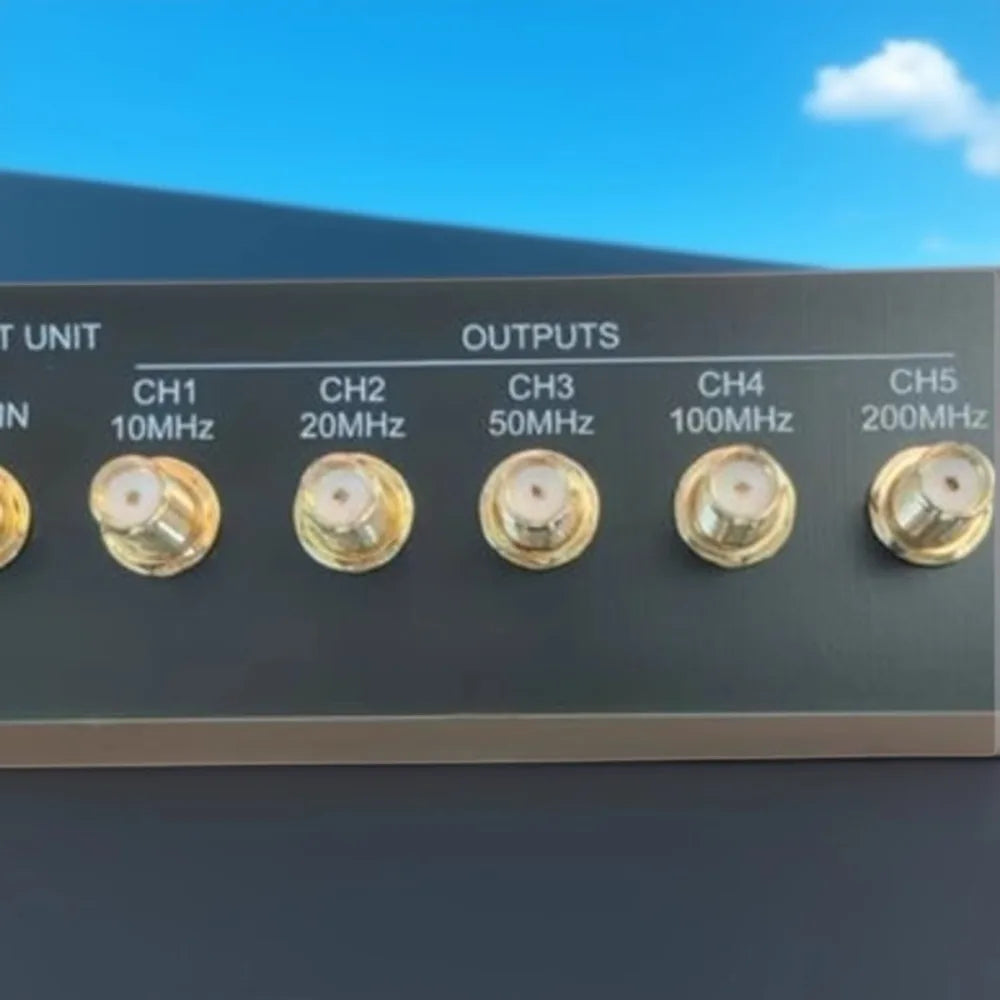

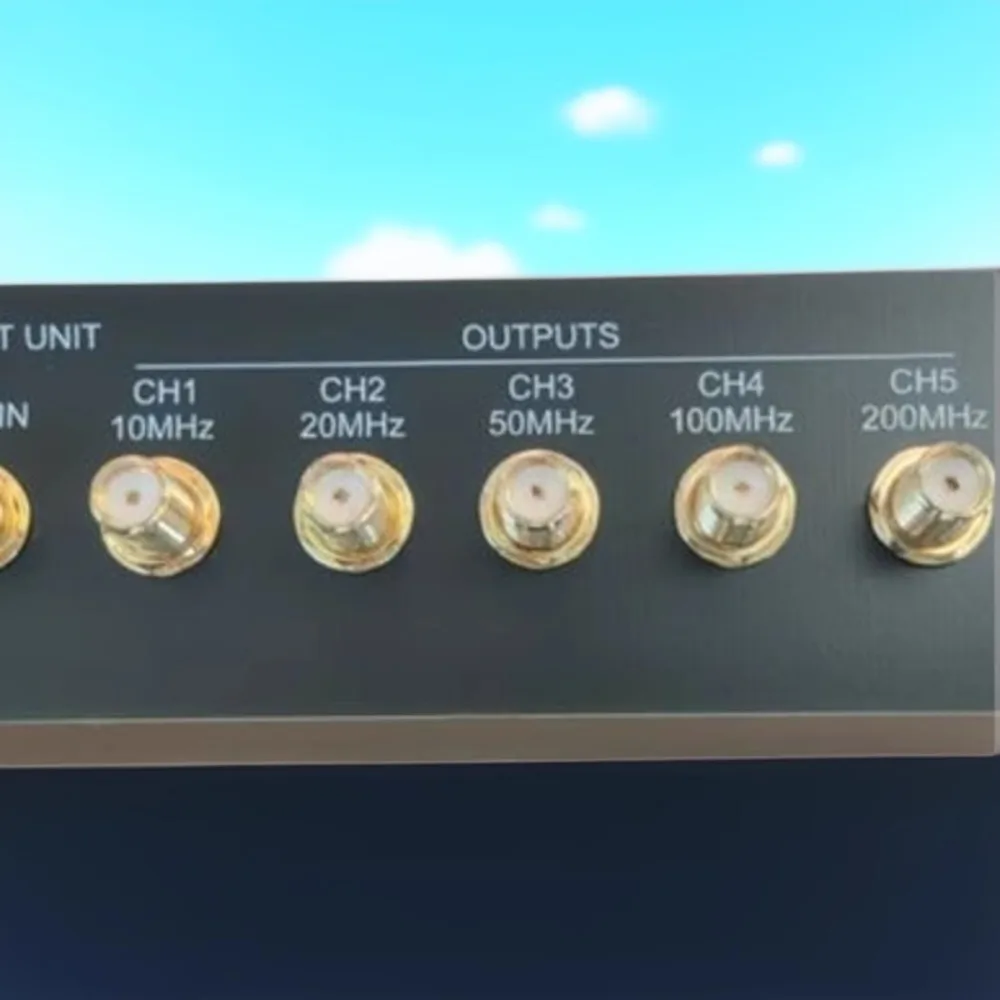

The FCU-5 supports 5 sinusoidal frequency outputs, as follows:
- CH1:10MHz, +13dBm
- CH2:20MHz, +13dBm
- CH3:50MHz, +13dBm
- CH4:100MHz, +13dBm
-CH5:200MHz, +13dBm
In addition, it also supports external input: 10MHz, 0.5-5Vpp, and gives priority to the external 10MHz benchmark, providing users with flexible frequency selection and benchmark configuration, which can meet the frequency and power requirements of different devices, and realize the simultaneous use of multiple devices, greatly improving work efficiency.
Product specifications and parameters
- Model: FCU-5
- Function: Output multiple sine wave frequencies, and can synchronize external 10MHz signals
- Output channel:
- CH1:10MHz, +13dBm
- CH2:20MHz, +13dBm
- CH3:50MHz, +13dBm
- CH4:100MHz, +13dBm
-CH5:200MHz, +13dBm
- External input: 10MHz, 0.5-5Vpp
- Frequency reference: built-in constant temperature crystal oscillator, support external reference input
- Interface: SMA female head
- Power adapter: DC12V/1A (attached)
- Indicator: external indicator LED, power LED
- Size: 140mm×35mm×116mm
- Weight: 0.8kg
Description
Description
Product introduction
1. Multi-channel output to meet diverse needs
The FCU-5 supports 5 sinusoidal frequency outputs, as follows:
- CH1:10MHz, +13dBm
- CH2:20MHz, +13dBm
- CH3:50MHz, +13dBm
- CH4:100MHz, +13dBm
-CH5:200MHz, +13dBm
In addition, it also supports external input: 10MHz, 0.5-5Vpp, and gives priority to the external 10MHz benchmark, providing users with flexible frequency selection and benchmark configuration, which can meet the frequency and power requirements of different devices, and realize the simultaneous use of multiple devices, greatly improving work efficiency.
Product specifications and parameters
- Model: FCU-5
- Function: Output multiple sine wave frequencies, and can synchronize external 10MHz signals
- Output channel:
- CH1:10MHz, +13dBm
- CH2:20MHz, +13dBm
- CH3:50MHz, +13dBm
- CH4:100MHz, +13dBm
-CH5:200MHz, +13dBm
- External input: 10MHz, 0.5-5Vpp
- Frequency reference: built-in constant temperature crystal oscillator, support external reference input
- Interface: SMA female head
- Power adapter: DC12V/1A (attached)
- Indicator: external indicator LED, power LED
- Size: 140mm×35mm×116mm
- Weight: 0.8kg
