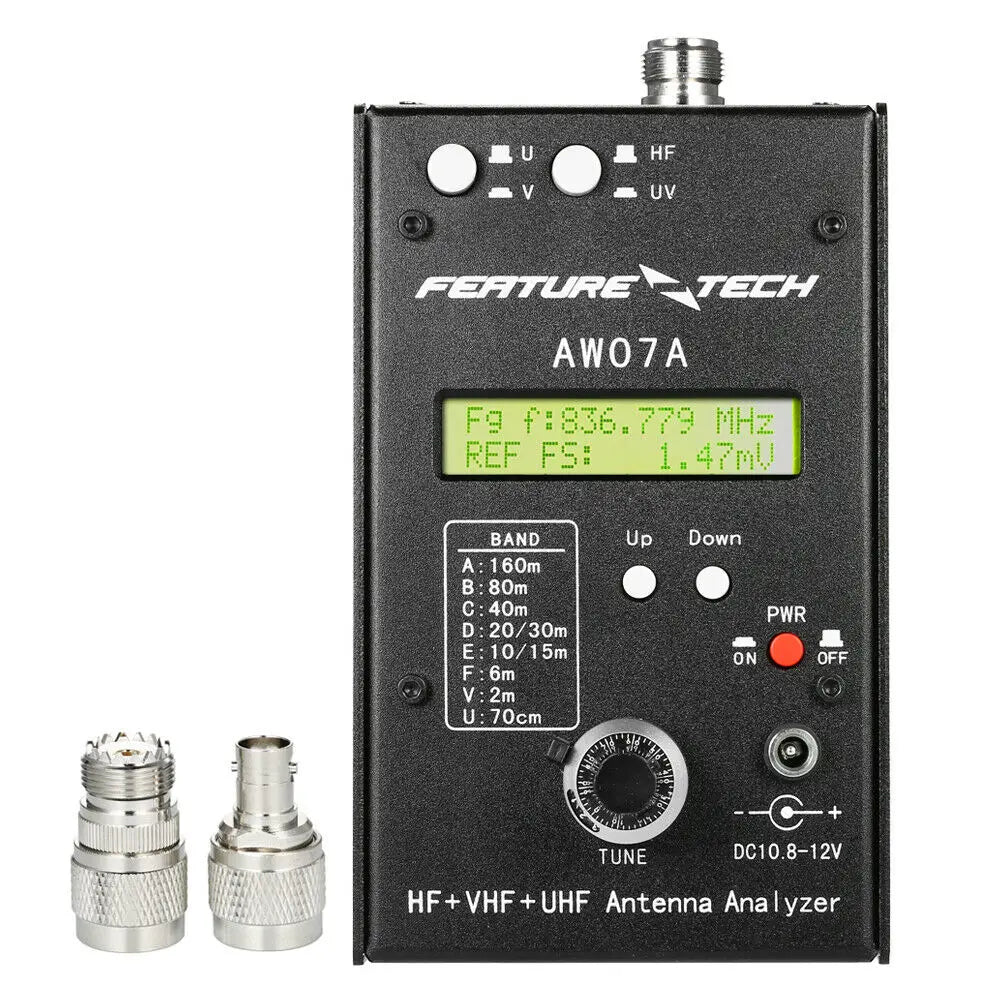

English verison HF +UV AW07A HF/VHF/UHF 160M 490Mhz Impedance SWR Antenna Analyzer Shortwave Ham Radio + English Manual

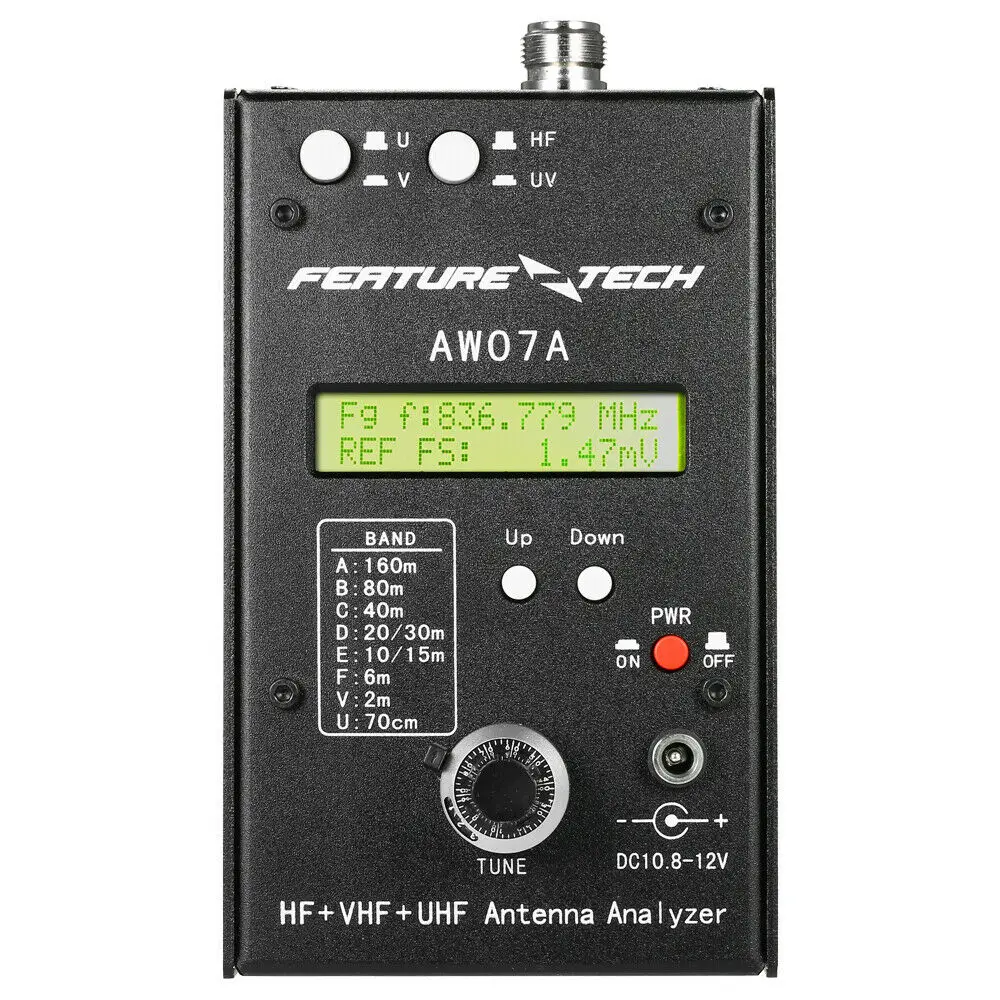

AW07A antenna analyzer is a compact battery powered RF impedance analyzer. It can test the SWR status of your antenna, measure the impedance and reactance component and help you to solve antenna problems. This unit combines six basic parts: a variable oscillator, frequency counter, independent oscillator, 50 ohm RF bridge detector, an A-D converter, and microcontroller. This compact product was built to feed the need for the solid construction and field test. The operating frequency range of this unit goes from HF, and extends up to 490MHz. The operating frequency range of this unit extends from 1.5 to 71 MHz in six overlapping bands, and includes SWR measurements on 105-185MHz, 300-490MHz.

Features:
The antenna analyzer is specially designed for analyzing 50 ohm antenna system.
Can test the SWR status, measure the impedance and reactance component and help you to solve antenna problems.
Combines six basic parts: a variable oscillator, frequency counter, independent oscillator, 50 ohm RF bridge detector, an A-D converter and microcontroller.
The operating frequency range of this unit goes from HF, and extends up to 490MHz.

Functions:
-Signal Source
-Capacitance Meter
-Inductance Meter
-Show Reactance Value
-Show Impedance Value
-SWR Value from 1.1 to 9.99
-RF Strength Meter
-Frequency Counter

Specifications:
Band Coverage: 160m, 80m, 40m, 20/30m, 10/15m, 6m, 2m, 70cm
RF Output Level: 2Vpp
SWR Range: 1~9.9
Impedance Range: 10~500ohm
External Power: DC 10.8~12V
Battery: 8 * AA Alkaline Battery(NOT INCLUDED)
Power Consumption: <150mA(HF Bands, B/F Off); <165mA(VU Bands, B/L Off)

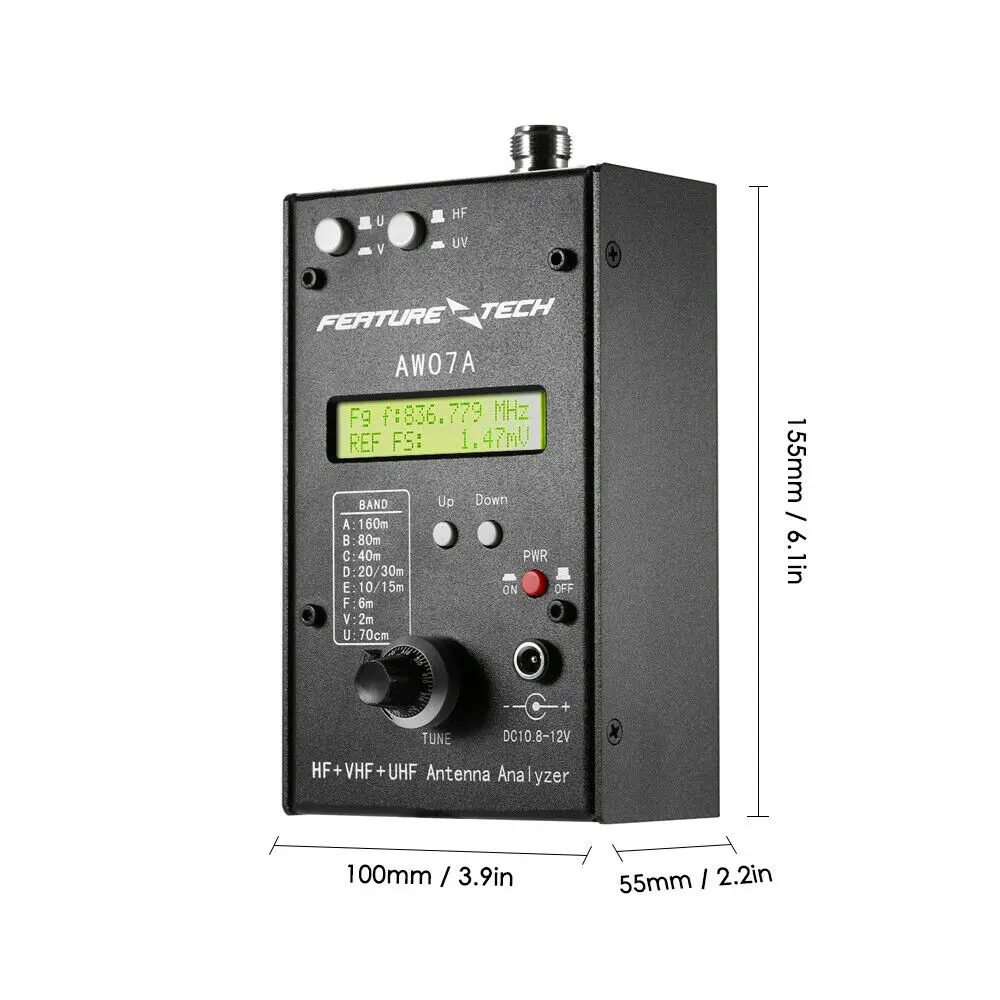

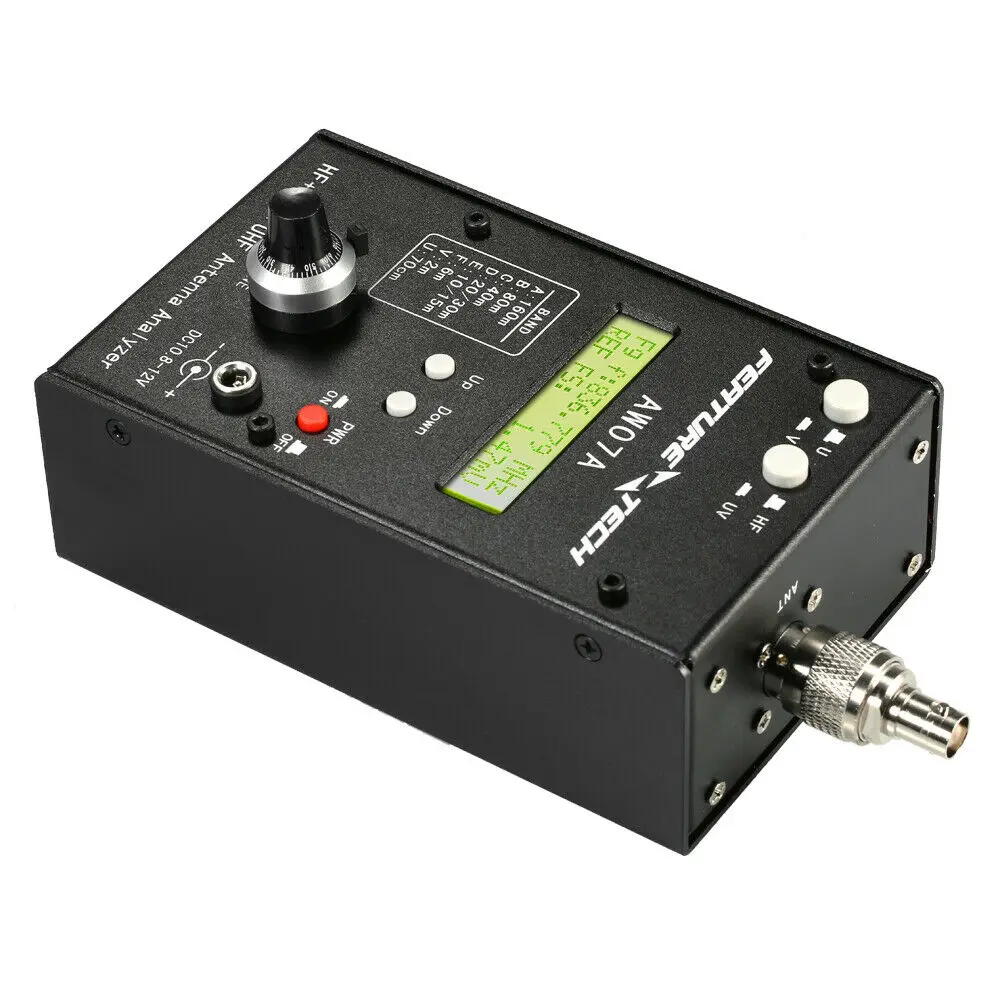

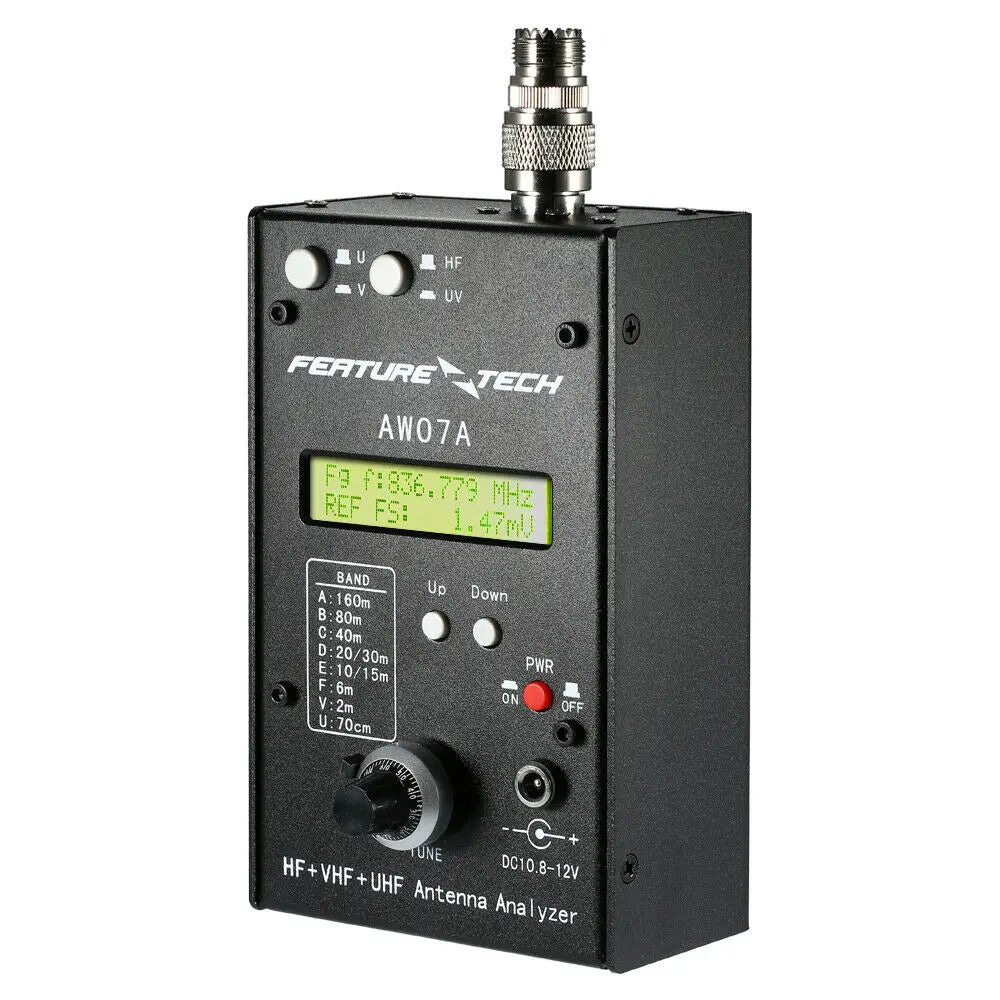

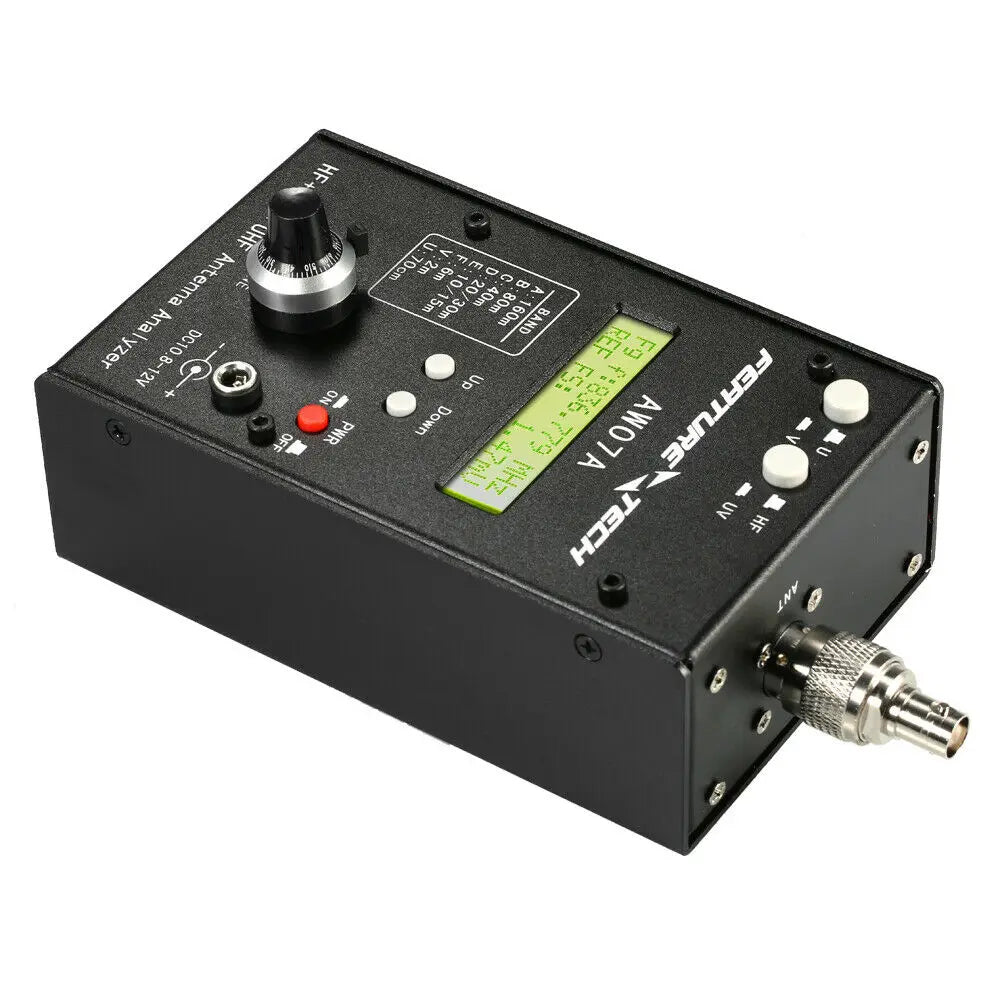

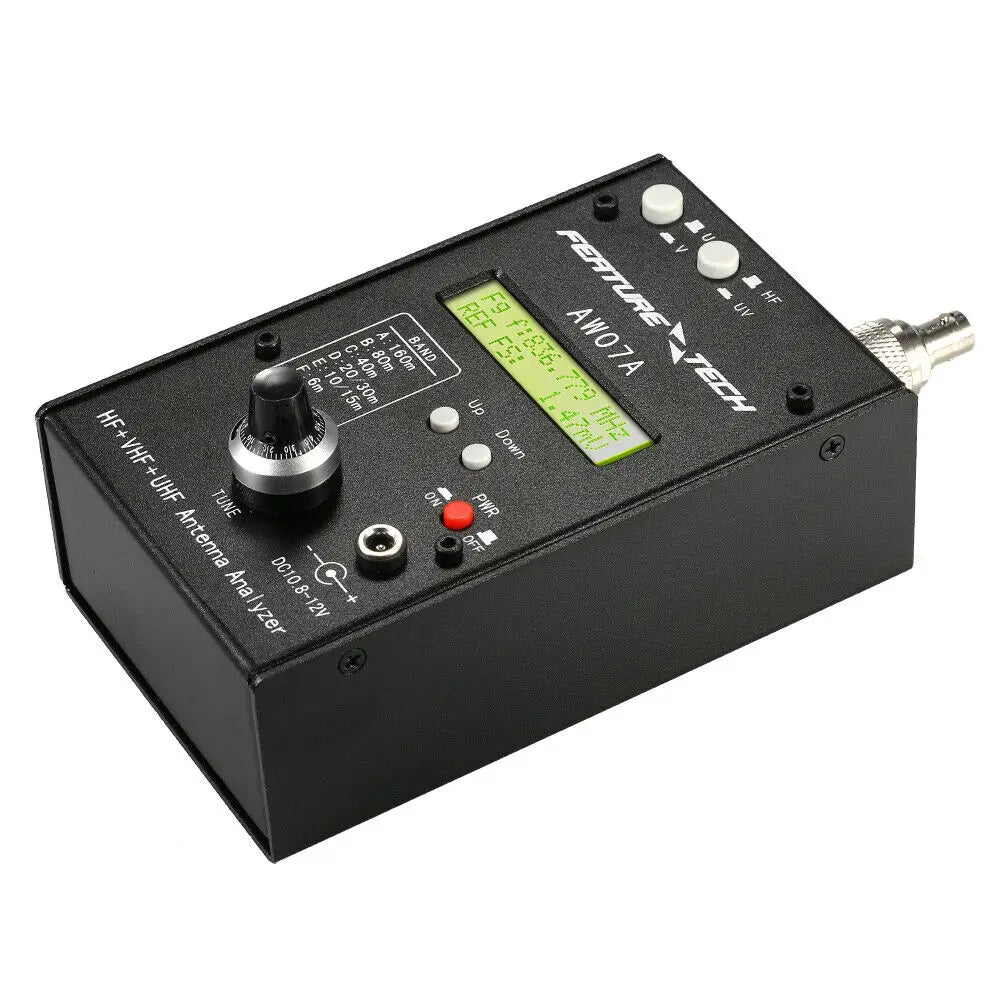

Product Size: 155 * 100 * 55mm / 6.1 * 3.9 * 2.2in
Product Weight: 534g
Package Size: 18 * 14 * 10cm
Package Weight: 723g

Package List:
1 * Antenna Analyzer
2 * Antenna Connector Adapters
1 * Connecting Cable
