Engine Pistons Gaskets Overhaul Rebuild Kit 06E103149AG 06E105561AC 06E103153E For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 3.0 TFSI

Sale Sold out Pre-order
Regular price $508.26 USD
Regular price $1,016.52 USD Sale price $508.26 USD
Tax included. Shipping calculated at checkout.

In stock

Ask a question
  • All orders are dispatched the next 3 business days!

  • We will beat any price. We back all products with a 1 year guarantee.

Add $299.99 more to get FREE SHIPPING!
$0.00

Order in the next 0 hours 0 minutes to get it by         /07/2026

Guaranteed Safe Checkout

Description
Item Specifics



Engine Pistons Gaskets Overhaul Rebuild Kit
For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 VW Touareg 3.0 TSI TFSI
Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm


Pistons & Rings OE#                         Pistons & Rings Replacement OE#                        Pistons & Rings Spec
06E 107 065 DM  (4-6 Cyl.)               06E 107 065 CJ / CN                                             - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM  (1-3 Cyl.)               06E 107 066 CJ / CN                                             - Piston diameter Φ84.475mm
06E 198 151 L                                   06E 198 151 J / K / Q                                             - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 (Φ22mm)                     028 PI 00124 000 / 028 PI 00125 000    - Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm
                                                          033 PI 91207 000 / 033 PI 91208 000
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Bearing Shell OE#                             Bearing Shell Replacement OE#                         Bearing Shell  Spec
06E 105 561 AB                                 06E 105 561 AC                                                  STD spec
06E 105 591 AB                                 06E 105 591 AC
07L 105 701 D
07L 105 701 E
                                                                                                          06E103149AG 06E105561AC
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

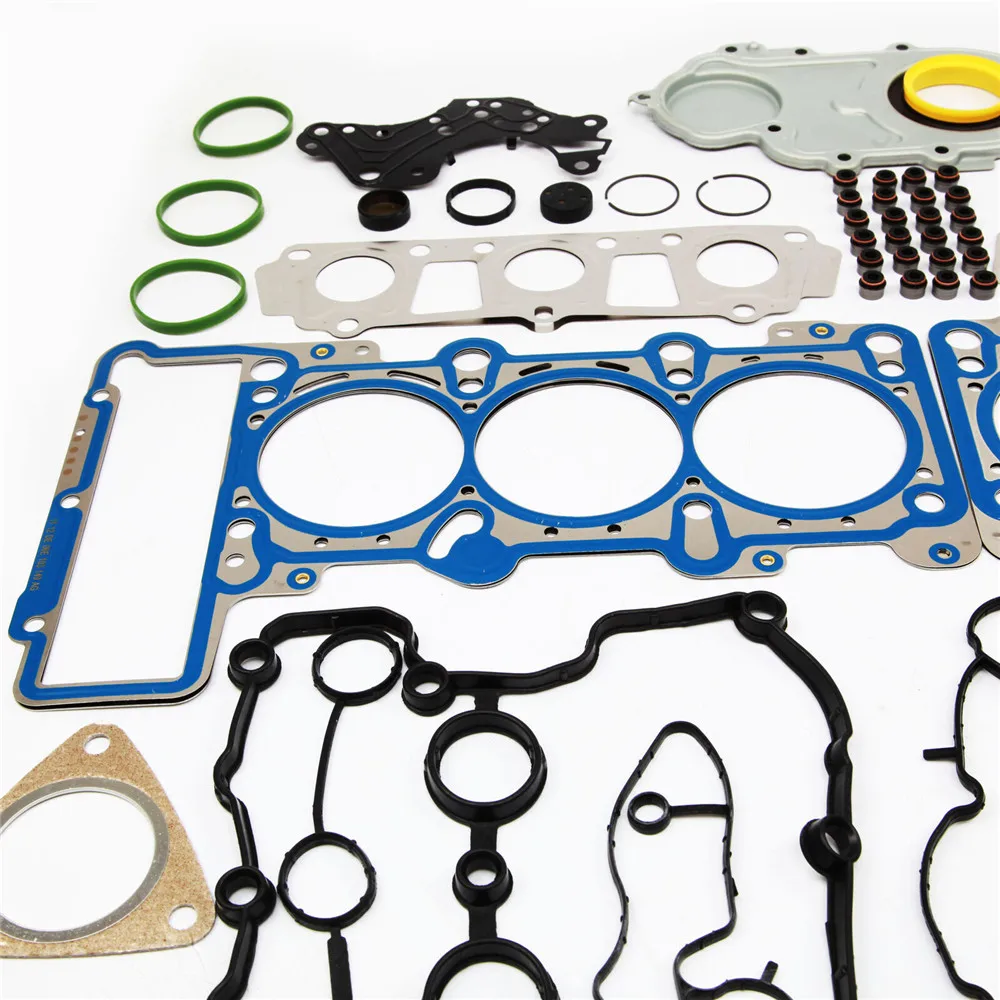

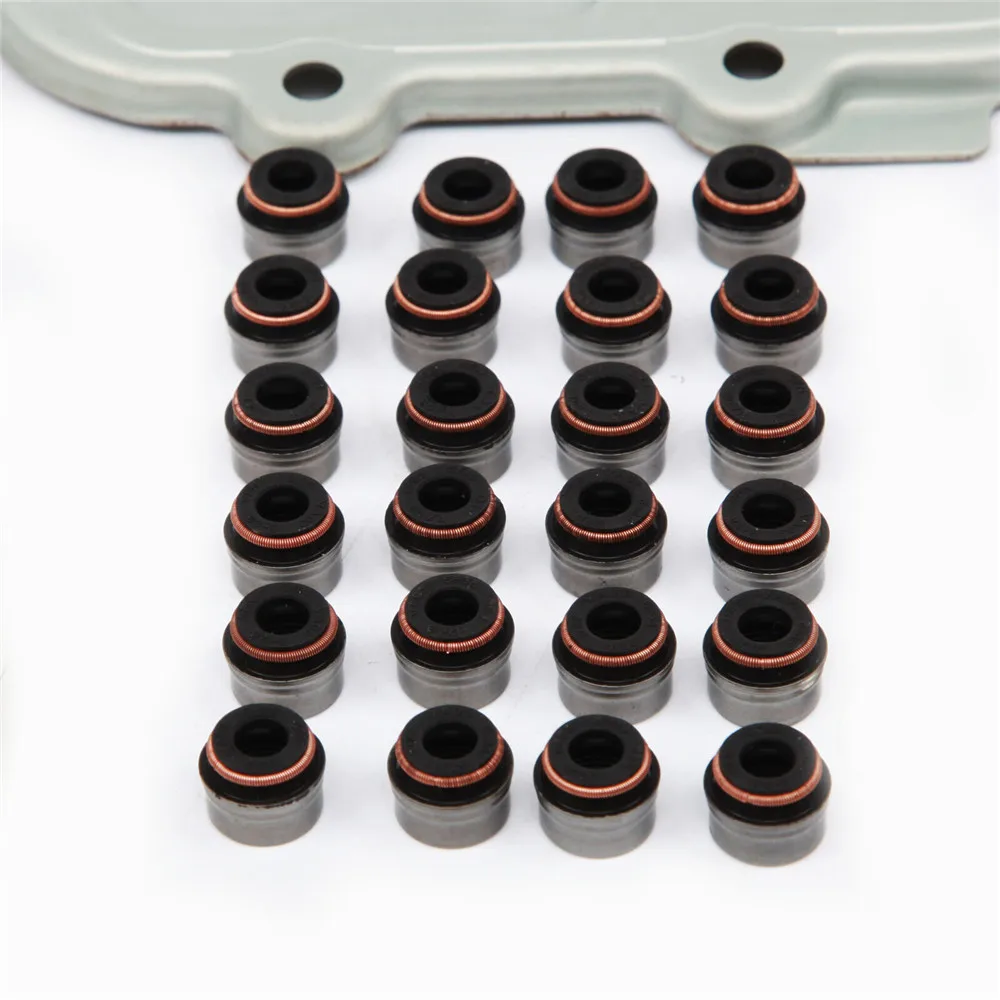

Seals & Gasket Kit OE#
06E 103 148 AG
06E 103 149 AG
06E 253 039 C
06E 103 483 P
06E 103 484 N
06C 115 189 B
06E 103 153 E

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

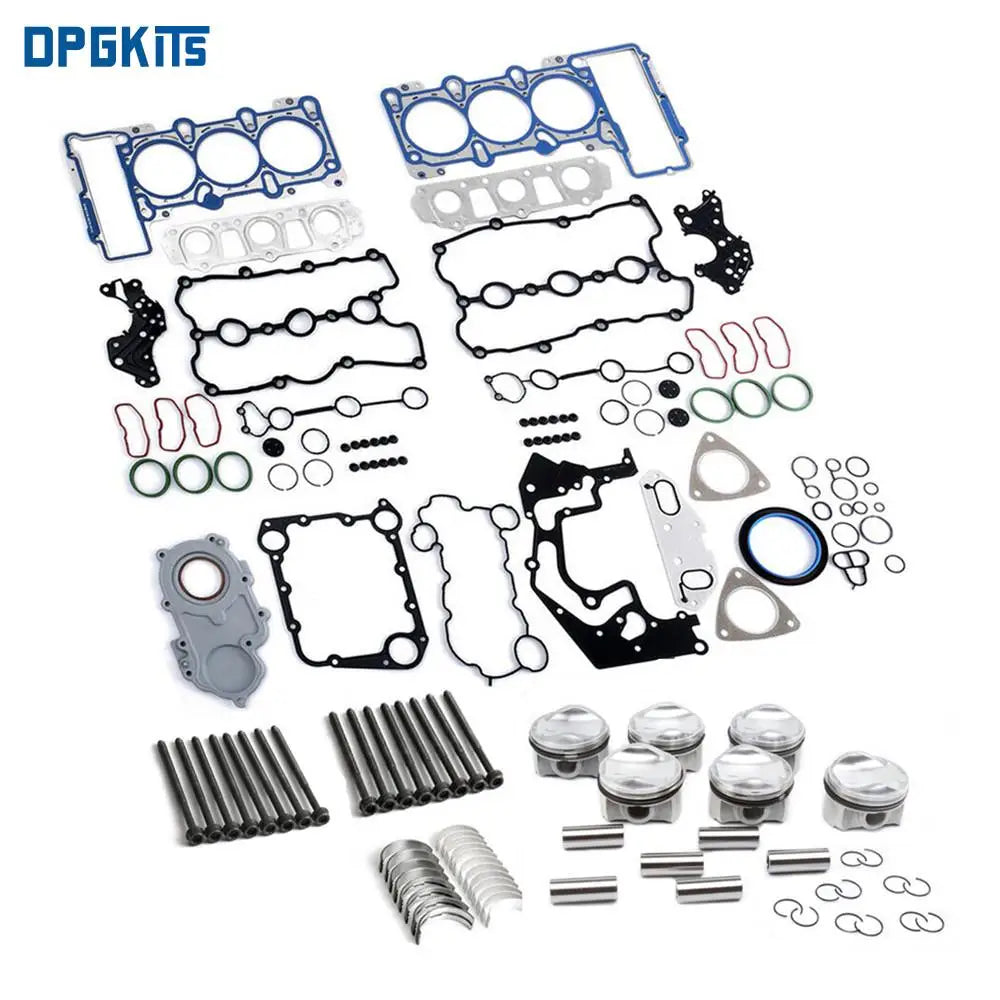

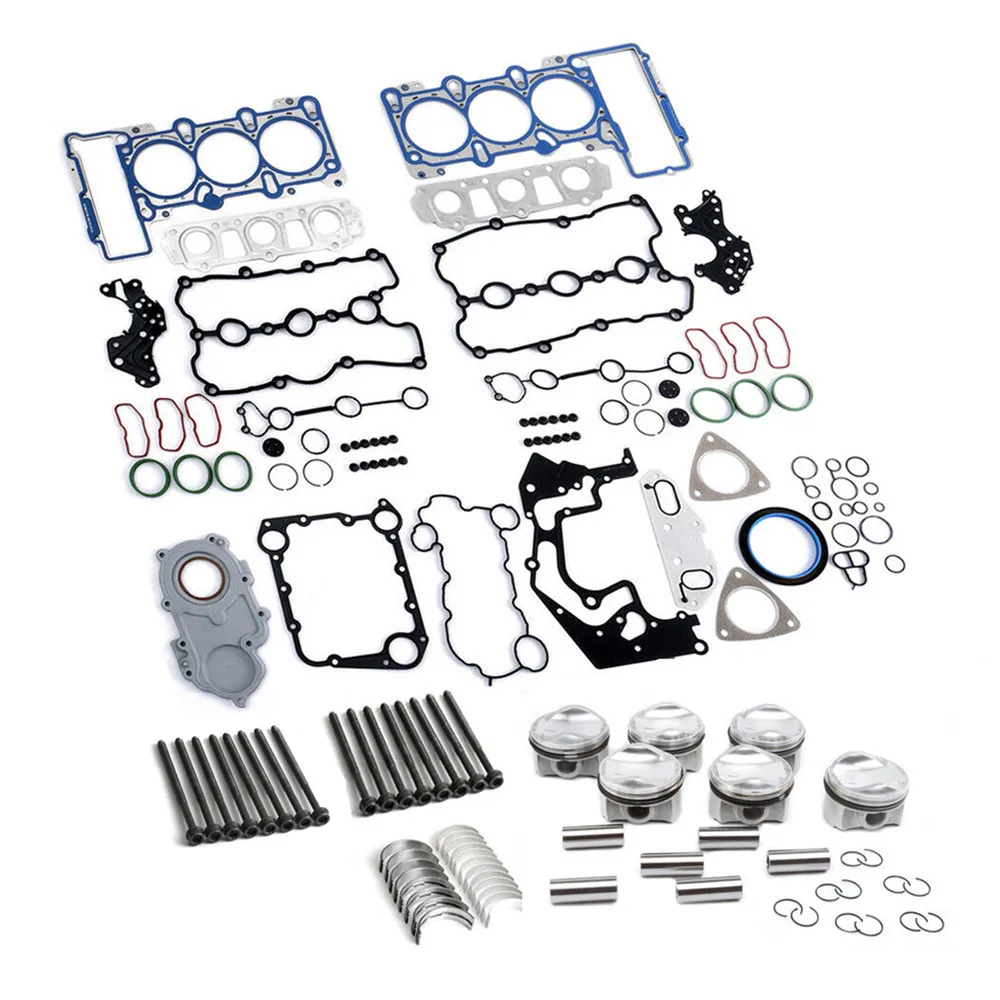

Package includes

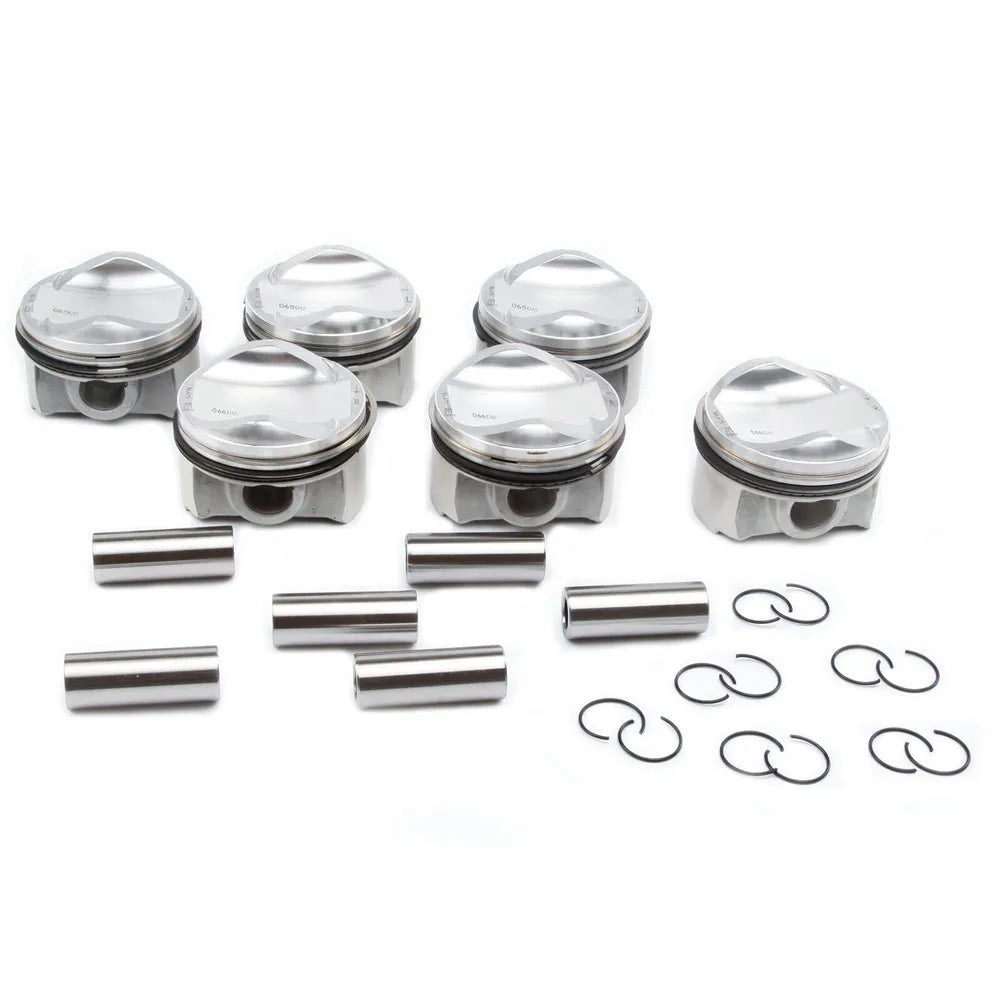

Piston & Ring        x6

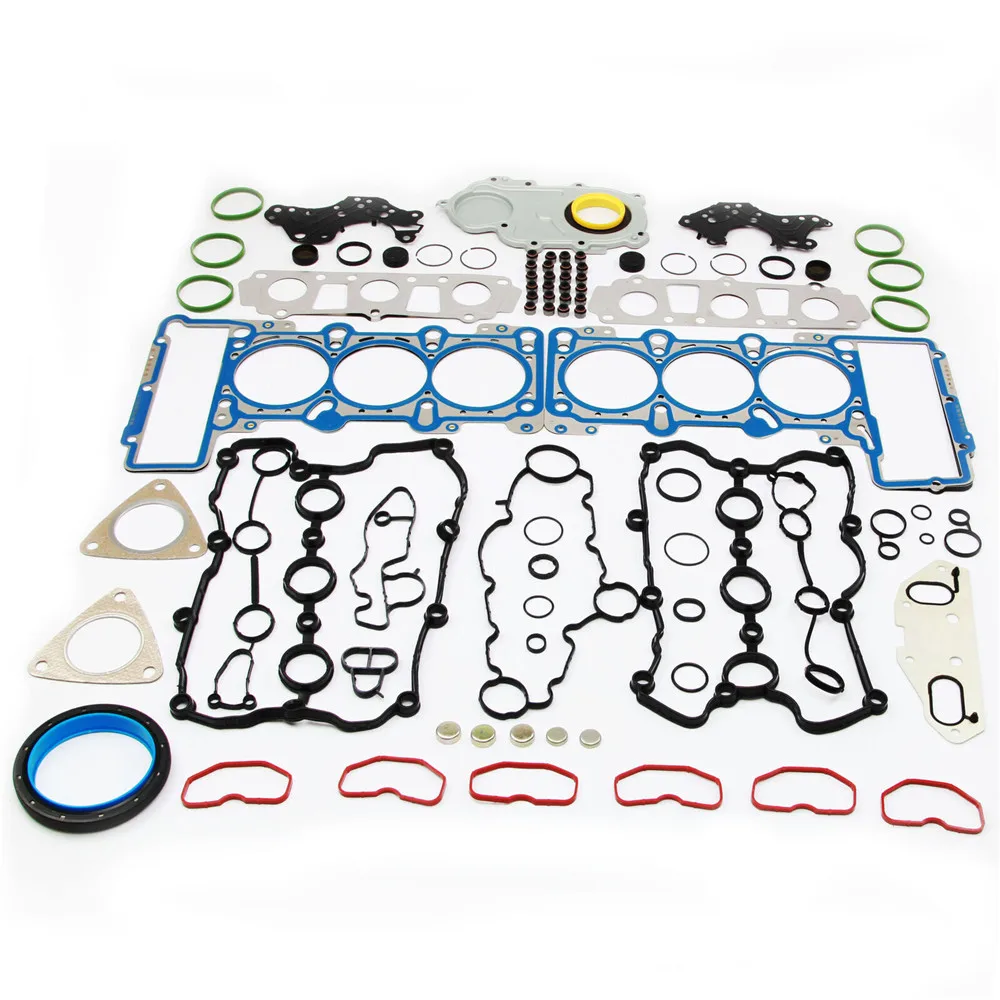

Gasket seals kit    x1 set

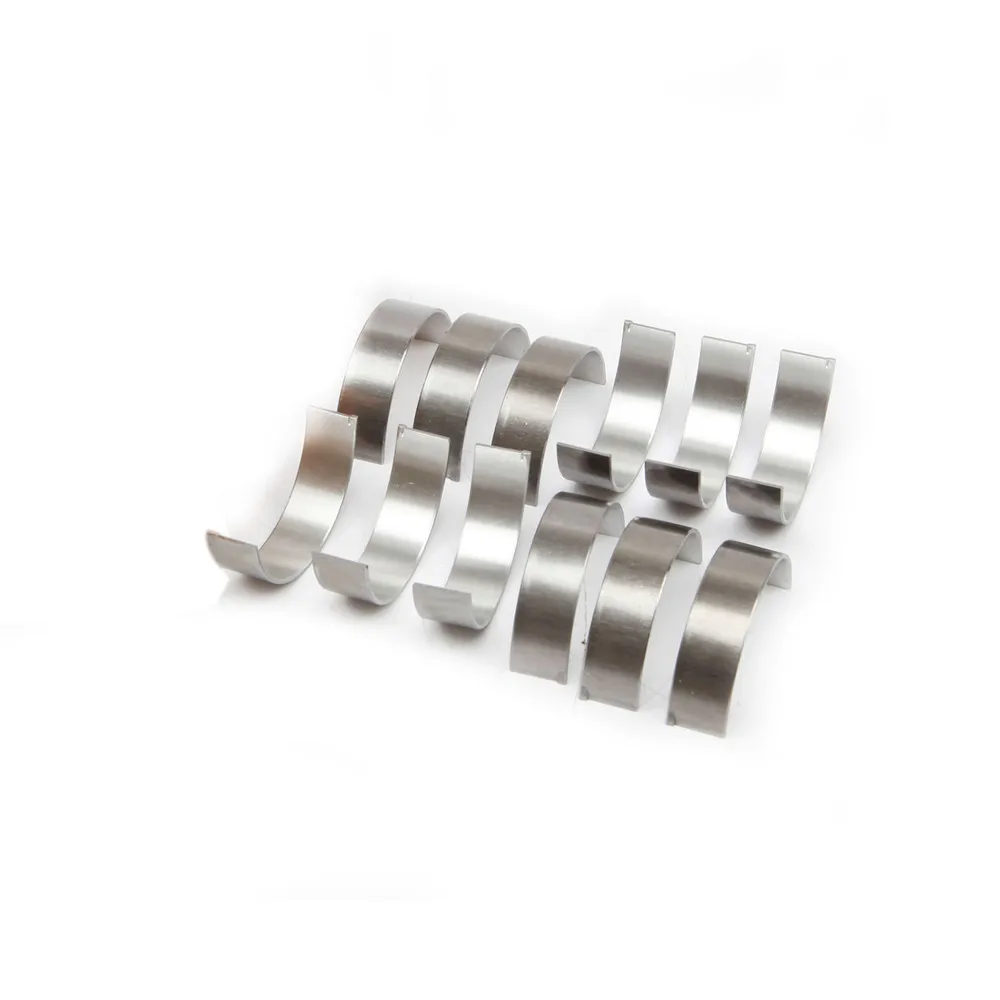

Bearings               x1 set

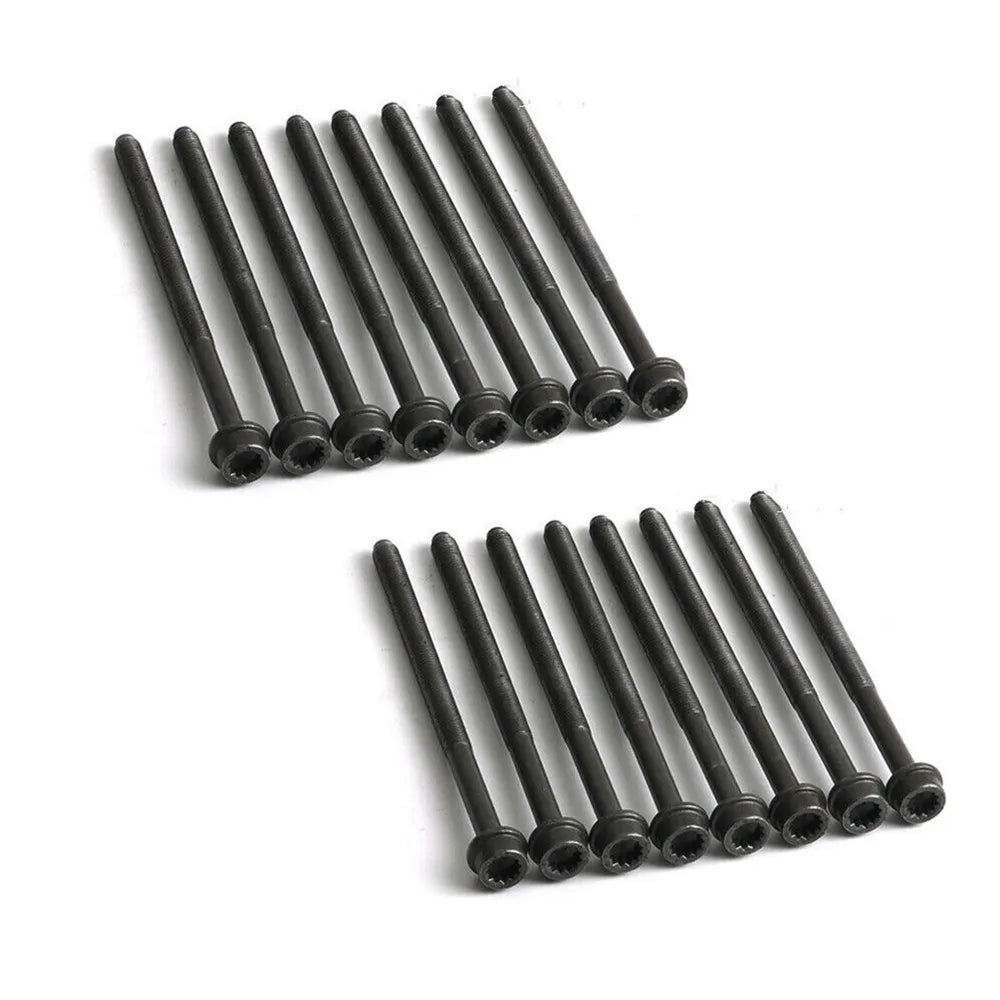

Head Bolt              x16     (M10X170)

Fit Car Model


Brand & Model                     Year                      Note
Volkswage   Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CJTA 213kw (290ps)
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA 245kw (333ps)

Audi   Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA 200kw (272ps)
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A5 Quattro 2012-2016 3.0 TFSI CMUA 200kw (272ps)
S5 Quattro 2010-2017 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA 213kw (290ps) / CCAA 220kw (300ps)
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB 220kw (300ps) / CGWD CGXB CTUA 228kw (310ps)
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA 213kw (290ps)
A6 Allroad (C7) 2013-2017 3.0 TFSI CGWD 228kw (310ps)
A7 2011-2014 3.0 TFSI 220kw (300ps) / 228kw (310ps)
A8 2011-2014 3.0 TFSI 213kw (290ps) / 228kw (310ps) / 245kw (333ps)
Q5 2012-2017 3.0 TFSI CTVA CTUC 200kw (272ps)
SQ5 2013-2017 3.0 TFSI CTXA CTUD 260kw (354ps)
Q7 2010-2015 3.0 TFSI 200kw (272ps) / 206kw (280ps) / 245kw (333ps)
