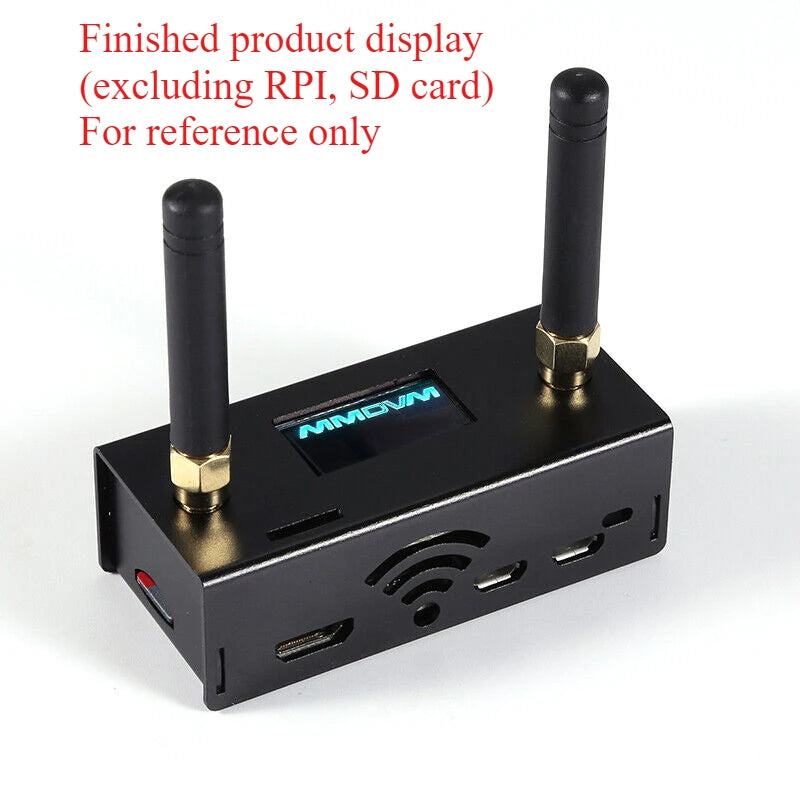

Duplex MMDVM_hs_dual_hat Hotspot UHF VHF Buil-in Antenna Support P25 DMR YSF For Raspberry Pi + OLED + Metal Case
Duplex MMDVM_hs_dual_hat Hotspot UHF VHF Buil-in Antenna Support P25 DMR YSF For Raspberry Pi + OLED + Metal Case
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Duplex variant of MMDVM_HS_Hat

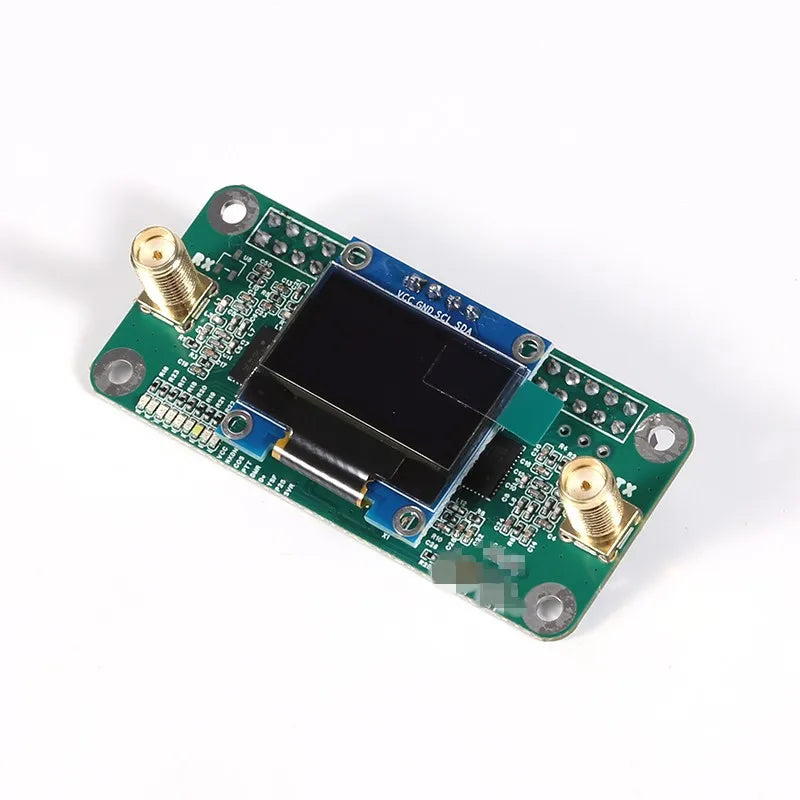

This PCB uses the MMDVM_HS . It has two ADF7021 onboard and allows for duplex operation with two time slots on DMR.
The default bit error rate is less than 5%, and the default offset is 0. If the bit error rate is more than 5%, as long as the signal can be received, it can be corrected by offset.
Features:
- Fully tested
- Supports DMR, P-25,D-Star and System Fusion
- Onboard LEDs to show status (Tx,Rx,PTT,Mode)
- Up to 10mW RF power
- SMA antenna connector,Antenna included
- Mounts cleanly on all current Raspberry Pi's including the Pi Zero
- The firmware is pre-loaded and is easily upgraded via software.
- UHF 430-450 MHz,433mhz and 900MHz
VHF 144 220 Opera FREQ

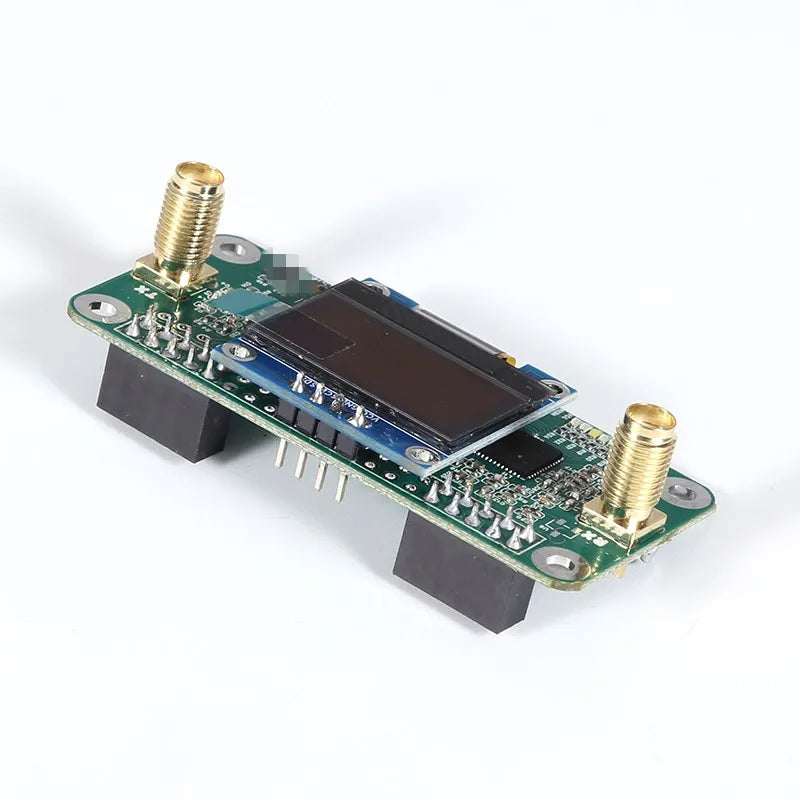

The upper part is TX,the lower is RX antenna.
UHF+VHF
SMA,antenna

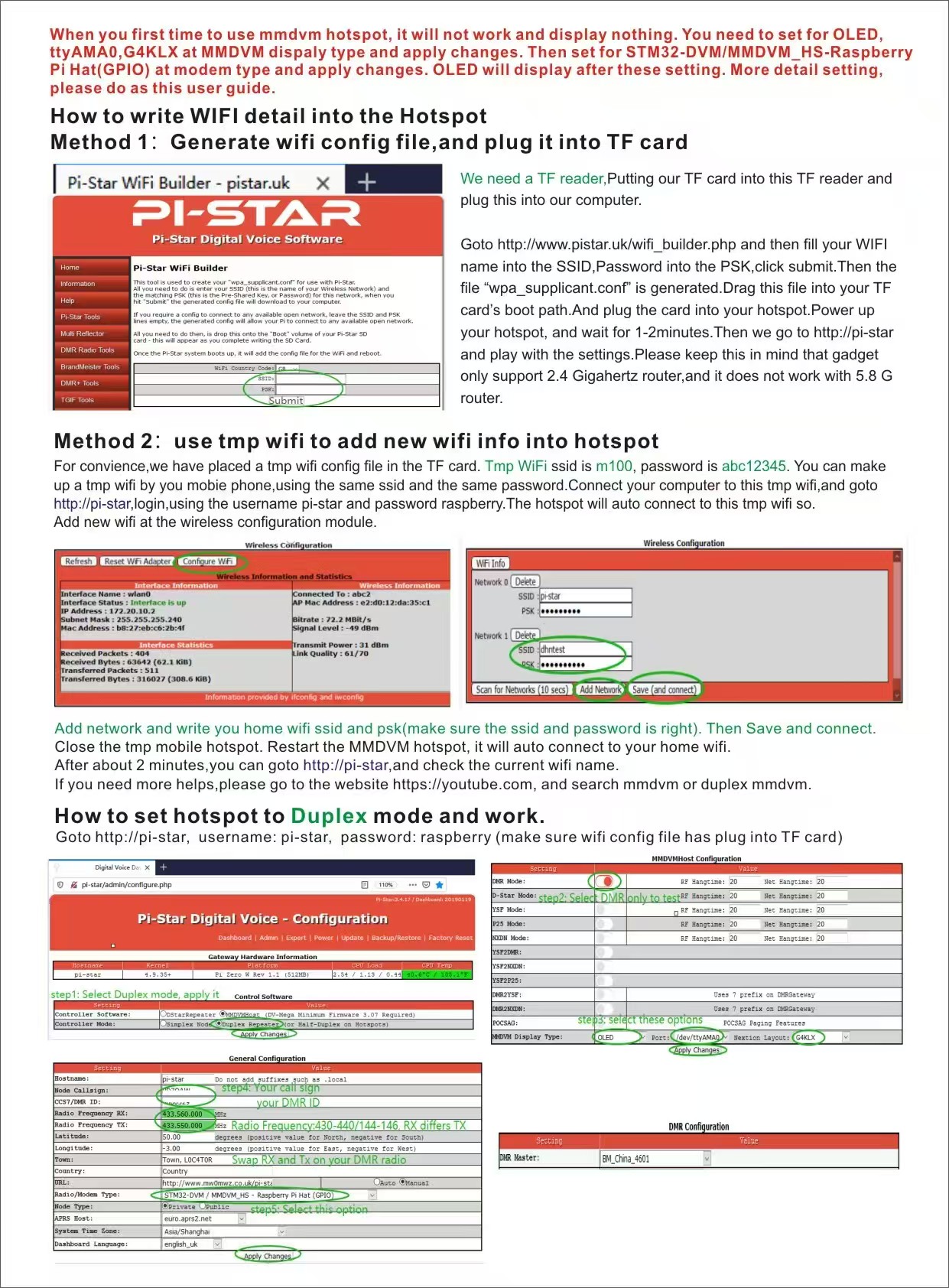

Modem select: STM32_HS_GPIO
Set TX frequency,RX frequency
TX,RX frequency had better 10M or more apart.

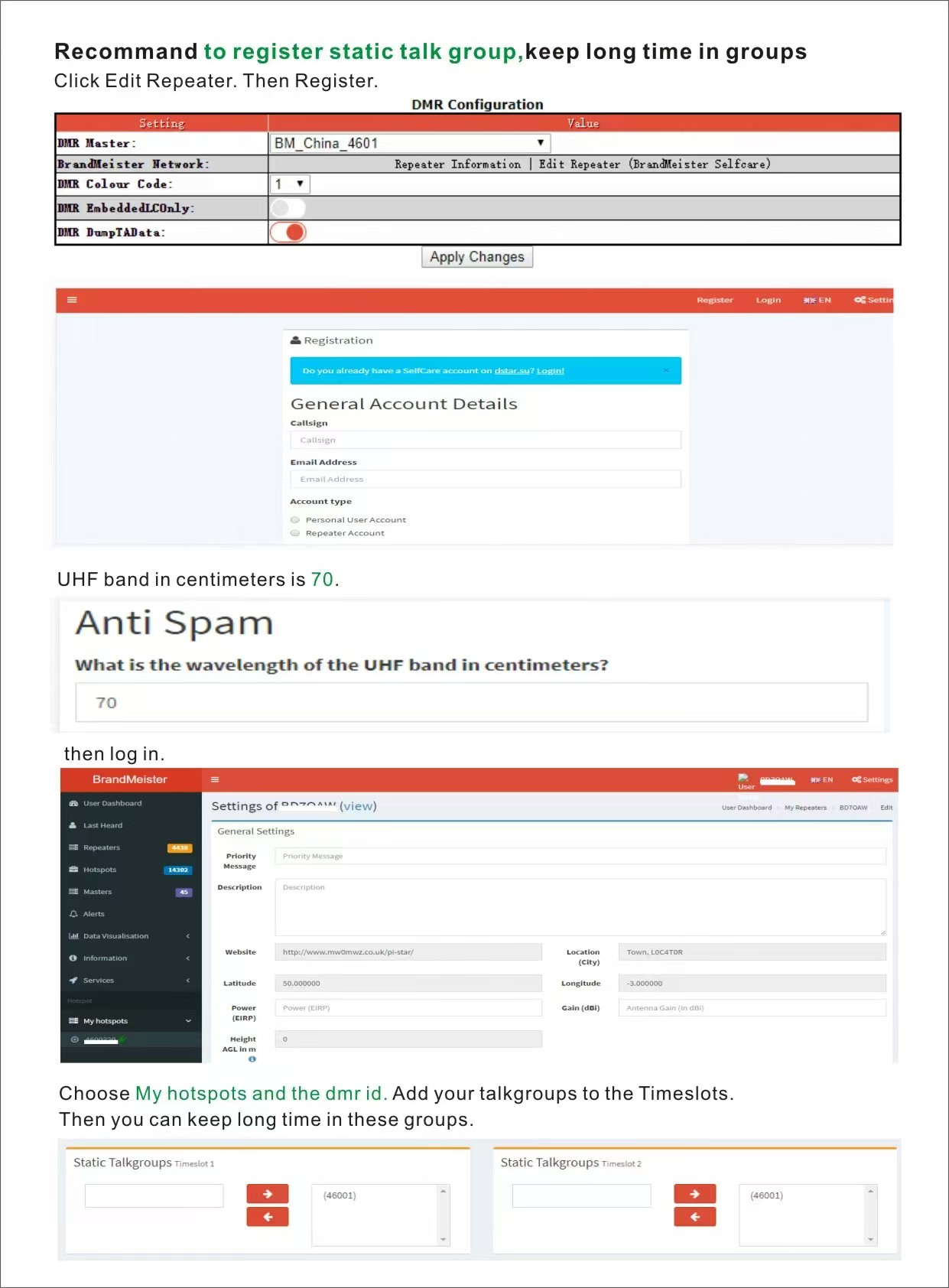

SLOT1,SLOT2 support.

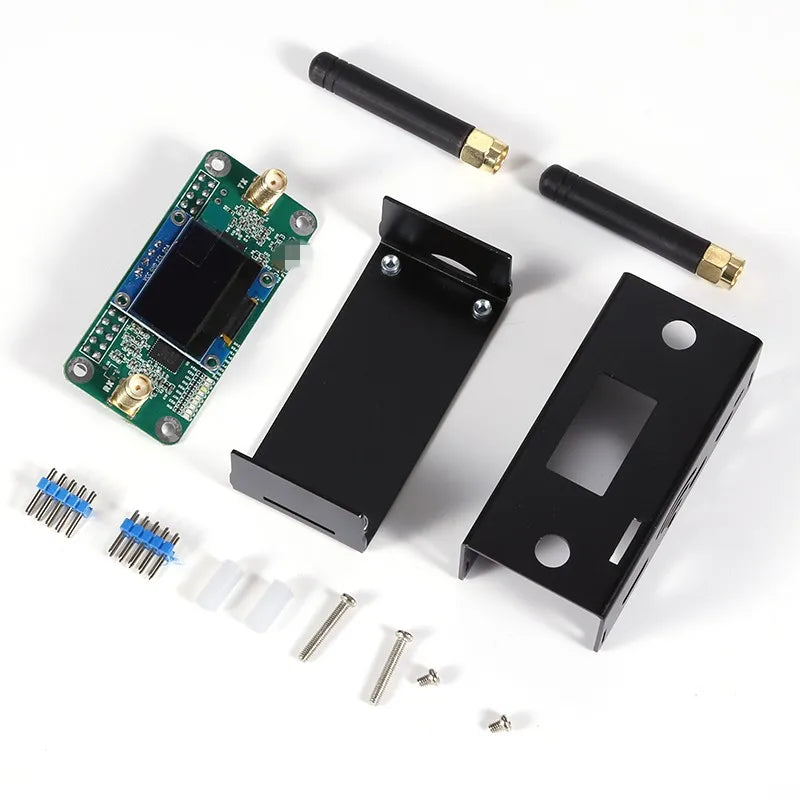

Package List:
- MMDVM duplex HotSPOT Module x1
- Antenna(UHF) x 2
- SMA socket x 2pcs
- Aluminum alloy shell
