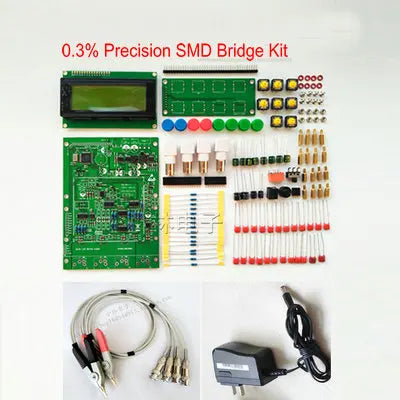

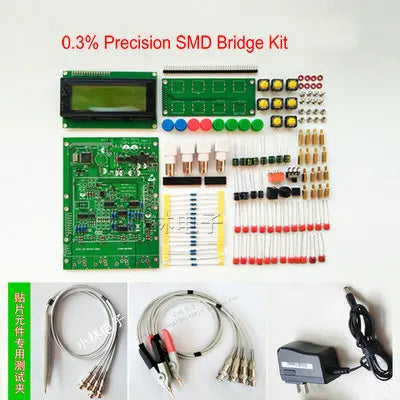

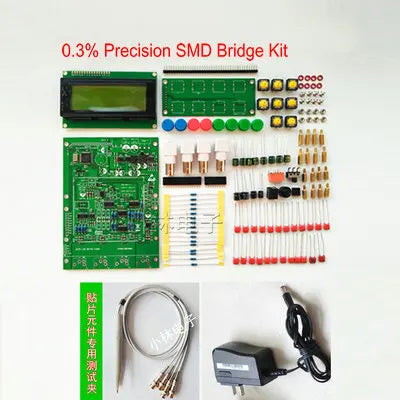

DIY kits XJW01 digital bridge 0.3% LCR tester resistance, inductance, capacitance, ESR Meter,
DIY kits XJW01 digital bridge 0.3% LCR tester resistance, inductance, capacitance, ESR Meter,
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout

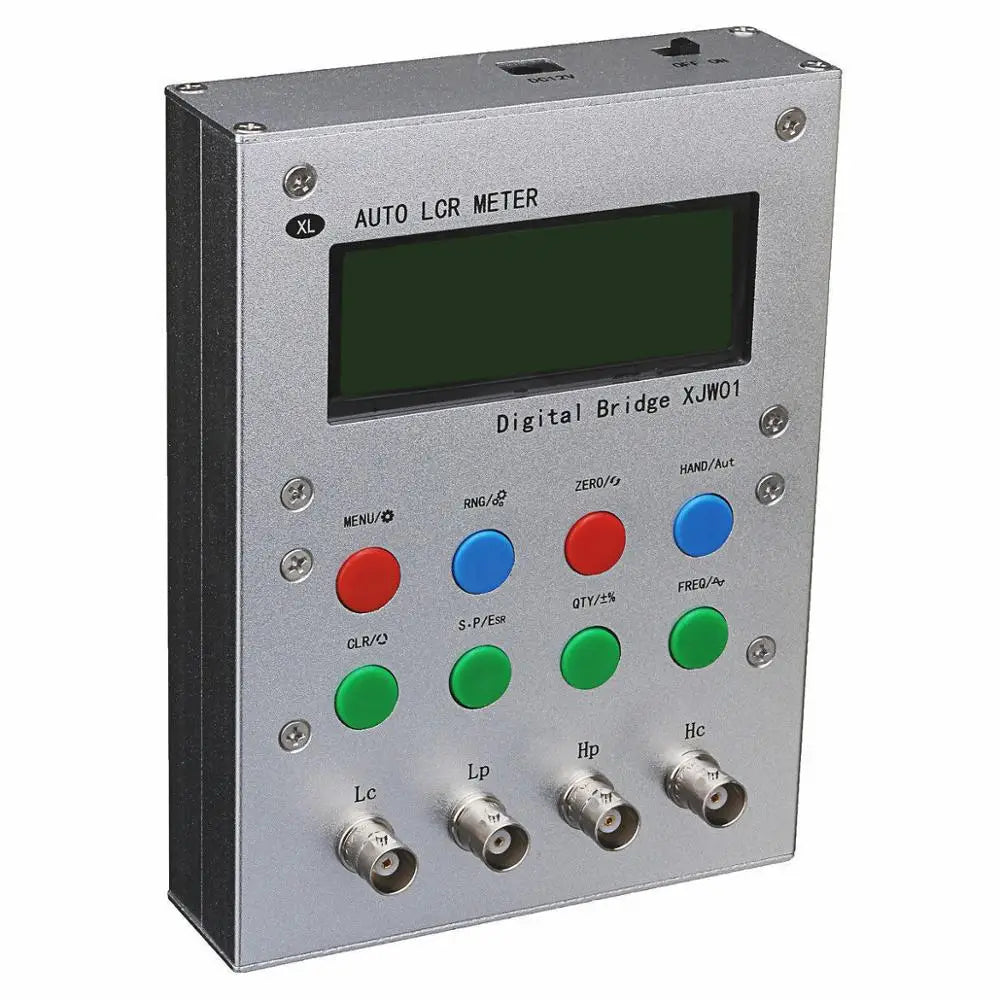

Auto LCR Digital Bridge Resistance Capacitance Inductance ESR Meter
Discharge must be measured before capacitance measurement!
Please do not pick up the earth, nor touch other charged objects!
-
-
-
Description：

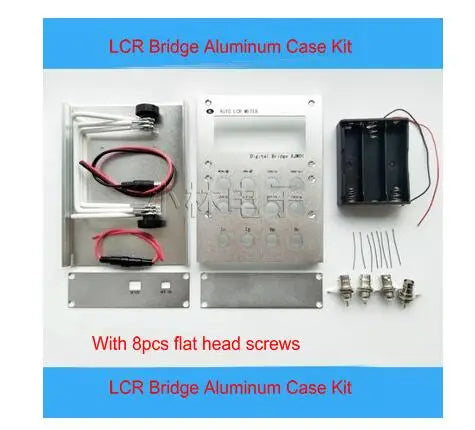

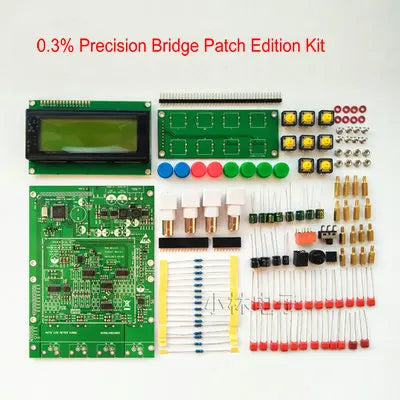

New version LCR , Aluminum case ， with power supply adaptor. stand !smaller than old version, and much more portable！

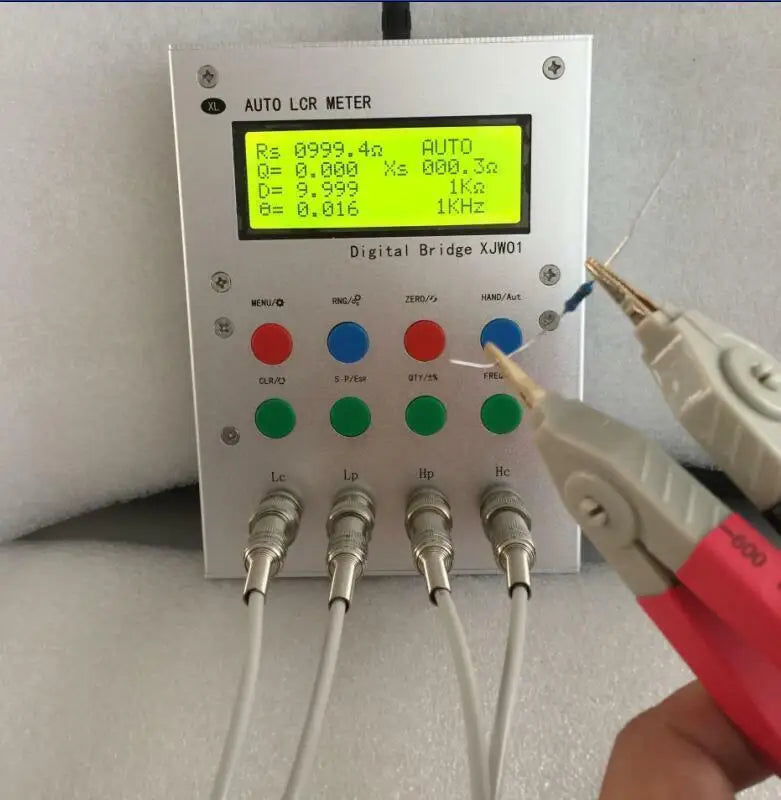

Please note；Capacitance must bedischarge before testingHC HP connect with red clip , LC LP connect with black clip-
The AD converter's words: about 1000 words, by over sampling technology, the effective resolution of about4000 words
-
Measurement methods: quasi bridge measurement, measuring principle is similar to the ratio method for measuring resistance.
-
Fuction
Test parameters
L,C,R,D,Q,ESR
Basic accuracy
0.3%-0.5%
Equivalent circuit
Series
Range Mode
Auto
Test Speed
Fast: 2.5, medium : 2, Slow: 1 (times / sec.)
Calibration function
Auto
Test terminal configuration
The BNC test lineDisplay
2004 LCD
Test signal
Test signal frequency
100Hz, 1kHz,7.831kHz
Test signal level
1.75Vrms(max)
Test Range
R
0.0002 Ω — 9.999 MΩ
C
0.1 pF — 10000uF or moreL
0.01 μH — 1000 H
D,Q
0.001 — 9999
Operating temperature and humidity
0°C－40°C,
≤90%RH
Power
voltage

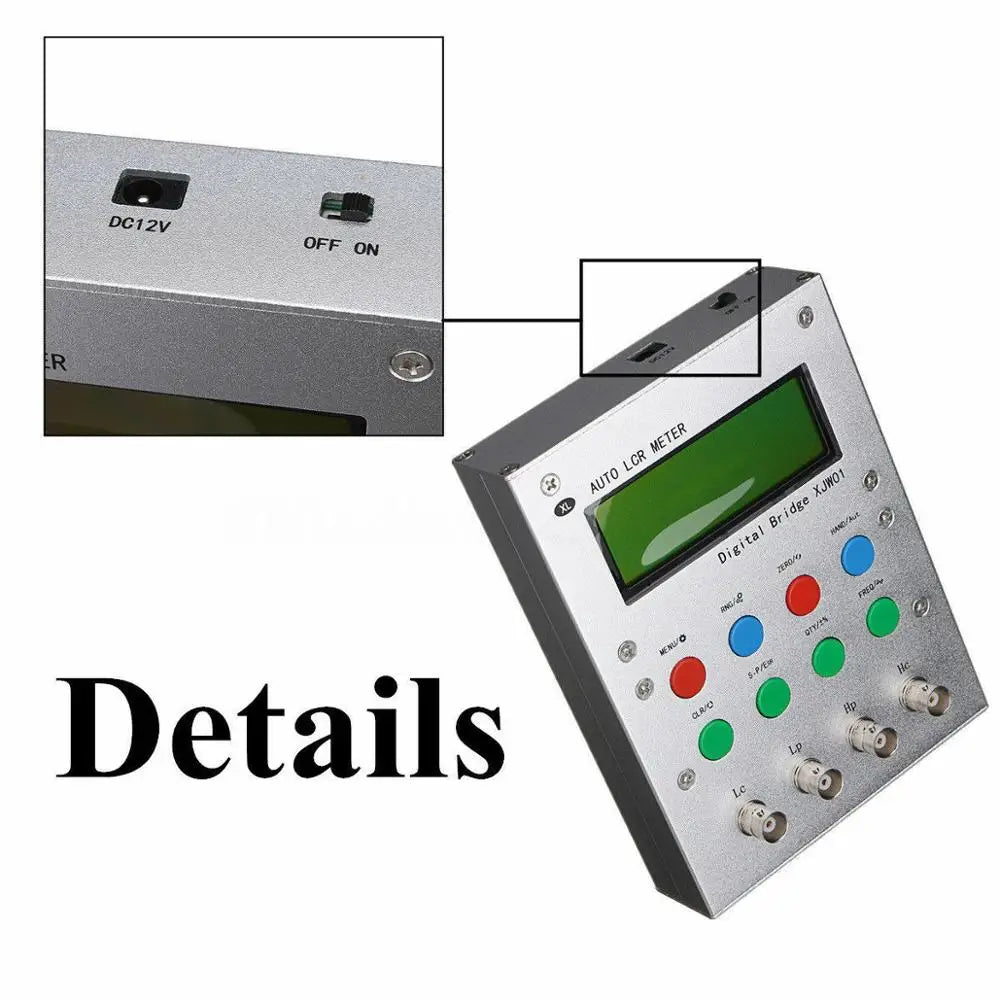

AC110V or 220v to DC 9V
Frequency
50Hz
Power consumption
≤0.45W

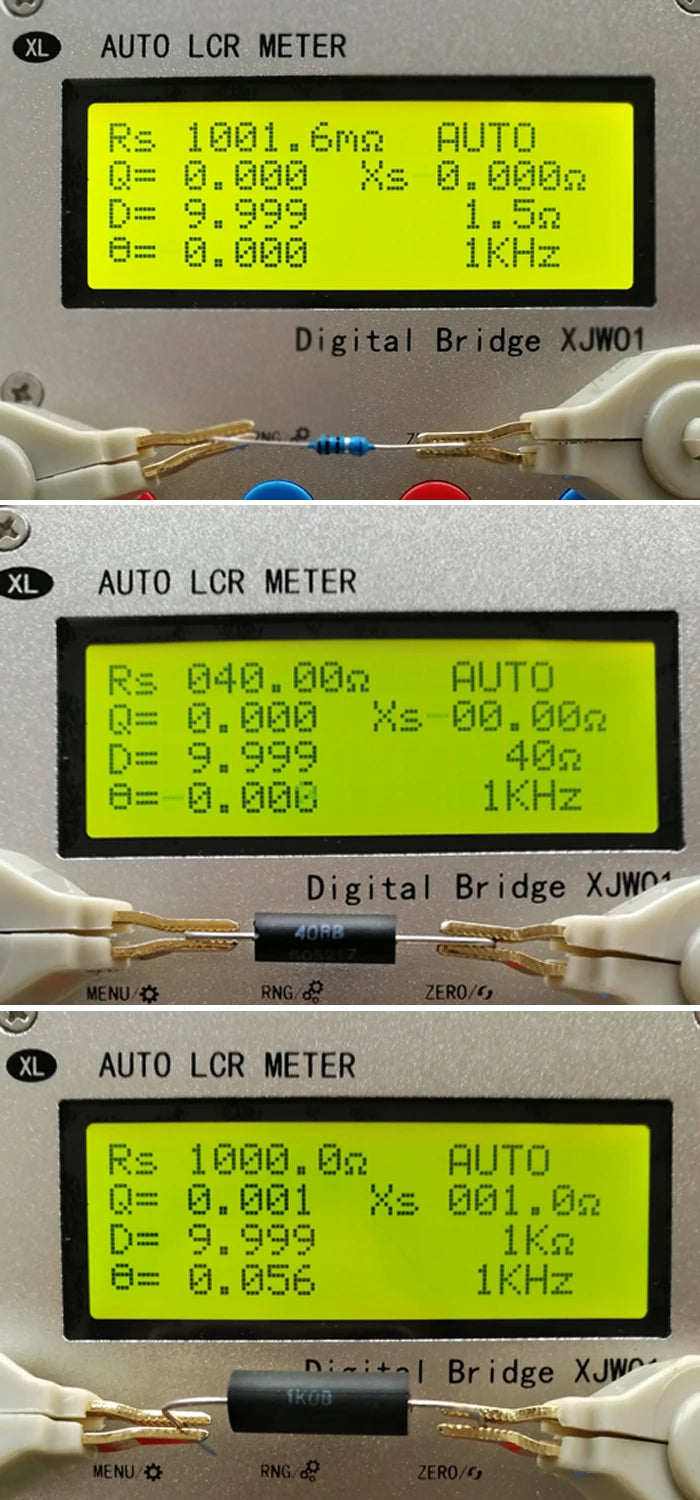

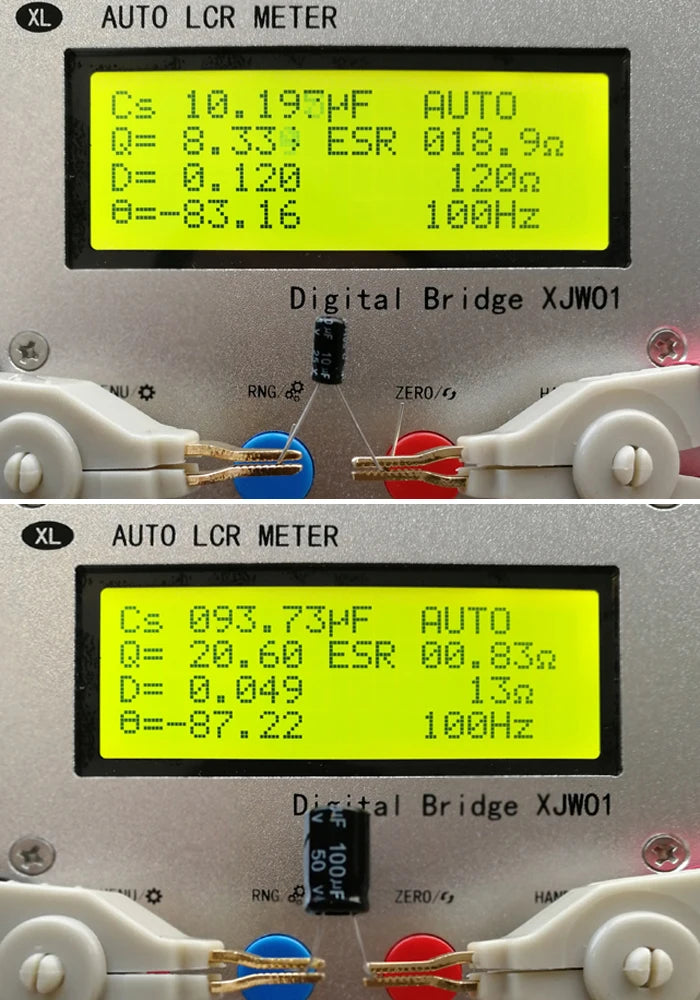

The main parameter display:
Cp: capacitor in parallel mode
Cs: series capacitor model
Lp: inductor in parallel mode
Ls: series inductor model
Rp: resistance in parallel mode
Rs: resistance in series model
Deputy Senate display:
The quality factor Q
D: loss factor
Theta: phase angle
Rp: equivalent parallel resistance
ESR: equivalent series resistance
Xp: equivalent shunt reactance
Xs: equivalent series reactance
-
-
Discharge must be measured before capacitance measurement -
-
-
-
-
-
-
