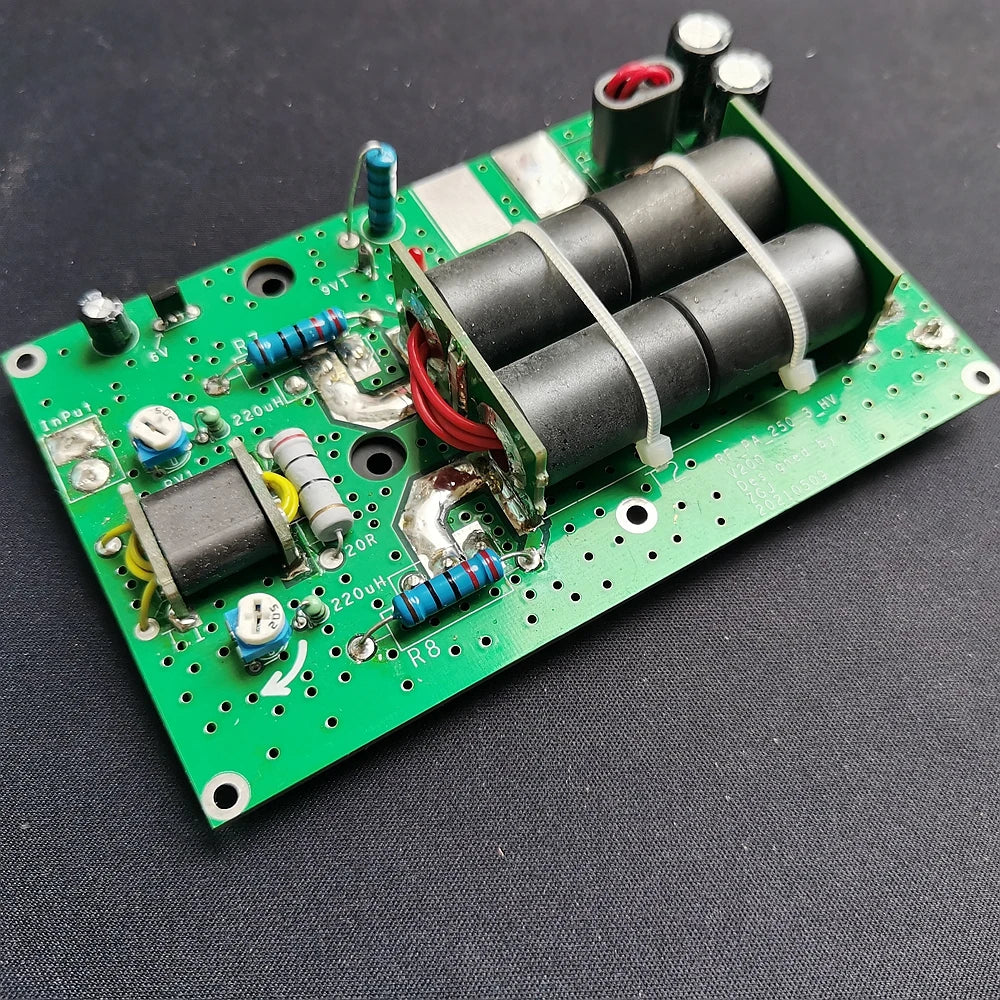

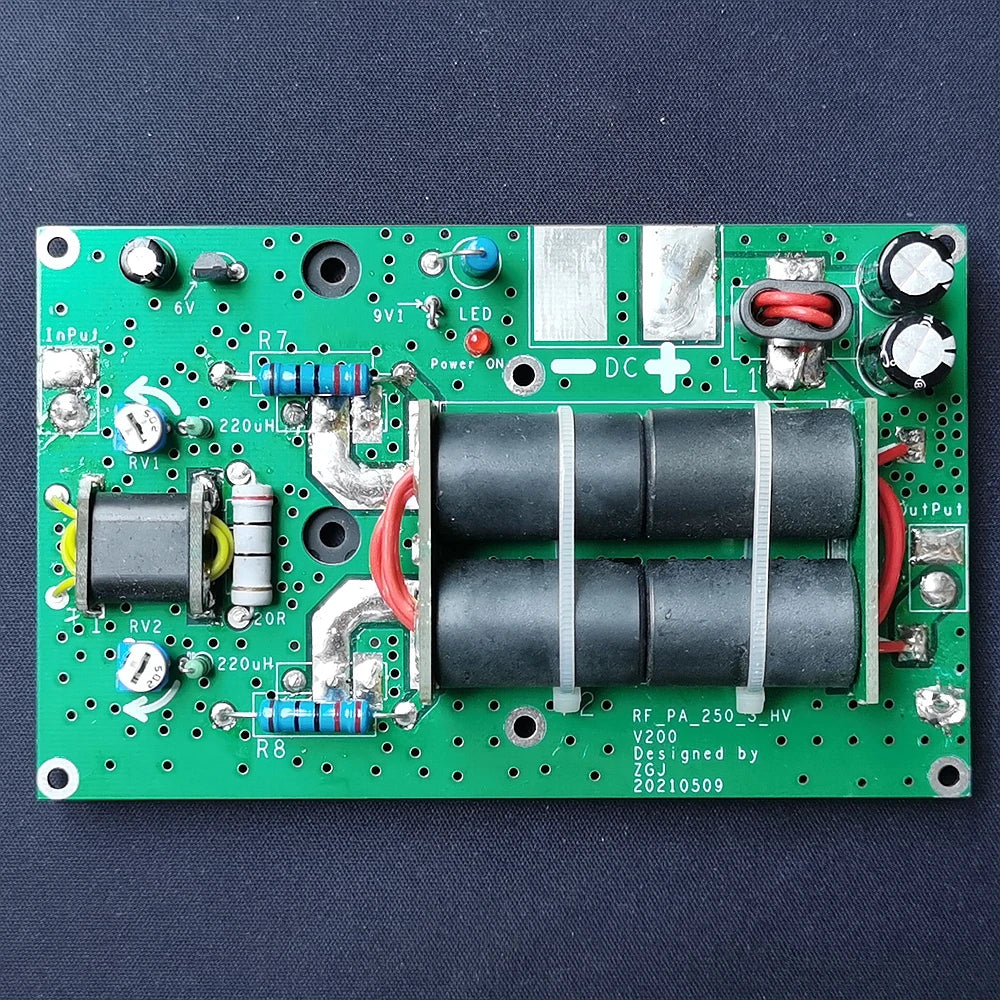

DIY KITS / Assembled 180W HF Linear High Frequency RF Power Amplifier Amateur for SSB CW Transceiver
DIY KITS / Assembled 180W HF Linear High Frequency RF Power Amplifier Amateur for SSB CW Transceiver
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /03/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Note:No heatsink for diy kits or assembled one ,
Type 1: DIY KITS,you should finished them by yourself. you need to weld them !
Type 2： Assembled !
The high-frequency power amplifier must be connected to the nominal load before it is powered on (our power amplifier products default to 50 Ω), which is very important!
Power supply voltage 12v-24v
Input: 1-10W

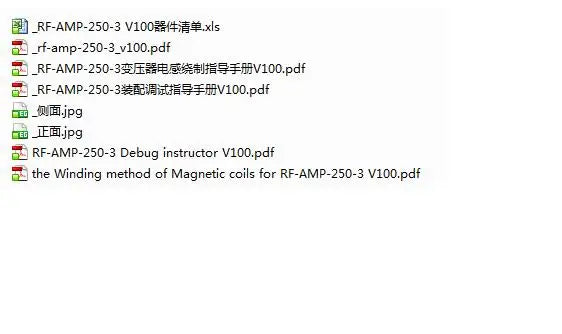

Output: 180W (24V, 7MHz, 50 ohm load), 120W (13.8V, 7MHz, 50 ohm load). Please pay attention to the instructions on the document.
Operating frequency range: 3-30MHz, the maximum power is about 7MHz, and the gain decreases significantly when it exceeds 15MHz.
Output impedance: 50 ohms by default, which can be adjusted between 10-200 ohms as needed to adapt to various applications.
Description
Description
Note:No heatsink for diy kits or assembled one ,
Type 1: DIY KITS,you should finished them by yourself. you need to weld them !
Type 2： Assembled !
The high-frequency power amplifier must be connected to the nominal load before it is powered on (our power amplifier products default to 50 Ω), which is very important!
Power supply voltage 12v-24v
Input: 1-10W
Output: 180W (24V, 7MHz, 50 ohm load), 120W (13.8V, 7MHz, 50 ohm load). Please pay attention to the instructions on the document.
Operating frequency range: 3-30MHz, the maximum power is about 7MHz, and the gain decreases significantly when it exceeds 15MHz.
Output impedance: 50 ohms by default, which can be adjusted between 10-200 ohms as needed to adapt to various applications.
