DIY KITS 100W FM VHF 80MHZ -170 Mhz RF Power Amplifier amp Board AMP KITS with MRF9120 tube For Ham Radio
DIY KITS 100W FM VHF 80MHZ -170 Mhz RF Power Amplifier amp Board AMP KITS with MRF9120 tube For Ham Radio
Sale
Sold out
Pre-order
Regular price
$78.18 USD
Regular price
$120.28 USD
Sale price
$78.18 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Click for manualNOTE: MRF9120oldused
These are all the parts, it need you diy weldingFeatures:
Small size.
Amplifier output: 80--100W.
Frequency range 80--120Mhz ( input 1--1.5W) 140--170Mhz (3--4W).
Power : DC 24--26v current: 5-7A.
1: installation steps

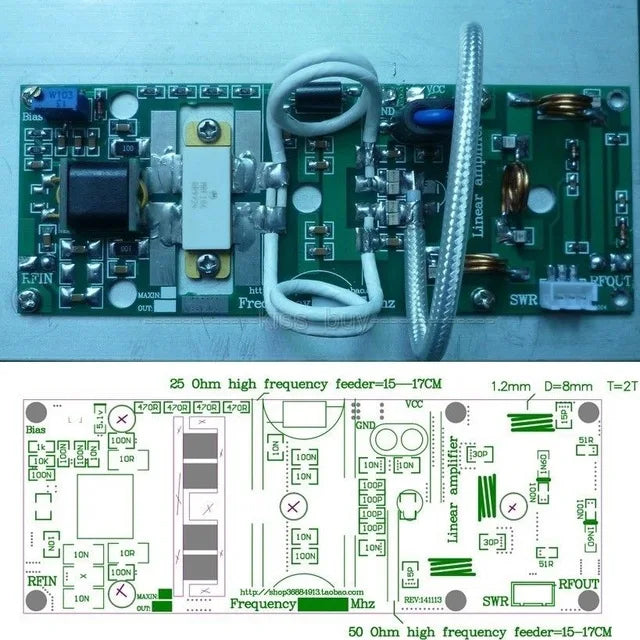

According to the picture data according to welding, installation drawings.

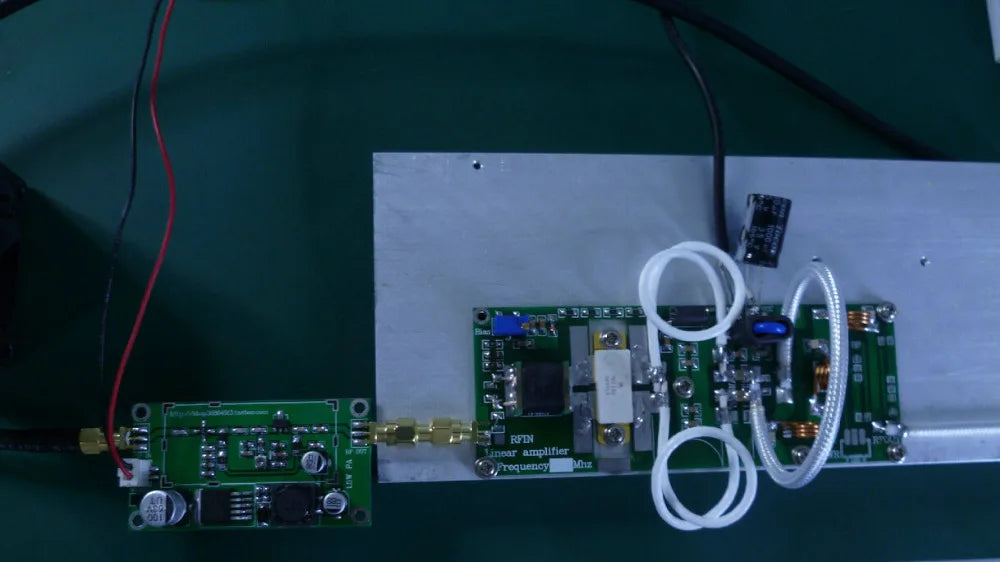

2: debugging steps: Welding completed, installed radiator
First, do not install MRF186 (XRF186).

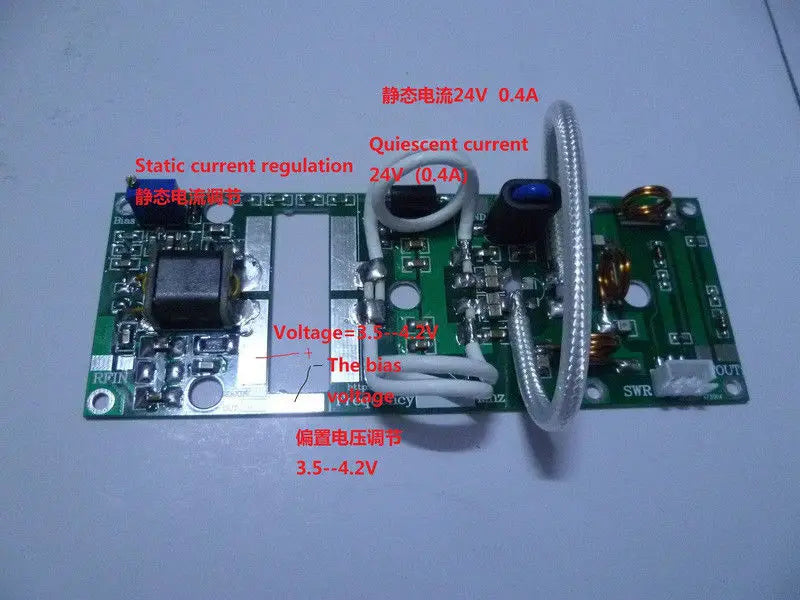

Connect the power supply 24V adjust the bias voltage of 3.5V and then disconnect the power supply.
Install the MOS power tube MRF186 (XRF186), pay attention to unplug the electric soldering iron, soldering iron welding using waste heat, preventing electrostatic breakdown of MOS power transistor.
3: connect the power meter, dummy load, first turn on the power, adjust the quiescent current, 200--800MA, 400MA is the best.
4: the test power connected to push, push, push FM maximum 1.5W, maximum VHF 4W FM and VHF, the basic do not adjust, promote the UHF Max 7W-8W, UHF adjusts the variable capacitor to obtain optimum output power.
Warning: input maximum FM VHF 1.5W, maximum 4W, maximum 7W-8W output UHF, maximum 100W, Output Disable open circuit, short circuit.
Specification:
Material: electronic element
Color: green
Size: 13.5CM x5cm
Package included:
1 x 80Mhz-170Mhz RF Power Amplifier Board
Description
Description
Click for manualNOTE: MRF9120oldused
These are all the parts, it need you diy weldingFeatures:
Small size.
Amplifier output: 80--100W.
Frequency range 80--120Mhz ( input 1--1.5W) 140--170Mhz (3--4W).
Power : DC 24--26v current: 5-7A.
1: installation steps
According to the picture data according to welding, installation drawings.
2: debugging steps: Welding completed, installed radiator
First, do not install MRF186 (XRF186).
Connect the power supply 24V adjust the bias voltage of 3.5V and then disconnect the power supply.
Install the MOS power tube MRF186 (XRF186), pay attention to unplug the electric soldering iron, soldering iron welding using waste heat, preventing electrostatic breakdown of MOS power transistor.
3: connect the power meter, dummy load, first turn on the power, adjust the quiescent current, 200--800MA, 400MA is the best.
4: the test power connected to push, push, push FM maximum 1.5W, maximum VHF 4W FM and VHF, the basic do not adjust, promote the UHF Max 7W-8W, UHF adjusts the variable capacitor to obtain optimum output power.
Warning: input maximum FM VHF 1.5W, maximum 4W, maximum 7W-8W output UHF, maximum 100W, Output Disable open circuit, short circuit.
Specification:
Material: electronic element
Color: green
Size: 13.5CM x5cm
Package included:
1 x 80Mhz-170Mhz RF Power Amplifier Board
