1PCS DHT12 AM2320 Digital Temperature&Humidity Sensor Module Single Bus I2C Replace AM2302s

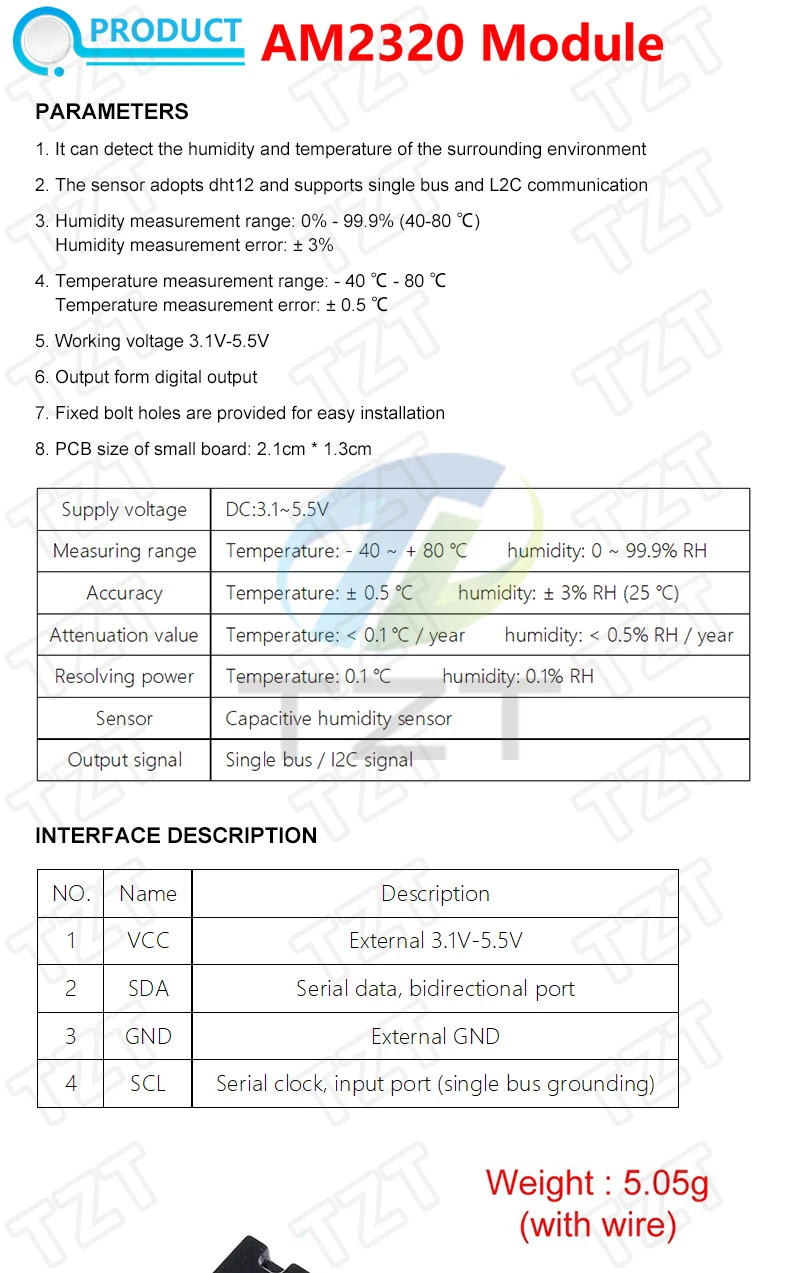

Description:
1, you can check the humidity and temperature of the surrounding environment
2 sensors adopt DHT12, support single bus and I2C communication
3 humidity measurement range: 0%-99.9% (40 degree -80 range), humidity measurement error: +-3%
4 temperature measurement range: -40 degrees -80 degrees, temperature measurement error: +-0.5 degrees
4 working voltage 3.1V-5.5V
5 output form digital output
6 with fixed bolt hole, easy installation

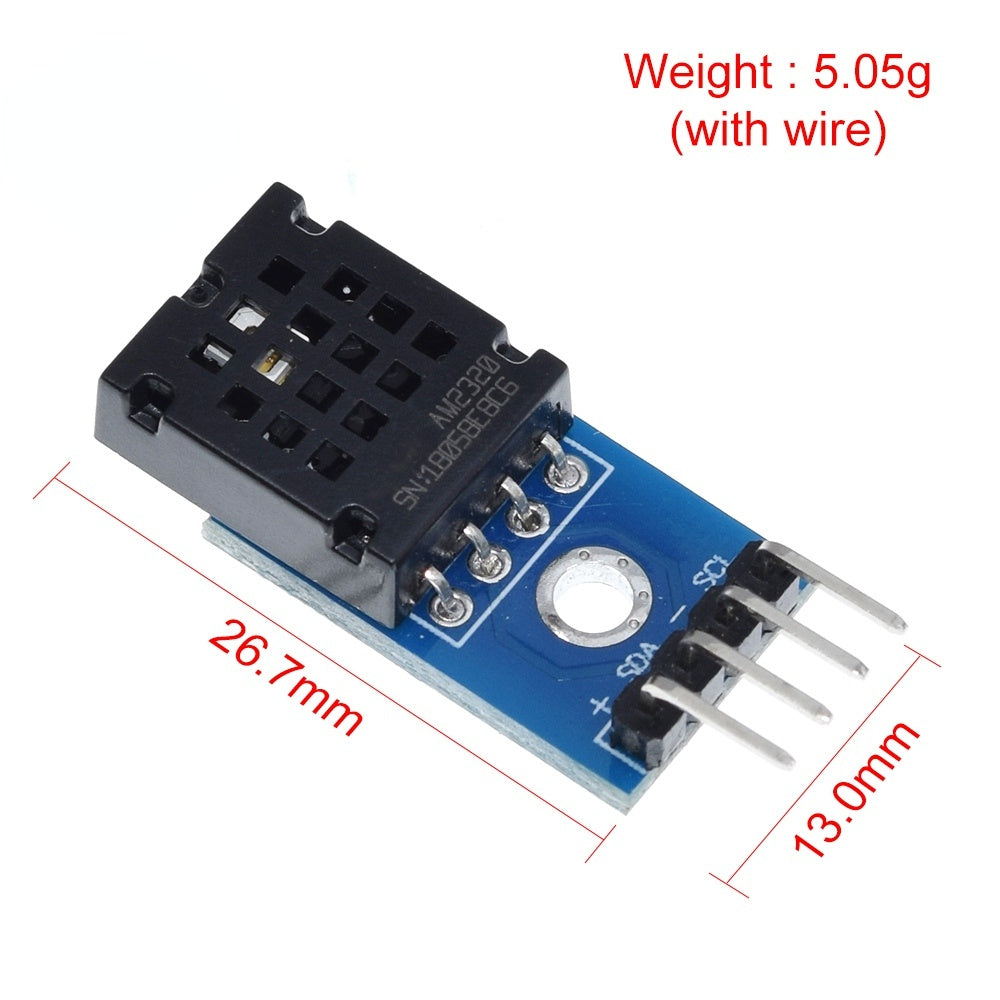

7 small size: 2.1cm * 1.3cm PCB
Module interface description (4 wire system)
1 VCC external 3.1V-5.5V
2 SDA serial data, bidirectional port
3 GND external GND
4 SCL serial clock, input (single bus ground)
Description
Description
1PCS DHT12 AM2320 Digital Temperature&Humidity Sensor Module Single Bus I2C Replace AM2302s
Description:
1, you can check the humidity and temperature of the surrounding environment
2 sensors adopt DHT12, support single bus and I2C communication
3 humidity measurement range: 0%-99.9% (40 degree -80 range), humidity measurement error: +-3%
4 temperature measurement range: -40 degrees -80 degrees, temperature measurement error: +-0.5 degrees
4 working voltage 3.1V-5.5V
5 output form digital output
6 with fixed bolt hole, easy installation
7 small size: 2.1cm * 1.3cm PCB
Module interface description (4 wire system)
1 VCC external 3.1V-5.5V
2 SDA serial data, bidirectional port
3 GND external GND
4 SCL serial clock, input (single bus ground)
