Deepace UWB-2 2.8GHz-11GHz Ultra-Wideband Omnidirectional Antenna
Description:

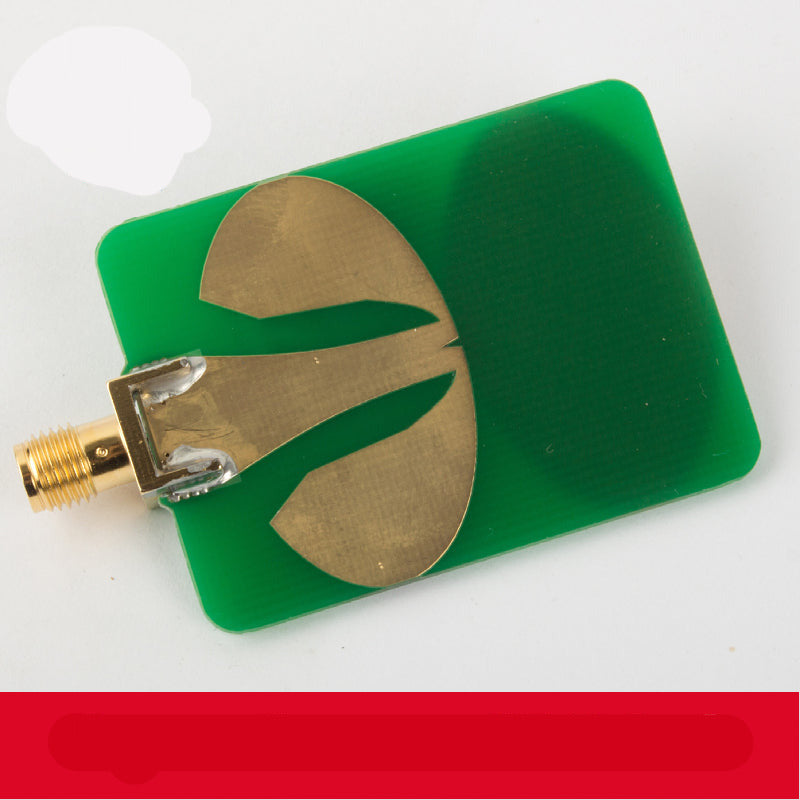

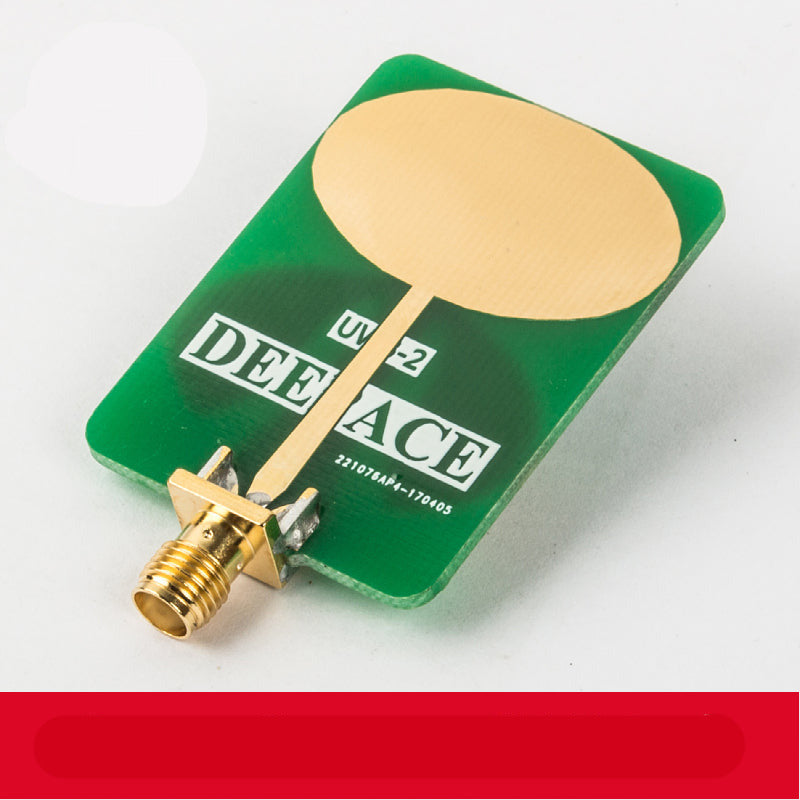

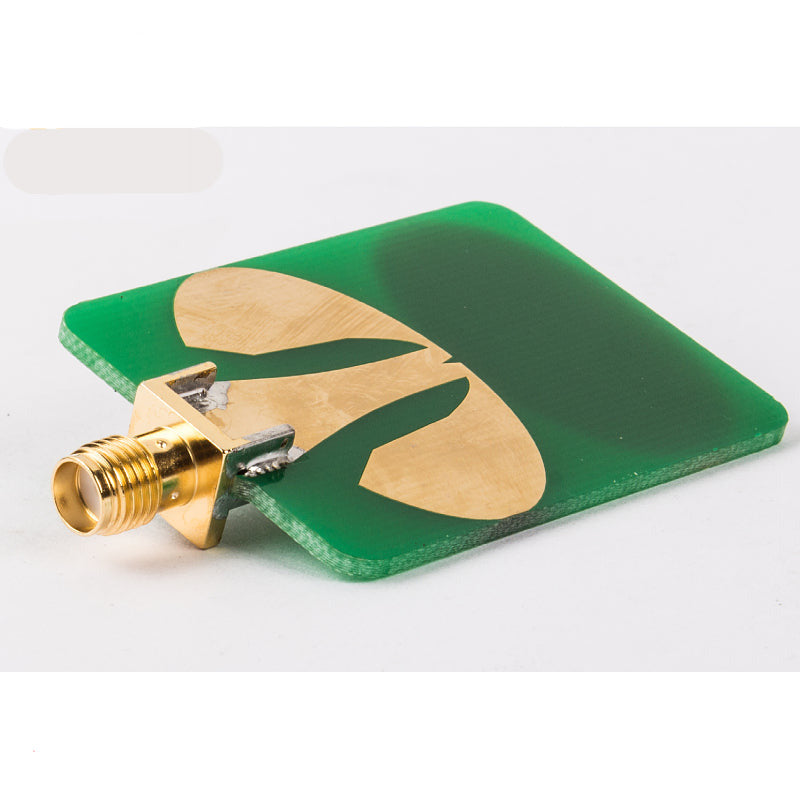

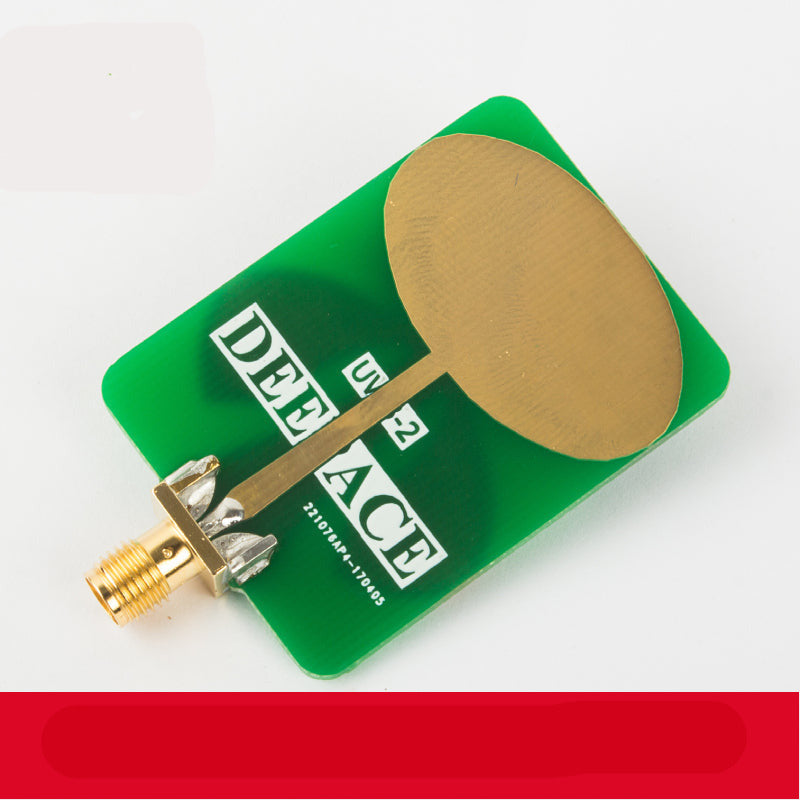

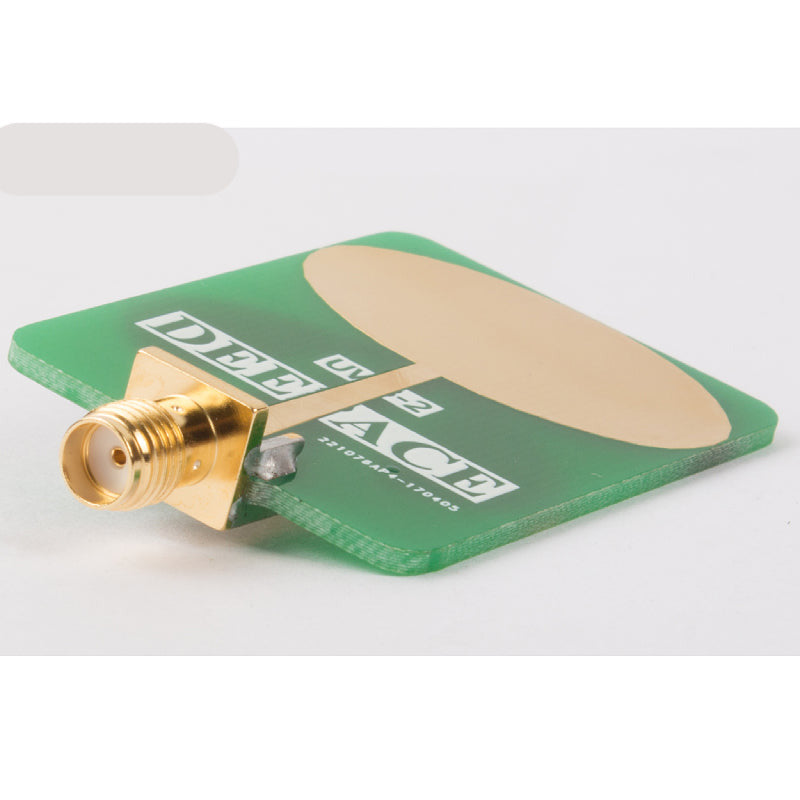

The Deepace uwb-2 is a unipolar ultra-wideband omnidirectional antenna designed for ultra-wideband positioning and communication devices. The antenna covers a frequency range of 2.8GHz to 9GHz and has a typical standing wave value of 1.5 or less. It is small in size, efficient and consistent.
Production Parameters:
-
Antenna impedance: 50 Ohm
-
Power capacity: 5W
-
Frequency range: 2.8GHz-11GHz
-
Return loss: 10dB
-
Gain: 3.8 dBi
-
Standing wave ratio: typical value 1.5 (2.8ghZ-11ghz < 2)
-
Connector type: SMA-K (female, male threaded bore)
-
Antenna size: 30mm * 42mm (without connector)

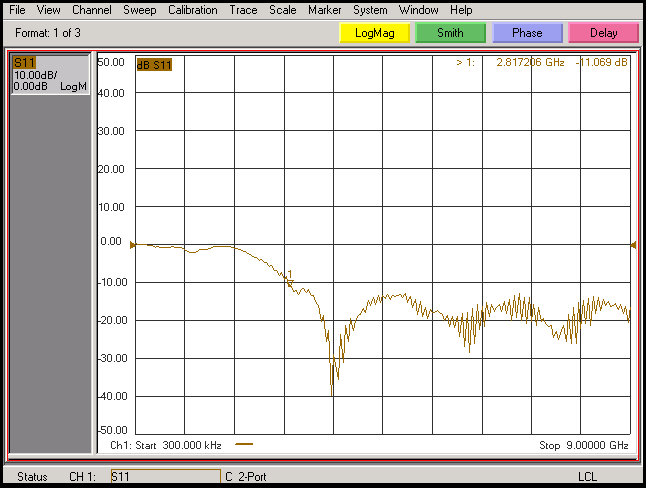

Antenna return loss measurement result:
Antenna standing wave ratio measurement result:
