FG-100 DDS Signal Generator Frequency Counter 1Hz-500KHz Sine Wave / Triangles and Sawtooth Wave Adjustable Frequency Amplitude
FG-100 DDS Signal Generator Frequency Counter 1Hz-500KHz Sine Wave / Triangles and Sawtooth Wave Adjustable Frequency Amplitude
Sale
Sold out
Pre-order
Regular price
$42.99 USD
Regular price
$75.99 USD
Sale price
$42.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout

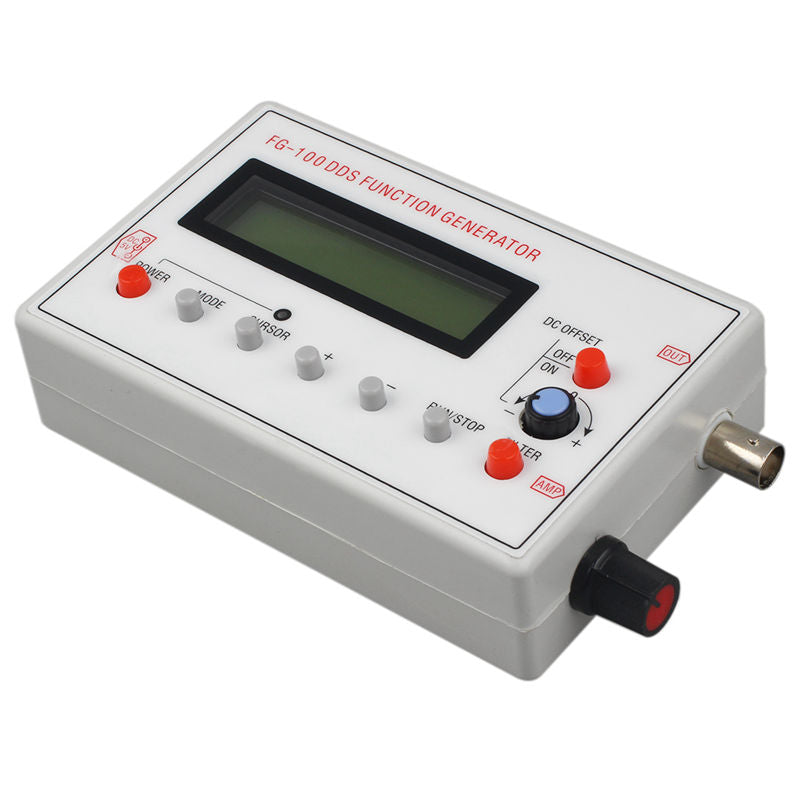

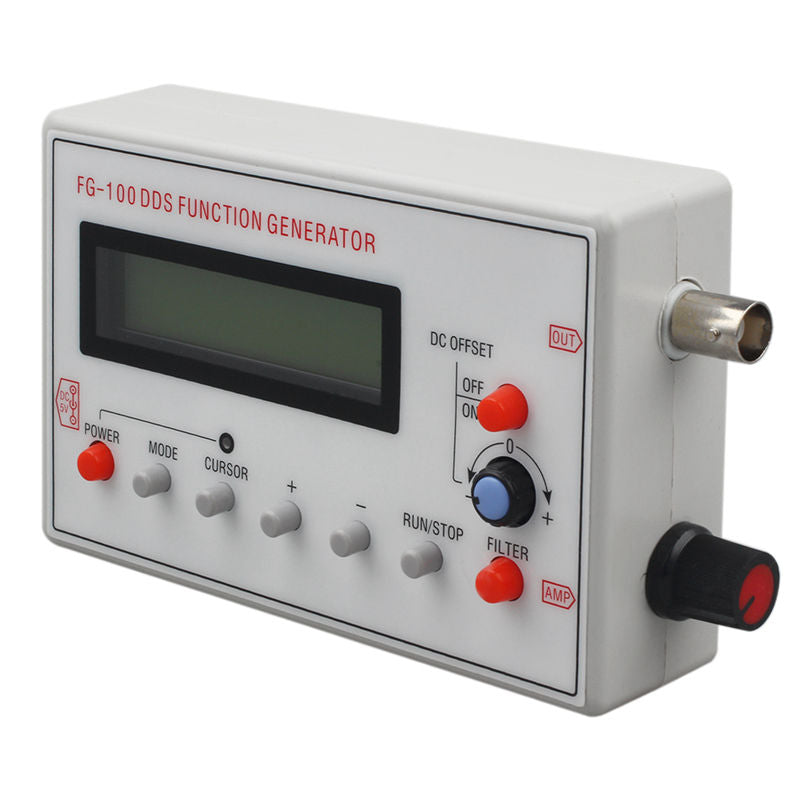

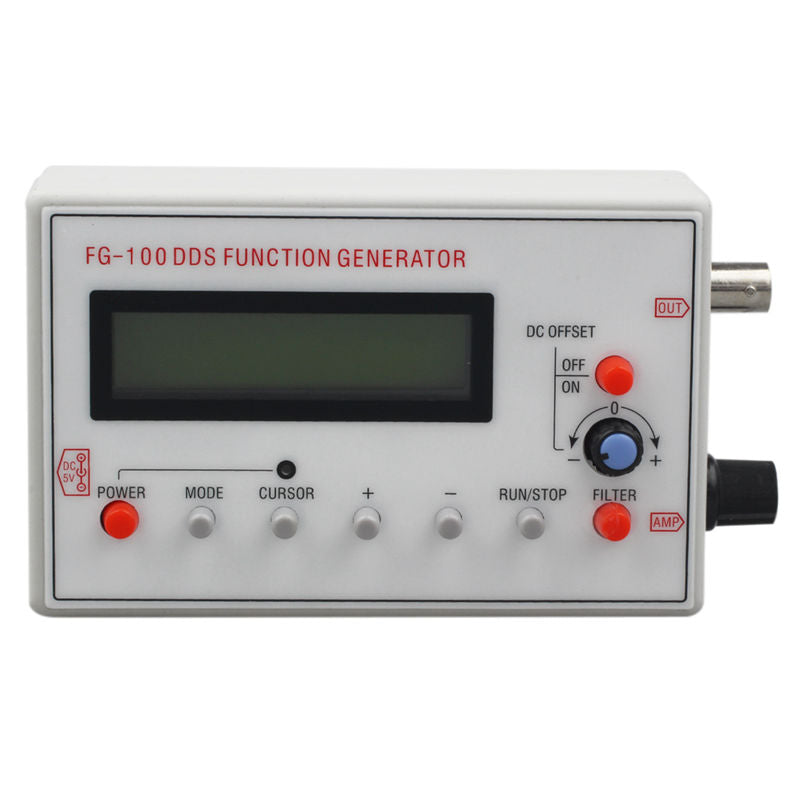

FG-100 DDS Signal Generator Frequency Counter 1Hz-500KHz Sine Wave / Triangles and Sawtooth Wave Adjustable Frequency Amplitude
Small size, multiple functions, simple operation, easy to carry.
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
COLOR:white
Material:metal
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%

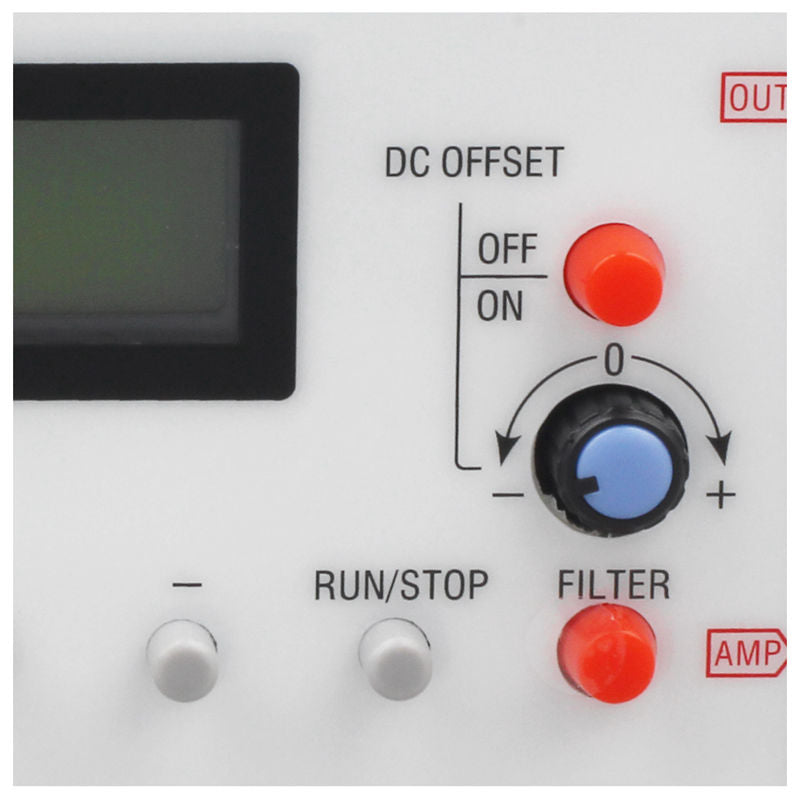

Dc bias : +/- 10V (no-load)
Display : LCD1602
Material:metal
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range :
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz - 20kHz (the valid range)
Triangular wave : 1 Hz - 20KHz (the valid range)
Sawtooth wave : 1 Hz - 20kHz (the valid range)

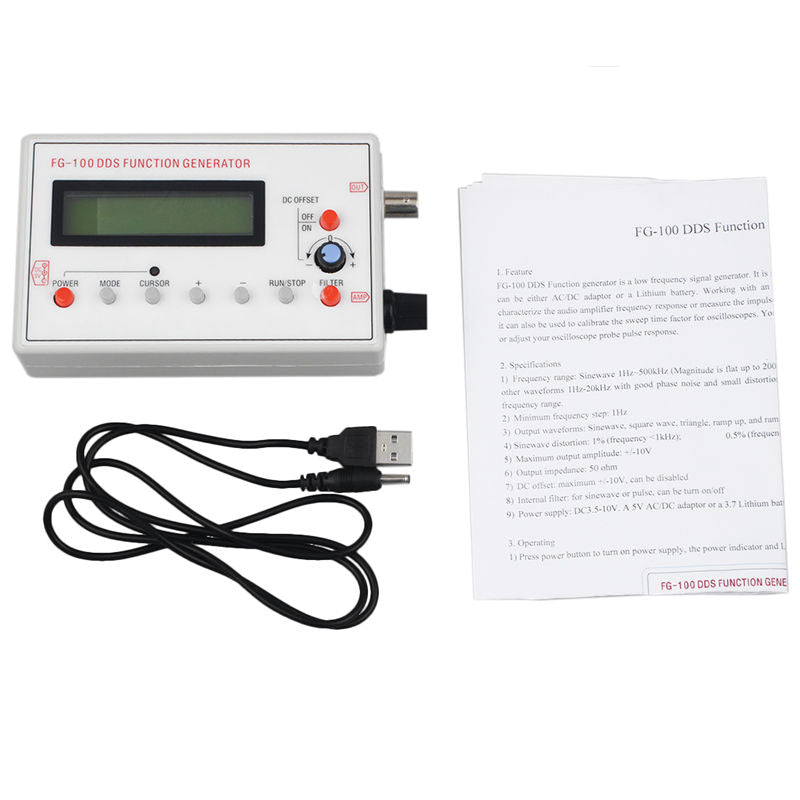

Package includes :

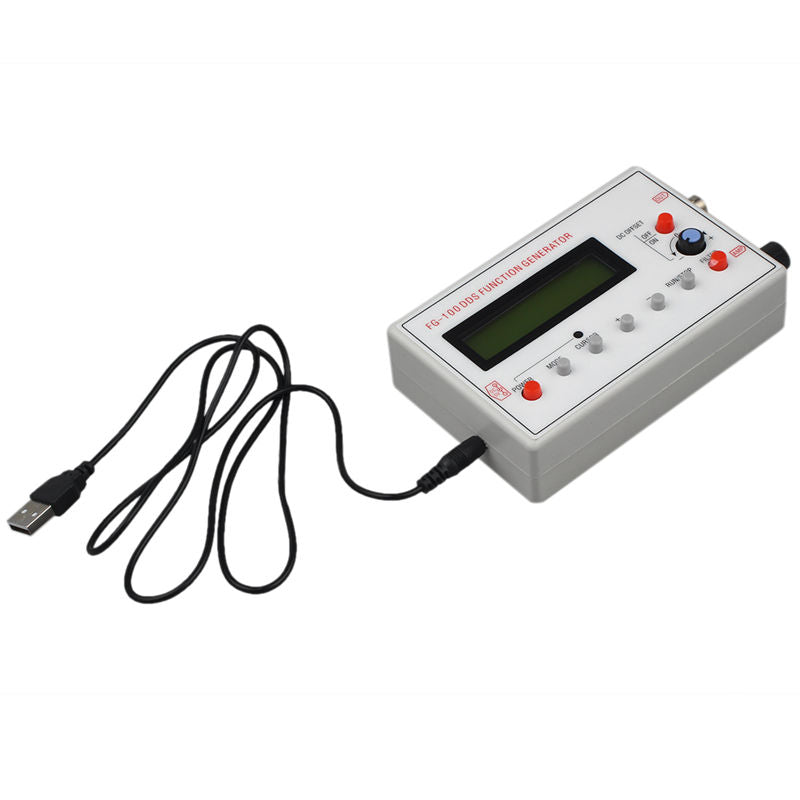

1 x FG-100 DDS Function Signal Generator
1 x USB power adapter cable
1 x English manualLight shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
