DDS Function Signal Generator Module Sine Square Sawtooth Wave Signal
Feature:

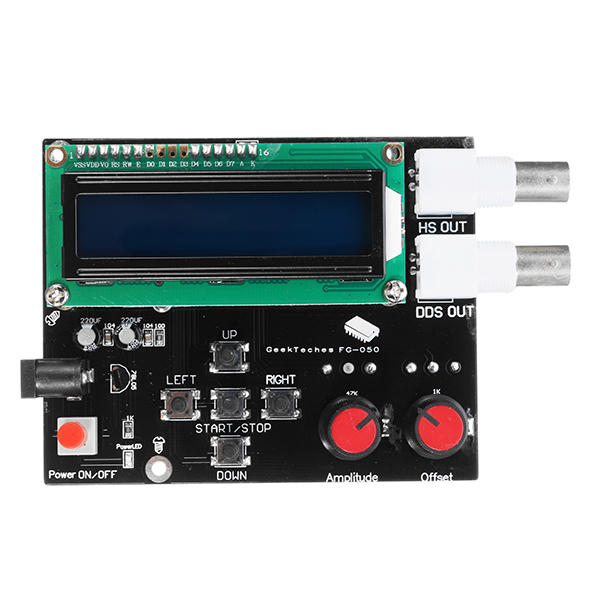

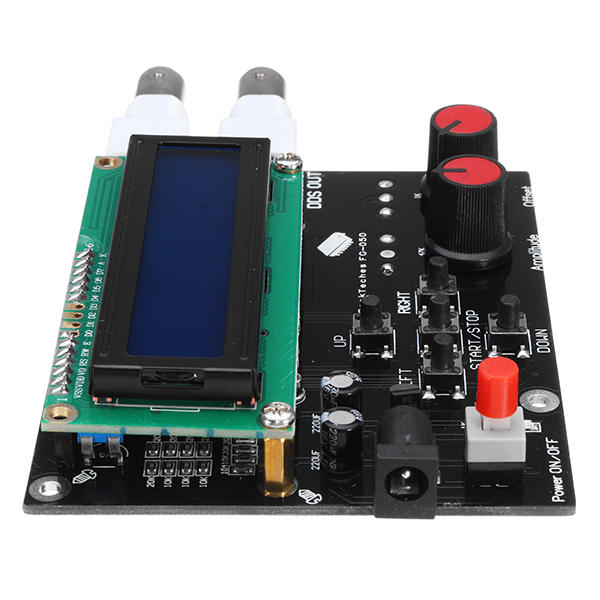

This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons
It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal
The frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers
The power automatically restores the last used configuration
Specification:
Operating voltage: DC7V-9V
Size: Approx. 100*80mm (Length*width)
Template thickness: 2mm
DDS frequency range: 1HZ-65534Hz.
High-speed frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave
Section into the Value: 1,10,100,1000,10000 Hz
Offset: 0.5pp-5Vpp
Amplitude amount: 0.5Vpp-14Vpp
Output impedance: 20-200 ohms
Color of PCB: black and blue random delivery
Color of PCB: black and blue random delivery
Buttons Functions:
UP: Output waveform select
DOWN: Output waveform select
LEFT: Output frequency -
RIGHT: Output frequency +
START/STOP: Output stop / start
Package Includes:
1 x Signal Generator Module
,
,
,
,
,
,
,
