1. Introduction.
There is a 16 mm wide black runway in the white field.Our tracking car can drive along the black runway automatically.No matter how the runway is bent, the car can be driven automatically.We all know that the reflectivity is different when the light source to the white objects and black objects.Here we use red light source.The light is reflected through the ground to the photoresistor.By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.Drive the car in the opposite direction so that the car is always running along the runway.

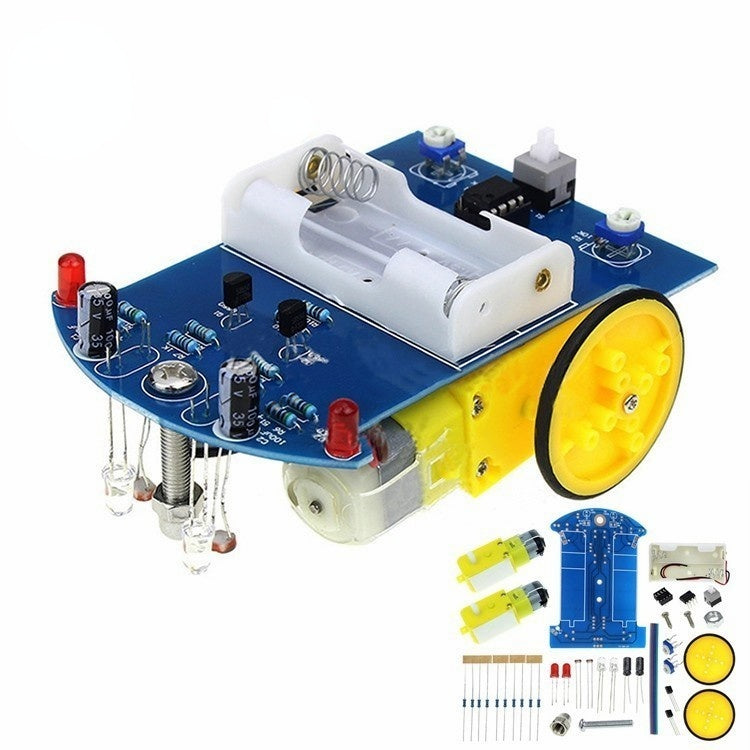

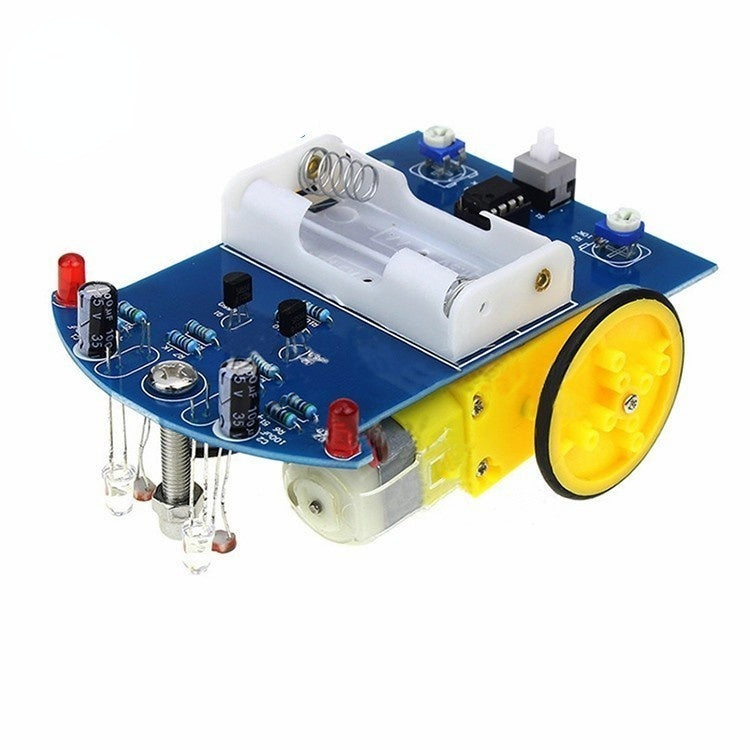

2. Overview.
1>. Model: D2-1
2>. Name: D2-1 Intelligent Tracking Car DIY Kit
3>. PCB Size:105*72*1.6mm
4>.Installation dimension:105*85*46mm
5>. Work Voltage:3V

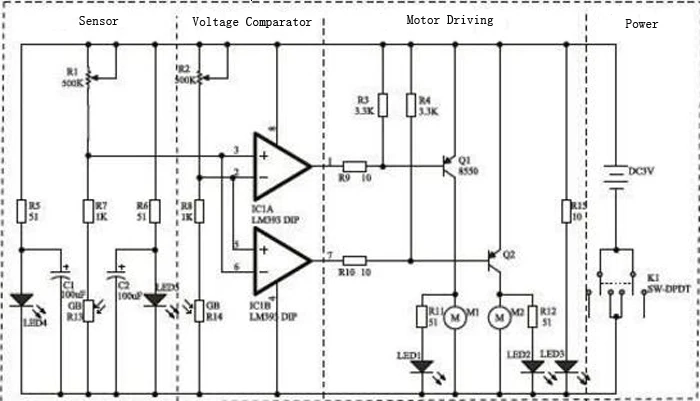

3. Schematic.

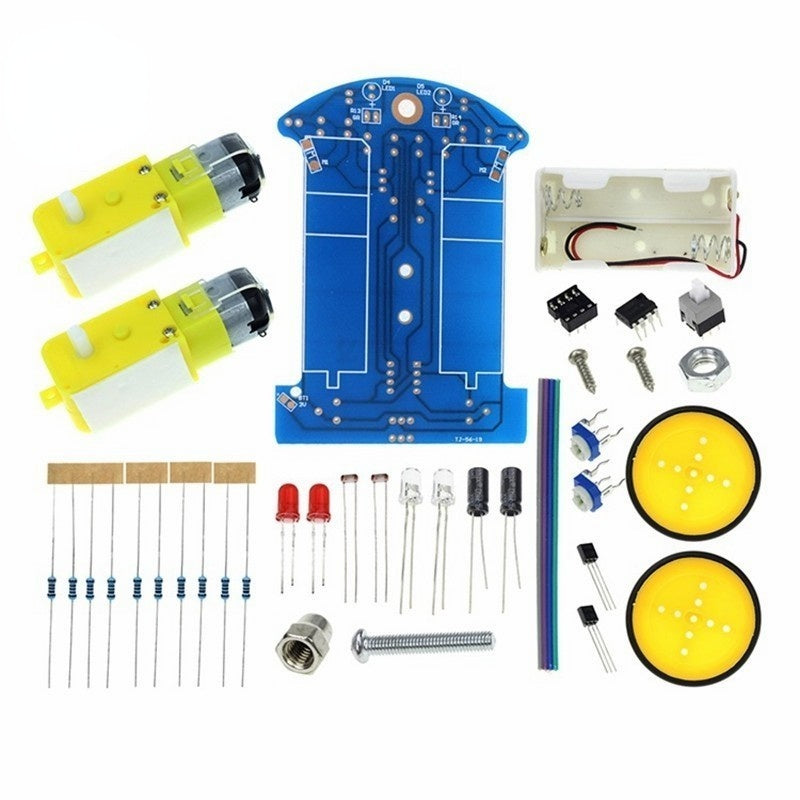

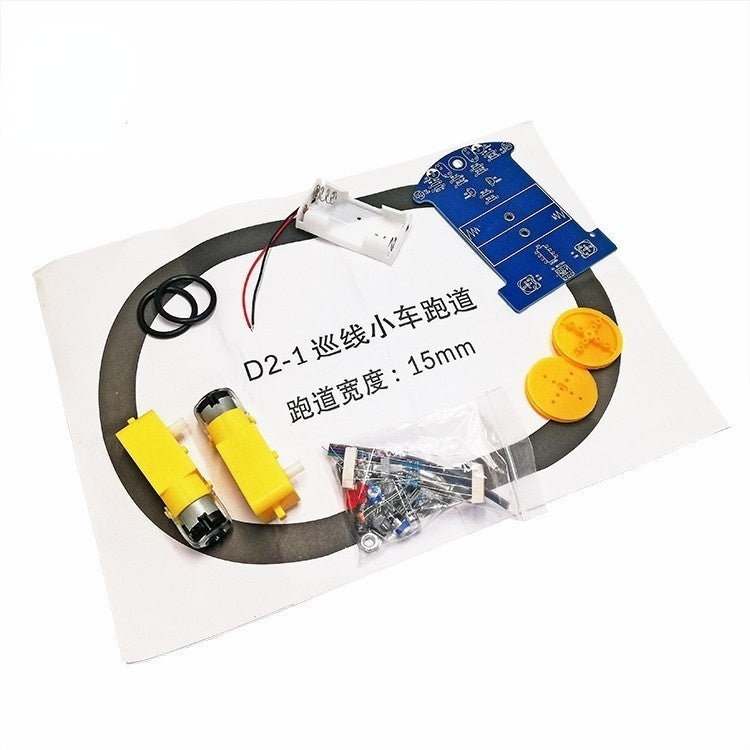

4. Component listing.
NO.
Component Name
PCB Marker
Parameter
Quantity
1
LM393
IC1
DIP-8
1
2
IC Socket
IC1
DIP-8
1
3
Electrolytic Capacitor
C1,C2
100uF
2
4
Potentiometer
R1,R2
103 10K
2
5
Metal Film Resistance
R5,R6,R11,R12
51ohm
4
6
Metal Film Resistance
R7,R8
1K
2
7
Metal Film Resistance
R9,R10
10ohm
2
8
Metal Film Resistance
R3,R4
3.3K
2
9
Photoresistor
R13,R14
CDS5
2
10
Red LED
D1,D2
5mm
2
11
White LED
D4,D5
5mm
2
12
S8550
Q1,Q1
TO-92
2
13
Self-Locking switch
S1
6*6mm
1
14
DC Motor
M1,M2
2
15
Wheel
40mm
2
16
Tires
40mm
2
17
Gaster Screw
M5*20mm
1
18
Gaster Nut
M5
1
19
Gaster Screw Cap
M5
1
20
Cable
6mm
4
21
Battery Case
AA*2
1
22

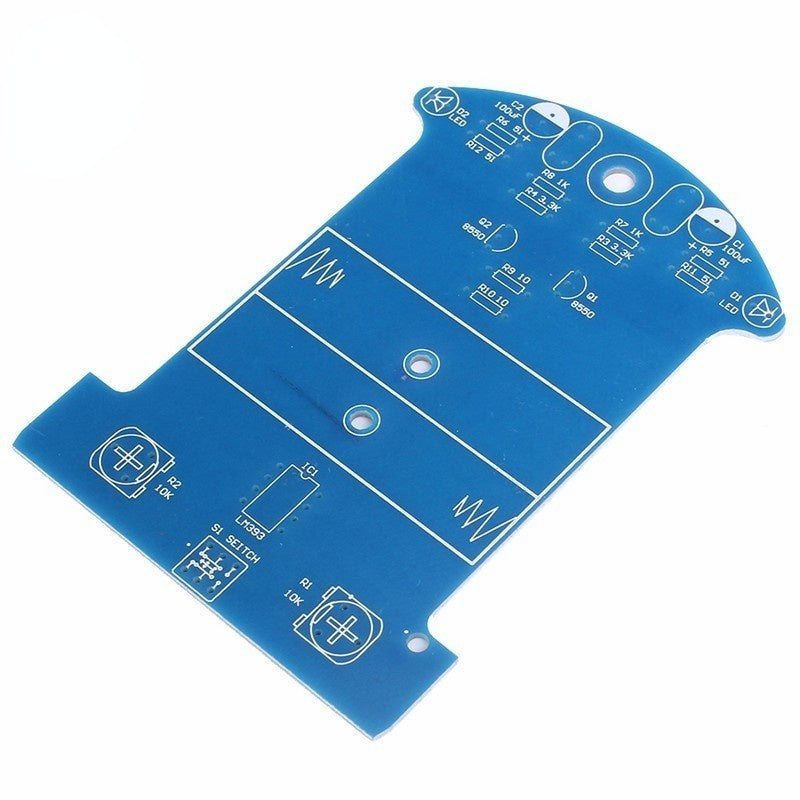

PCB D2-1
105*72*1.6mm
1
