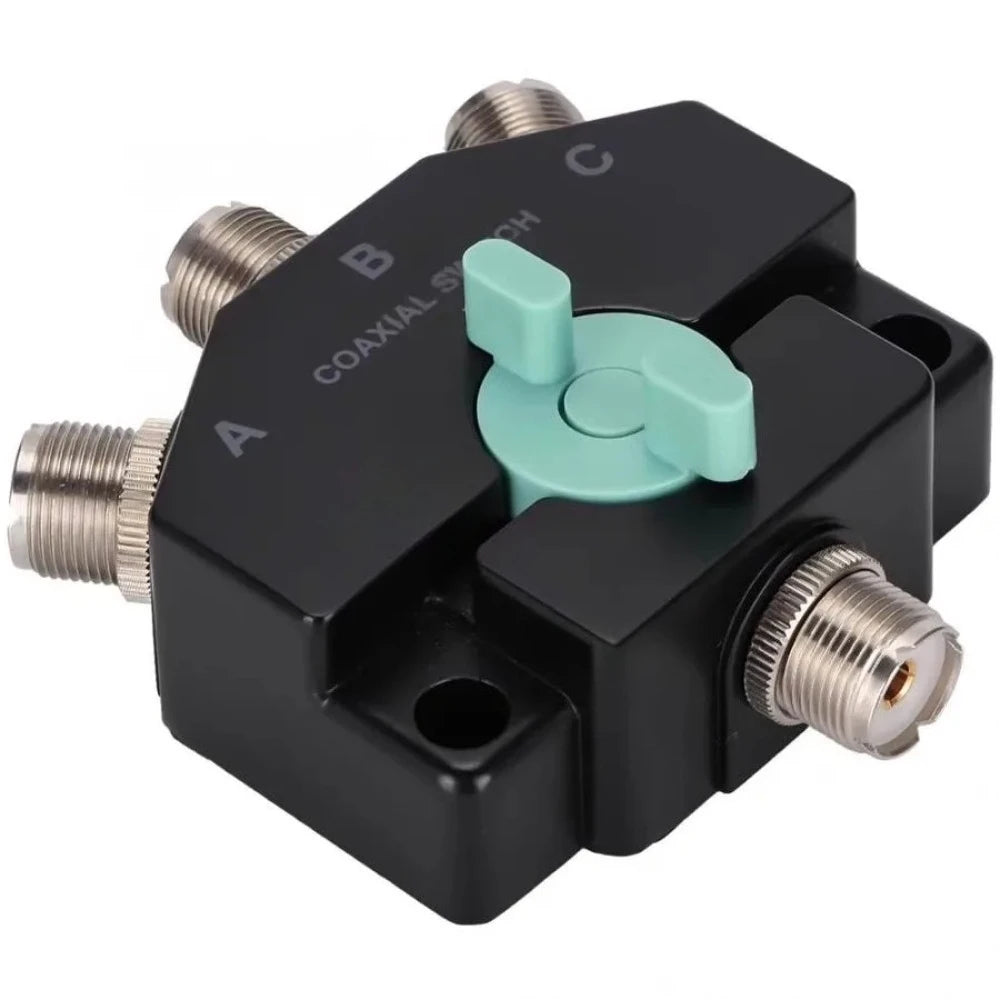

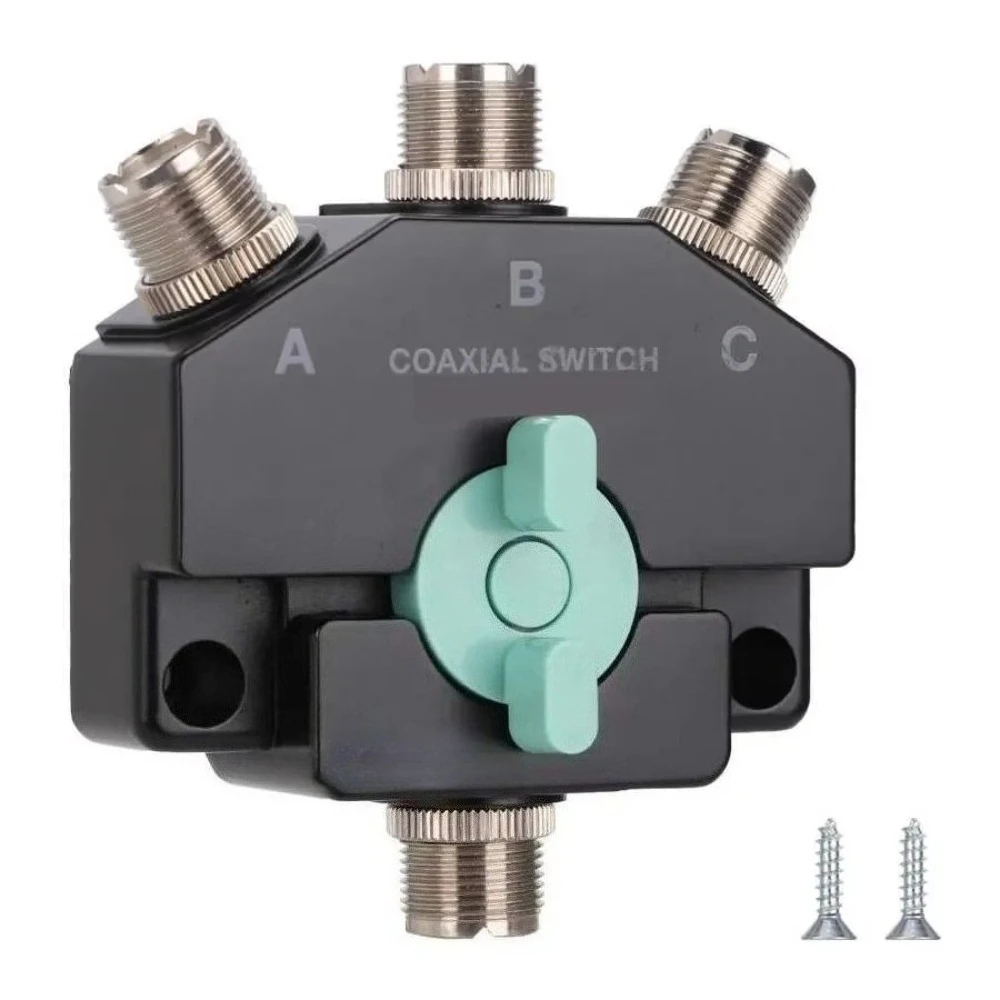

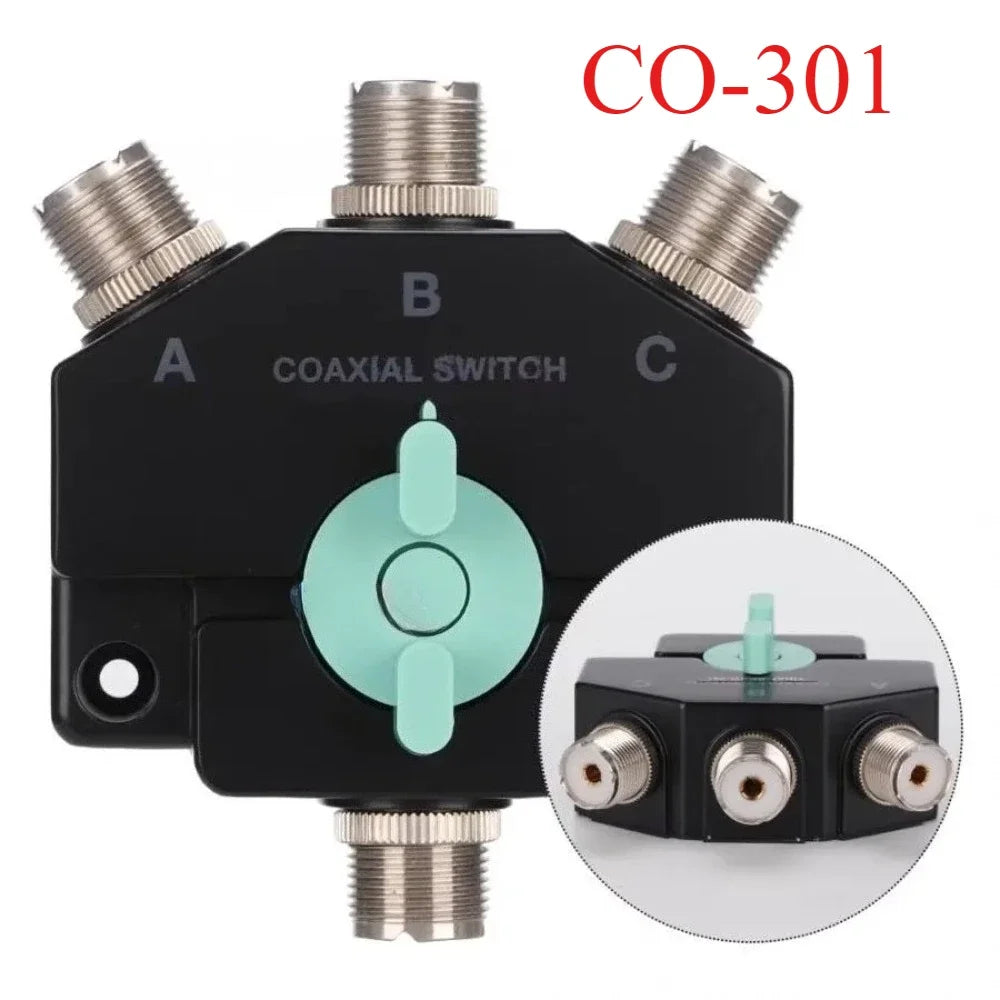

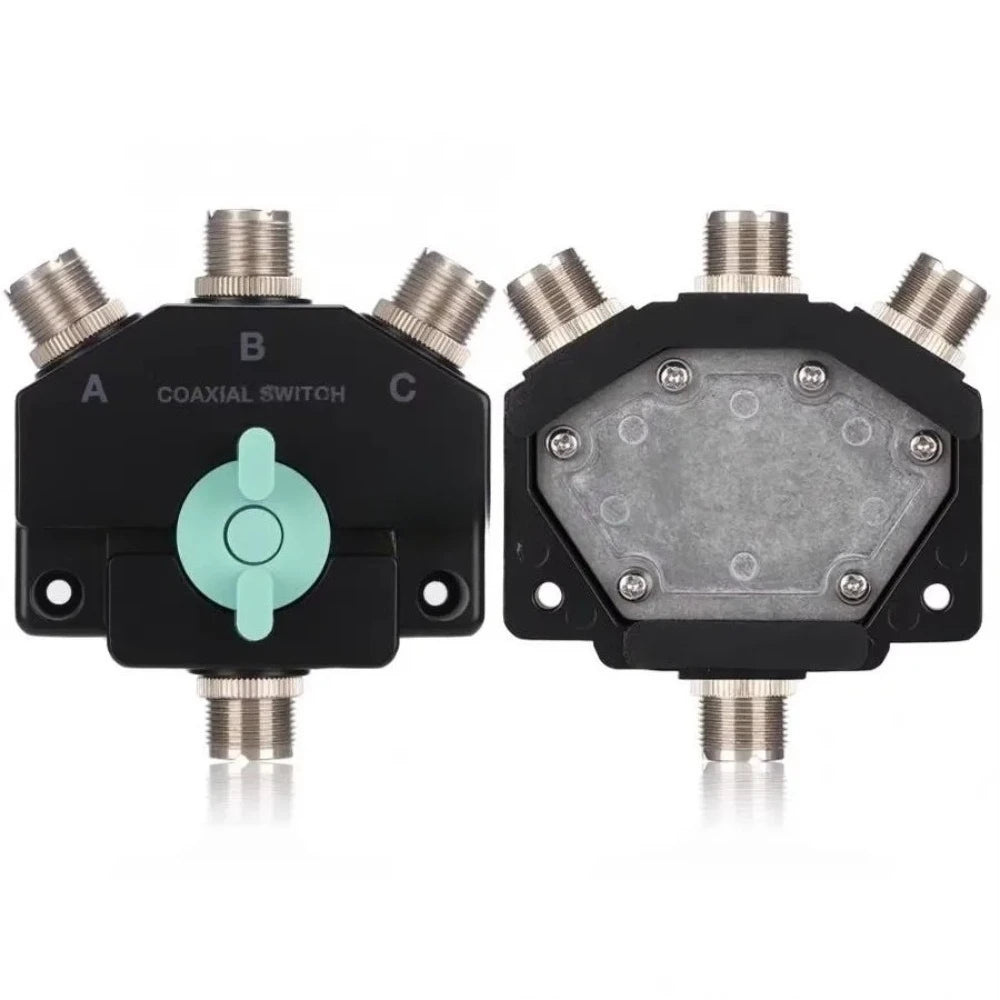

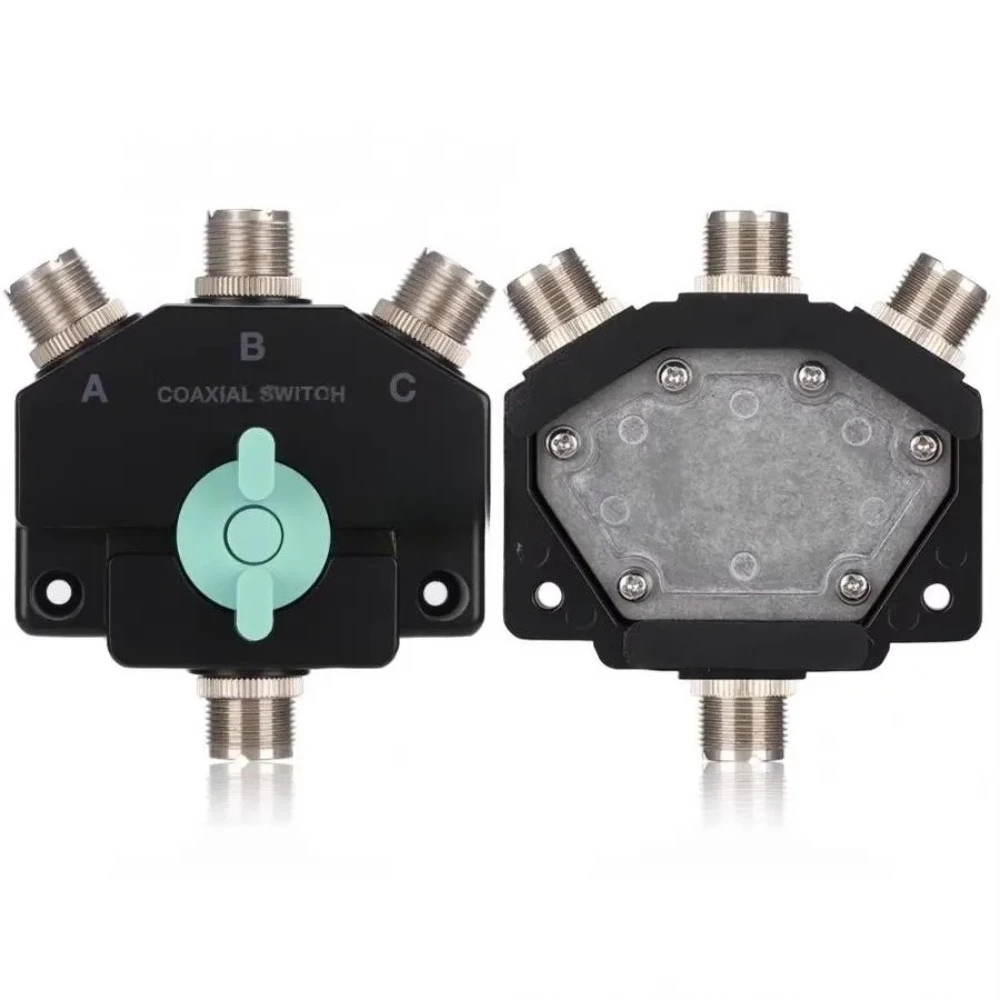

CX-310/CO-301 DC-800MHz 1.5KW RF Coaxial Switch Coax Switch Made in Taiwan for Repeater Mobile Radio
CX-310/CO-301 DC-800MHz 1.5KW RF Coaxial Switch Coax Switch Made in Taiwan for Repeater Mobile Radio
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /05/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications:
- Model number: Coaxial Switcher CX-310/CO-301
- Origin: Taiwan
- Material: zinc alloy (rust-proof)
- Range: DC-800MHZ
- Insertion loss: below 0.1dB (DC-500MHz) and below 0.15dB (500-1000MHz)
- Isolation: over 60dB (DC-500MHz) and over 50dB (500-800MHz)
- VSWR: below 1.1 (DC-500MHz) and below 1.2 (500-1000MHz)
- Electricity: (SWR below 1.2) 1.5KW (DC-30MHz) and 1KW (30-150MHz) /500W (150-800MHz)
- Impedance: 50 ohms
- Dimensions: 84 x 95mm/3.3 x 3.7"
- Weight: 575g/1.3lb
- Interface: M-J
Package Included:
- 1 x Coaxial Switch
- 2 x Screws
Description
Description
Specifications:
- Model number: Coaxial Switcher CX-310/CO-301
- Origin: Taiwan
- Material: zinc alloy (rust-proof)
- Range: DC-800MHZ
- Insertion loss: below 0.1dB (DC-500MHz) and below 0.15dB (500-1000MHz)
- Isolation: over 60dB (DC-500MHz) and over 50dB (500-800MHz)
- VSWR: below 1.1 (DC-500MHz) and below 1.2 (500-1000MHz)
- Electricity: (SWR below 1.2) 1.5KW (DC-30MHz) and 1KW (30-150MHz) /500W (150-800MHz)
- Impedance: 50 ohms
- Dimensions: 84 x 95mm/3.3 x 3.7"
- Weight: 575g/1.3lb
- Interface: M-J
Package Included:
- 1 x Coaxial Switch
- 2 x Screws
