Using advanced single-tube IGBT inverter technology. small volume. Light weight.
Adopt full digital PWM control technology. Built-in power grid * compensation, high efficiency and energy saving.
DIY mini structure design. High power output.
Built-in thermal arc starting, thrust, anti-sticking,.
Full digital control technology. Constant power control. Excellent welding performance.

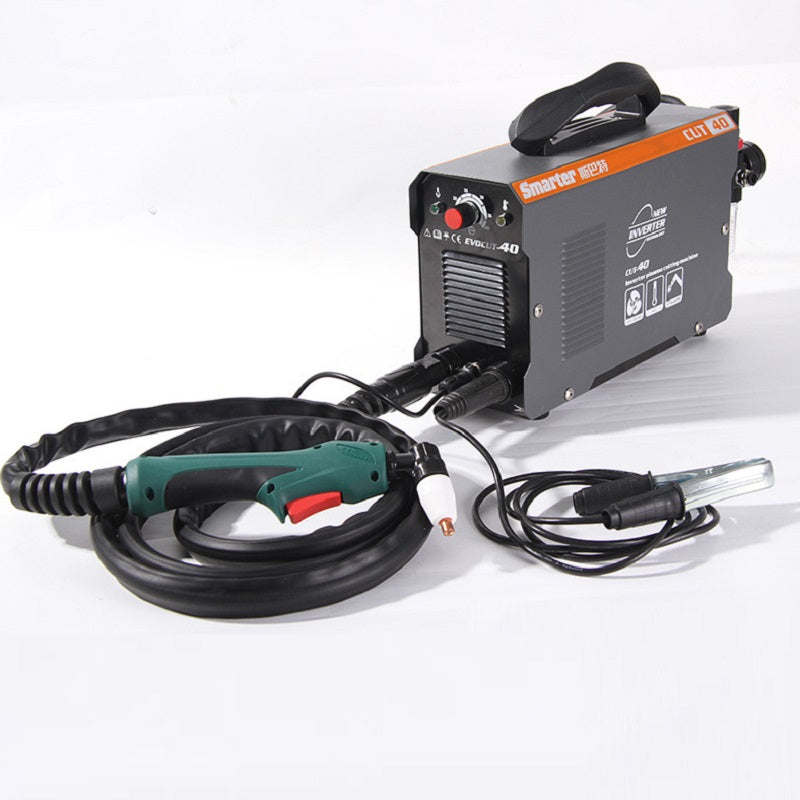

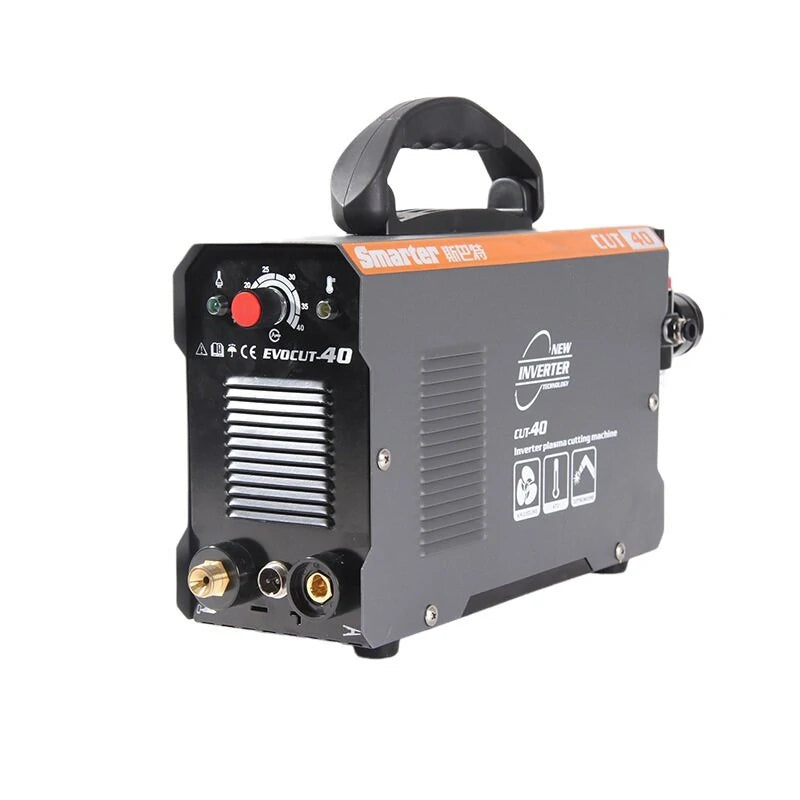

Model: CUT-40 plasma cutting machine
Type: Plasma cutting machine
Principle of action: inverter
Plasma source: 40A
Maximum cutting thickness: 10mm
Input voltage: 220V
Rated input power capacity: 5.54KVA
Output current range: 0-40A
No-load voltage: 270V
Rated load duration: 35%
Power factor: 93%
Insulation class: H
Shell protection level: IP21S
Dimensions: 32 x 12 x 23cm
Tool net weight: 7.5Kg
1 x Arc welder

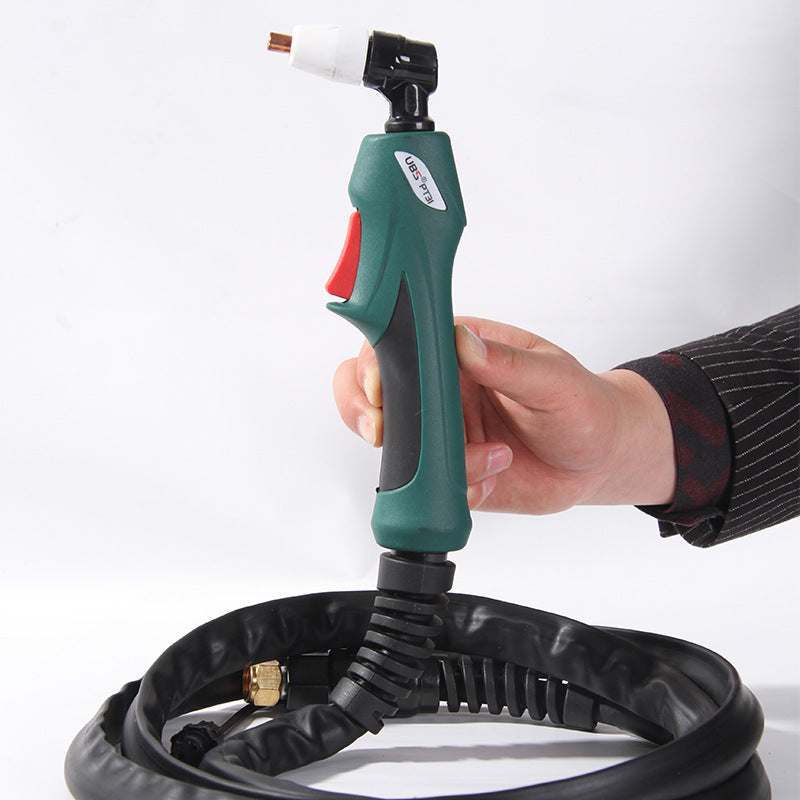

1 x Welding torch line
1 x Ground wire
