This standing waves meter not only supports forward/refverse, power/standing waves multiple parameters direct reading, but also has a high standing waves alarm, time delay shutdown, transmit auto power on and other functions to meet a variety of needs.4.3 inch IPS color LCD display, data reading is more clear, more convenient operation. This SWR meter has a maximum power handling capacity of 200 watts, 1-99.9 standing waverange, and a 1.8-54Mhz operating frequency. With power fine-tuning function and standing waves fine-tuning function, making the measurement results more accurate.
Features:
【High Power Handling】: This SWR meter has a maximum power handling capacity of 200 watts, 1-99.9 standing waverange, and a 1.8-54Mhz operating frequency. With 0.5-200W measurement ranges, in FM, CW, AM, and FT8 modes, it is recommended not to exceed 120W for long time use.

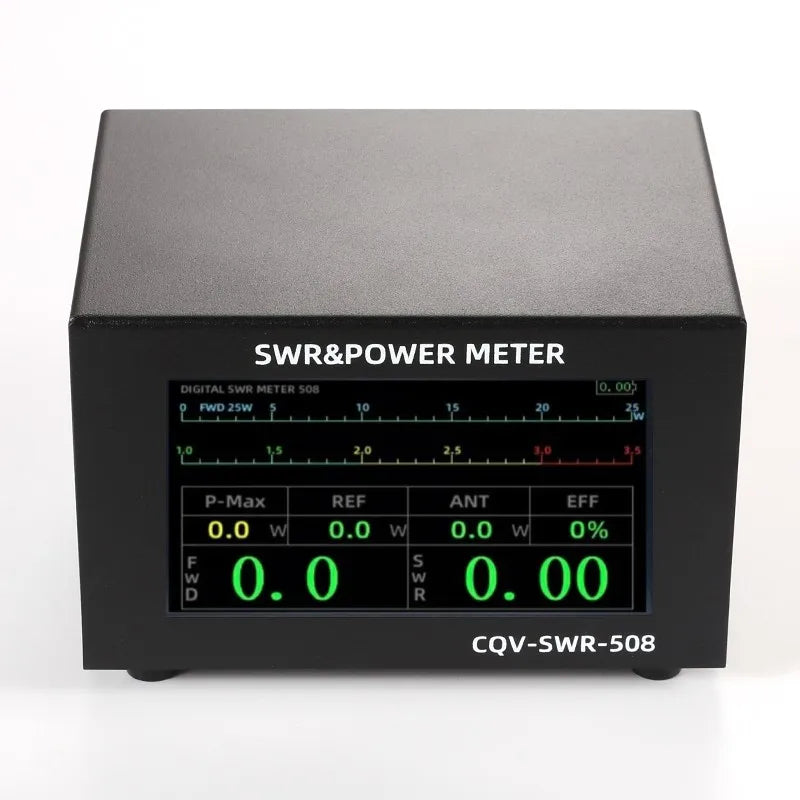

【4.3" IPS Color Display】: Equipped with a 4.3" IPS color display, ensures clear definition visibility at 480*272 resolution, providing comprehensive readability for both forward and reverse power, max power, forward power, reflected power, antenna power, standing waves ratio, battery voltage, etc. Support power progress bar function, view your parameters clearly and accurately with this intuitive interface.
【Protective Functions】: Multifunctional design, equipped with a high SWR alarm function that can be set to your preference. With a delayed shutdown function, and the delay time can be set by yourself. And with an automatic power-on function when transmitting, and built-in battery low-voltage protections, this tool is designed with your needs in mind.
【Fine-Tuning Capability】: Featuring power and SWR fine-tuning capabilities with an accuracy of up to ±20%, this unit provides the precise control you need to achieve the operating conditions you desire.
【Compact & Practical to Use】: Encased within a robust and smooth housing that measures not only portable but also compact enough for seam-less worktop integration. It features a built-in 1000mAh large-capacity battery, providing long battery time. It is perfect for the amateur radio enthusiast, whether you are a beginner or an experienced user.
- 200W digital power standing wave meter
- Supports direct reading of forward/reverse and power/standing wave parameters
- With a 4.3-inch IPS color LCD display with a resolution of 480*272
- High standing wave alarm: standing wave alarm point can be set
- Delay shutdown function: shutdown time can be set
- Launch automatic boot function
- Battery under-voltage protection
- Simulate the progress bar function
- Power fine-tuning function (±20%)
- Standing wave fine-tuning function (±20%)
Specifications:
- Working frequency: 1.8-54MHz
- Measuring range: 0.5-200W (in FM, CW, AM and FT8 modes. It is recommended not to exceed 120W for long-term use)
- Standing wave range: 1-99.9 (when the standing wave is greater than 2.0, it will sound the alarm. And you can set the alarm point through the menu)

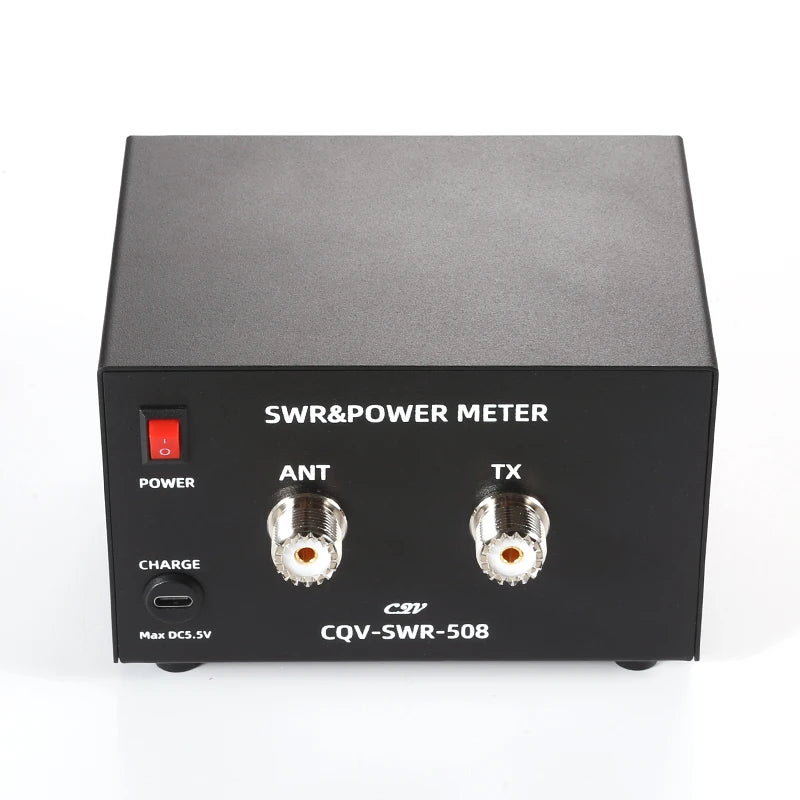

- Charging interface: Type-C DC 5V/1A (charging voltage 5.5V maximum)
- Battery model: 3.7V/4000mAh (It will flash to alarm when the battery voltage is below 3.4V. And it will automatically shutdown when the voltage is below 3.35V)

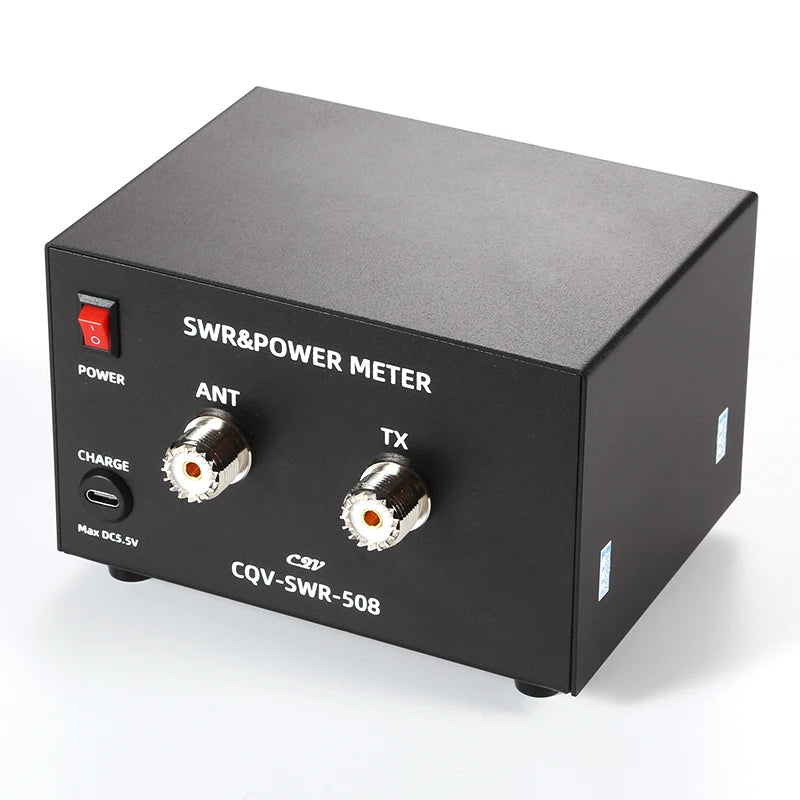

- Interface type: UHF (SL16)
- Shell size: 132mm x 100mm x 82mm/5.2" x 3.9" x 3.2" (excluding protruding part)
- Net weight: about 800g/1.8lb
Package Included:

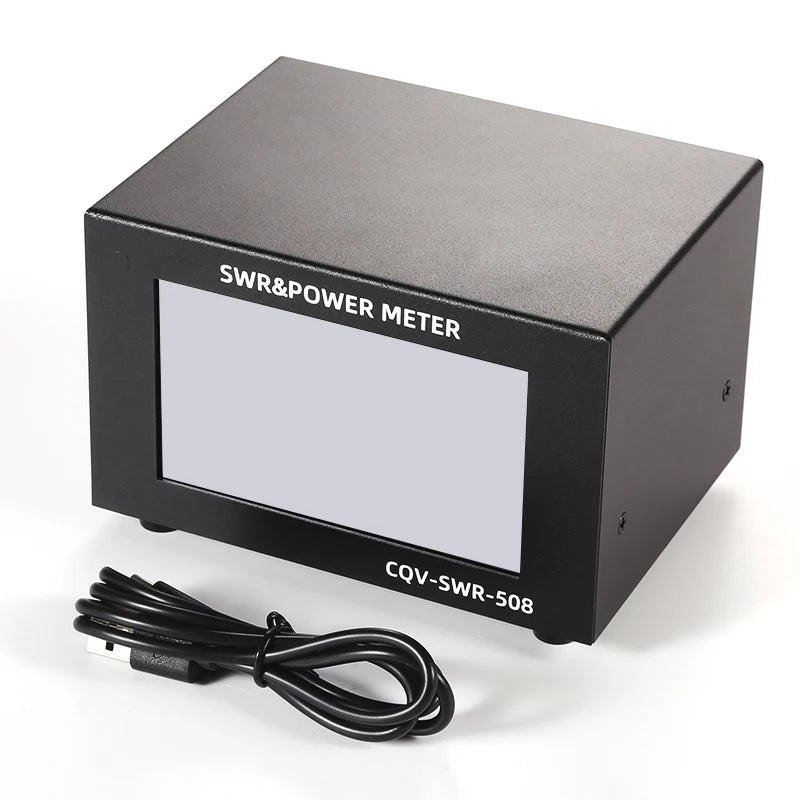

- 1 x SWR Meter
Packaging Details:
- G.W.: 1kg
