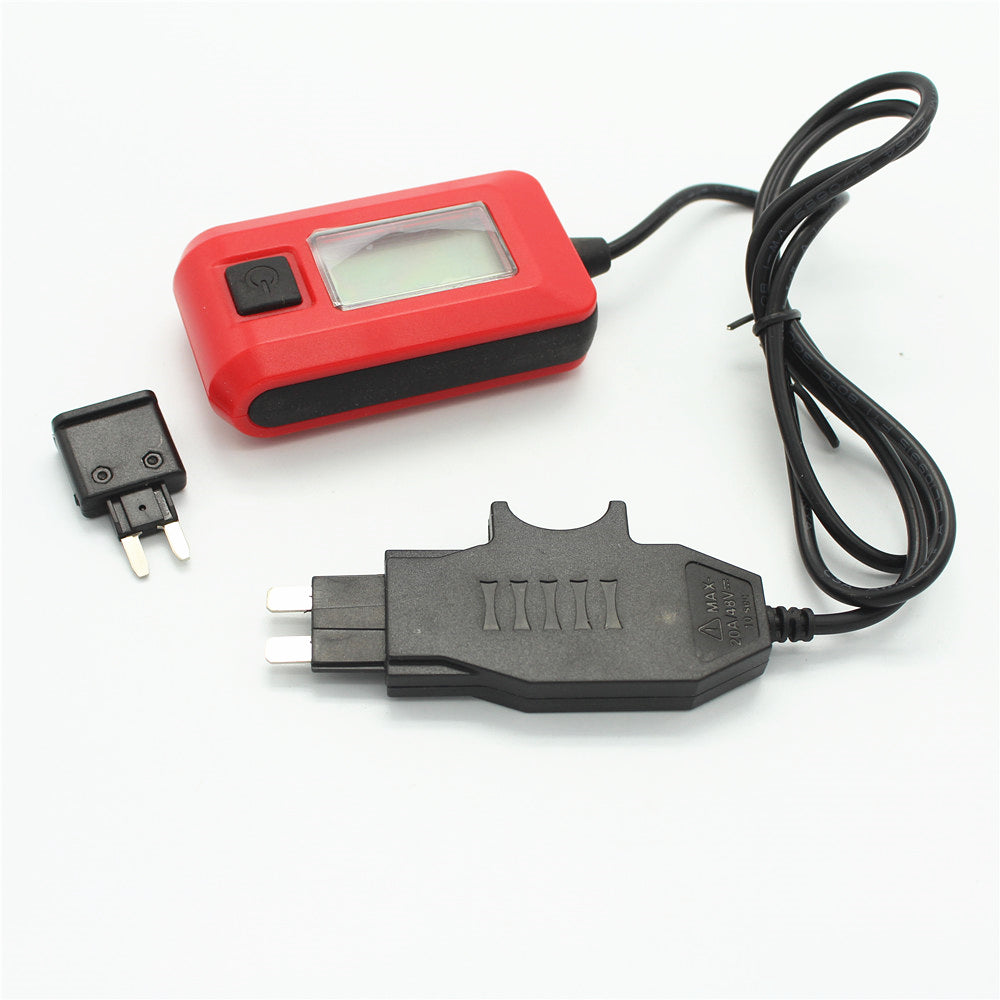

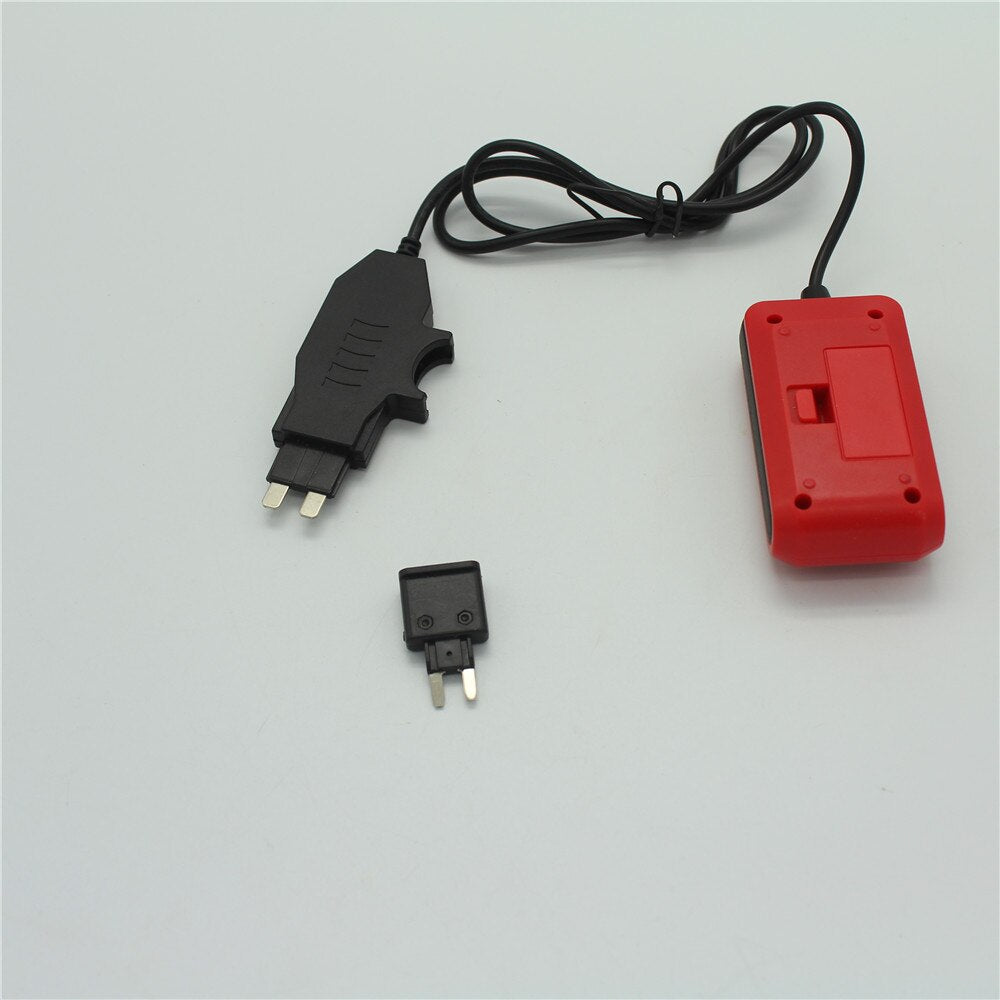

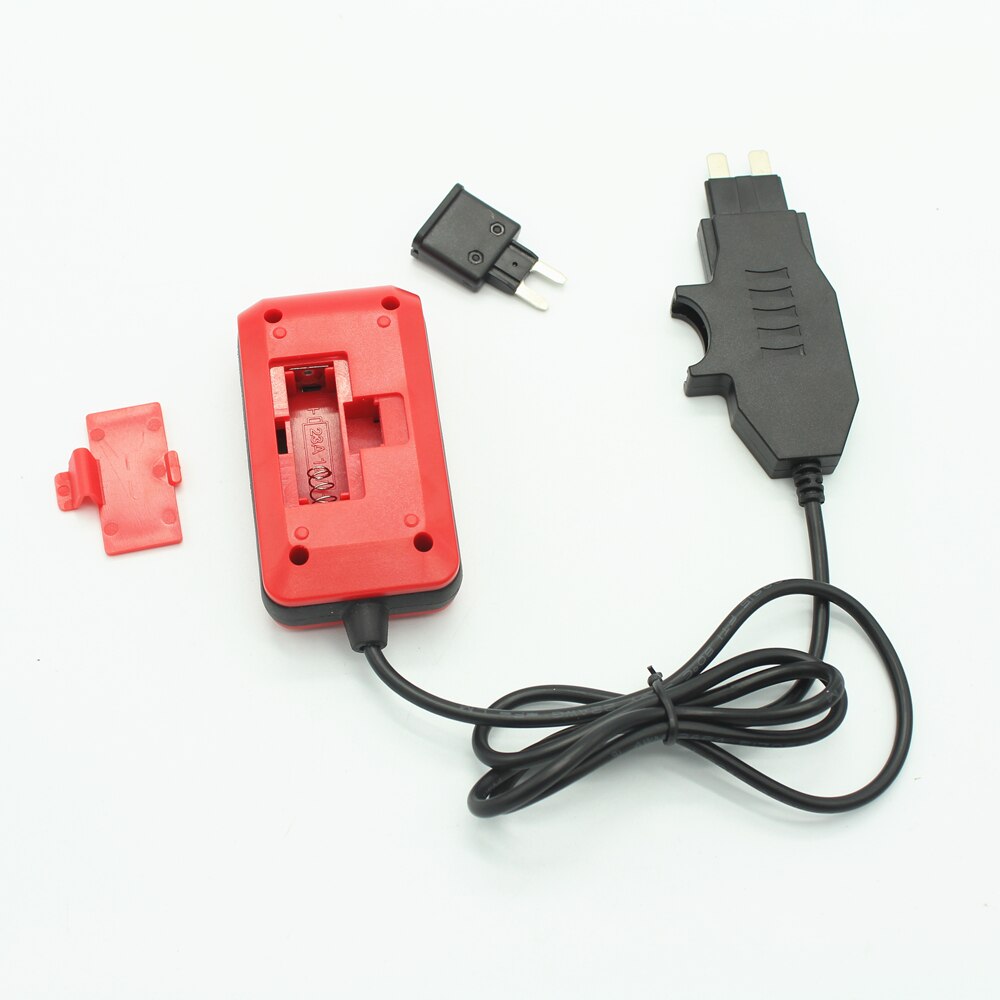

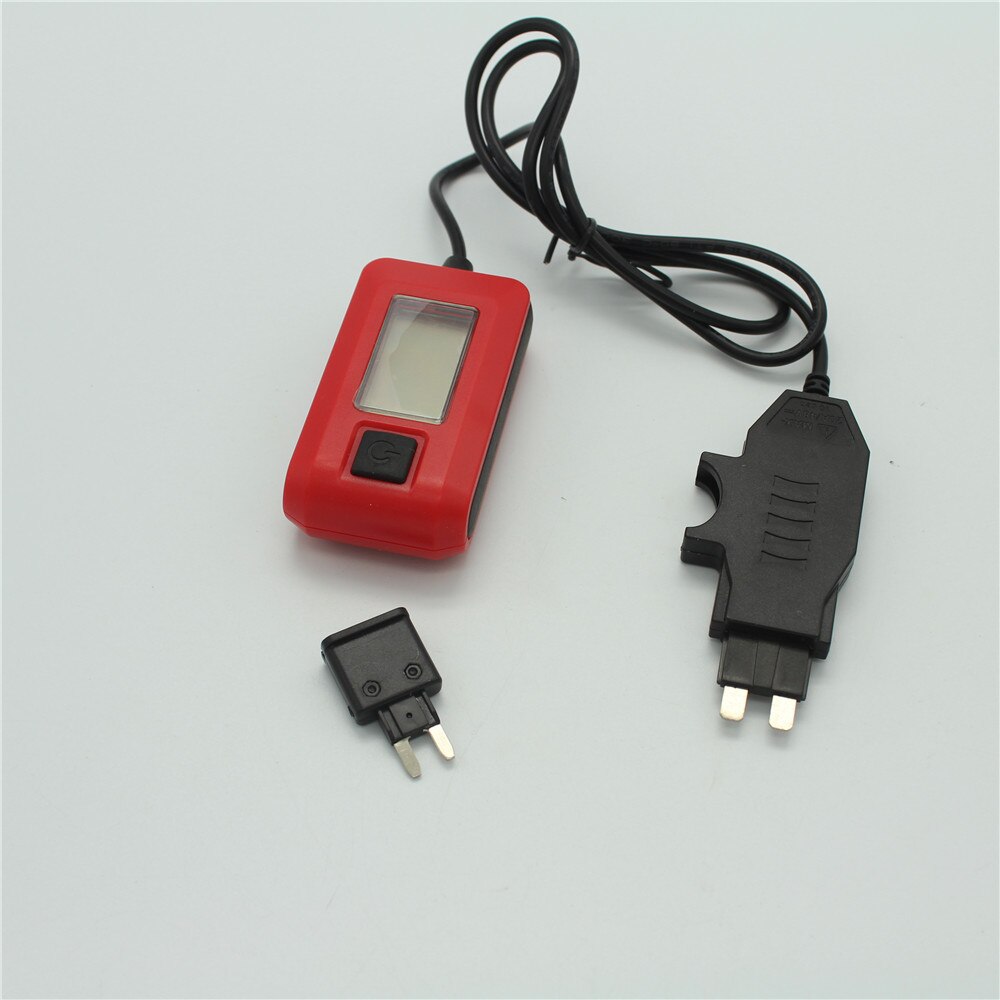

Car Auto Current Tester Multimeter Lamp Car Repair Automotive Electrical Multimeter Auto Fuse Tester Diagnostic Tool AE150 12V

  • $16.00
    Unit price per
  • Save $9
Tax included. Shipping calculated at checkout.


Car Auto Current Tester Multimeter Lamp Car Repair Automotive Electrical Multimeter Auto Fuse Tester Diagnostic Tool AE150 12V

Description :

Measurement range

0.01A~19.99A

Max Load

20A/48Vdc for max.10 secs

Accuracelectrical circuity:

±(2% of reading + 2 digits)

Fuse typePower Supply

standard

Power Supply

12V 23A

Operating Condition

Temperature 0°C~40°C,

relative humidity<75%

Storage Condition

temperature -10°C~50°C,

relative humidity<80%





The tester can be used to measure current at the fuse box of standard blade fuse. It is ideal for fault finding on automotive or commercial vehicle electrical circuit. Its feature is quick measurement and high accuracy. It is very easy to use and it can check the current through the fuse of the car.



Features
Ideal for fault finding on automotive or commercial vehicle electrical circuit
Easy to use
Quick measurement and high accuracy
Measurement range: 0.01A~19.99A
Max load: 20A/48Vdc for max.10 secs.
Powered by a 23A 12V battery (not include battery )



Operation Instruction
1.Turn off the vehicles' engine.
2. Take out the fuse and put it in slot of the AE150. Please make sure the circuit protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
3. Insert the plug of the tester into the vehicle fuse socket.
4. If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
5.Under test, operate the circuit and the display will show the measured current.
6. Turn off the tester by pressing the power button again when you finish the measurement.

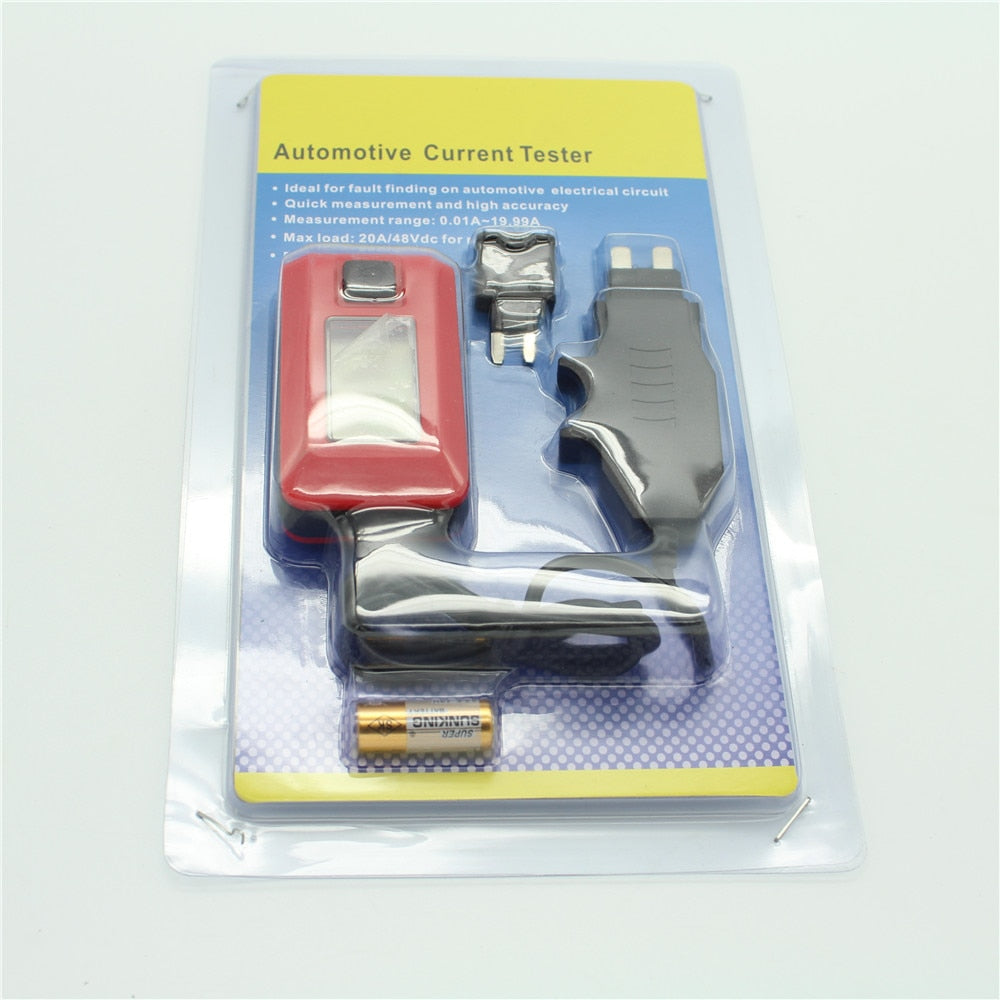

Packaging contents:

1x Auto Current Tester (not include batter )





note:because the battery is easy to explode ,the shipping company cann't accept the battery , for safe  ,so i will not put the battery on the box ,pls ,understand ,thanks





Note:this  product  not include battery  ,because  the battery is easy to explode ,the shipping company cann't accept the battery ,it is safe for your goods ,so i don't put the battery on the box ,thanks
