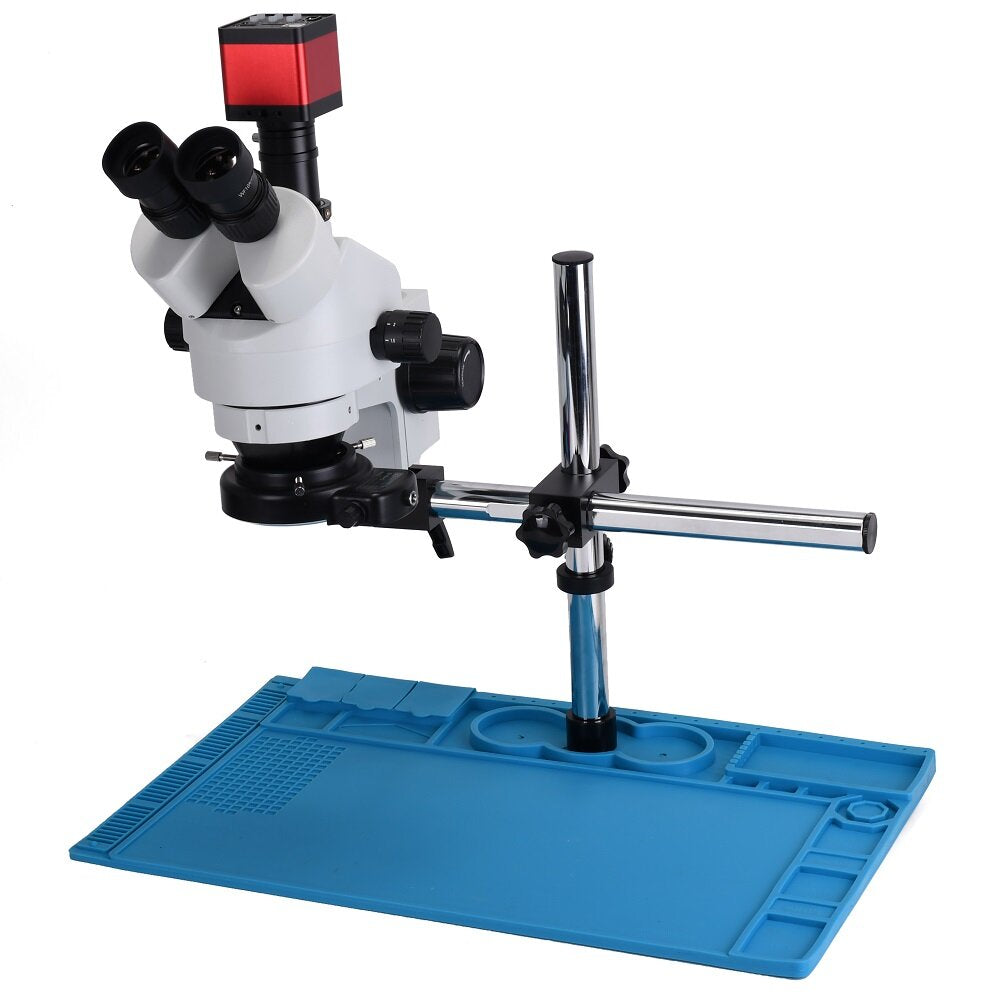

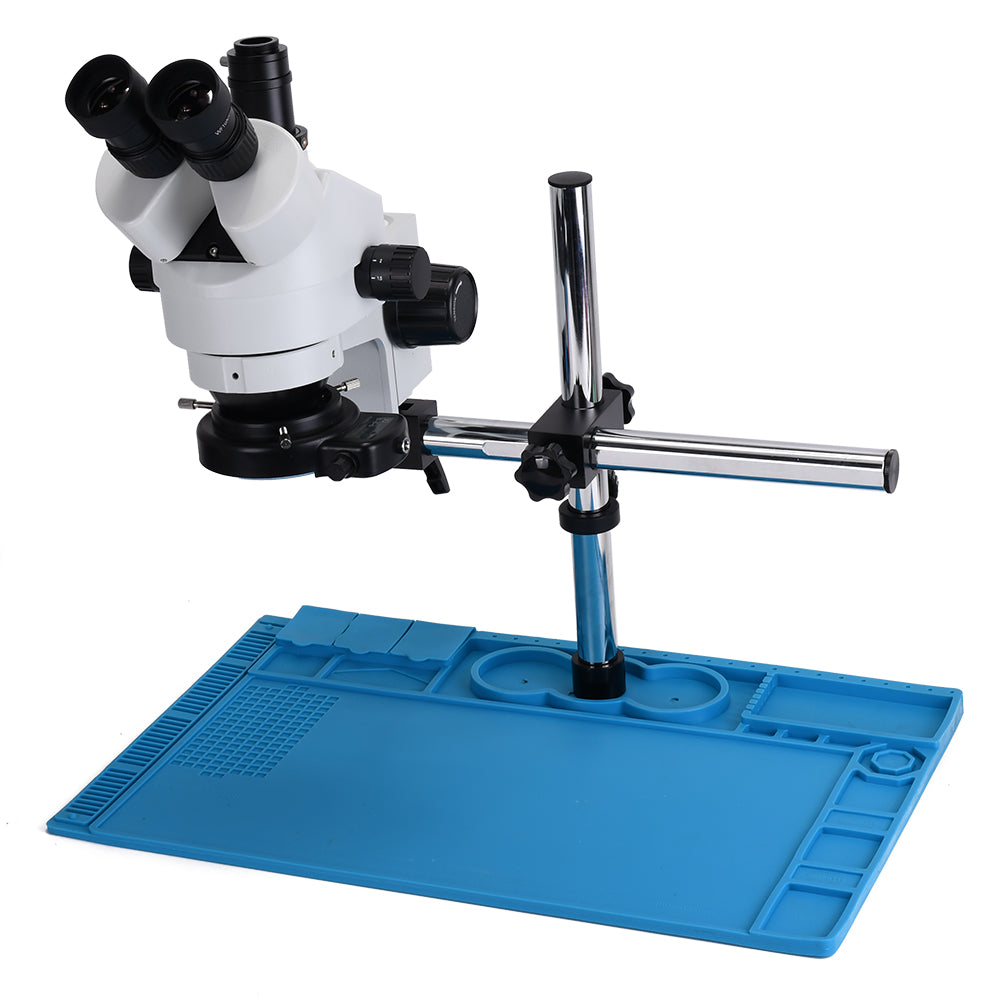

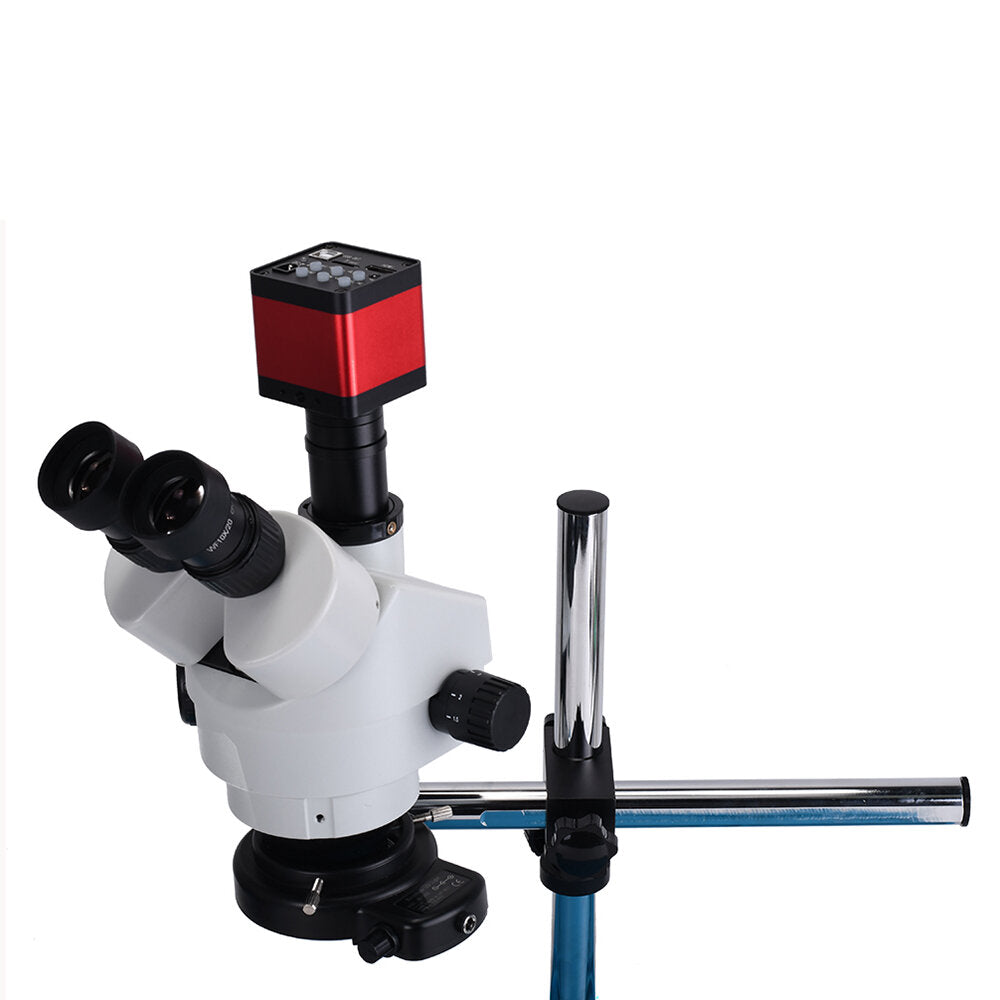

Camera Upgraded To 20MP Industry 3.5X-90X Simul-focal Trinocular Stereo Microscope HD Video Camera for Phone PCB Soldering Repair Lab

Save $100
CartoolshopSKU: HD Video Camera

$479.99 $579.99

Tax included Shipping calculated at checkout

In stock


Key Feature:

3.5X-90X zoom magnification power with crisp sharp images

Super widefield high-eyepoint optics

widefield of view

4" (100mm) working distance

Sturdy all-metal pillar stand

Powerful 144-LED ring light with dimmer

This stereo microscope has a 144-LED ring light that offers super widefield optics and 3.5X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.


Key Feature:


An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light


3.5x-90x super wide zoom magnification power


Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes


Sharp stereo erect images with a wide field of view


Crystal clear original true color microscope images


Dual eye tubes with adjustable diopters


Large working distance


Sturdy all-metal table stand


Accurate alignment reduces eye strain for longer periods of viewing


Full optical glass elements


Precise ground glass lenses


Full metal chrome-plated mechanical components


Adjustable interpupillary distance

Rubber eye-guards included



1. High quality material, high definition and clear image, improving your work efficiency.
2. The20MP high definition microscope camera is specially designed for industrial microscope.
3. Equipped with standard HDMI output and standard USB interface , convenient to use.

1. PC Support : Window 7/8/10 system
2. For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3. When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4. When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

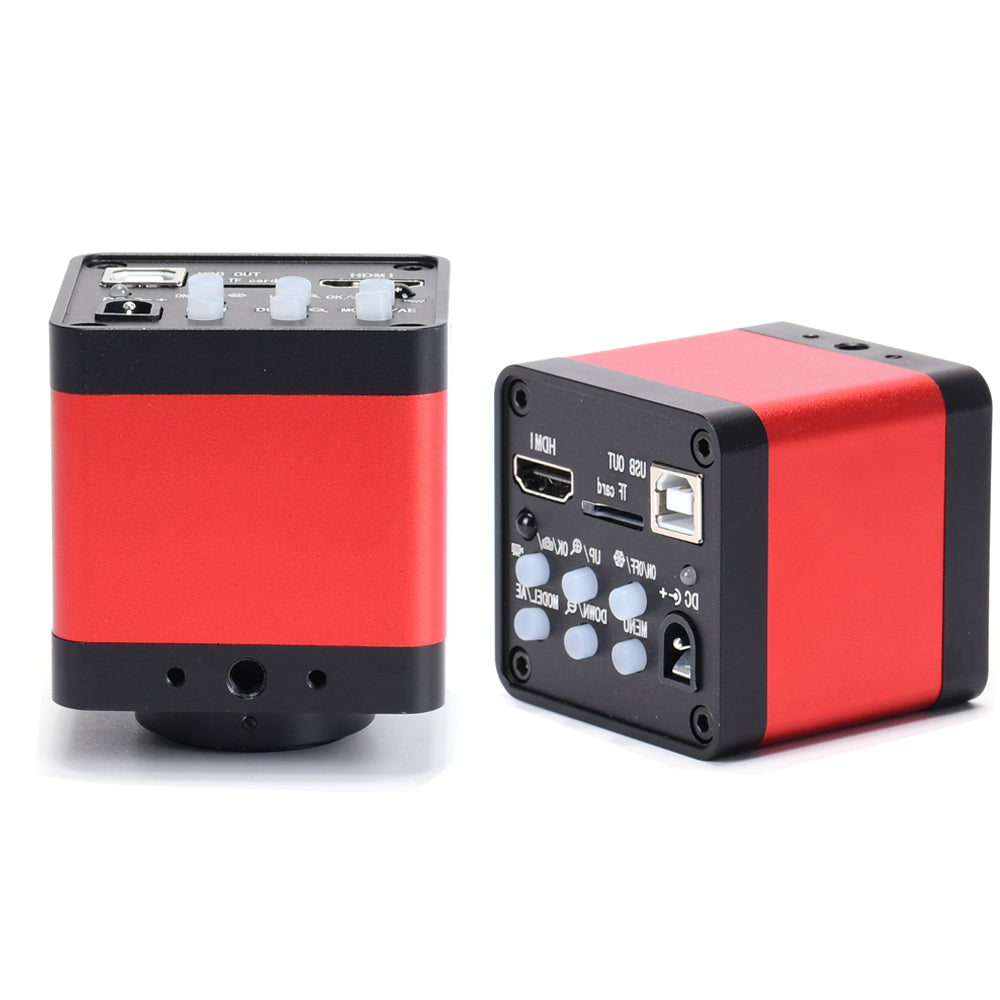

Image sensor:20 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 20 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL High Definition
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: Direct Current 12V


Camera Appearance Color: Red

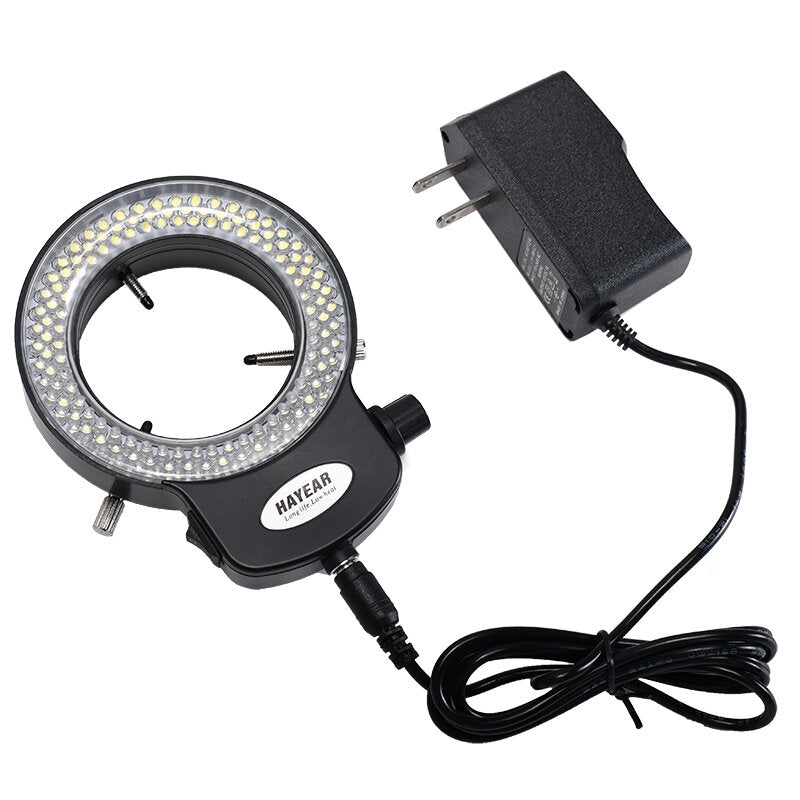

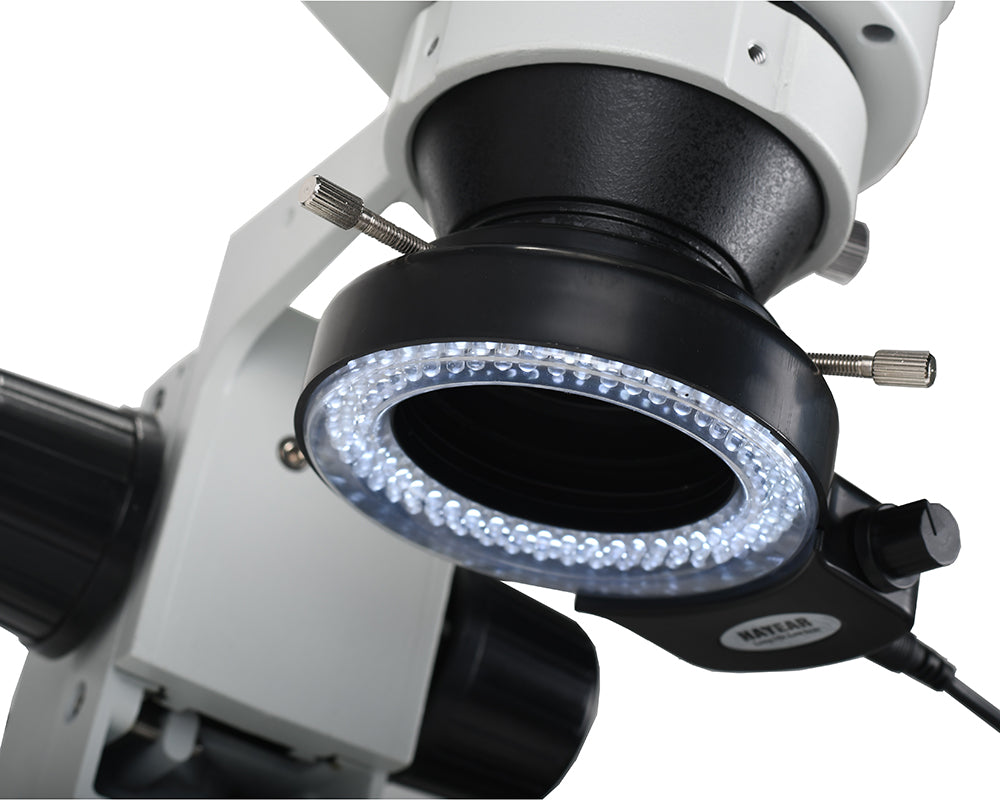

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

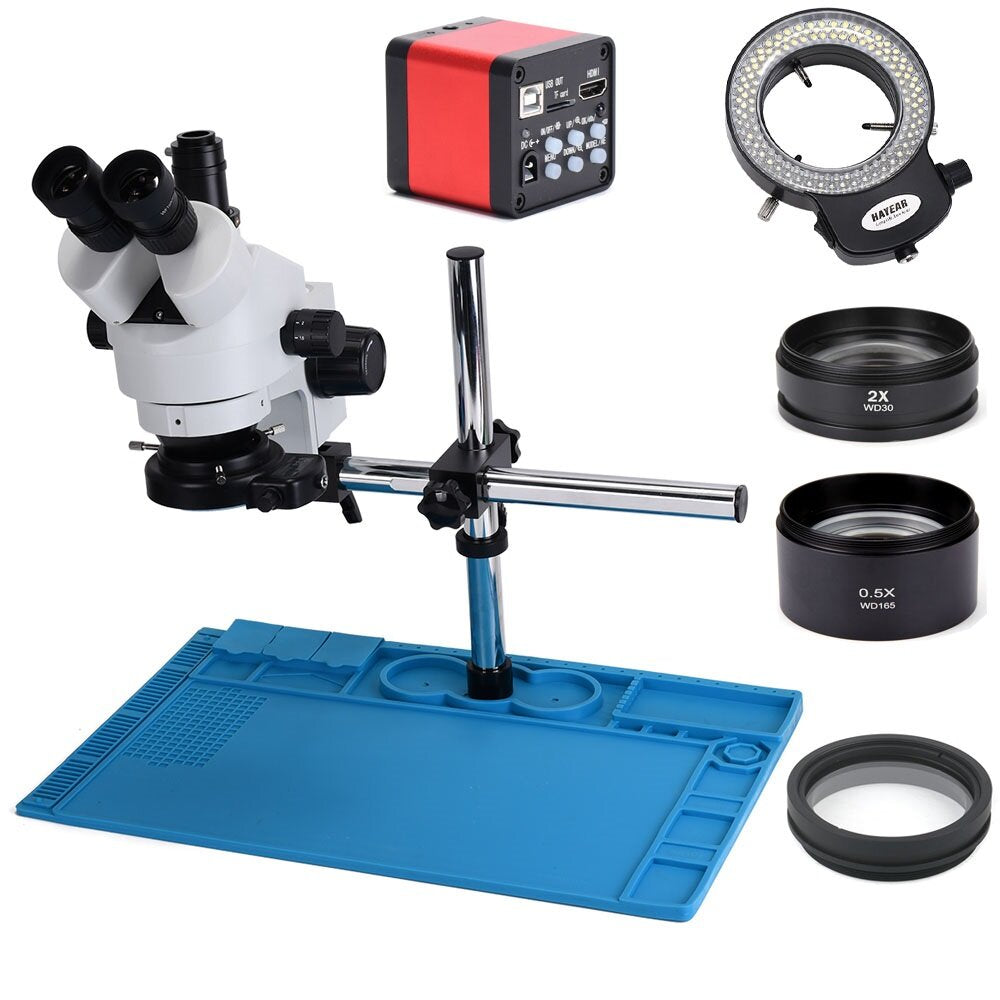

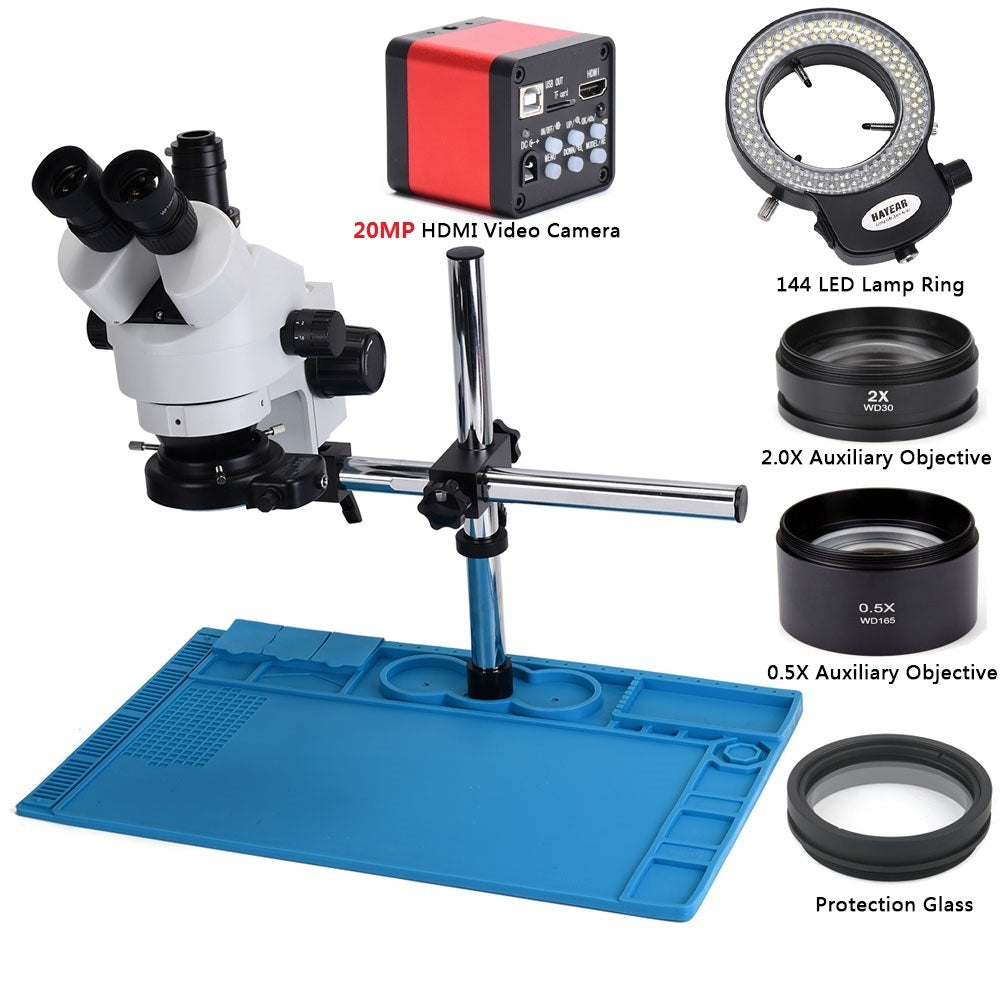

Package Including:

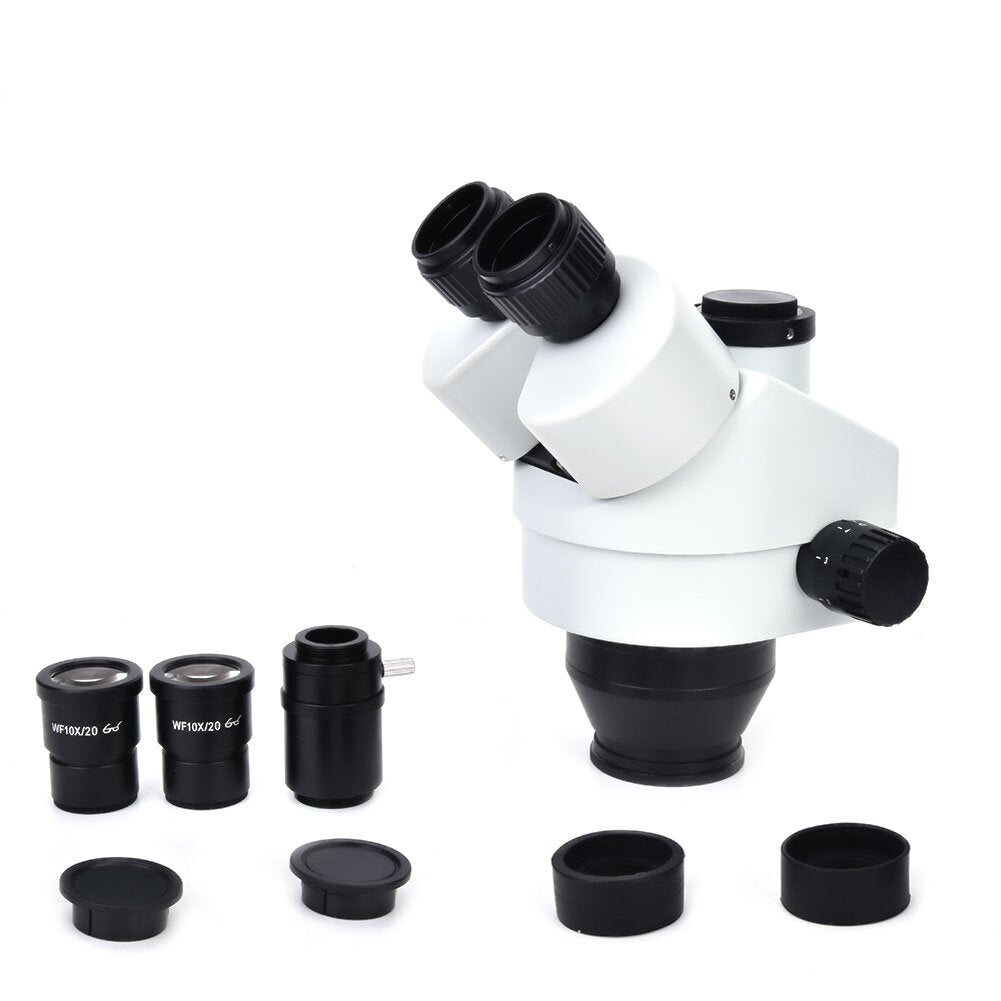

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x 144-LED Ring Light

1 x  Microscope Bracket

1 x Focusing Rack

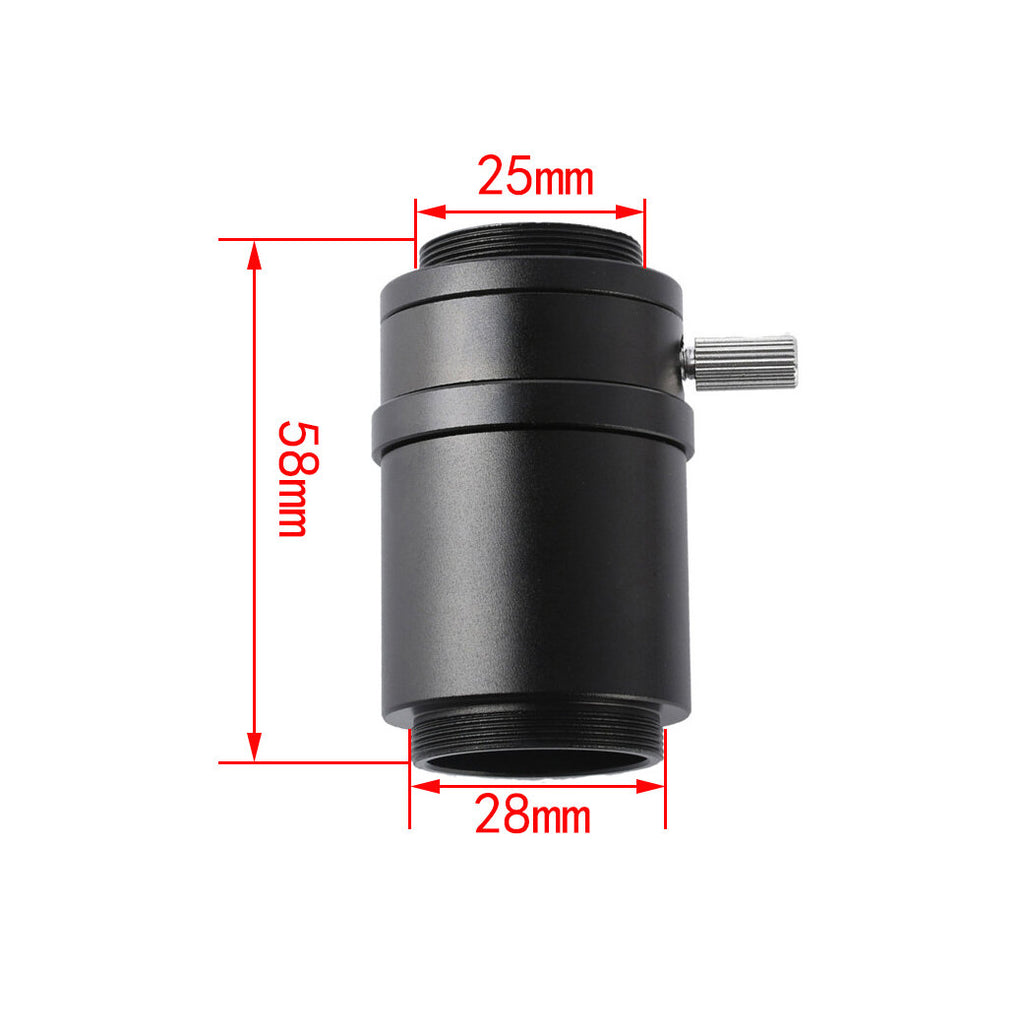

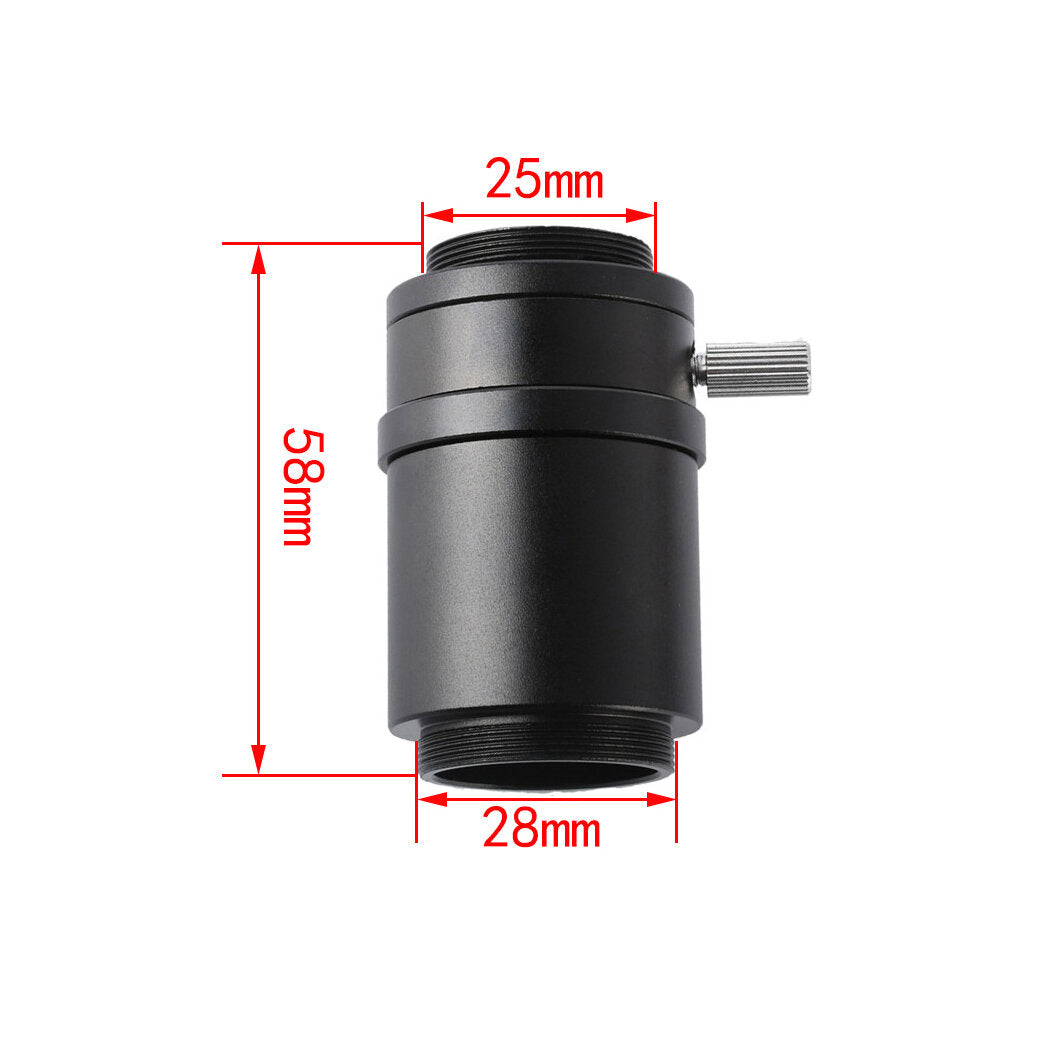

1 x C-mount Adapter

1 x Pair of Eye-Guards

1 x Dust Cover

1 x HDMI Video Camera(20.0MP)

1 x Power Supply Adapter

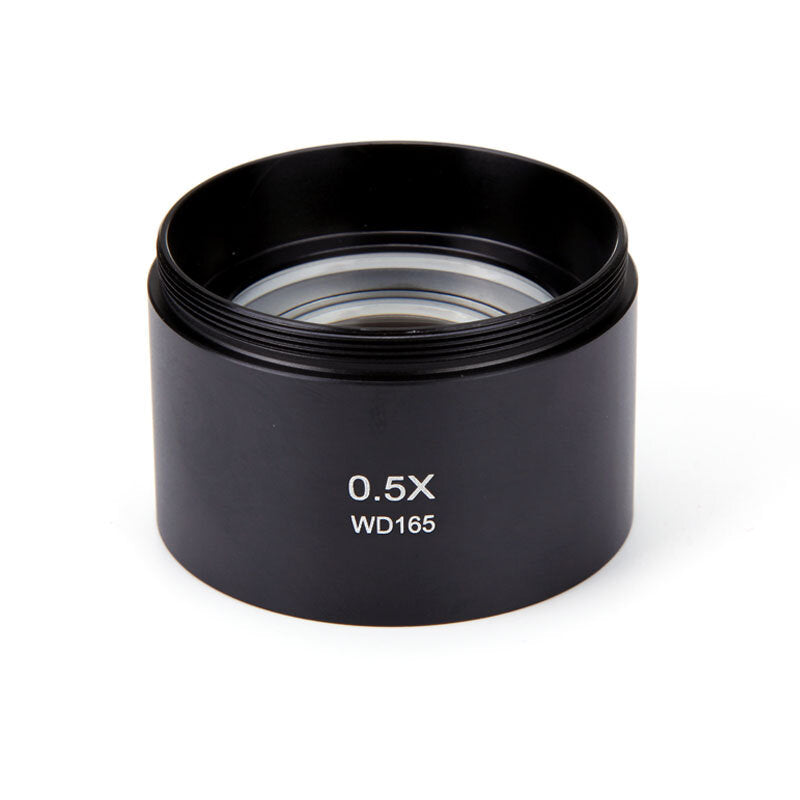

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)

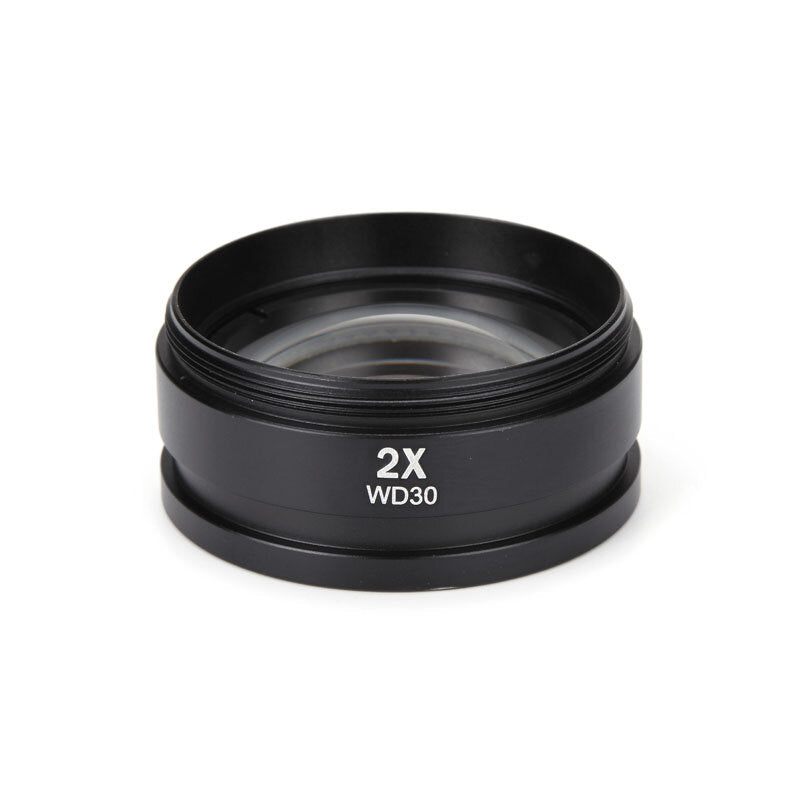

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

1 x High Temperature Resistant Working Pad
