by BG7TBL WB-SG2 1Hz 6G 4.4G 9.5G 15G 18G 20G signal source generator power adjustment broadband

Type:WB-SG2-4.4G/WB-SG2-8G/WB-SG2-6.4G/WB-SG2-9.5G/WB-SG2-15G/WB-SG2-20G

overview:1Hz-4.4G/8G/6.4G/9.5G/15GHz/20GHz,wide band output,OCXO inside,

support extern connectfrequency stanard

,

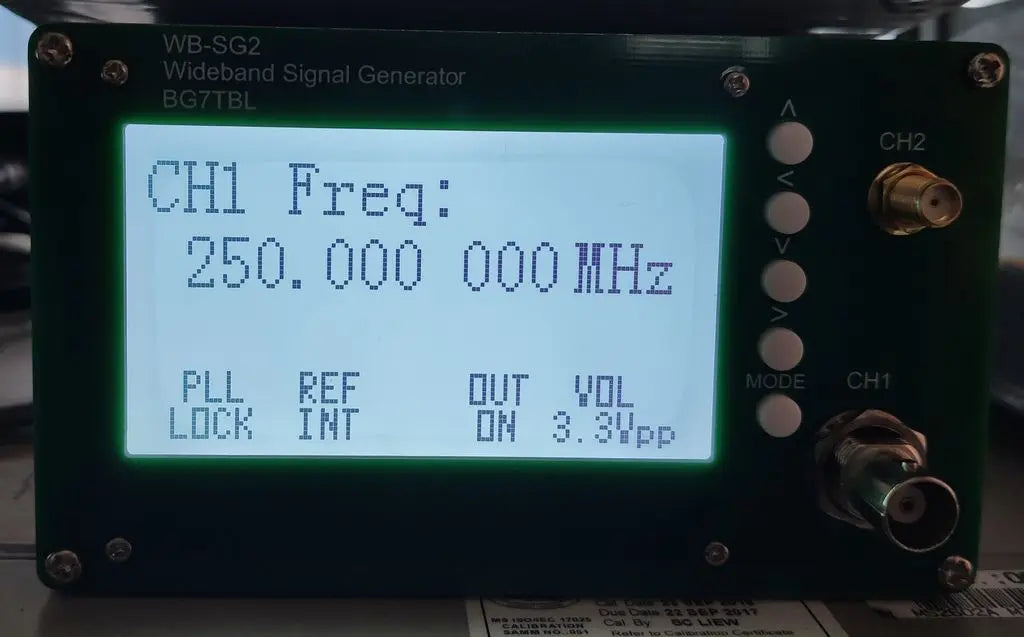

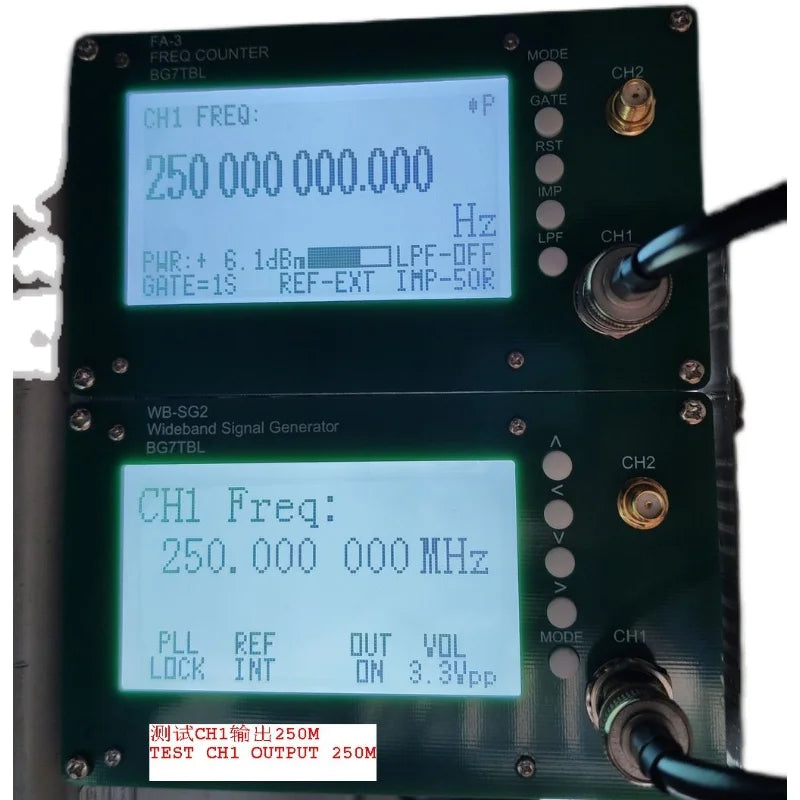

CH1 frequency range:1Hz-250MHz

CH1 step:1Hz-19.999999MHz/1Hz,20MHz-2500MHz/10Hz

CH 2 output amplifiler:3.3Vpp

CH1 plug type:BNC

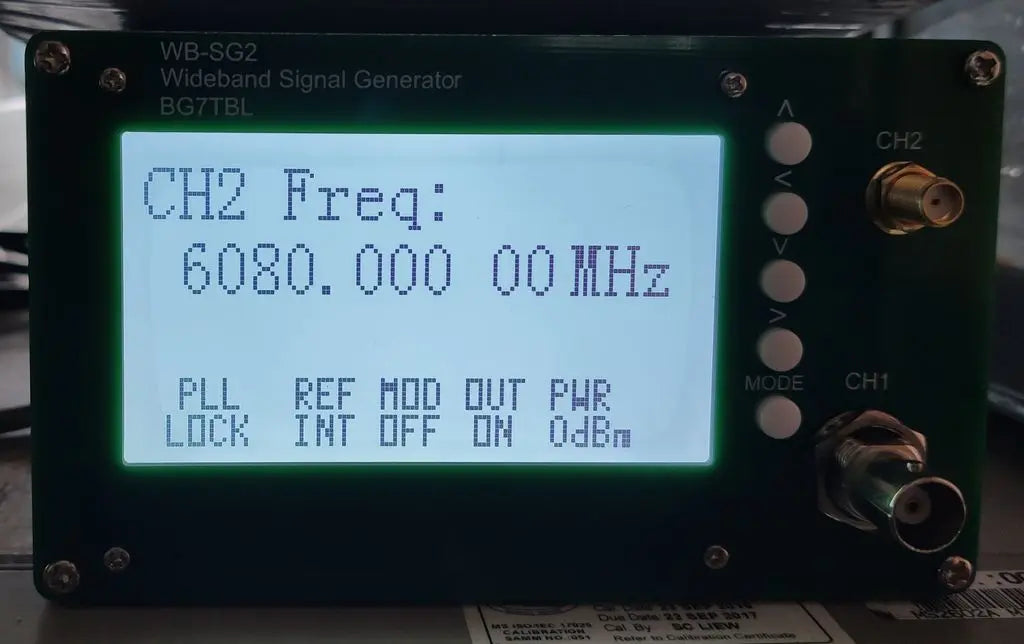

CH2 frequency range:

WB-SG1-4.4G:9K-4.4G

WB-SG1-8G:35M-8G

WB-SG1-6.4G:13M-6.4G

WB-SG1-9.5G:20M-9.5G

WB-SG1-15G:10MHz-15GHz

WB-SG1-20G:10M-20GHz,

CH2 output impedance:50 OHM

CH2 plug type:SMA

inside frequency stadnard:10MHz

inside frequency stadnard type:OCXO

inside frequency stadnard ageing:0.5Hz/year

10M frequency output power:5dBm

extern frequency input range:0dBmto +20dBm

LCD:3.2INCH,128*64

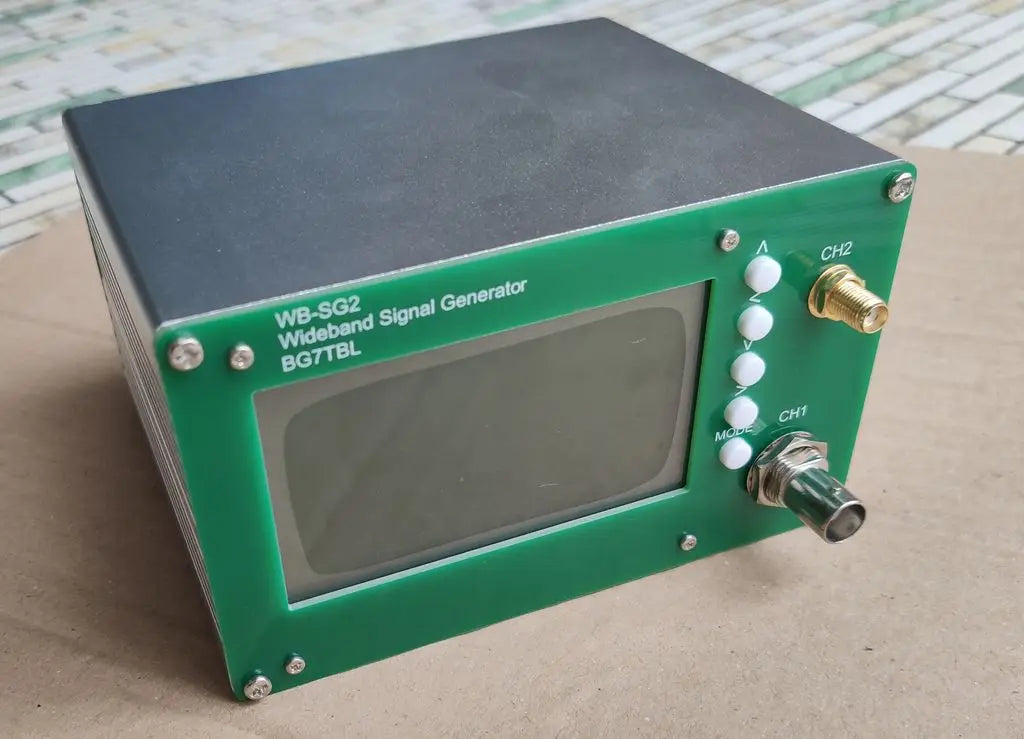

Front panel:MODE,change mode

<>^V:left/right/up/down key

CH1:channel 1output

CH2:channel 2output

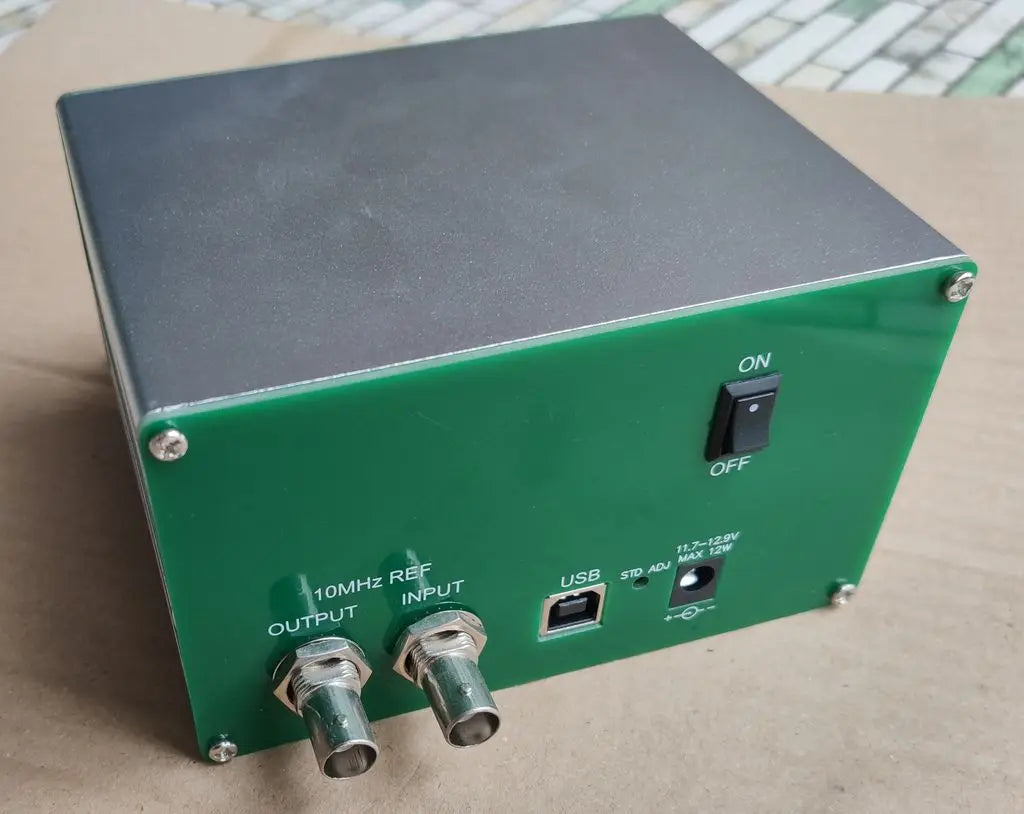

rear panel:10M REF INPUT:extern 10M input

10M REF OUTPU:10M output

USB:USB port

STD ADJ:inside OCXO frequency adjust

power switch

dc plug

power :DC11.7-12.5V,star:less than 0.5A,stabilize:less than 0.25A

size:L*H*D=127*75*135mm

weight:450g

accessory: DC12V adapter 1pcs
