WB-SG1 1Hz-8GHz Broadband Signal Source Signal Generator Band on-off Modulation
Type:WB-SG1
CH1 frequency range：1Hz-200MHz
CH1step:1Hz-19.999999MHz/1Hz,
20MHz-200MHz/10Hz
CH2output amplifiler:3.3Vpp
CH1 plug type:BNC
CH2 frequency range：35MHz8GHz
CH2step:35MHz-4G/0.5KHz,
4G-8G/1KHz
CH2output impedance:50 OHM
CH2 plug type:SMA
inside frequency stadnard:10MHz
inside frequency stadnard type:OCXO
inside frequency stadnard ageing:0.5Hz/year
10M frequency output power:5dBm
extern frequency input range:0dBm to +20dBm
run mode:CH1 frequency mode
CH2 frequency mode
CH1sweep mode
CH2 sweep mode

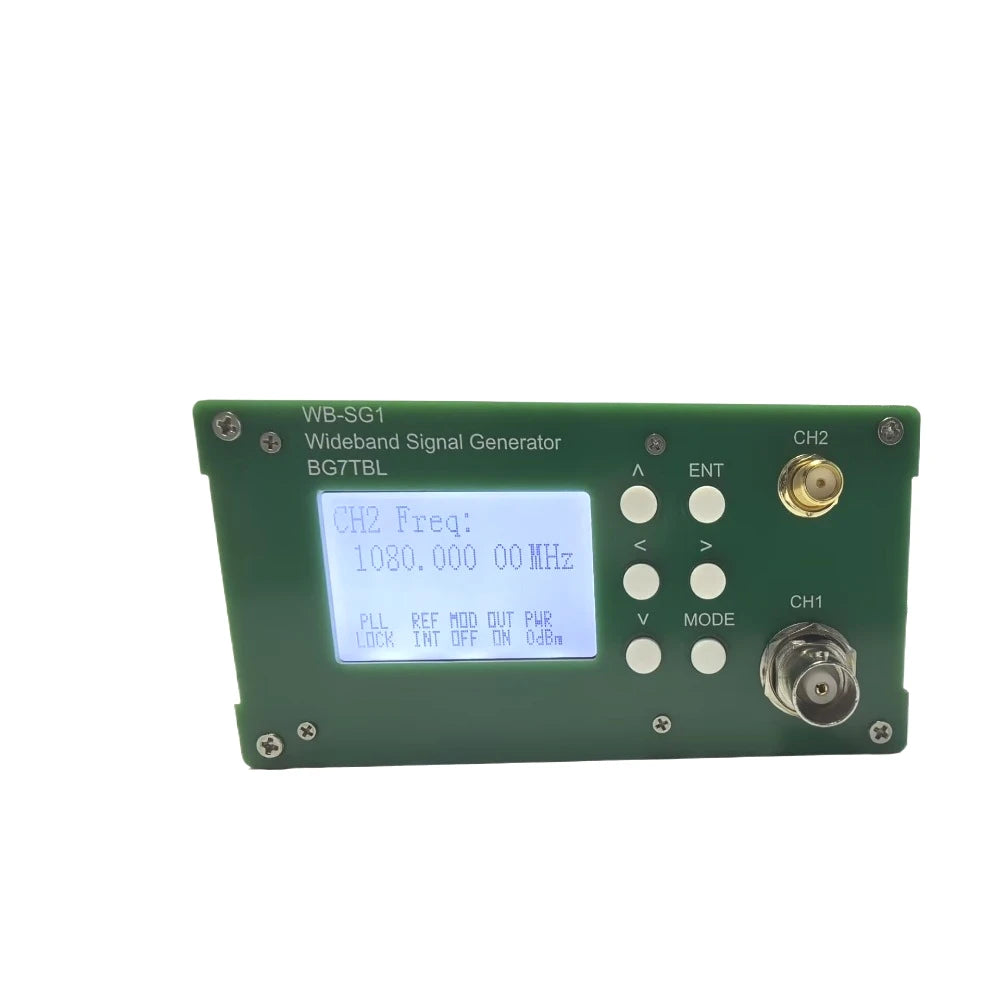

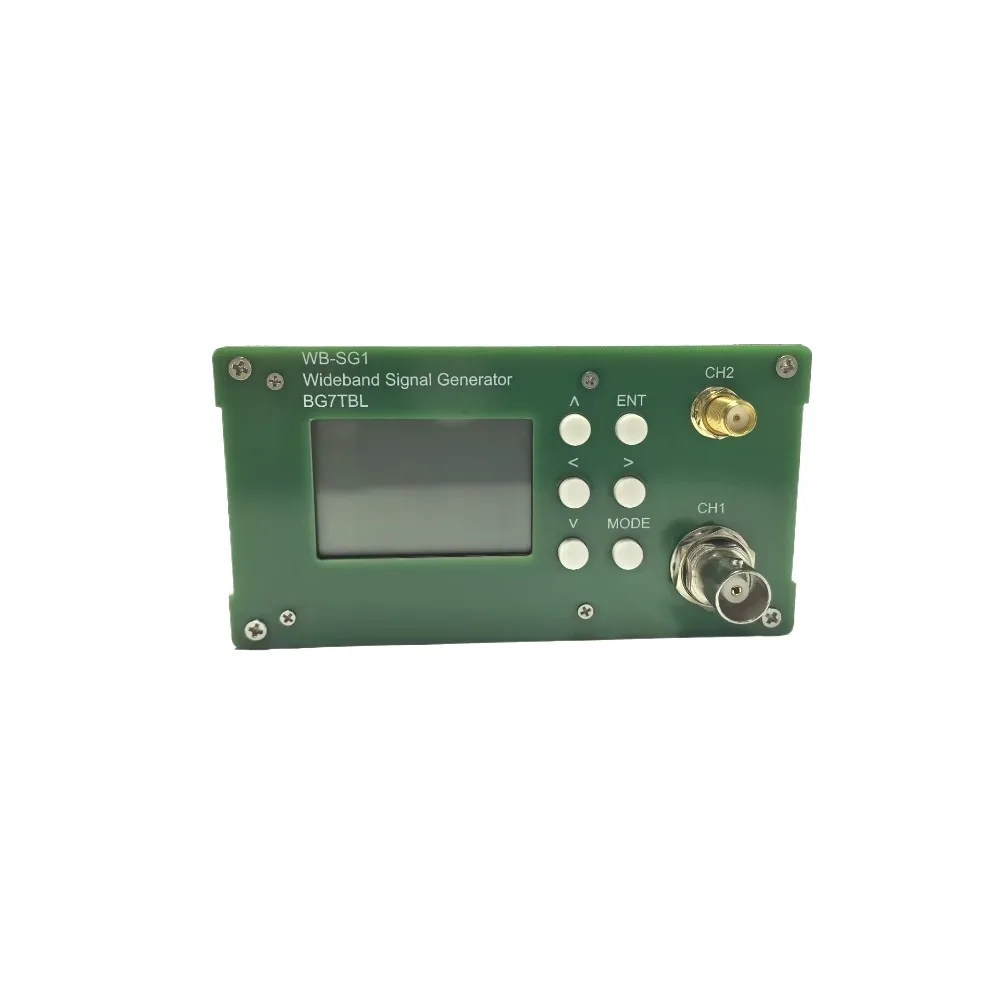

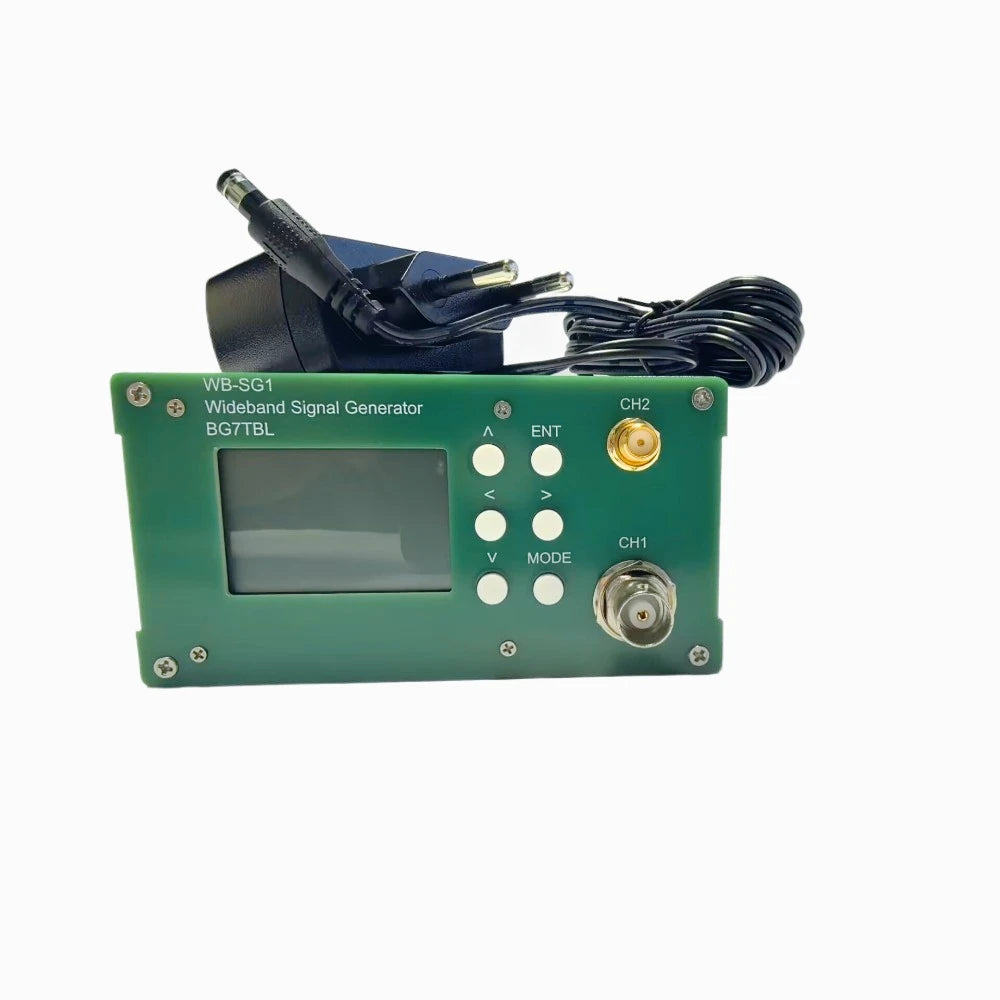

front panel:MODE,change mode
ENT:input data
left right key
CH1:channel 1 output
CH2:channel 2 output

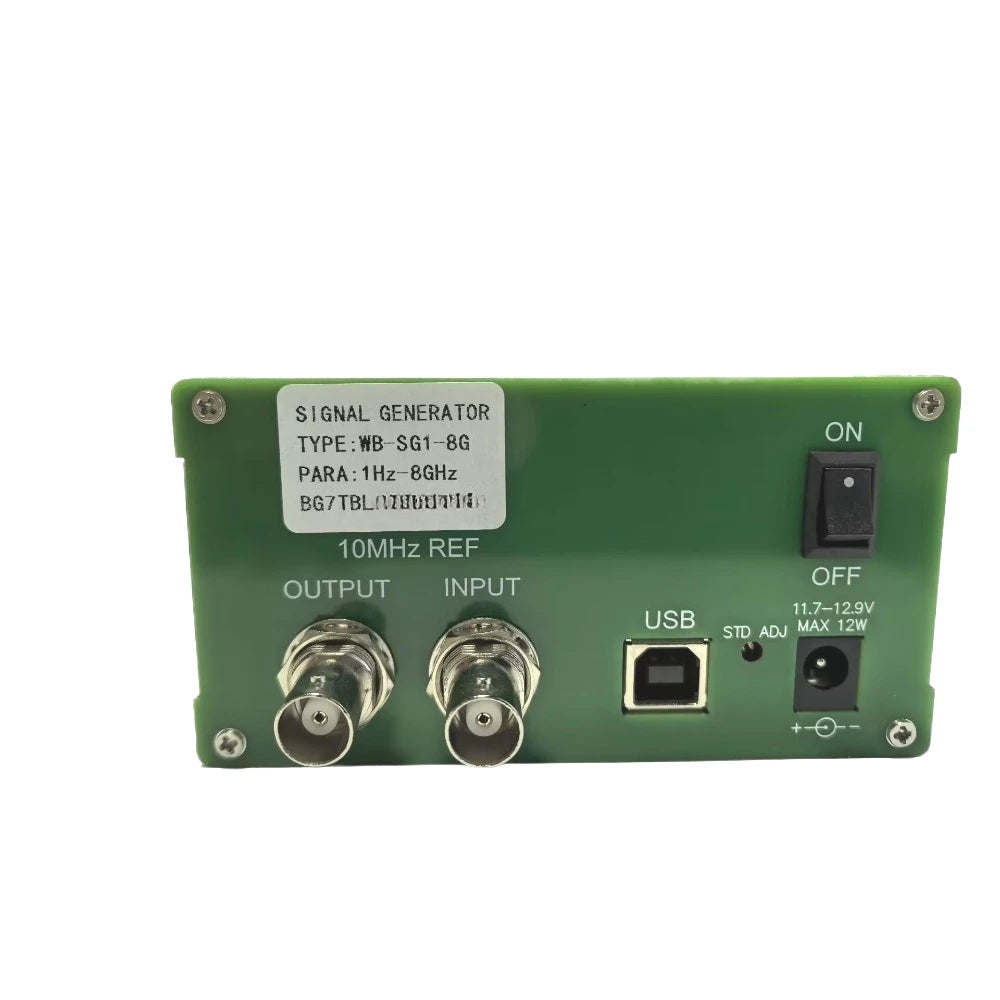

rear panel:10M REF INPUT:extern 10M input
10M REF OUTPU:10M output
USB:USB port
STD ADJ:inside OCXO frequency adjust
power switch
dc plug
power : DC11.7-12.5V,star:less than 0.5A,stabilize:less than 0.25A

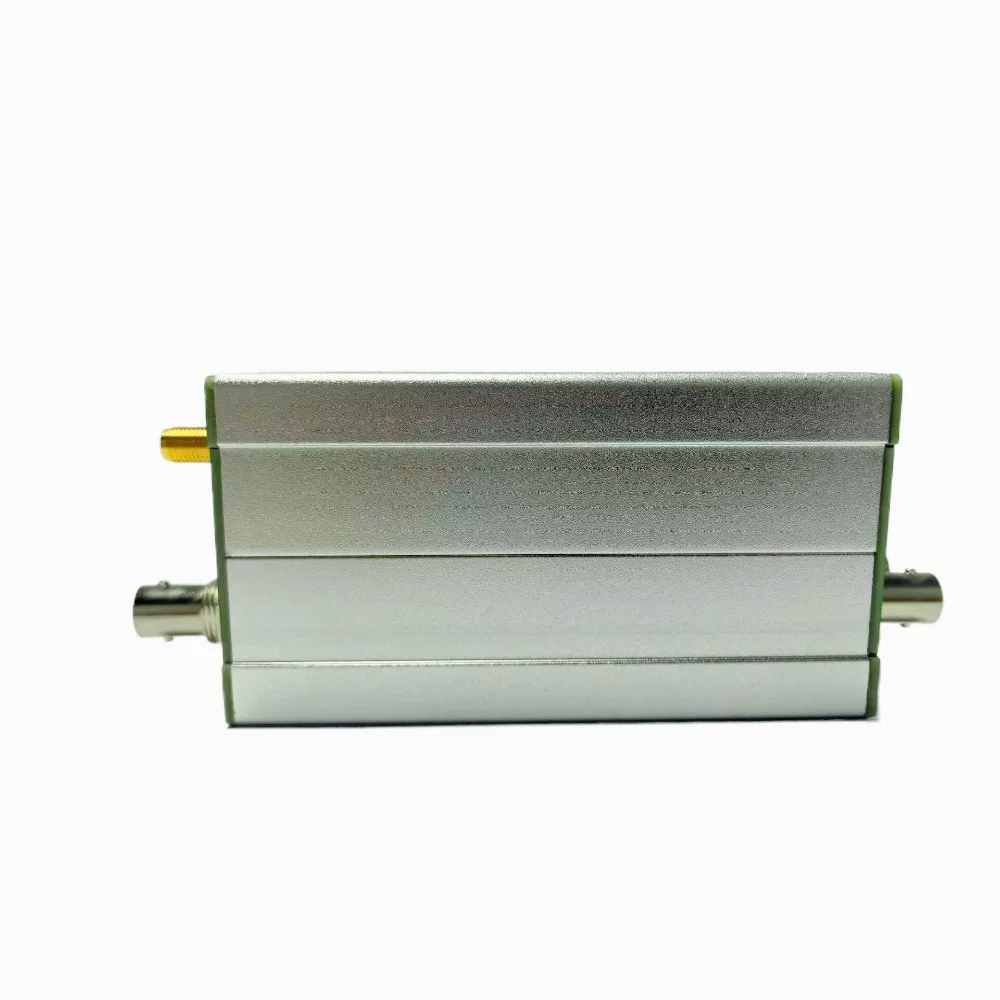

size:L*H*D=106*55*105mm
weight:350g

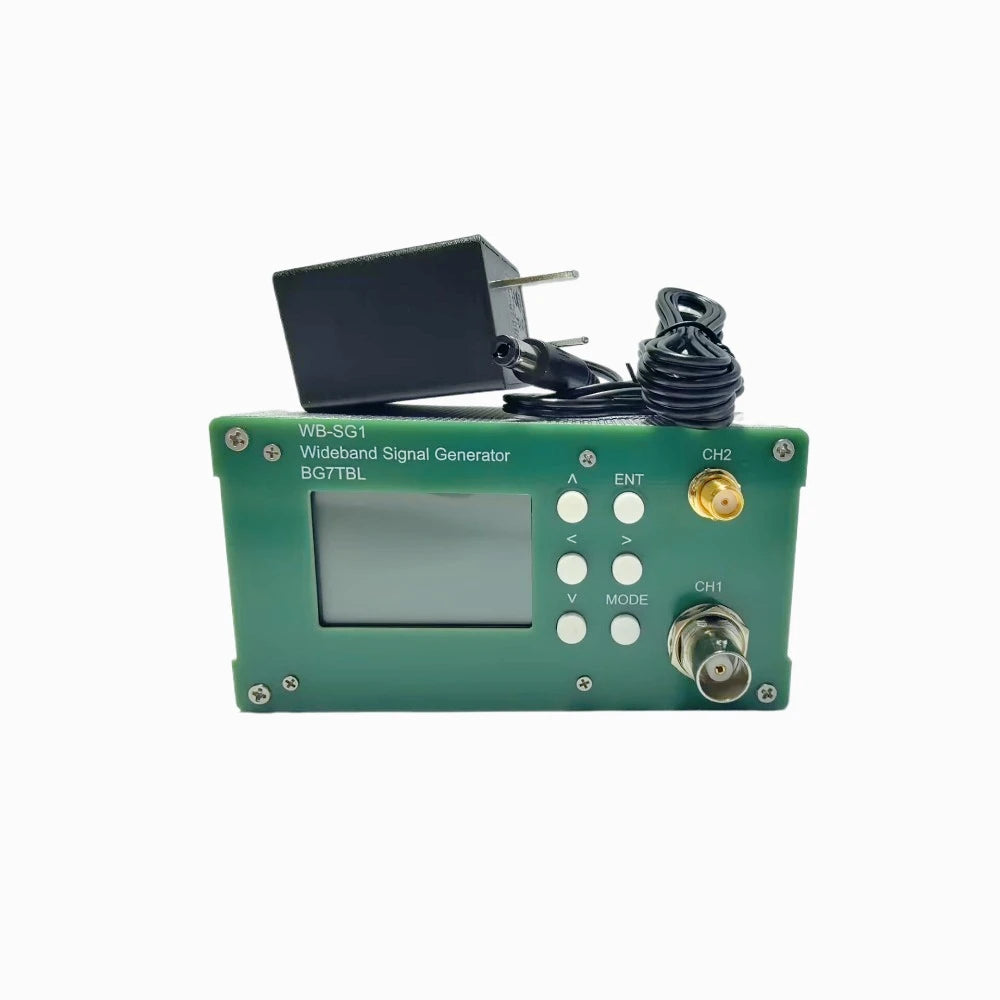

accessory: DC 12V adapter 1pcs
