by BG7TBL RB-10M 10MHz Rubidium Frequency Standard High Precision Atomic Clock 24V Power Supply 3-Channel Sine Wave
by BG7TBL RB-10M 10MHz Rubidium Frequency Standard High Precision Atomic Clock 24V Power Supply 3-Channel Sine Wave
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /03/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification:
- Product name: 10M Rubidium frequency standard
- Model: RB-10M
- Built in IPRO-101 or compact rubidium clock
- Power supply: DC23.5 - 24.5V, ≤40W
- 10M output wave
- 3 channel sine wave
- Range: 12dBm +/-2dB
- Frequency adjust range: about 0.05Hz

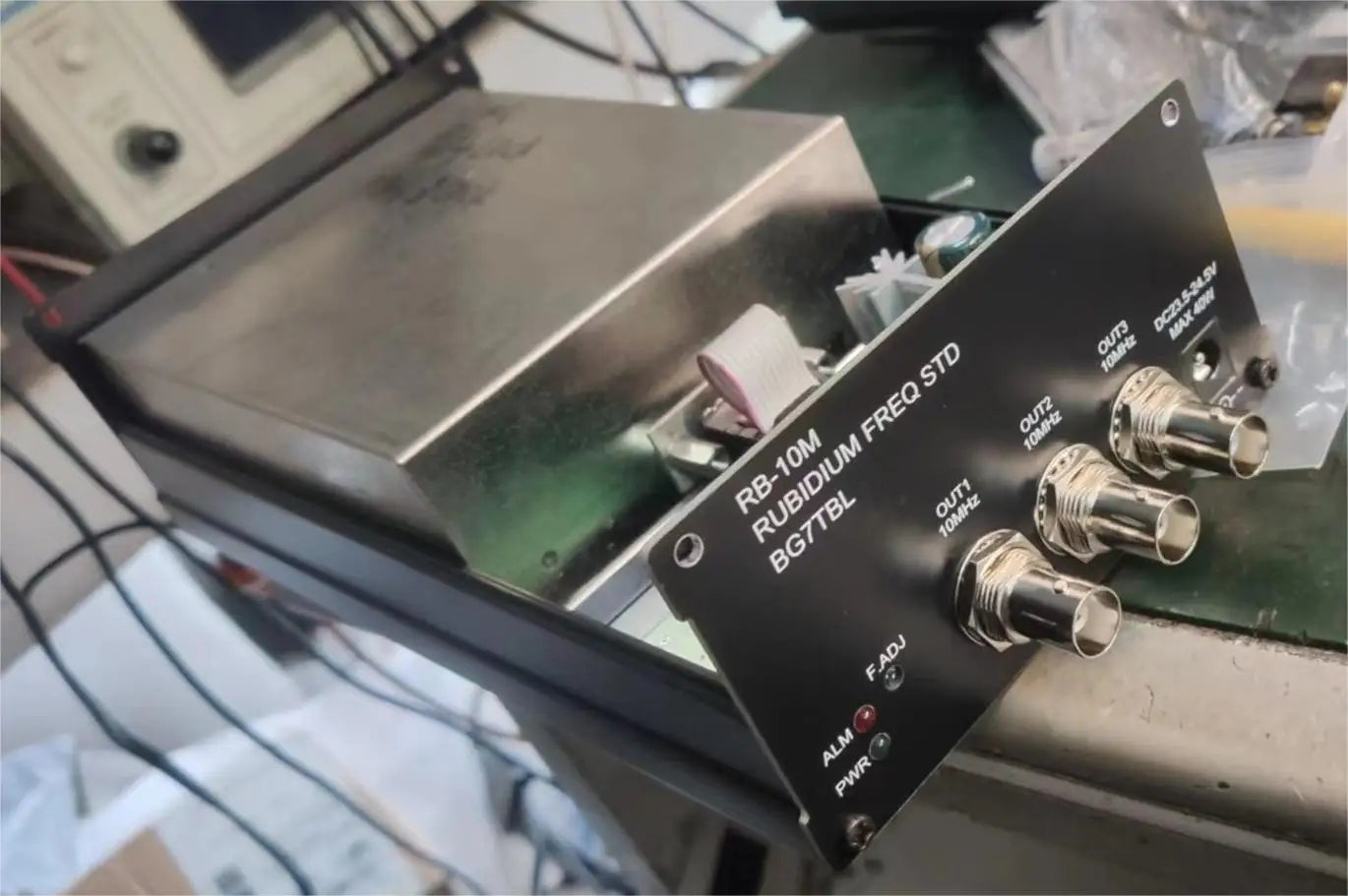

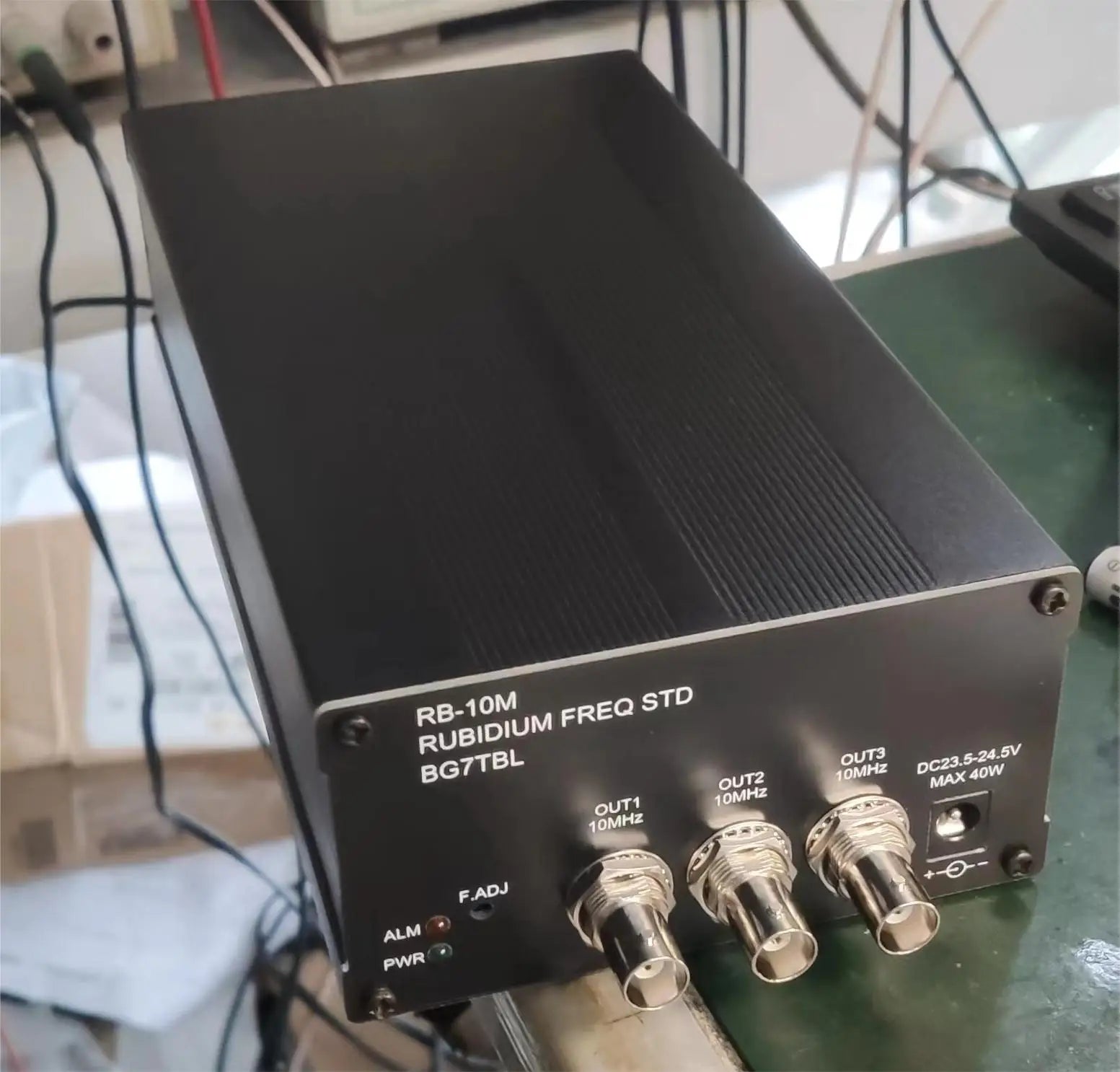

- Output interface: power supply 5.5/2.1 socket, signal output: BNC
- Indicator:
ALM: light on without locking the rubidium
PWR: light on when power on
- Size: 107 x 55 x 225mm(include the BNC connector)
- Weight: 2.5kg
Package Included:
- 1 x Host
- 1 x AC110-220/DC24V Transformer
