RAT2 9K-6G 0-63.5dB Two-Channel Digital RF Attenuator
|
|
|
|
Specifications:
- RAT2 2-channel 0-63.5dB digital attenuator
- Model: RAT2
- Frequency range: 9K-6G
- Input/output impedance: 50 ohms
- Input power: continuous wave maximum 25dBm

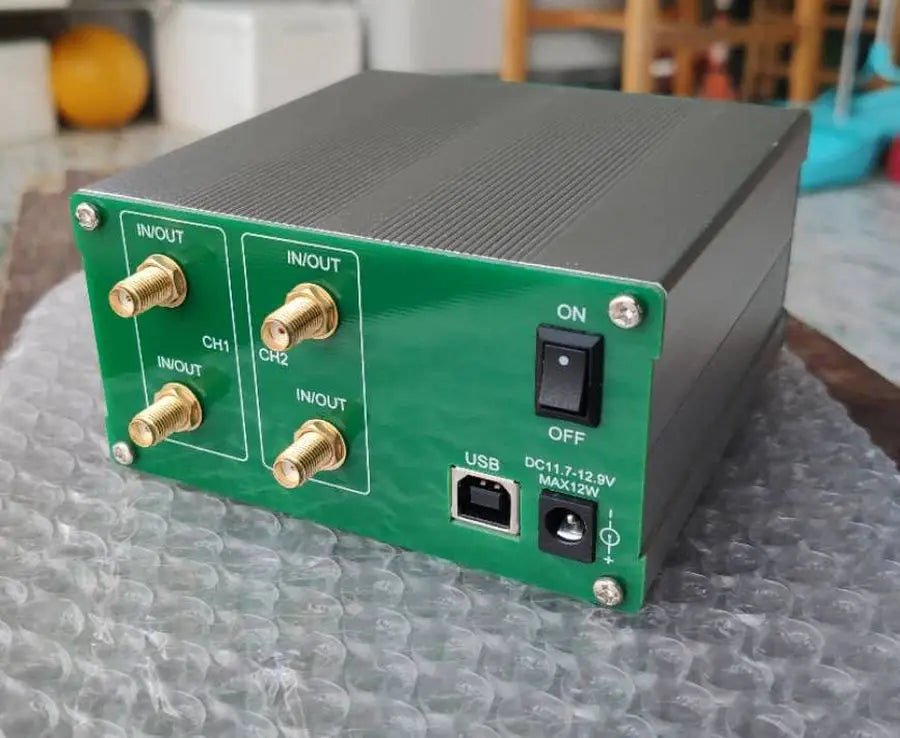

- Interface mode: SMA, USB printer port
- Insertion loss: 1G/3dB
- Isolation: better than 50dB
- Power supply: 11.7-12.5V/2w
- Dimensions: 106*55*120mm (LxHxD)
- Weight: 450g

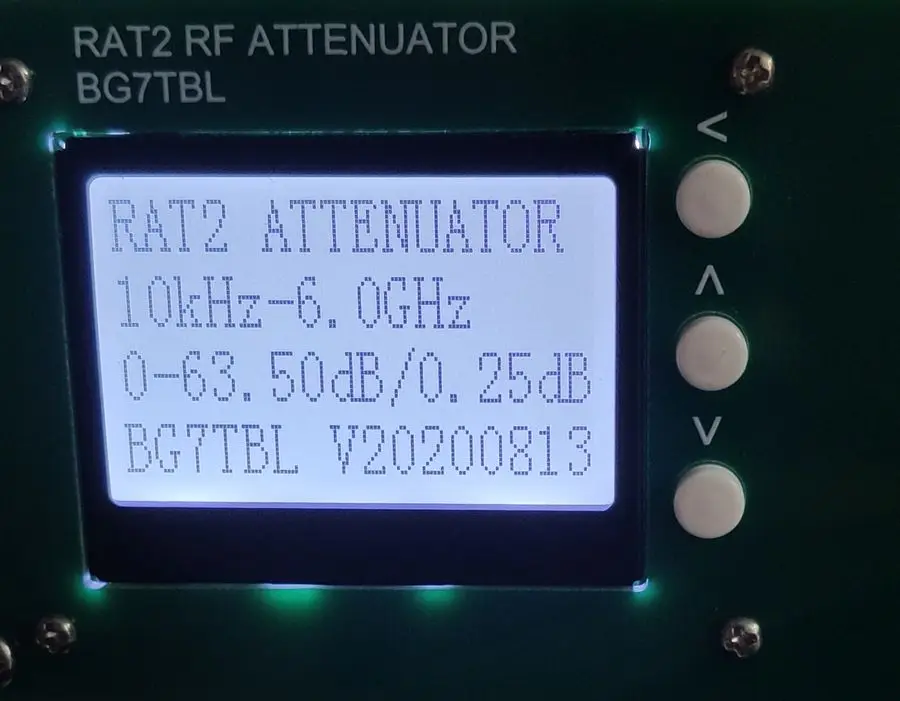

Front Panel Buttons:
<: select the location to operate
∧∨: Digital addition and subtraction or function switching

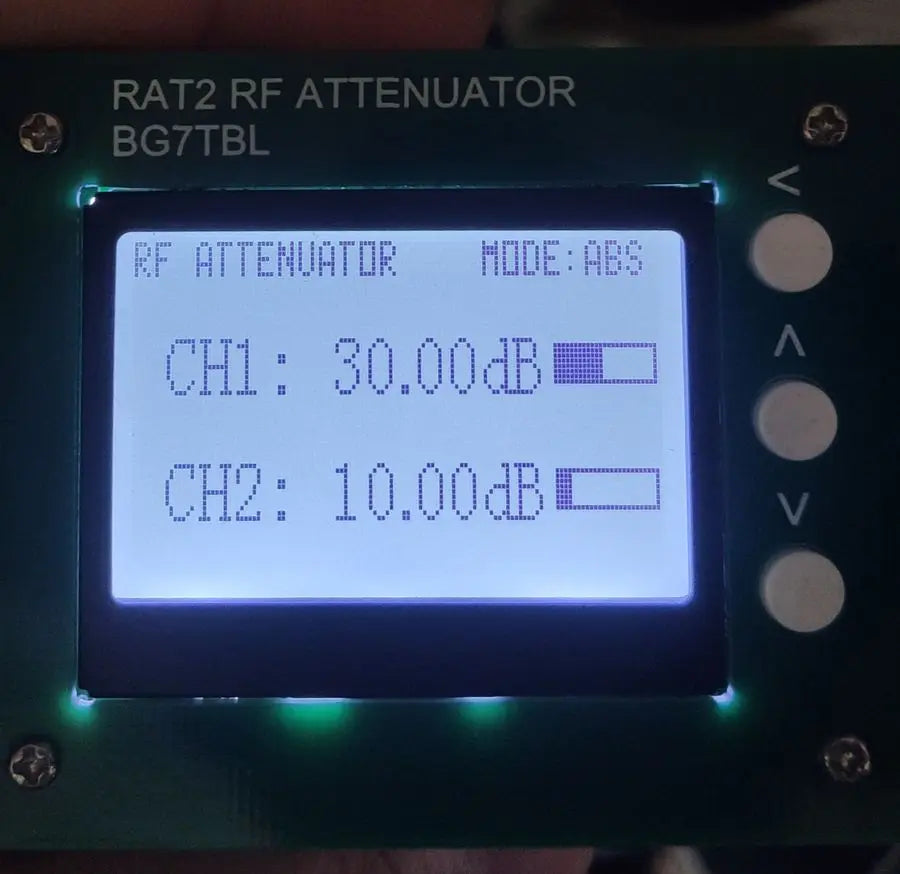

Operating Modes:
- ABS: Actual mode, displaying the actual attenuation value of the attenuator.
- REL: Relative mode, showing the relative value of the attenuator.
- TRK: Tracking mode. The two channels have the same attenuation value.
Communications:
- 9600BPS, $SAT XXXX XXXX*, XXXX attenuator value, unit 0.01dB
Package Included:
- 1 x Set of RF Attenuator

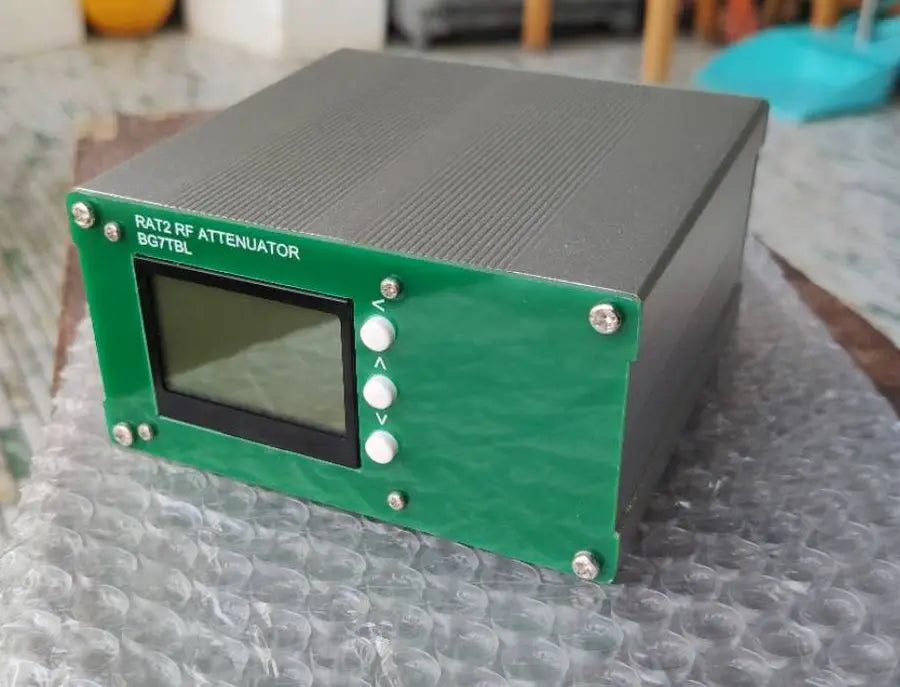

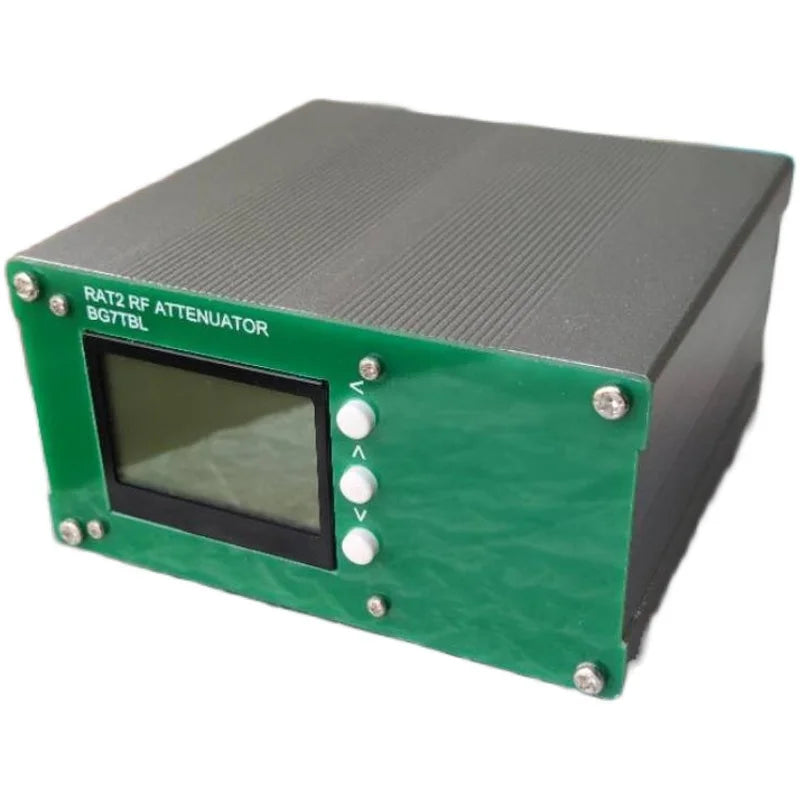

Detail photo
