By BG7TBL FOS-3 OCXO Frequency Standard 44.1K 48K 2-Channel Word Clock with Black Or Green Panel Support Extern RB For Rubidium
By BG7TBL FOS-3 OCXO Frequency Standard 44.1K 48K 2-Channel Word Clock with Black Or Green Panel Support Extern RB For Rubidium
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
overview
44.1k 48k,2 channel word clock,OCXO inside,support extern rb clock input
character

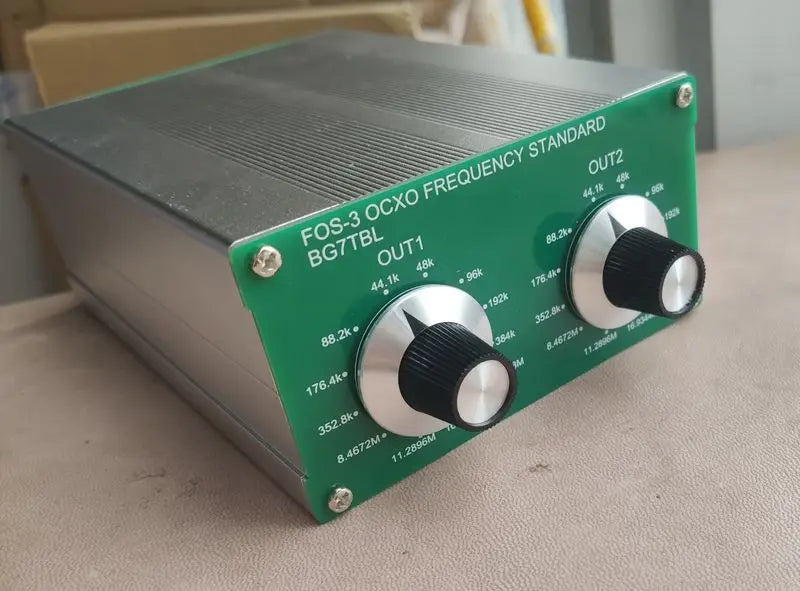

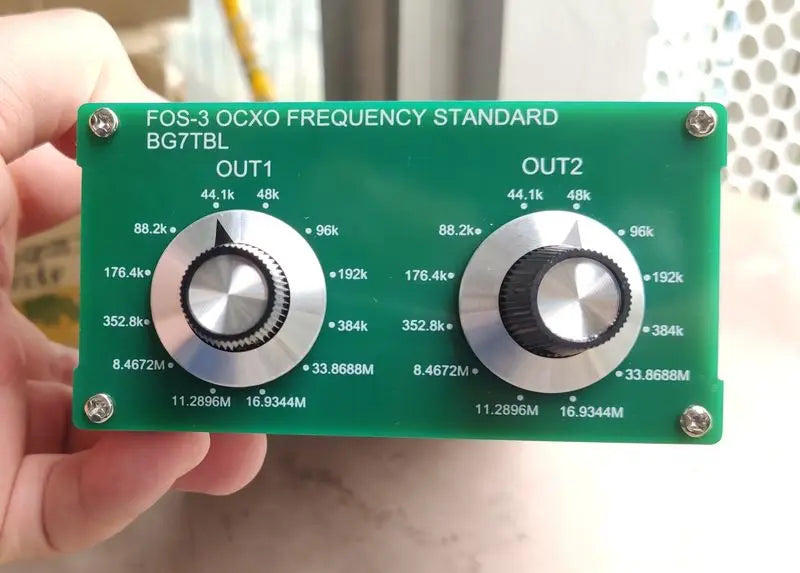

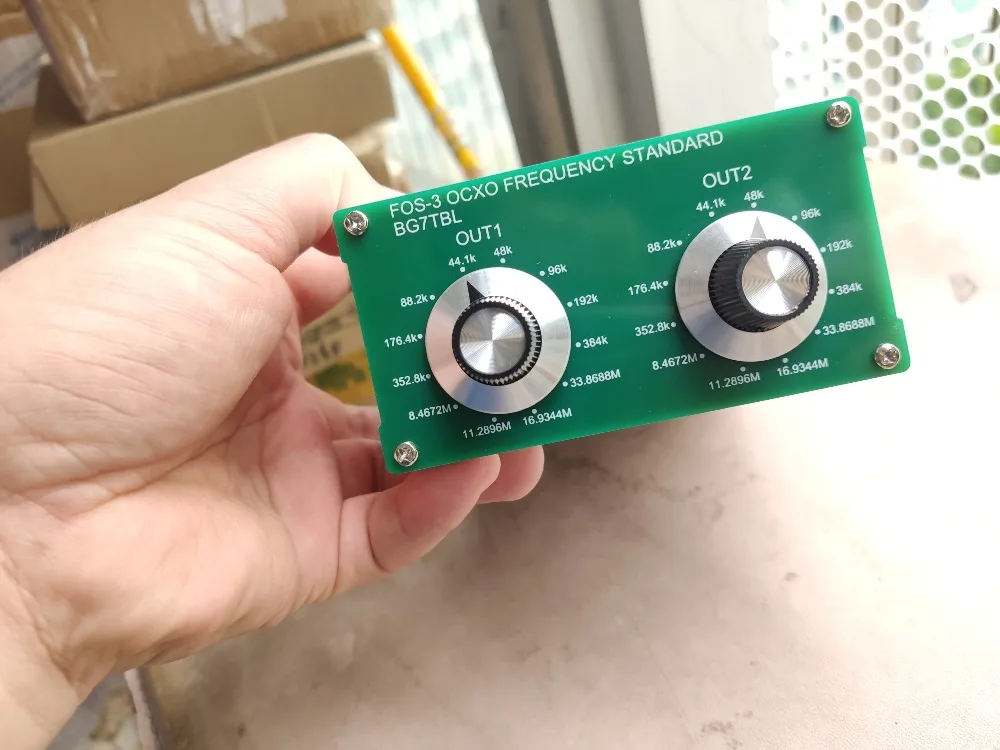

two channels of adjustable output, use the knob to select the output frequency;

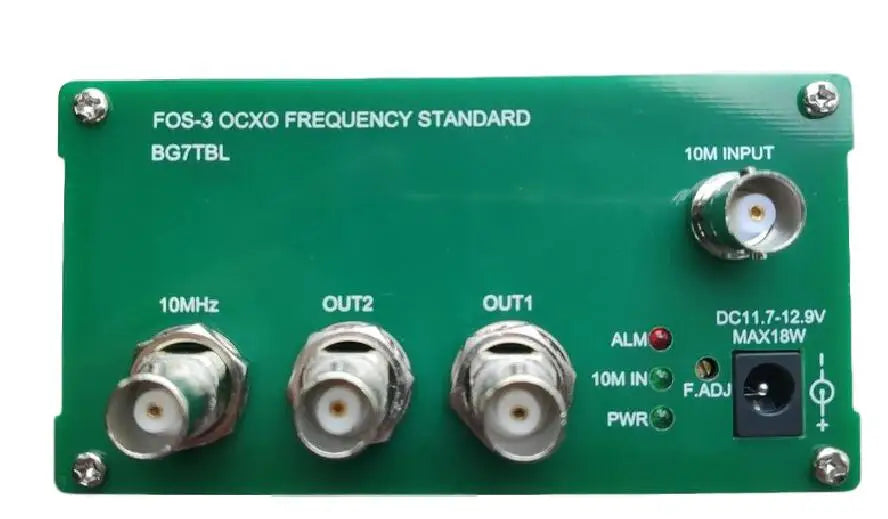

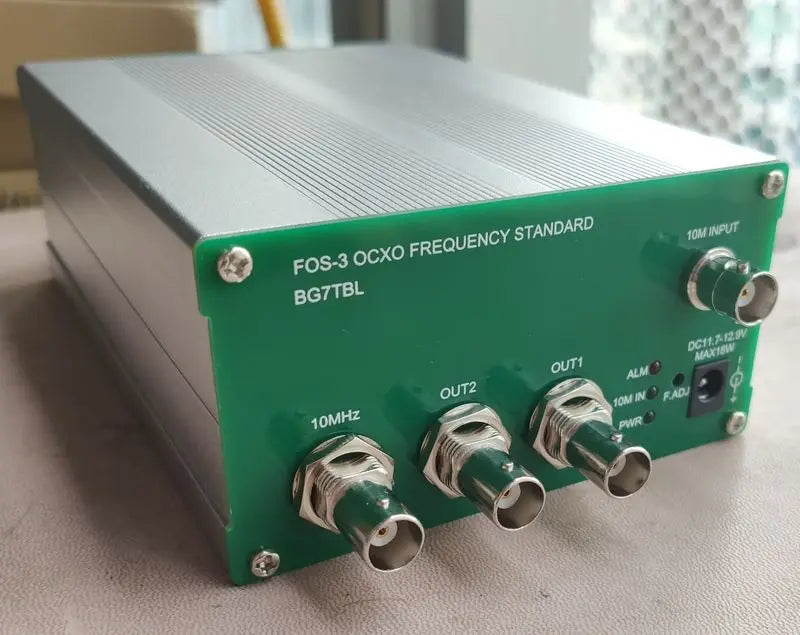

One channel of 10m output, output standard 10m signal;
One channel of 10m input, which can be connected with precise signals, such as rubidium clock;

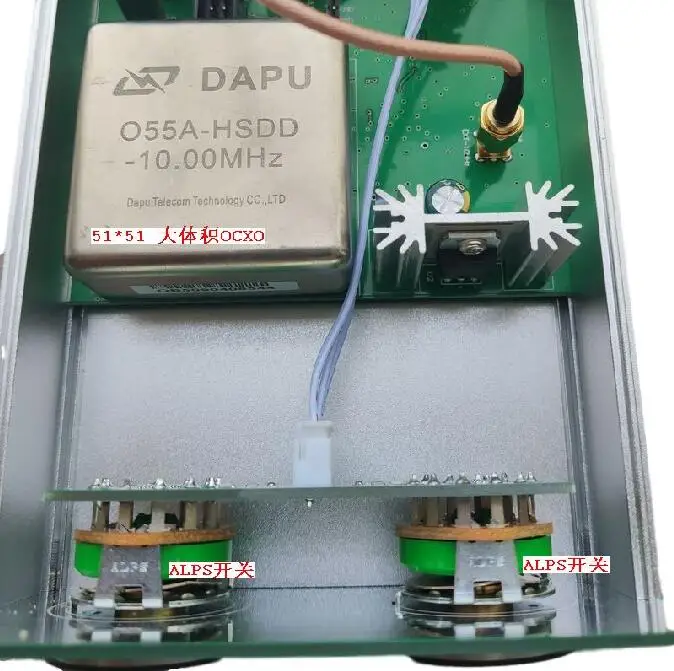

With large volume OCXO, the noise is lower and more stable;
Using ALPS knob, the operation is smooth and durable;
Single 12V power supply, convenient power supply, low power consumption;
specification
Type:FOS-3
Power:DC11.7-12.9V,MAX:12W
Output frequnecy：OUT1 frequency：44.1k-88.2k-176.4k-352.8k-
48k-96k-192k-384k-
8.4672M-11.2896M-16.9344M-33.8688M
OUT2 frequency：44.1k-88.2k-176.4k-352.8k-
48k-96k-192k-384k-
8.4672M-11.2896M-16.9344M-33.8688M
10MHz output frequency：10MHz
Output wave：Three channels are 3.3Vpp square wave (5Vpp square wave is optional, Purchase tagging)
Output impedance: compatible with 50 Ω and 75 Ω at the same time
Frequency selection mode: 12 gear dial
Input:10M,0.1Vpp-5Vpp，sine or squware wave
LED: PWR:power up led all on,turn to 44.1k, led flash once
EXT 10M:extern 10M input
ALM:flash,frequency is unlock,can not used
Accessory:AC110-220V-DC12V /1.0A
Size:W*H*L=106*55*200 （include BNC connect）
Weight:0.75kg(net weight),0.9kg(include adapter,package)
FAQ.
A:what is this
Q:output a accuary frequency for audio system.
A: any application
Q:Provide a reference for sound equipment,
use sound smoothly, enhance details, and make the background more peaceful
A: What's the use of three LED
Q:PWR:power on ,led on,check power is up,
No matter which output is turned to 44.1k, the light will flash once.
It is used to calibrate the dial
EXT 10M:if input extern 10MHz,this LED on.
ERROR:all on:flash,frequency is unlock,can not used
A:what is F,ADJ ,any used.
Q:adjust inside OCXO frequency.
Q,What's the usage of 10M input and output?
A:10M input, can connected with 10M extern precise standard or synchronizing external 10m signals.
10M output, output internal OCXO frequency, if used external 10M ,output extern 10M signal，
and can be used by multiple machines in cascade。
Description
Description
overview
44.1k 48k,2 channel word clock,OCXO inside,support extern rb clock input
character
two channels of adjustable output, use the knob to select the output frequency;
One channel of 10m output, output standard 10m signal;
One channel of 10m input, which can be connected with precise signals, such as rubidium clock;
With large volume OCXO, the noise is lower and more stable;
Using ALPS knob, the operation is smooth and durable;
Single 12V power supply, convenient power supply, low power consumption;
specification
Type:FOS-3
Power:DC11.7-12.9V,MAX:12W
Output frequnecy：OUT1 frequency：44.1k-88.2k-176.4k-352.8k-
48k-96k-192k-384k-
8.4672M-11.2896M-16.9344M-33.8688M
OUT2 frequency：44.1k-88.2k-176.4k-352.8k-
48k-96k-192k-384k-
8.4672M-11.2896M-16.9344M-33.8688M
10MHz output frequency：10MHz
Output wave：Three channels are 3.3Vpp square wave (5Vpp square wave is optional, Purchase tagging)
Output impedance: compatible with 50 Ω and 75 Ω at the same time
Frequency selection mode: 12 gear dial
Input:10M,0.1Vpp-5Vpp，sine or squware wave
LED: PWR:power up led all on,turn to 44.1k, led flash once
EXT 10M:extern 10M input
ALM:flash,frequency is unlock,can not used
Accessory:AC110-220V-DC12V /1.0A
Size:W*H*L=106*55*200 （include BNC connect）
Weight:0.75kg(net weight),0.9kg(include adapter,package)
FAQ.
A:what is this
Q:output a accuary frequency for audio system.
A: any application
Q:Provide a reference for sound equipment,
use sound smoothly, enhance details, and make the background more peaceful
A: What's the use of three LED
Q:PWR:power on ,led on,check power is up,
No matter which output is turned to 44.1k, the light will flash once.
It is used to calibrate the dial
EXT 10M:if input extern 10MHz,this LED on.
ERROR:all on:flash,frequency is unlock,can not used
A:what is F,ADJ ,any used.
Q:adjust inside OCXO frequency.
Q,What's the usage of 10M input and output?
A:10M input, can connected with 10M extern precise standard or synchronizing external 10m signals.
10M output, output internal OCXO frequency, if used external 10M ,output extern 10M signal，
and can be used by multiple machines in cascade。
