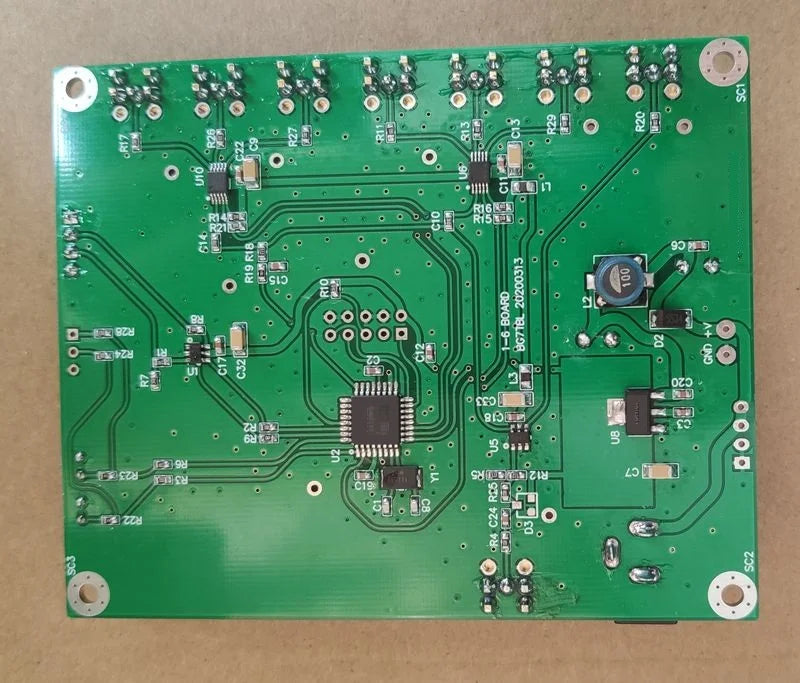

name:10M 6CH PLL BOARD
TYPE:10M-6PLL
input frequency:10MHz
input signal amplifiler:0.5-3.3Vpp,
output:OUT1-OUT6:10K-200M，step 10Hz，3.3Vpp square wave,OUT3 is OUT1/n(n=1,2,3,,,n is integer)，OUT6 is OUT4/n(n=1,2,3,,,n is integer)，
frequency change type:connet rs 232 port
power:DC4.9-12.5V,<0.1A
size，weight:L*W*H=103*80*22,60g

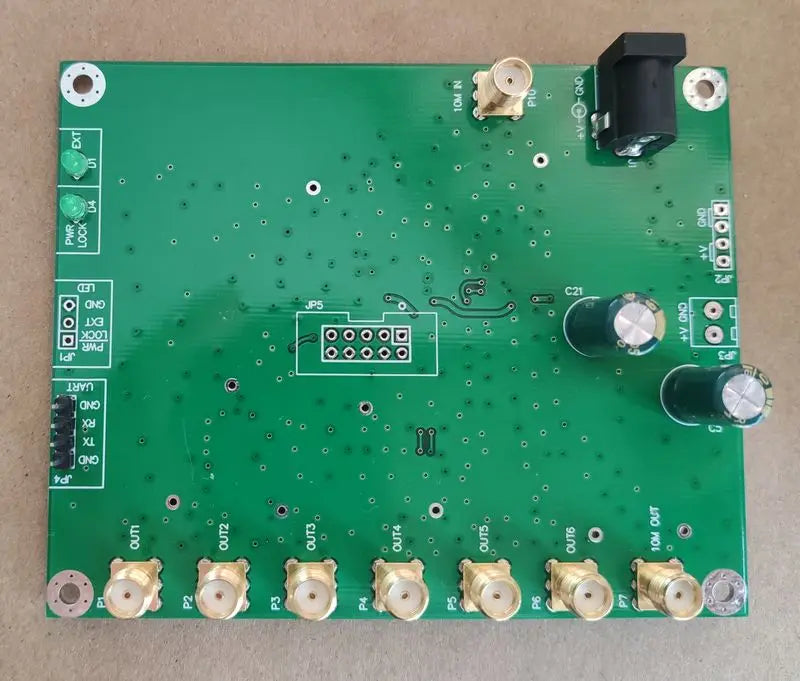

LED :EXT LED,with extern 10M signal ,LED ON
PWR/LOCK LED,PLL LOCK,LED ON,PLL unlock led flash,not power led all off
com port:GND,connect to RS232-pin5
RXD:connect to rs232-pin3
txd:connect to rs232-pin2
bauardrate:9600bps

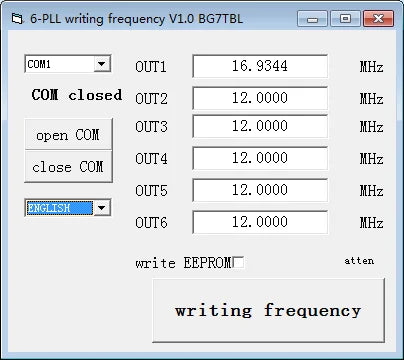

protocol:$WE000000000,000000000,000000000,000000000,000000000,000000000,*
000000000is output frequency,fix 9 digit number,ASCII code,Corresponding to OUT1-OUT6
used:connect power,connect PC,writing frequency complete,input 10M,used output frequency
application: audio,HIFI,communication,tester,
Description
Description
name:10M 6CH PLL BOARD
TYPE:10M-6PLL
input frequency:10MHz
input signal amplifiler:0.5-3.3Vpp,
output:OUT1-OUT6:10K-200M，step 10Hz，3.3Vpp square wave,OUT3 is OUT1/n(n=1,2,3,,,n is integer)，OUT6 is OUT4/n(n=1,2,3,,,n is integer)，
frequency change type:connet rs 232 port
power:DC4.9-12.5V,<0.1A
size，weight:L*W*H=103*80*22,60g
LED :EXT LED,with extern 10M signal ,LED ON
PWR/LOCK LED,PLL LOCK,LED ON,PLL unlock led flash,not power led all off
com port:GND,connect to RS232-pin5
RXD:connect to rs232-pin3
txd:connect to rs232-pin2
bauardrate:9600bps
protocol:$WE000000000,000000000,000000000,000000000,000000000,000000000,*
000000000is output frequency,fix 9 digit number,ASCII code,Corresponding to OUT1-OUT6
used:connect power,connect PC,writing frequency complete,input 10M,used output frequency
application: audio,HIFI,communication,tester,
